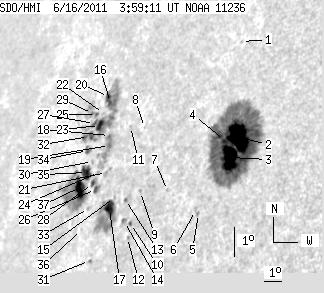

SDO HMI 2011-06-16 03:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 127.59 | 619.22 | 120.25 | 578.95 | 16.64 | 166.31 | -56.67 | 70.88 | 0.8473 | -176.3 | -9.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-16 03:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.64 | 20.32 | 169.17 | -53.81 | 66.03 | 0.8303 | -507.0 | -420.1 | |
| 38.54 | 324.83 | 32.57 | 275.35 | 17.26 | 170.41 | -52.57 | 69.38 | 0.8124 | -1019.1 | -223.5 | |
| 22.13 | -2.00 | 18.73 | -2.00 | 16.62 | 170.19 | -52.78 | 70.20 | 0.8132 | -958.4 | 999999 | |
| 1.72 | -2.00 | 1.48 | -2.00 | 17.15 | 169.71 | -53.27 | 69.67 | 0.8188 | 487.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.09 | 14.83 | 169.22 | -53.76 | 72.56 | 0.8193 | -547.0 | -523.4 | |
| 0.00 | 2.27 | 0.00 | 1.96 | 14.92 | 169.02 | -53.95 | 72.49 | 0.8213 | -511.0 | -473.5 | |
| 0.00 | 1.00 | 0.00 | 0.90 | 15.53 | 167.24 | -55.73 | 72.10 | 0.8388 | -264.0 | -249.8 | |
| 0.00 | 0.73 | 0.00 | 0.70 | 17.49 | 165.00 | -57.98 | 70.22 | 0.8613 | 582.0 | 500.5 | |
| 0.00 | 1.36 | 0.00 | 1.28 | 15.47 | 165.71 | -57.27 | 72.43 | 0.8524 | -380.0 | -383.3 | |
| 1.36 | 2.09 | 1.28 | 1.96 | 14.46 | 165.55 | -57.43 | 73.64 | 0.8525 | -562.7 | -449.6 | |
| 0.00 | 0.36 | 0.00 | 0.36 | 17.51 | 164.13 | -58.85 | 70.36 | 0.8685 | 469.0 | 452.8 | |
| 0.00 | 1.18 | 0.00 | 1.11 | 14.02 | 165.54 | -57.43 | 74.15 | 0.8520 | 210.0 | 96.1 | |
| 1.27 | 3.63 | 1.22 | 3.47 | 15.21 | 164.93 | -58.04 | 72.87 | 0.8588 | -513.7 | -113.7 | |
| 0.00 | 3.08 | 0.00 | 2.94 | 14.52 | 165.17 | -57.81 | 73.63 | 0.8559 | -699.0 | -524.4 | |
| 0.00 | 1.18 | 0.00 | 1.15 | 15.26 | 164.24 | -58.73 | 72.91 | 0.8647 | -471.0 | -382.2 | |
| 1.18 | 79.35 | 1.24 | 83.38 | 18.25 | 162.44 | -60.54 | 69.81 | 0.8829 | 821.4 | 478.1 | |
| 10.25 | 48.88 | 10.06 | 48.12 | 14.91 | 164.09 | -58.88 | 73.34 | 0.8655 | -655.3 | -222.7 | |
| 0.82 | 24.58 | 0.84 | 25.11 | 17.21 | 162.96 | -60.01 | 70.90 | 0.8775 | 518.7 | 546.9 | |
| 2.45 | -18.00 | 2.50 | -18.00 | 16.89 | 163.13 | -59.84 | 71.23 | 0.8758 | 546.3 | 999999 | |
| 1.90 | -16.00 | 2.01 | -16.00 | 18.44 | 162.19 | -60.78 | 69.64 | 0.8850 | 465.0 | 999999 | |
| 0.00 | 3.90 | 0.00 | 3.93 | 16.04 | 163.38 | -59.60 | 72.16 | 0.8728 | 566.0 | 498.0 | |
| 0.00 | 1.09 | 0.00 | 1.15 | 17.90 | 162.18 | -60.79 | 70.25 | 0.8844 | 569.0 | 524.3 | |
| 4.35 | -16.00 | 4.58 | -16.00 | 17.51 | 162.14 | -60.84 | 70.69 | 0.8843 | 806.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.39 | 16.03 | 162.87 | -60.10 | 72.24 | 0.8768 | 685.0 | 597.5 | |
| 1.36 | 13.60 | 1.45 | 14.72 | 17.86 | 161.74 | -61.24 | 70.36 | 0.8878 | 391.1 | -125.5 | |
| 2.99 | 9.98 | 3.04 | 10.19 | 15.49 | 162.94 | -60.03 | 72.84 | 0.8756 | 691.9 | 594.7 | |
| 0.91 | -16.00 | 0.97 | -16.00 | 17.57 | 161.77 | -61.20 | 70.68 | 0.8872 | 474.5 | 999999 | |
| 2.81 | -26.00 | 2.89 | -26.00 | 15.68 | 162.66 | -60.31 | 72.67 | 0.8781 | 622.5 | 999999 | |
| 1.09 | -25.00 | 1.17 | -25.00 | 17.89 | 161.45 | -61.52 | 70.38 | 0.8900 | 209.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.51 | 16.37 | 162.31 | -60.67 | 71.94 | 0.8817 | 564.0 | 515.4 | |
| 0.36 | 1.36 | 0.36 | 1.35 | 13.27 | 163.55 | -59.42 | 75.29 | 0.8683 | 476.0 | 406.0 | |
| 5.53 | -16.00 | 5.91 | -16.00 | 17.15 | 161.61 | -61.36 | 71.17 | 0.8879 | 467.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.39 | 14.89 | 162.78 | -60.19 | 73.55 | 0.8763 | 583.0 | 485.3 | |
| 3.63 | 4.99 | 3.85 | 5.28 | 16.71 | 161.79 | -61.18 | 71.64 | 0.8861 | 391.5 | 511.7 | |
| 9.88 | 82.61 | 10.36 | 87.50 | 16.02 | 162.10 | -60.88 | 72.37 | 0.8829 | 625.9 | 97.6 | |
| 0.00 | 1.00 | 0.00 | 1.02 | 14.23 | 162.64 | -60.34 | 74.32 | 0.8768 | 313.0 | 286.3 | |
| 13.06 | -35.00 | 13.74 | -35.00 | 15.54 | 161.88 | -61.09 | 72.94 | 0.8841 | 653.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
