SDO HMI 2011-06-16 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 127.58 | 506.17 | 72.68 | 288.01 | -15.01 | 247.37 | 24.94 | 235.72 | 0.4945 | 178.1 | 150.9 | |
|
previous
or next observation for the same group /

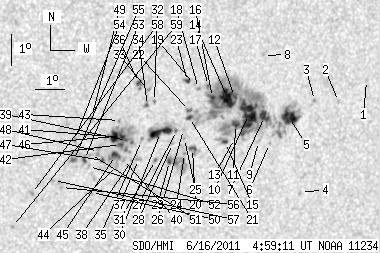

back to the solar disc SDO HMI 2011-06-16 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.86 | -13.73 | 252.79 | 30.36 | 242.68 | 0.5548 | 609.0 | 508.5 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -14.38 | 251.87 | 29.44 | 240.92 | 0.5469 | 734.0 | 625.7 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -14.34 | 251.00 | 28.57 | 240.30 | 0.5355 | 671.0 | 480.3 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -17.27 | 250.95 | 28.52 | 235.51 | 0.5553 | 802.0 | 657.2 | |
| 14.96 | 310.34 | 8.72 | 177.95 | -14.87 | 250.18 | 27.75 | 238.73 | 0.5286 | 967.9 | 466.6 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -15.69 | 249.58 | 27.16 | 236.84 | 0.5270 | 588.0 | 496.2 | |
| 7.71 | -5.00 | 4.45 | -5.00 | -14.83 | 249.29 | 26.86 | 238.02 | 0.5169 | 869.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -12.90 | 249.01 | 26.58 | 241.15 | 0.5000 | 788.0 | 587.8 | |
| 0.00 | 1.72 | 0.00 | 1.00 | -15.62 | 249.18 | 26.76 | 236.59 | 0.5215 | 482.0 | 351.2 | |
| 30.29 | -5.00 | 17.41 | -5.00 | -14.76 | 248.71 | 26.29 | 237.61 | 0.5092 | 1040.9 | 999999 | |
| 3.63 | -5.00 | 2.08 | -5.00 | -15.07 | 248.30 | 25.87 | 236.68 | 0.5062 | 1018.7 | 999999 | |
| 2.63 | -5.00 | 1.50 | -5.00 | -14.19 | 248.15 | 25.72 | 238.08 | 0.4977 | 995.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -15.52 | 248.32 | 25.89 | 235.94 | 0.5099 | 606.0 | 518.7 | |
| 16.23 | -5.00 | 9.24 | -5.00 | -14.22 | 247.91 | 25.48 | 237.80 | 0.4948 | 1209.0 | 999999 | |
| 1.90 | 6.08 | 1.09 | 3.48 | -15.64 | 248.02 | 25.60 | 235.44 | 0.5072 | 806.8 | 386.7 | |
| 1.63 | -5.00 | 0.93 | -5.00 | -14.21 | 247.39 | 24.96 | 237.30 | 0.4881 | 972.4 | 999999 | |
| 1.18 | -5.00 | 0.67 | -5.00 | -13.83 | 247.20 | 24.78 | 237.80 | 0.4828 | 962.8 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.18 | -13.92 | 246.87 | 24.44 | 237.30 | 0.4792 | 908.0 | 748.5 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -13.80 | 246.72 | 24.29 | 237.38 | 0.4762 | 665.0 | 514.0 | |
| 2.90 | 5.80 | 1.65 | 3.31 | -15.82 | 246.89 | 24.47 | 233.98 | 0.4946 | -687.2 | -593.9 | |
| 2.45 | -5.00 | 1.38 | -5.00 | -14.84 | 246.66 | 24.24 | 235.45 | 0.4838 | -648.2 | 999999 | |
| 0.82 | -5.00 | 0.46 | -5.00 | -14.62 | 246.64 | 24.21 | 235.82 | 0.4817 | -744.2 | 999999 | |
| 1.54 | 3.26 | 0.87 | 1.83 | -13.70 | 246.47 | 24.04 | 237.30 | 0.4722 | 894.9 | 780.9 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -15.98 | 246.63 | 24.21 | 233.43 | 0.4928 | -425.0 | -319.0 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -15.50 | 246.57 | 24.15 | 234.19 | 0.4880 | -664.0 | -466.6 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -15.22 | 246.50 | 24.08 | 234.61 | 0.4848 | -143.0 | -93.9 | |
| 0.63 | 1.63 | 0.36 | 0.92 | -15.25 | 246.26 | 23.84 | 234.30 | 0.4821 | -589.7 | -445.8 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -15.66 | 246.18 | 23.75 | 233.49 | 0.4844 | 667.0 | 494.6 | |
| 1.90 | 21.86 | 1.08 | 12.43 | -16.23 | 246.15 | 23.72 | 232.47 | 0.4889 | -718.0 | -247.9 | |
| 12.15 | 26.12 | 6.84 | 14.69 | -15.31 | 245.72 | 23.29 | 233.60 | 0.4758 | -712.6 | -100.5 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -16.20 | 245.66 | 23.23 | 231.98 | 0.4827 | -768.0 | -599.8 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -14.32 | 245.40 | 22.98 | 235.01 | 0.4635 | -692.0 | -483.2 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -13.97 | 245.16 | 22.73 | 235.38 | 0.4576 | -816.0 | -639.9 | |
| 1.18 | 2.63 | 0.66 | 1.47 | -14.45 | 245.18 | 22.75 | 234.53 | 0.4617 | -773.6 | -667.8 | |
| 0.00 | 2.36 | 0.00 | 1.32 | -15.55 | 245.10 | 22.67 | 232.45 | 0.4703 | -555.0 | -331.0 | |
| 2.09 | 4.44 | 1.16 | 2.47 | -13.72 | 244.79 | 22.37 | 235.44 | 0.4507 | -906.0 | -782.3 | |
| 0.00 | 2.99 | 0.00 | 1.68 | -16.16 | 245.07 | 22.64 | 231.36 | 0.4753 | -619.0 | -572.6 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -16.19 | 244.83 | 22.40 | 231.03 | 0.4727 | -790.0 | -671.3 | |
| 1.09 | 50.70 | 0.61 | 28.28 | -15.55 | 244.58 | 22.16 | 231.84 | 0.4639 | -815.3 | -597.4 | |
| 0.00 | 1.72 | 0.00 | 0.97 | -16.15 | 244.55 | 22.12 | 230.75 | 0.4690 | -551.0 | -507.9 | |
| 1.72 | -39.00 | 0.96 | -39.00 | -15.45 | 244.44 | 22.01 | 231.84 | 0.4613 | -1063.4 | 999999 | |
| 2.18 | -39.00 | 1.22 | -39.00 | -15.68 | 244.39 | 21.97 | 231.39 | 0.4628 | -955.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -14.91 | 244.27 | 21.85 | 232.61 | 0.4545 | -884.0 | -646.4 | |
| 0.00 | 2.09 | 0.00 | 1.17 | -16.34 | 244.37 | 21.94 | 230.20 | 0.4686 | 2.0 | -37.8 | |
| 4.53 | 8.80 | 2.53 | 4.92 | -16.03 | 244.26 | 21.84 | 230.62 | 0.4644 | -950.7 | -713.3 | |
| 6.53 | -39.00 | 3.63 | -39.00 | -15.42 | 244.16 | 21.73 | 231.56 | 0.4576 | -1154.4 | 999999 | |
| 1.36 | 1.81 | 0.76 | 1.01 | -16.18 | 243.84 | 21.41 | 229.82 | 0.4608 | -651.5 | -664.0 | |
| 0.00 | 3.36 | 0.00 | 1.87 | -15.89 | 243.67 | 21.24 | 230.10 | 0.4560 | -769.0 | -767.6 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -14.81 | 243.32 | 20.89 | 231.60 | 0.4417 | -895.0 | -764.7 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -17.20 | 243.58 | 21.15 | 227.75 | 0.4676 | 548.0 | 368.2 | |
| 0.00 | 2.27 | 0.00 | 1.26 | -15.99 | 243.41 | 20.98 | 229.60 | 0.4538 | -832.0 | -699.8 | |
| 0.00 | 2.00 | 0.00 | 1.11 | -16.37 | 243.38 | 20.95 | 228.90 | 0.4572 | -590.0 | -510.6 | |
| 1.72 | 3.63 | 0.96 | 2.01 | -16.14 | 243.22 | 20.79 | 229.08 | 0.4531 | -968.3 | -718.3 | |
| 0.00 | 2.36 | 0.00 | 1.30 | -15.50 | 242.81 | 20.39 | 229.68 | 0.4421 | -952.0 | -796.8 | |
| 2.63 | 6.71 | 1.46 | 3.71 | -16.17 | 242.85 | 20.42 | 228.54 | 0.4490 | -888.6 | -825.1 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -17.03 | 242.54 | 20.11 | 226.64 | 0.4540 | -699.0 | -531.6 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -16.81 | 242.24 | 19.82 | 226.61 | 0.4484 | -853.0 | -709.0 | |
| 0.00 | 2.00 | 0.00 | 1.10 | -17.22 | 241.54 | 19.12 | 224.93 | 0.4448 | -892.0 | -759.3 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -18.28 | 241.02 | 18.59 | 222.43 | 0.4505 | -798.0 | -619.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
