SDO HMI 2011-06-16 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.61 | 525.19 | 71.84 | 300.20 | -15.03 | 247.31 | 25.43 | 236.18 | 0.5009 | 113.6 | 162.8 | |
|
previous
or next observation for the same group /

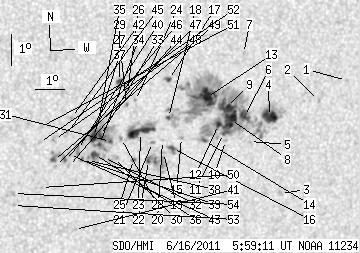

back to the solar disc SDO HMI 2011-06-16 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.60 | -13.76 | 252.83 | 30.95 | 243.04 | 0.5626 | 685.0 | 553.7 | |
| 0.00 | 1.72 | 0.00 | 1.02 | -14.38 | 251.90 | 30.02 | 241.35 | 0.5543 | 612.0 | 556.3 | |
| 0.00 | 2.90 | 0.00 | 1.74 | -17.33 | 250.99 | 29.11 | 235.92 | 0.5629 | 723.0 | 553.7 | |
| 14.69 | 30.93 | 8.61 | 18.13 | -14.87 | 250.20 | 28.32 | 239.21 | 0.5358 | 964.0 | 381.9 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -15.65 | 249.60 | 27.72 | 237.39 | 0.5338 | 420.0 | 442.7 | |
| 8.16 | 298.38 | 4.74 | 171.59 | -14.86 | 249.31 | 27.43 | 238.46 | 0.5244 | 804.7 | 468.5 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -12.87 | 249.02 | 27.14 | 241.67 | 0.5072 | 738.0 | 595.1 | |
| 15.78 | -6.00 | 9.13 | -6.00 | -14.95 | 248.82 | 26.94 | 237.88 | 0.5189 | 1010.0 | 999999 | |
| 11.79 | -6.00 | 6.80 | -6.00 | -14.57 | 248.63 | 26.75 | 238.36 | 0.5137 | 1060.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -15.61 | 248.74 | 26.86 | 236.68 | 0.5227 | 487.0 | 298.5 | |
| 0.27 | -6.00 | 0.16 | -6.00 | -15.39 | 248.63 | 26.76 | 236.96 | 0.5198 | -393.7 | 999999 | |
| 2.36 | -6.00 | 1.36 | -6.00 | -15.10 | 248.42 | 26.54 | 237.25 | 0.5149 | 1062.0 | 999999 | |
| 21.22 | -6.00 | 12.14 | -6.00 | -14.24 | 247.88 | 26.01 | 238.24 | 0.5018 | 1178.3 | 999999 | |
| 1.09 | -6.00 | 0.63 | -6.00 | -15.64 | 248.03 | 26.15 | 235.98 | 0.5141 | 774.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -15.50 | 247.17 | 25.29 | 235.36 | 0.5024 | 296.0 | 342.5 | |
| 2.72 | 7.35 | 1.56 | 4.21 | -15.85 | 246.90 | 25.02 | 234.50 | 0.5018 | -708.1 | -381.5 | |
| 2.18 | 3.26 | 1.23 | 1.84 | -13.66 | 246.50 | 24.62 | 237.94 | 0.4795 | 1005.7 | 808.5 | |
| 1.45 | -6.00 | 0.82 | -6.00 | -14.86 | 246.64 | 24.76 | 235.93 | 0.4906 | -552.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -15.98 | 246.60 | 24.73 | 233.98 | 0.4992 | -343.0 | -237.5 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -15.59 | 246.52 | 24.64 | 234.54 | 0.4950 | -595.0 | -431.4 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -15.65 | 246.18 | 24.30 | 234.08 | 0.4913 | 628.0 | 525.3 | |
| 1.09 | 21.40 | 0.62 | 12.23 | -16.23 | 246.12 | 24.24 | 233.04 | 0.4953 | -825.9 | -243.8 | |
| 15.15 | 33.10 | 8.56 | 18.70 | -15.33 | 245.72 | 23.85 | 234.15 | 0.4830 | -746.3 | 9.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -14.32 | 245.43 | 23.55 | 235.64 | 0.4709 | -693.0 | -516.3 | |
| 1.45 | 1.63 | 0.82 | 0.93 | -16.19 | 245.59 | 23.71 | 232.52 | 0.4886 | -620.2 | -564.0 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -14.00 | 245.12 | 23.25 | 235.89 | 0.4644 | -947.0 | -700.9 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -14.44 | 245.14 | 23.26 | 235.10 | 0.4682 | -686.0 | -605.0 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -15.52 | 245.09 | 23.21 | 233.12 | 0.4767 | -794.0 | -628.6 | |
| 2.90 | 5.35 | 1.62 | 2.98 | -13.71 | 244.82 | 22.94 | 236.09 | 0.4582 | -878.2 | -717.5 | |
| 0.00 | 4.81 | 0.00 | 2.71 | -16.15 | 244.89 | 23.01 | 231.80 | 0.4798 | -705.0 | -593.2 | |
| 1.63 | 49.52 | 0.92 | 27.71 | -15.61 | 244.72 | 22.85 | 232.54 | 0.4730 | -728.2 | -608.1 | |
| 0.00 | 2.27 | 0.00 | 1.28 | -16.12 | 244.54 | 22.67 | 231.45 | 0.4753 | -586.0 | -501.1 | |
| 2.72 | -31.00 | 1.52 | -31.00 | -15.42 | 244.36 | 22.48 | 232.45 | 0.4668 | -1082.4 | 999999 | |
| 1.27 | -31.00 | 0.71 | -31.00 | -15.70 | 244.36 | 22.48 | 231.95 | 0.4693 | -981.1 | 999999 | |
| 1.09 | -31.00 | 0.61 | -31.00 | -14.94 | 244.24 | 22.36 | 233.16 | 0.4611 | -833.9 | 999999 | |
| 4.81 | 7.71 | 2.70 | 4.33 | -16.02 | 244.22 | 22.34 | 231.24 | 0.4705 | -956.6 | -353.2 | |
| 6.53 | -31.00 | 3.65 | -31.00 | -15.45 | 244.12 | 22.24 | 232.12 | 0.4642 | -1195.5 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.47 | -16.21 | 244.01 | 22.13 | 230.65 | 0.4696 | -476.0 | -382.0 | |
| 1.45 | 1.81 | 0.81 | 1.02 | -16.18 | 243.80 | 21.92 | 230.45 | 0.4668 | -664.2 | -667.2 | |
| 0.00 | 4.08 | 0.00 | 2.28 | -15.86 | 243.62 | 21.74 | 230.79 | 0.4618 | -935.0 | -790.2 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -18.42 | 243.84 | 21.96 | 226.79 | 0.4887 | 288.0 | 424.3 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -14.84 | 243.31 | 21.43 | 232.22 | 0.4487 | -891.0 | -759.4 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -16.01 | 243.37 | 21.49 | 230.20 | 0.4602 | -866.0 | -718.9 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -16.40 | 243.38 | 21.50 | 229.55 | 0.4639 | -684.0 | -547.5 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -15.31 | 243.22 | 21.34 | 231.25 | 0.4519 | -743.0 | -494.9 | |
| 1.27 | 11.43 | 0.71 | 6.36 | -16.20 | 243.25 | 21.37 | 229.72 | 0.4606 | -923.5 | -859.9 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -16.39 | 242.93 | 21.06 | 228.99 | 0.4587 | -711.0 | -578.9 | |
| 0.00 | 2.63 | 0.00 | 1.46 | -15.53 | 242.81 | 20.93 | 230.33 | 0.4489 | -861.0 | -764.2 | |
| 2.54 | -46.00 | 1.41 | -46.00 | -16.20 | 242.84 | 20.97 | 229.20 | 0.4558 | -922.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -17.06 | 242.53 | 20.66 | 227.32 | 0.4606 | -698.0 | -598.8 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -15.12 | 242.32 | 20.44 | 230.45 | 0.4392 | -750.0 | -633.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -15.62 | 242.31 | 20.43 | 229.51 | 0.4438 | -930.0 | -648.4 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -17.63 | 241.65 | 19.77 | 225.16 | 0.4564 | -656.0 | -427.3 | |
| 0.00 | 2.81 | 0.00 | 1.56 | -17.25 | 241.60 | 19.73 | 225.74 | 0.4519 | -860.0 | -690.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
