SDO HMI 2011-06-16 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 120.53 | 649.92 | 110.43 | 591.81 | 16.67 | 166.23 | -55.65 | 70.67 | 0.8382 | -184.5 | -4.3 | |
|
previous
or next observation for the same group /

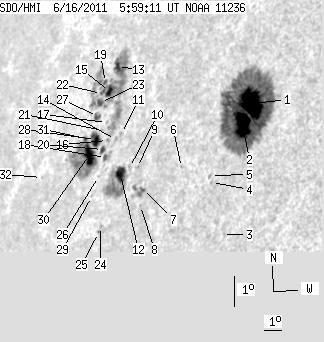

back to the solar disc SDO HMI 2011-06-16 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.64 | 335.75 | 28.59 | 278.00 | 17.28 | 170.39 | -51.49 | 69.10 | 0.8020 | -1063.6 | -213.1 | |
| 24.03 | -1.00 | 19.85 | -1.00 | 16.61 | 170.18 | -51.70 | 69.97 | 0.8026 | -950.8 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.52 | 13.15 | 170.33 | -51.55 | 74.21 | 0.7947 | -404.0 | -396.6 | |
| 0.00 | 0.82 | 0.00 | 0.68 | 14.77 | 169.25 | -52.63 | 72.43 | 0.8083 | -544.0 | -546.2 | |
| 0.00 | 1.45 | 0.00 | 1.22 | 14.99 | 169.12 | -52.76 | 72.19 | 0.8099 | -375.0 | -397.4 | |
| 0.00 | 1.00 | 0.00 | 0.87 | 15.22 | 167.48 | -54.40 | 72.24 | 0.8260 | -325.0 | -304.5 | |
| 1.63 | 11.70 | 1.49 | 10.76 | 14.49 | 165.58 | -56.29 | 73.43 | 0.8424 | -645.7 | -455.4 | |
| 0.00 | 1.00 | 0.00 | 0.91 | 13.99 | 165.66 | -56.22 | 74.01 | 0.8410 | 164.0 | 138.5 | |
| 0.00 | 1.54 | 0.00 | 1.43 | 15.18 | 165.02 | -56.86 | 72.72 | 0.8484 | -702.0 | -520.3 | |
| 0.00 | 1.90 | 0.00 | 1.79 | 15.17 | 164.56 | -57.32 | 72.81 | 0.8525 | -426.0 | -354.3 | |
| 0.00 | 2.00 | 0.00 | 1.94 | 16.23 | 163.60 | -58.28 | 71.74 | 0.8620 | 535.0 | 462.2 | |
| 10.97 | 51.97 | 10.44 | 49.64 | 14.94 | 164.12 | -57.76 | 73.14 | 0.8560 | -681.9 | -227.4 | |
| 3.63 | 131.14 | 3.69 | 133.09 | 18.34 | 162.25 | -59.63 | 69.56 | 0.8759 | 673.2 | 424.4 | |
| 0.00 | 1.72 | 0.00 | 1.68 | 16.04 | 163.33 | -58.55 | 72.01 | 0.8641 | 621.0 | 538.1 | |
| 4.63 | -13.00 | 4.71 | -13.00 | 17.54 | 162.18 | -59.70 | 70.47 | 0.8754 | 810.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.44 | 16.00 | 162.85 | -59.03 | 72.13 | 0.8680 | 701.0 | 621.6 | |
| 0.00 | 1.18 | 0.00 | 1.18 | 16.56 | 162.51 | -59.37 | 71.54 | 0.8715 | 644.0 | 606.0 | |
| 2.27 | 6.08 | 2.23 | 5.97 | 15.46 | 162.98 | -58.90 | 72.72 | 0.8663 | 660.3 | 559.9 | |
| 2.00 | -13.00 | 2.06 | -13.00 | 17.82 | 161.77 | -60.11 | 70.23 | 0.8790 | 380.5 | 999999 | |
| 2.81 | 4.26 | 2.80 | 4.24 | 15.71 | 162.68 | -59.20 | 72.48 | 0.8691 | 619.8 | 542.5 | |
| 0.00 | 1.00 | 0.00 | 1.00 | 16.31 | 162.39 | -59.49 | 71.85 | 0.8722 | 618.0 | 566.4 | |
| 0.91 | -13.00 | 0.94 | -13.00 | 17.47 | 161.71 | -60.17 | 70.63 | 0.8790 | 400.0 | 999999 | |
| 4.08 | -13.00 | 4.20 | -13.00 | 17.19 | 161.80 | -60.08 | 70.94 | 0.8780 | 619.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.22 | 13.30 | 163.59 | -58.29 | 75.12 | 0.8586 | 348.0 | 292.0 | |
| 0.00 | 1.00 | 0.00 | 0.96 | 13.11 | 163.54 | -58.34 | 75.34 | 0.8588 | 388.0 | 426.8 | |
| 0.00 | 0.82 | 0.00 | 0.81 | 14.86 | 162.82 | -59.06 | 73.43 | 0.8669 | 576.0 | 501.6 | |
| 4.08 | 5.08 | 4.18 | 5.20 | 16.74 | 161.84 | -60.03 | 71.44 | 0.8771 | 427.9 | 474.3 | |
| 10.43 | 83.89 | 10.58 | 85.95 | 16.02 | 162.09 | -59.79 | 72.22 | 0.8743 | 617.5 | 63.5 | |
| 0.00 | 0.82 | 0.00 | 0.81 | 14.23 | 162.66 | -59.21 | 74.18 | 0.8675 | 292.0 | 215.9 | |
| 13.42 | -28.00 | 13.64 | -28.00 | 15.54 | 161.94 | -59.94 | 72.78 | 0.8749 | 709.9 | 999999 | |
| 1.00 | -28.00 | 1.03 | -28.00 | 16.04 | 161.44 | -60.44 | 72.29 | 0.8795 | 107.1 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.50 | 14.77 | 159.14 | -62.74 | 74.02 | 0.8960 | 363.0 | 300.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
