SDO HMI 2011-06-16 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 135.03 | 501.31 | 77.94 | 288.80 | -15.07 | 247.13 | 26.35 | 236.98 | 0.5128 | 165.6 | 138.1 | |
|
previous
or next observation for the same group /

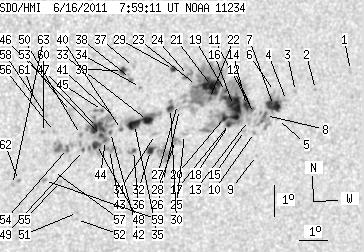

back to the solar disc SDO HMI 2011-06-16 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 1.32 | -13.77 | 252.95 | 32.16 | 243.82 | 0.5783 | 573.0 | 477.1 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -14.35 | 251.75 | 30.96 | 242.06 | 0.5663 | 675.0 | 592.5 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -14.41 | 251.02 | 30.24 | 241.45 | 0.5574 | 761.0 | 604.8 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -14.69 | 250.74 | 29.95 | 240.78 | 0.5555 | -30.0 | 33.1 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -15.29 | 250.50 | 29.72 | 239.63 | 0.5564 | 376.0 | 254.1 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -14.40 | 250.26 | 29.48 | 240.89 | 0.5476 | 622.0 | 479.8 | |
| 13.69 | 16.87 | 8.12 | 10.00 | -14.84 | 250.29 | 29.51 | 240.18 | 0.5508 | 932.3 | 605.7 | |
| 1.18 | 16.23 | 0.70 | 9.61 | -15.16 | 250.05 | 29.26 | 239.48 | 0.5498 | 910.4 | 553.5 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -16.43 | 249.92 | 29.14 | 237.34 | 0.5569 | 447.0 | 372.3 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -15.69 | 249.73 | 28.95 | 238.35 | 0.5495 | 604.0 | 482.4 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -15.09 | 249.64 | 28.86 | 239.26 | 0.5442 | 612.0 | 620.5 | |
| 0.63 | 231.54 | 0.37 | 134.45 | -14.96 | 249.55 | 28.76 | 239.40 | 0.5422 | 820.6 | 500.1 | |
| 0.00 | 3.63 | 0.00 | 2.14 | -15.31 | 249.46 | 28.67 | 238.75 | 0.5434 | 148.0 | 281.8 | |
| 3.90 | -12.00 | 2.29 | -12.00 | -14.83 | 249.31 | 28.53 | 239.42 | 0.5384 | 780.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -15.63 | 249.36 | 28.58 | 238.16 | 0.5444 | 539.0 | 514.3 | |
| 26.12 | -12.00 | 15.26 | -12.00 | -14.83 | 248.85 | 28.06 | 239.04 | 0.5324 | 1039.4 | 999999 | |
| 1.54 | -12.00 | 0.90 | -12.00 | -15.40 | 248.79 | 28.00 | 238.04 | 0.5356 | 300.5 | 999999 | |
| 1.45 | -12.00 | 0.85 | -12.00 | -15.46 | 248.76 | 27.98 | 237.92 | 0.5357 | -325.2 | 999999 | |
| 1.63 | -12.00 | 0.95 | -12.00 | -14.38 | 248.50 | 27.72 | 239.50 | 0.5249 | 955.3 | 999999 | |
| 3.54 | -12.00 | 2.07 | -12.00 | -15.21 | 248.58 | 27.80 | 238.18 | 0.5316 | 1083.2 | 999999 | |
| 23.58 | -12.00 | 13.63 | -12.00 | -14.19 | 247.98 | 27.19 | 239.39 | 0.5168 | 1153.7 | 999999 | |
| 0.54 | -12.00 | 0.32 | -12.00 | -14.60 | 247.96 | 27.18 | 238.67 | 0.5195 | 867.2 | 999999 | |
| 0.63 | -12.00 | 0.37 | -12.00 | -14.18 | 247.45 | 26.66 | 238.93 | 0.5100 | 908.6 | 999999 | |
| 0.00 | 7.26 | 0.00 | 4.16 | -13.86 | 247.13 | 26.34 | 239.20 | 0.5036 | 927.0 | 876.1 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -15.73 | 247.23 | 26.45 | 236.09 | 0.5186 | 192.0 | 113.0 | |
| 0.00 | 2.09 | 0.00 | 1.20 | -14.94 | 246.95 | 26.16 | 237.17 | 0.5090 | -2.0 | 5.3 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -14.78 | 246.86 | 26.07 | 237.35 | 0.5067 | 108.0 | 2.5 | |
| 0.00 | 7.89 | 0.00 | 4.56 | -15.92 | 246.94 | 26.16 | 235.50 | 0.5164 | -776.0 | -519.4 | |
| 2.54 | 3.08 | 1.45 | 1.76 | -13.67 | 246.58 | 25.80 | 239.04 | 0.4950 | 925.5 | 784.7 | |
| 3.36 | 6.80 | 1.92 | 3.90 | -14.90 | 246.63 | 25.84 | 236.92 | 0.5047 | -471.4 | -97.4 | |
| 0.00 | 2.09 | 0.00 | 1.20 | -15.72 | 246.21 | 25.43 | 235.11 | 0.5058 | 409.0 | 343.7 | |
| 3.72 | 24.22 | 2.14 | 13.97 | -16.23 | 246.10 | 25.32 | 234.15 | 0.5086 | -754.8 | -68.2 | |
| 6.80 | 34.19 | 3.88 | 19.47 | -15.28 | 245.87 | 25.09 | 235.53 | 0.4981 | -735.3 | 63.2 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -14.23 | 245.50 | 24.71 | 237.00 | 0.4852 | -674.0 | -488.8 | |
| 9.98 | -33.00 | 5.68 | -33.00 | -15.40 | 245.43 | 24.65 | 234.87 | 0.4936 | -804.6 | 999999 | |
| 1.72 | 3.54 | 0.99 | 2.02 | -16.23 | 245.51 | 24.72 | 233.54 | 0.5013 | -626.3 | -680.8 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -13.56 | 245.18 | 24.40 | 237.89 | 0.4760 | -603.0 | -433.5 | |
| 0.00 | 3.36 | 0.00 | 1.89 | -13.94 | 245.12 | 24.34 | 237.13 | 0.4781 | -780.0 | -679.2 | |
| 3.72 | 5.17 | 2.09 | 2.90 | -13.68 | 244.82 | 24.03 | 237.29 | 0.4722 | -922.5 | -680.8 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -15.55 | 245.00 | 24.22 | 234.15 | 0.4895 | -854.0 | -733.9 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -15.20 | 244.75 | 23.97 | 234.49 | 0.4835 | -32.0 | -23.6 | |
| 0.54 | 60.31 | 0.31 | 34.05 | -15.65 | 244.63 | 23.85 | 233.59 | 0.4857 | -651.0 | -545.4 | |
| 0.00 | 6.35 | 0.00 | 3.61 | -16.19 | 244.67 | 23.88 | 232.70 | 0.4907 | -726.0 | -641.1 | |
| 1.27 | -42.00 | 0.72 | -42.00 | -15.90 | 244.49 | 23.71 | 233.00 | 0.4861 | -688.1 | 999999 | |
| 1.27 | 3.54 | 0.71 | 1.99 | -14.94 | 244.27 | 23.49 | 234.43 | 0.4753 | -657.6 | -700.2 | |
| 2.00 | -42.00 | 1.13 | -42.00 | -15.74 | 244.33 | 23.55 | 233.10 | 0.4828 | -962.9 | 999999 | |
| 12.15 | -42.00 | 6.85 | -42.00 | -15.48 | 244.16 | 23.38 | 233.36 | 0.4785 | -1113.2 | 999999 | |
| 4.35 | -42.00 | 2.46 | -42.00 | -16.02 | 244.19 | 23.41 | 232.46 | 0.4836 | -921.0 | 999999 | |
| 1.09 | 3.36 | 0.61 | 1.89 | -16.21 | 243.77 | 22.99 | 231.65 | 0.4801 | -746.7 | -810.8 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -15.70 | 243.60 | 22.82 | 232.34 | 0.4736 | -996.0 | -860.0 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -18.20 | 243.82 | 23.04 | 228.44 | 0.4989 | 698.0 | 487.5 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -18.43 | 243.82 | 23.04 | 228.08 | 0.5010 | 662.0 | 482.5 | |
| 0.00 | 5.26 | 0.00 | 2.94 | -14.97 | 243.18 | 22.39 | 233.14 | 0.4619 | -76.0 | -347.5 | |
| 2.09 | 16.33 | 1.17 | 9.15 | -16.14 | 243.21 | 22.43 | 231.11 | 0.4727 | -907.0 | -758.3 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -17.20 | 243.10 | 22.32 | 229.19 | 0.4812 | 410.0 | 235.9 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -15.60 | 242.70 | 21.92 | 231.44 | 0.4616 | -965.0 | -816.5 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -16.88 | 242.82 | 22.03 | 229.39 | 0.4748 | -619.0 | -455.9 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -15.09 | 242.37 | 21.59 | 231.95 | 0.4530 | -831.0 | -639.0 | |
| 0.00 | 2.18 | 0.00 | 1.22 | -17.16 | 242.54 | 21.76 | 228.57 | 0.4744 | -700.0 | -614.4 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -15.63 | 242.33 | 21.55 | 230.93 | 0.4574 | -899.0 | -634.1 | |
| 0.00 | 2.18 | 0.00 | 1.20 | -14.64 | 241.95 | 21.17 | 232.24 | 0.4438 | -777.0 | -634.6 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -17.15 | 241.65 | 20.87 | 227.43 | 0.4641 | -881.0 | -778.4 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -17.28 | 241.46 | 20.68 | 226.97 | 0.4632 | -792.0 | -620.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
