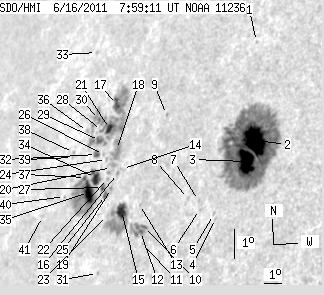

SDO HMI 2011-06-16 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 128.34 | 665.08 | 113.80 | 587.39 | 16.69 | 166.43 | -54.35 | 70.38 | 0.8265 | -195.2 | -10.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-16 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.69 | 20.46 | 169.11 | -51.68 | 65.30 | 0.8112 | -453.0 | -373.3 | |
| 40.09 | 353.26 | 32.33 | 285.86 | 17.30 | 170.40 | -50.38 | 68.80 | 0.7911 | -1037.8 | -192.9 | |
| 24.85 | -2.00 | 20.05 | -2.00 | 16.63 | 170.20 | -50.59 | 69.68 | 0.7916 | -965.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.11 | 14.82 | 169.26 | -51.52 | 72.15 | 0.7973 | -660.0 | -547.9 | |
| 0.00 | 1.27 | 0.00 | 1.04 | 14.94 | 169.12 | -51.66 | 72.02 | 0.7989 | -542.0 | -457.1 | |
| 0.00 | 1.09 | 0.00 | 0.91 | 15.09 | 168.35 | -52.44 | 72.01 | 0.8069 | -571.0 | -472.3 | |
| 0.00 | 1.36 | 0.00 | 1.14 | 15.37 | 168.20 | -52.59 | 71.70 | 0.8089 | -426.0 | -317.4 | |
| 0.00 | 1.63 | 0.00 | 1.39 | 15.42 | 167.65 | -53.13 | 71.74 | 0.8143 | -407.0 | -360.7 | |
| 0.00 | 1.27 | 0.00 | 1.15 | 18.06 | 165.33 | -55.45 | 69.09 | 0.8404 | 624.0 | 489.0 | |
| 2.18 | 17.50 | 1.93 | 15.68 | 14.51 | 165.60 | -55.18 | 73.23 | 0.8322 | -670.5 | -463.2 | |
| 0.00 | 0.82 | 0.00 | 0.72 | 13.98 | 165.69 | -55.09 | 73.85 | 0.8306 | 181.0 | 137.1 | |
| 1.09 | -10.00 | 0.97 | -10.00 | 14.35 | 165.44 | -55.34 | 73.44 | 0.8335 | -534.8 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.41 | 15.20 | 165.06 | -55.72 | 72.51 | 0.8382 | -617.0 | -565.8 | |
| 0.00 | 0.45 | 0.00 | 0.43 | 16.31 | 163.60 | -57.18 | 71.46 | 0.8528 | 584.0 | 524.6 | |
| 10.79 | 47.61 | 9.98 | 44.10 | 14.99 | 164.11 | -56.67 | 72.91 | 0.8464 | -682.9 | -266.6 | |
| 0.00 | 2.27 | 0.00 | 2.15 | 16.15 | 163.38 | -57.41 | 71.69 | 0.8545 | 623.0 | 476.1 | |
| 5.90 | 99.95 | 5.83 | 98.83 | 18.33 | 162.23 | -58.56 | 69.39 | 0.8672 | 614.5 | 381.2 | |
| 0.00 | 19.05 | 0.00 | 18.32 | 16.90 | 162.96 | -57.82 | 70.89 | 0.8591 | 601.0 | 553.2 | |
| 0.00 | 1.18 | 0.00 | 1.12 | 15.67 | 163.24 | -57.55 | 72.27 | 0.8550 | 595.0 | 580.7 | |
| 0.00 | 5.80 | 0.00 | 5.57 | 16.33 | 162.94 | -57.85 | 71.55 | 0.8585 | 652.0 | 551.8 | |
| 4.26 | -17.00 | 4.20 | -17.00 | 17.56 | 162.20 | -58.58 | 70.27 | 0.8663 | 831.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.31 | 15.98 | 162.86 | -57.93 | 71.97 | 0.8587 | 710.0 | 593.1 | |
| 0.00 | 1.00 | 0.00 | 0.94 | 14.82 | 163.37 | -57.42 | 73.23 | 0.8528 | 5.0 | -47.3 | |
| 0.00 | 1.36 | 0.00 | 1.32 | 16.58 | 162.51 | -58.27 | 71.34 | 0.8624 | 616.0 | 594.1 | |
| 2.81 | 7.35 | 2.69 | 7.05 | 15.45 | 162.98 | -57.80 | 72.57 | 0.8570 | 634.9 | 546.8 | |
| 0.00 | 1.18 | 0.00 | 1.16 | 16.73 | 162.26 | -58.53 | 71.21 | 0.8648 | 583.0 | 576.0 | |
| 2.81 | -25.00 | 2.71 | -25.00 | 15.70 | 162.69 | -58.10 | 72.33 | 0.8598 | 638.4 | 999999 | |
| 1.09 | -17.00 | 1.09 | -17.00 | 17.49 | 161.74 | -59.04 | 70.43 | 0.8700 | 464.3 | 999999 | |
| 3.54 | -17.00 | 3.52 | -17.00 | 17.17 | 161.79 | -59.00 | 70.78 | 0.8692 | 658.0 | 999999 | |
| 1.09 | -17.00 | 1.10 | -17.00 | 17.84 | 161.43 | -59.35 | 70.09 | 0.8730 | 227.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 1.02 | 13.01 | 163.49 | -57.29 | 75.33 | 0.8495 | 473.0 | 357.4 | |
| 3.81 | 4.63 | 3.78 | 4.59 | 16.73 | 161.83 | -58.96 | 71.29 | 0.8683 | 447.9 | 471.9 | |
| 0.00 | 1.18 | 0.00 | 1.26 | 19.97 | 159.96 | -60.83 | 67.95 | 0.8873 | 342.0 | 281.1 | |
| 10.52 | 82.71 | 10.32 | 81.82 | 16.00 | 162.12 | -58.66 | 72.07 | 0.8650 | 643.0 | 102.9 | |
| 12.88 | -34.00 | 12.67 | -34.00 | 15.53 | 161.91 | -58.87 | 72.65 | 0.8661 | 731.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.30 | 17.45 | 160.88 | -59.90 | 70.63 | 0.8769 | 145.0 | 47.9 | |
| 0.63 | -34.00 | 0.63 | -34.00 | 15.99 | 161.50 | -59.28 | 72.18 | 0.8700 | 221.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.22 | 16.77 | 160.34 | -60.44 | 71.48 | 0.8803 | 173.0 | 118.5 | |
| 0.00 | 1.18 | 0.00 | 1.22 | 16.61 | 160.36 | -60.42 | 71.65 | 0.8799 | 121.0 | 90.3 | |
| 0.00 | 1.09 | 0.00 | 1.12 | 15.38 | 160.47 | -60.31 | 73.03 | 0.8777 | -371.0 | -333.0 | |
| 0.00 | 1.36 | 0.00 | 1.44 | 14.73 | 159.35 | -61.43 | 73.91 | 0.8859 | 159.0 | 228.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
