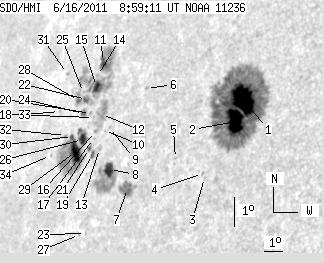

SDO HMI 2011-06-16 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.71 | 643.31 | 104.24 | 559.89 | 16.70 | 166.50 | -53.73 | 70.24 | 0.8208 | -198.1 | -13.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-16 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.36 | 349.80 | 32.21 | 279.94 | 17.31 | 170.35 | -49.88 | 68.66 | 0.7861 | -994.8 | -196.9 | |
| 25.30 | -1.00 | 20.19 | -1.00 | 16.61 | 170.21 | -50.02 | 69.57 | 0.7859 | -969.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.88 | 14.83 | 169.27 | -50.96 | 72.02 | 0.7917 | -708.0 | -601.8 | |
| 0.00 | 1.27 | 0.00 | 1.03 | 14.95 | 169.13 | -51.10 | 71.89 | 0.7933 | -549.0 | -478.1 | |
| 0.00 | 0.73 | 0.00 | 0.61 | 15.40 | 167.59 | -52.65 | 71.67 | 0.8095 | -472.0 | -401.0 | |
| 0.00 | 1.36 | 0.00 | 1.22 | 17.58 | 165.12 | -55.11 | 69.58 | 0.8365 | 580.0 | 486.3 | |
| 0.00 | 17.96 | 0.00 | 15.83 | 14.42 | 165.37 | -54.87 | 73.28 | 0.8291 | -691.0 | -521.1 | |
| 9.70 | 45.35 | 8.85 | 41.35 | 15.00 | 164.14 | -56.10 | 72.81 | 0.8413 | -701.5 | -304.6 | |
| 0.00 | 0.82 | 0.00 | 0.76 | 16.32 | 163.58 | -56.66 | 71.36 | 0.8482 | 578.0 | 519.4 | |
| 0.00 | 0.73 | 0.00 | 0.68 | 16.22 | 163.33 | -56.90 | 71.52 | 0.8502 | 585.0 | 587.9 | |
| 4.90 | 79.54 | 4.77 | 77.36 | 18.40 | 162.20 | -58.04 | 69.21 | 0.8631 | 563.8 | 388.7 | |
| 0.00 | 23.76 | 0.00 | 22.52 | 16.72 | 162.92 | -57.31 | 71.01 | 0.8545 | 785.0 | 564.2 | |
| 0.00 | 1.81 | 0.00 | 1.69 | 15.65 | 163.29 | -56.94 | 72.19 | 0.8497 | 480.0 | 417.9 | |
| 0.00 | 1.45 | 0.00 | 1.42 | 17.95 | 162.07 | -58.17 | 69.75 | 0.8635 | 480.0 | 422.1 | |
| 4.90 | -11.00 | 4.75 | -11.00 | 17.60 | 162.19 | -58.05 | 70.13 | 0.8619 | 833.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.38 | 16.18 | 162.82 | -57.42 | 71.66 | 0.8546 | 785.0 | 748.2 | |
| 0.00 | 1.09 | 0.00 | 1.03 | 15.96 | 162.80 | -57.43 | 71.92 | 0.8544 | 735.0 | 670.6 | |
| 0.00 | 0.82 | 0.00 | 0.78 | 16.62 | 162.50 | -57.74 | 71.20 | 0.8580 | 607.0 | 600.8 | |
| 2.72 | 6.62 | 2.56 | 6.26 | 15.46 | 162.97 | -57.27 | 72.47 | 0.8523 | 649.2 | 660.2 | |
| 0.00 | 1.18 | 0.00 | 1.14 | 16.74 | 162.26 | -57.98 | 71.10 | 0.8602 | 601.0 | 568.2 | |
| 1.63 | -19.00 | 1.55 | -19.00 | 15.64 | 162.71 | -57.53 | 72.30 | 0.8548 | 592.9 | 999999 | |
| 2.90 | 14.87 | 2.84 | 14.66 | 17.18 | 161.79 | -58.44 | 70.68 | 0.8646 | 639.8 | 388.3 | |
| 0.00 | 1.00 | 0.00 | 0.92 | 12.99 | 163.53 | -56.71 | 75.28 | 0.8442 | 313.0 | 298.4 | |
| 3.45 | 4.44 | 3.37 | 4.34 | 16.74 | 161.83 | -58.40 | 71.18 | 0.8637 | 485.4 | 546.0 | |
| 0.00 | 0.82 | 0.00 | 0.81 | 17.40 | 161.50 | -58.74 | 70.48 | 0.8674 | 264.0 | 240.4 | |
| 6.62 | 80.17 | 6.38 | 78.13 | 15.92 | 162.16 | -58.07 | 72.07 | 0.8599 | 737.7 | 113.8 | |
| 0.00 | 1.09 | 0.00 | 1.01 | 12.95 | 163.20 | -57.04 | 75.37 | 0.8472 | 436.0 | 405.0 | |
| 2.45 | -22.00 | 2.43 | -22.00 | 17.14 | 161.32 | -58.92 | 70.81 | 0.8685 | 271.7 | 999999 | |
| 13.24 | -26.00 | 12.83 | -26.00 | 15.54 | 161.91 | -58.32 | 72.55 | 0.8615 | 744.3 | 999999 | |
| 1.54 | -26.00 | 1.51 | -26.00 | 16.00 | 161.51 | -58.72 | 72.08 | 0.8654 | 232.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.40 | 17.99 | 160.17 | -60.07 | 70.05 | 0.8789 | 349.0 | 207.5 | |
| 0.00 | 1.00 | 0.00 | 0.99 | 16.03 | 161.07 | -59.17 | 72.12 | 0.8691 | 77.0 | 22.8 | |
| 0.00 | 1.00 | 0.00 | 1.02 | 16.78 | 160.31 | -59.92 | 71.39 | 0.8762 | 150.0 | 133.0 | |
| 0.00 | 0.73 | 0.00 | 0.73 | 15.38 | 160.44 | -59.80 | 72.95 | 0.8736 | -323.0 | -248.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
