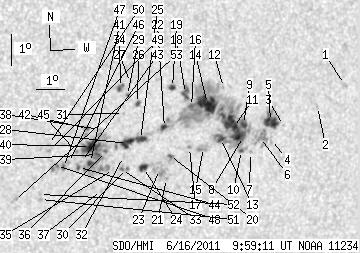

SDO HMI 2011-06-16 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 146.45 | 493.07 | 85.27 | 287.23 | -15.04 | 247.28 | 27.59 | 238.14 | 0.5283 | 138.3 | 176.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-16 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 1.45 | -13.64 | 252.91 | 33.23 | 244.67 | 0.5913 | 678.0 | 580.1 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -14.33 | 252.01 | 32.33 | 243.02 | 0.5836 | 754.0 | 628.3 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -14.92 | 250.85 | 31.16 | 241.29 | 0.5723 | 335.0 | 278.1 | |
| 0.00 | 2.54 | 0.00 | 1.53 | -15.36 | 250.48 | 30.79 | 240.32 | 0.5703 | -94.0 | -15.8 | |
| 13.60 | 22.58 | 8.16 | 13.53 | -14.78 | 250.35 | 30.66 | 241.14 | 0.5652 | 909.5 | 545.7 | |
| 0.00 | 19.86 | 0.00 | 11.90 | -15.29 | 250.06 | 30.38 | 240.12 | 0.5647 | 736.0 | 624.0 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -15.76 | 249.77 | 30.09 | 239.14 | 0.5641 | 513.0 | 430.5 | |
| 1.27 | 249.39 | 0.76 | 146.27 | -15.25 | 249.44 | 29.75 | 239.70 | 0.5566 | -147.3 | 486.4 | |
| 3.72 | -8.00 | 2.21 | -8.00 | -14.87 | 249.38 | 29.69 | 240.27 | 0.5534 | 816.7 | 999999 | |
| 1.81 | -8.00 | 1.08 | -8.00 | -15.69 | 249.43 | 29.75 | 238.99 | 0.5595 | 541.0 | 999999 | |
| 29.29 | -8.00 | 17.34 | -8.00 | -14.96 | 249.03 | 29.34 | 239.85 | 0.5495 | 913.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -13.69 | 248.49 | 28.80 | 241.55 | 0.5344 | 842.0 | 657.4 | |
| 3.36 | -8.00 | 1.98 | -8.00 | -15.30 | 248.61 | 28.92 | 238.96 | 0.5466 | 901.8 | 999999 | |
| 22.85 | -8.00 | 13.34 | -8.00 | -14.19 | 247.98 | 28.29 | 240.30 | 0.5311 | 1129.7 | 999999 | |
| 0.00 | 7.26 | 0.00 | 4.27 | -15.58 | 248.04 | 28.35 | 238.02 | 0.5413 | 384.0 | 502.9 | |
| 2.09 | -8.00 | 1.21 | -8.00 | -14.28 | 247.42 | 27.74 | 239.68 | 0.5245 | 986.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -15.58 | 247.54 | 27.85 | 237.60 | 0.5350 | 875.0 | 667.4 | |
| 6.71 | -8.00 | 3.88 | -8.00 | -13.87 | 247.16 | 27.47 | 240.17 | 0.5183 | 953.2 | 999999 | |
| 2.99 | 3.90 | 1.72 | 2.24 | -13.67 | 246.67 | 26.99 | 240.09 | 0.5107 | 931.2 | 813.0 | |
| 1.45 | 5.44 | 0.85 | 3.17 | -15.83 | 246.86 | 27.17 | 236.59 | 0.5284 | -588.5 | -406.4 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -16.56 | 246.86 | 27.17 | 235.40 | 0.5339 | 830.0 | 702.9 | |
| 2.54 | -8.00 | 1.47 | -8.00 | -14.94 | 246.56 | 26.87 | 237.81 | 0.5180 | -491.3 | 999999 | |
| 0.00 | 12.97 | 0.00 | 7.56 | -16.27 | 246.57 | 26.88 | 235.59 | 0.5281 | -233.0 | -100.9 | |
| 5.17 | 8.89 | 2.99 | 5.15 | -16.20 | 245.99 | 26.30 | 235.16 | 0.5205 | -685.6 | -416.0 | |
| 5.80 | 29.20 | 3.34 | 16.77 | -15.31 | 245.76 | 26.07 | 236.43 | 0.5107 | -732.8 | -269.8 | |
| 2.09 | 3.26 | 1.19 | 1.86 | -14.17 | 245.51 | 25.82 | 238.17 | 0.4990 | -672.3 | -442.2 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -13.50 | 245.18 | 25.50 | 239.05 | 0.4900 | -444.0 | -456.0 | |
| 8.34 | -25.00 | 4.79 | -25.00 | -15.43 | 245.32 | 25.63 | 235.80 | 0.5062 | -868.3 | 999999 | |
| 1.18 | 1.54 | 0.67 | 0.88 | -13.91 | 245.13 | 25.44 | 238.26 | 0.4922 | -780.6 | -604.8 | |
| 0.36 | 4.35 | 0.21 | 2.51 | -16.23 | 245.39 | 25.71 | 234.53 | 0.5134 | -662.0 | -544.8 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -14.48 | 245.06 | 25.37 | 237.19 | 0.4956 | 650.0 | 513.4 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -15.84 | 245.23 | 25.55 | 235.02 | 0.5084 | -347.0 | -396.5 | |
| 1.63 | -30.00 | 0.94 | -30.00 | -16.26 | 245.22 | 25.53 | 234.31 | 0.5115 | -700.7 | 999999 | |
| 3.54 | 4.99 | 2.00 | 2.82 | -13.66 | 244.86 | 25.17 | 238.46 | 0.4868 | -893.2 | -519.6 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -16.26 | 244.94 | 25.25 | 234.03 | 0.5080 | -577.0 | -486.6 | |
| 1.27 | 75.72 | 0.72 | 43.14 | -15.68 | 244.58 | 24.89 | 234.63 | 0.4990 | -582.9 | -483.5 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -16.92 | 244.61 | 24.92 | 232.59 | 0.5096 | -513.0 | -436.3 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -14.98 | 244.28 | 24.60 | 235.54 | 0.4896 | -669.0 | -559.5 | |
| 2.09 | -36.00 | 1.19 | -36.00 | -15.77 | 244.32 | 24.63 | 234.20 | 0.4964 | -895.3 | 999999 | |
| 14.78 | -36.00 | 8.40 | -36.00 | -15.51 | 244.04 | 24.35 | 234.35 | 0.4909 | -1087.9 | 999999 | |
| 3.08 | -36.00 | 1.76 | -36.00 | -16.02 | 244.10 | 24.42 | 233.55 | 0.4959 | -960.7 | 999999 | |
| 1.54 | 3.90 | 0.87 | 2.21 | -14.94 | 243.86 | 24.18 | 235.16 | 0.4840 | -798.1 | -614.3 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -15.99 | 243.79 | 24.10 | 233.26 | 0.4918 | -796.0 | -642.4 | |
| 1.36 | 2.99 | 0.77 | 1.70 | -16.18 | 243.71 | 24.02 | 232.85 | 0.4924 | -767.5 | -751.4 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -15.67 | 243.57 | 23.88 | 233.58 | 0.4864 | -978.0 | -832.3 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -16.02 | 243.34 | 23.65 | 232.72 | 0.4865 | -921.0 | -647.1 | |
| 2.18 | 2.81 | 1.23 | 1.59 | -16.18 | 243.19 | 23.50 | 232.28 | 0.4860 | -882.2 | -708.7 | |
| 0.36 | 2.99 | 0.20 | 1.69 | -16.11 | 242.94 | 23.25 | 232.11 | 0.4824 | -1082.5 | -926.5 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -15.63 | 242.64 | 22.95 | 232.60 | 0.4746 | -997.0 | -786.2 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -15.44 | 242.58 | 22.89 | 232.87 | 0.4722 | -807.0 | -665.5 | |
| 0.00 | 1.90 | 0.00 | 1.08 | -17.19 | 242.52 | 22.83 | 229.81 | 0.4872 | -796.0 | -632.4 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -17.03 | 242.47 | 22.78 | 230.01 | 0.4851 | -760.0 | -627.8 | |
| 0.00 | 2.45 | 0.00 | 1.38 | -17.22 | 241.63 | 21.94 | 228.69 | 0.4771 | -593.0 | -659.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
