SDO HMI 2011-06-16 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 126.76 | 677.46 | 109.62 | 582.81 | 16.67 | 166.43 | -53.26 | 70.18 | 0.8163 | -184.9 | -15.2 | |
|
previous
or next observation for the same group /

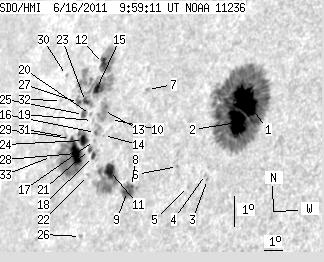

back to the solar disc SDO HMI 2011-06-16 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.36 | 362.48 | 29.49 | 286.98 | 17.32 | 170.35 | -49.34 | 68.50 | 0.7806 | -989.1 | -194.8 | |
| 25.48 | -1.00 | 20.11 | -1.00 | 16.62 | 170.20 | -49.48 | 69.42 | 0.7804 | -954.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.01 | 14.81 | 169.33 | -50.36 | 71.91 | 0.7854 | -577.0 | -541.6 | |
| 0.00 | 0.91 | 0.00 | 0.73 | 14.96 | 169.18 | -50.51 | 71.75 | 0.7872 | -526.0 | -484.5 | |
| 0.00 | 0.91 | 0.00 | 0.74 | 14.58 | 168.46 | -51.23 | 72.39 | 0.7939 | -578.0 | -508.9 | |
| 0.00 | 1.18 | 0.00 | 0.98 | 15.19 | 167.69 | -52.00 | 71.79 | 0.8028 | -580.0 | -493.1 | |
| 0.00 | 1.54 | 0.00 | 1.37 | 17.60 | 165.13 | -54.56 | 69.45 | 0.8315 | 623.0 | 479.2 | |
| 0.45 | 19.23 | 0.39 | 16.71 | 14.53 | 165.49 | -54.20 | 73.03 | 0.8230 | -744.2 | -484.3 | |
| 4.17 | -8.00 | 3.63 | -8.00 | 14.37 | 165.33 | -54.36 | 73.25 | 0.8242 | -570.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.42 | 16.62 | 163.48 | -56.21 | 70.93 | 0.8447 | 106.0 | 130.8 | |
| 10.34 | 49.24 | 9.29 | 44.32 | 15.01 | 164.10 | -55.59 | 72.71 | 0.8367 | -708.4 | -285.8 | |
| 6.98 | 102.30 | 6.70 | 98.14 | 18.38 | 162.21 | -57.48 | 69.13 | 0.8584 | 657.3 | 380.6 | |
| 0.00 | 17.59 | 0.00 | 16.43 | 16.89 | 162.94 | -56.74 | 70.71 | 0.8498 | 571.0 | 523.1 | |
| 0.00 | 1.00 | 0.00 | 0.92 | 16.11 | 163.30 | -56.39 | 71.56 | 0.8455 | 558.0 | 478.0 | |
| 4.81 | -12.00 | 4.59 | -12.00 | 17.58 | 162.20 | -57.49 | 70.05 | 0.8573 | 845.4 | 999999 | |
| 1.81 | 7.62 | 1.69 | 7.10 | 16.19 | 162.80 | -56.89 | 71.55 | 0.8500 | 702.2 | 574.3 | |
| 0.00 | 1.18 | 0.00 | 1.10 | 15.94 | 162.85 | -56.84 | 71.84 | 0.8492 | 736.0 | 665.3 | |
| 2.63 | 7.44 | 2.44 | 6.92 | 15.44 | 163.01 | -56.68 | 72.40 | 0.8471 | 649.3 | 618.7 | |
| 0.00 | 1.63 | 0.00 | 1.54 | 16.57 | 162.45 | -57.24 | 71.18 | 0.8536 | 614.0 | 585.6 | |
| 0.00 | 0.91 | 0.00 | 0.86 | 16.76 | 162.24 | -57.45 | 71.00 | 0.8556 | 652.0 | 614.5 | |
| 1.63 | -18.00 | 1.53 | -18.00 | 15.65 | 162.68 | -57.00 | 72.20 | 0.8503 | 653.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.43 | 14.84 | 162.97 | -56.72 | 73.11 | 0.8466 | 297.0 | 297.0 | |
| 2.54 | -12.00 | 2.45 | -12.00 | 17.16 | 161.74 | -57.94 | 70.62 | 0.8604 | 621.5 | 999999 | |
| 7.16 | 86.61 | 6.80 | 83.10 | 15.93 | 162.21 | -57.48 | 71.96 | 0.8548 | 712.2 | 113.6 | |
| 3.99 | 4.53 | 3.84 | 4.36 | 16.75 | 161.83 | -57.86 | 71.08 | 0.8592 | 500.8 | 491.8 | |
| 0.00 | 1.54 | 0.00 | 1.41 | 12.93 | 163.23 | -56.46 | 75.31 | 0.8419 | 545.0 | 412.5 | |
| 2.27 | -12.00 | 2.21 | -12.00 | 17.12 | 161.34 | -58.35 | 70.74 | 0.8638 | 301.0 | 999999 | |
| 14.69 | -24.00 | 14.02 | -24.00 | 15.52 | 161.92 | -57.77 | 72.49 | 0.8567 | 729.1 | 999999 | |
| 0.45 | -24.00 | 0.44 | -24.00 | 15.98 | 161.40 | -58.28 | 72.03 | 0.8617 | 136.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.20 | 17.97 | 160.14 | -59.55 | 69.98 | 0.8747 | 360.0 | 255.3 | |
| 0.00 | 2.09 | 0.00 | 2.04 | 16.04 | 161.07 | -58.62 | 72.02 | 0.8646 | 72.0 | -19.3 | |
| 0.00 | 1.18 | 0.00 | 1.19 | 17.17 | 160.26 | -59.43 | 70.87 | 0.8727 | 311.0 | 333.5 | |
| 0.00 | 0.82 | 0.00 | 0.81 | 15.40 | 160.51 | -59.18 | 72.84 | 0.8685 | -352.0 | -324.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
