SDO HMI 2011-06-16 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 131.49 | 479.29 | 77.24 | 280.71 | -15.02 | 247.46 | 28.33 | 238.79 | 0.5374 | 177.9 | 161.6 | |
|
previous
or next observation for the same group /

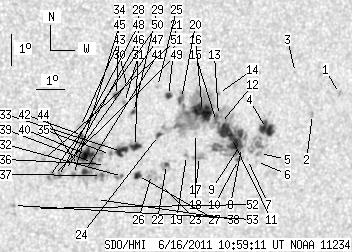

back to the solar disc SDO HMI 2011-06-16 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.23 | -13.68 | 252.94 | 33.80 | 244.95 | 0.5988 | 689.0 | 588.2 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -14.33 | 252.03 | 32.89 | 243.37 | 0.5907 | 728.0 | 650.4 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -13.00 | 251.19 | 32.05 | 244.97 | 0.5728 | 633.0 | 487.7 | |
| 14.51 | 38.18 | 8.75 | 23.03 | -14.76 | 250.39 | 31.25 | 241.60 | 0.5724 | 889.3 | 591.0 | |
| 0.00 | 3.36 | 0.00 | 2.03 | -15.55 | 250.26 | 31.12 | 240.25 | 0.5756 | 488.0 | 408.2 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -15.80 | 250.19 | 31.05 | 239.81 | 0.5764 | 288.0 | 182.0 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -15.74 | 249.85 | 30.71 | 239.66 | 0.5717 | 509.0 | 418.3 | |
| 0.27 | 246.02 | 0.16 | 145.14 | -15.35 | 249.56 | 30.42 | 240.05 | 0.5657 | 169.7 | 515.0 | |
| 1.90 | -8.00 | 1.14 | -8.00 | -15.26 | 249.51 | 30.37 | 240.17 | 0.5645 | -112.9 | 999999 | |
| 1.36 | -8.00 | 0.82 | -8.00 | -15.73 | 249.52 | 30.38 | 239.41 | 0.5676 | 582.9 | 999999 | |
| 36.45 | -8.00 | 21.74 | -8.00 | -15.03 | 249.15 | 30.01 | 240.25 | 0.5584 | 833.7 | 999999 | |
| 0.73 | -8.00 | 0.43 | -8.00 | -14.58 | 248.68 | 29.54 | 240.63 | 0.5496 | 877.6 | 999999 | |
| 0.63 | -8.00 | 0.37 | -8.00 | -14.33 | 248.57 | 29.43 | 240.96 | 0.5466 | 924.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -13.63 | 248.47 | 29.33 | 242.05 | 0.5410 | 730.0 | 589.2 | |
| 2.18 | -8.00 | 1.29 | -8.00 | -14.52 | 248.52 | 29.38 | 240.61 | 0.5473 | 928.5 | 999999 | |
| 20.68 | -8.00 | 12.14 | -8.00 | -14.19 | 247.97 | 28.83 | 240.72 | 0.5381 | 1135.6 | 999999 | |
| 0.00 | 7.16 | 0.00 | 4.24 | -15.62 | 248.08 | 28.94 | 238.45 | 0.5489 | 579.0 | 535.9 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -14.89 | 247.82 | 28.68 | 239.44 | 0.5407 | 647.0 | 474.2 | |
| 0.00 | 1.81 | 0.00 | 1.07 | -15.58 | 247.60 | 28.46 | 238.11 | 0.5427 | 942.0 | 667.1 | |
| 4.17 | -8.00 | 2.42 | -8.00 | -13.78 | 247.17 | 28.03 | 240.78 | 0.5250 | 937.0 | 999999 | |
| 3.54 | 4.08 | 2.05 | 2.36 | -13.68 | 246.69 | 27.55 | 240.56 | 0.5181 | 966.6 | 748.8 | |
| 2.27 | 8.25 | 1.33 | 4.84 | -15.86 | 246.92 | 27.79 | 237.08 | 0.5363 | -577.6 | -388.8 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -16.50 | 246.84 | 27.70 | 235.97 | 0.5399 | 685.0 | 631.6 | |
| 2.09 | 4.26 | 1.21 | 2.48 | -14.94 | 246.51 | 27.37 | 238.24 | 0.5244 | -431.1 | -236.3 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -13.39 | 246.27 | 27.13 | 240.71 | 0.5106 | 623.0 | 435.6 | |
| 0.00 | 4.81 | 0.00 | 2.81 | -16.18 | 246.44 | 27.30 | 236.13 | 0.5325 | -213.0 | -380.4 | |
| 3.90 | 4.90 | 2.27 | 2.85 | -16.20 | 245.94 | 26.80 | 235.62 | 0.5267 | -743.7 | -516.2 | |
| 5.89 | 30.02 | 3.41 | 17.30 | -15.28 | 245.74 | 26.60 | 236.97 | 0.5172 | -688.9 | -344.8 | |
| 1.36 | 3.63 | 0.78 | 2.08 | -14.20 | 245.52 | 26.39 | 238.63 | 0.5066 | -658.0 | -458.3 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -13.44 | 245.22 | 26.08 | 239.70 | 0.4973 | -679.0 | -538.8 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -13.88 | 245.17 | 26.03 | 238.86 | 0.4997 | -877.0 | -748.2 | |
| 0.27 | 3.81 | 0.16 | 2.20 | -16.23 | 245.41 | 26.27 | 235.08 | 0.5204 | -633.0 | -625.1 | |
| 7.80 | -28.00 | 4.49 | -28.00 | -15.43 | 245.26 | 26.13 | 236.27 | 0.5124 | -794.4 | 999999 | |
| 1.90 | 4.08 | 1.08 | 2.32 | -13.66 | 244.86 | 25.72 | 238.98 | 0.4941 | -1000.3 | -760.4 | |
| 0.00 | 2.63 | 0.00 | 1.51 | -15.53 | 244.89 | 25.75 | 235.75 | 0.5084 | -973.0 | -734.0 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -15.84 | 244.76 | 25.62 | 235.08 | 0.5093 | -534.0 | -462.0 | |
| 1.63 | 9.52 | 0.94 | 5.48 | -16.19 | 244.66 | 25.53 | 234.41 | 0.5109 | -771.4 | -552.2 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -16.96 | 244.60 | 25.46 | 233.08 | 0.5163 | -502.0 | -402.2 | |
| 2.27 | 59.94 | 1.30 | 34.28 | -15.78 | 244.29 | 25.15 | 234.73 | 0.5030 | -900.8 | -515.7 | |
| 11.34 | -39.00 | 6.47 | -39.00 | -15.52 | 244.05 | 24.91 | 234.92 | 0.4979 | -1114.8 | 999999 | |
| 2.81 | -39.00 | 1.61 | -39.00 | -16.06 | 244.05 | 24.91 | 234.00 | 0.5023 | -937.7 | 999999 | |
| 1.54 | 4.72 | 0.88 | 2.68 | -14.91 | 243.83 | 24.69 | 235.75 | 0.4904 | -786.4 | -550.3 | |
| 0.00 | 2.45 | 0.00 | 1.39 | -14.63 | 243.73 | 24.59 | 236.14 | 0.4868 | -913.0 | -657.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -15.87 | 243.82 | 24.68 | 234.08 | 0.4978 | -819.0 | -692.4 | |
| 0.00 | 1.90 | 0.00 | 1.09 | -16.15 | 243.68 | 24.54 | 233.46 | 0.4985 | -947.0 | -817.5 | |
| 0.00 | 2.18 | 0.00 | 1.24 | -15.67 | 243.55 | 24.41 | 234.13 | 0.4929 | -919.0 | -714.2 | |
| 0.00 | 2.27 | 0.00 | 1.29 | -16.02 | 243.35 | 24.21 | 233.32 | 0.4934 | -835.0 | -674.0 | |
| 0.00 | 3.36 | 0.00 | 1.91 | -16.21 | 243.16 | 24.02 | 232.80 | 0.4927 | -813.0 | -729.5 | |
| 0.00 | 2.09 | 0.00 | 1.18 | -16.15 | 242.98 | 23.84 | 232.71 | 0.4900 | -1048.0 | -909.0 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -16.24 | 242.82 | 23.68 | 232.38 | 0.4888 | -950.0 | -826.1 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -15.66 | 242.58 | 23.44 | 233.09 | 0.4809 | -1006.0 | -805.8 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -17.23 | 242.53 | 23.39 | 230.40 | 0.4942 | -699.0 | -567.7 | |
| 0.00 | 2.18 | 0.00 | 1.23 | -17.13 | 241.72 | 22.58 | 229.62 | 0.4837 | -881.0 | -711.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
