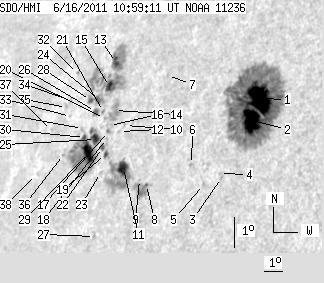

SDO HMI 2011-06-16 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 118.08 | 689.45 | 100.27 | 586.31 | 16.63 | 166.41 | -52.73 | 70.11 | 0.8112 | -173.2 | -17.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-16 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.91 | 364.54 | 28.81 | 285.51 | 17.33 | 170.34 | -48.80 | 68.34 | 0.7751 | -999.3 | -190.1 | |
| 26.48 | -1.00 | 20.67 | -1.00 | 16.63 | 170.20 | -48.94 | 69.27 | 0.7748 | -934.0 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.64 | 14.82 | 169.33 | -49.81 | 71.78 | 0.7798 | -653.0 | -582.2 | |
| 0.00 | 1.27 | 0.00 | 1.00 | 14.94 | 169.19 | -49.95 | 71.65 | 0.7814 | -575.0 | -476.4 | |
| 0.00 | 1.36 | 0.00 | 1.09 | 14.58 | 168.51 | -50.63 | 72.25 | 0.7877 | -479.0 | -491.2 | |
| 0.00 | 1.54 | 0.00 | 1.26 | 15.20 | 167.70 | -51.44 | 71.66 | 0.7971 | -580.0 | -439.1 | |
| 0.00 | 0.82 | 0.00 | 0.71 | 17.99 | 165.34 | -53.80 | 68.81 | 0.8253 | 600.0 | 520.9 | |
| 0.54 | 18.50 | 0.46 | 15.87 | 14.54 | 165.59 | -53.55 | 72.90 | 0.8168 | -638.2 | -451.7 | |
| 0.00 | 0.45 | 0.00 | 0.39 | 14.69 | 165.16 | -53.98 | 72.80 | 0.8211 | -505.0 | -433.4 | |
| 0.00 | 0.82 | 0.00 | 0.74 | 16.37 | 163.72 | -55.41 | 71.07 | 0.8372 | 287.0 | 390.3 | |
| 10.07 | 61.39 | 8.92 | 54.58 | 15.05 | 164.15 | -54.99 | 72.55 | 0.8312 | -704.9 | -241.5 | |
| 0.00 | 1.27 | 0.00 | 1.15 | 16.18 | 163.47 | -55.67 | 71.35 | 0.8392 | 418.0 | 416.9 | |
| 5.17 | 101.93 | 4.88 | 96.55 | 18.36 | 162.27 | -56.87 | 69.04 | 0.8532 | 719.6 | 351.0 | |
| 0.00 | 15.96 | 0.00 | 14.70 | 16.84 | 162.89 | -56.25 | 70.68 | 0.8453 | 672.0 | 554.9 | |
| 5.08 | -13.00 | 4.78 | -13.00 | 17.59 | 162.24 | -56.89 | 69.93 | 0.8522 | 848.4 | 999999 | |
| 0.00 | 2.99 | 0.00 | 2.76 | 16.36 | 162.82 | -56.32 | 71.26 | 0.8453 | 606.0 | 591.3 | |
| 0.45 | 1.54 | 0.42 | 1.42 | 16.17 | 162.85 | -56.29 | 71.47 | 0.8447 | 761.2 | 724.8 | |
| 0.00 | 1.45 | 0.00 | 1.33 | 15.95 | 162.83 | -56.31 | 71.74 | 0.8446 | 690.0 | 590.3 | |
| 2.27 | 8.25 | 2.07 | 7.56 | 15.45 | 162.98 | -56.16 | 72.30 | 0.8424 | 642.0 | 573.8 | |
| 0.00 | 1.45 | 0.00 | 1.35 | 16.58 | 162.43 | -56.71 | 71.07 | 0.8490 | 659.0 | 612.1 | |
| 0.00 | 1.36 | 0.00 | 1.27 | 16.80 | 162.27 | -56.87 | 70.85 | 0.8507 | 557.0 | 544.1 | |
| 2.36 | -19.00 | 2.17 | -19.00 | 15.66 | 162.72 | -56.42 | 72.09 | 0.8451 | 649.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.16 | 14.88 | 162.93 | -56.21 | 72.98 | 0.8421 | 572.0 | 405.2 | |
| 3.45 | -13.00 | 3.27 | -13.00 | 17.17 | 161.80 | -57.34 | 70.50 | 0.8553 | 645.9 | 999999 | |
| 6.80 | 84.79 | 6.36 | 80.10 | 15.91 | 162.21 | -56.93 | 71.89 | 0.8500 | 727.8 | 150.2 | |
| 3.26 | 4.62 | 3.09 | 4.38 | 16.79 | 161.80 | -57.34 | 70.94 | 0.8547 | 514.0 | 368.1 | |
| 0.00 | 1.54 | 0.00 | 1.38 | 12.88 | 163.33 | -55.81 | 75.28 | 0.8359 | 395.0 | 367.5 | |
| 2.27 | -13.00 | 2.18 | -13.00 | 17.13 | 161.34 | -57.80 | 70.63 | 0.8592 | 313.8 | 999999 | |
| 11.52 | -25.00 | 10.81 | -25.00 | 15.49 | 161.98 | -57.16 | 72.42 | 0.8514 | 789.8 | 999999 | |
| 1.45 | -25.00 | 1.38 | -25.00 | 15.96 | 161.53 | -57.61 | 71.95 | 0.8559 | 233.2 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.65 | 16.24 | 161.28 | -57.85 | 71.67 | 0.8584 | 218.0 | 155.4 | |
| 0.00 | 0.82 | 0.00 | 0.82 | 17.97 | 160.10 | -59.04 | 69.89 | 0.8706 | 342.0 | 283.0 | |
| 0.00 | 1.18 | 0.00 | 1.16 | 16.61 | 160.38 | -58.76 | 71.40 | 0.8665 | 145.0 | 113.6 | |
| 0.00 | 1.81 | 0.00 | 1.80 | 17.11 | 160.12 | -59.02 | 70.86 | 0.8693 | 335.0 | 260.4 | |
| 0.00 | 1.18 | 0.00 | 1.18 | 16.89 | 159.99 | -59.15 | 71.14 | 0.8701 | 243.0 | 176.9 | |
| 0.00 | 1.18 | 0.00 | 1.15 | 15.41 | 160.52 | -58.62 | 72.75 | 0.8638 | -327.0 | -319.8 | |
| 0.00 | 1.00 | 0.00 | 1.01 | 16.15 | 159.42 | -59.72 | 72.07 | 0.8738 | 300.0 | 242.8 | |
| 0.00 | 0.63 | 0.00 | 0.64 | 14.75 | 159.13 | -60.00 | 73.70 | 0.8745 | 438.0 | 416.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
