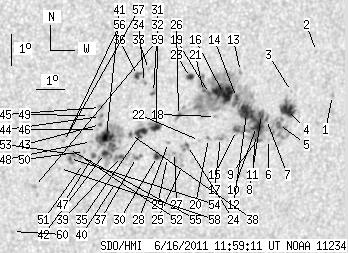

SDO HMI 2011-06-16 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 129.21 | 491.58 | 76.31 | 289.51 | -15.03 | 247.34 | 28.75 | 239.15 | 0.5429 | 157.1 | 137.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-16 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.12 | -14.34 | 252.04 | 33.45 | 243.71 | 0.5978 | 696.0 | 616.8 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -12.94 | 251.22 | 32.63 | 245.42 | 0.5800 | 586.0 | 420.8 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -14.19 | 250.48 | 31.89 | 242.94 | 0.5773 | 755.0 | 577.2 | |
| 13.42 | 21.67 | 8.15 | 13.15 | -14.76 | 250.43 | 31.84 | 242.00 | 0.5799 | 864.6 | 588.9 | |
| 3.08 | 284.27 | 1.87 | 169.07 | -15.23 | 250.17 | 31.58 | 241.08 | 0.5795 | 758.6 | 461.6 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -15.71 | 249.88 | 31.29 | 240.13 | 0.5787 | 290.0 | 355.7 | |
| 1.45 | -5.00 | 0.88 | -5.00 | -15.07 | 249.70 | 31.11 | 241.00 | 0.5726 | 632.5 | 999999 | |
| 4.44 | -5.00 | 2.67 | -5.00 | -14.91 | 249.49 | 30.90 | 241.11 | 0.5689 | 830.7 | 999999 | |
| 2.18 | -5.00 | 1.31 | -5.00 | -15.70 | 249.47 | 30.88 | 239.84 | 0.5737 | 520.0 | 999999 | |
| 5.08 | -5.00 | 3.06 | -5.00 | -15.29 | 249.37 | 30.78 | 240.41 | 0.5697 | 861.4 | 999999 | |
| 3.17 | -5.00 | 1.91 | -5.00 | -15.54 | 249.37 | 30.78 | 240.01 | 0.5714 | 517.2 | 999999 | |
| 18.86 | -5.00 | 11.28 | -5.00 | -14.87 | 248.93 | 30.34 | 240.76 | 0.5617 | 962.3 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.18 | -13.54 | 248.52 | 29.93 | 242.64 | 0.5482 | 735.0 | 582.8 | |
| 2.18 | -5.00 | 1.29 | -5.00 | -14.36 | 248.49 | 29.90 | 241.26 | 0.5529 | 886.5 | 999999 | |
| 2.81 | -5.00 | 1.68 | -5.00 | -15.41 | 248.65 | 30.06 | 239.69 | 0.5616 | 855.7 | 999999 | |
| 24.21 | -5.00 | 14.29 | -5.00 | -14.23 | 248.00 | 29.41 | 241.11 | 0.5458 | 1098.5 | 999999 | |
| 0.00 | 5.35 | 0.00 | 3.18 | -15.62 | 248.10 | 29.51 | 238.91 | 0.5561 | 507.0 | 483.1 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -14.95 | 247.82 | 29.23 | 239.77 | 0.5481 | 814.0 | 612.7 | |
| 1.54 | -5.00 | 0.91 | -5.00 | -14.22 | 247.49 | 28.91 | 240.72 | 0.5392 | 988.2 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.13 | -15.65 | 247.67 | 29.08 | 238.52 | 0.5509 | 858.0 | 703.4 | |
| 0.45 | -5.00 | 0.27 | -5.00 | -14.16 | 247.27 | 28.68 | 240.66 | 0.5359 | 881.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -15.71 | 247.35 | 28.76 | 238.16 | 0.5474 | 424.0 | 276.6 | |
| 3.63 | 5.71 | 2.11 | 3.32 | -13.71 | 246.75 | 28.16 | 241.00 | 0.5262 | 943.2 | 600.8 | |
| 1.45 | 6.08 | 0.85 | 3.58 | -15.87 | 246.95 | 28.36 | 237.56 | 0.5434 | -501.2 | -498.4 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -16.50 | 246.87 | 28.28 | 236.47 | 0.5470 | 826.0 | 689.9 | |
| 1.54 | -5.00 | 0.90 | -5.00 | -14.91 | 246.48 | 27.89 | 238.75 | 0.5309 | -453.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -16.08 | 246.51 | 27.92 | 236.83 | 0.5396 | -596.0 | -532.1 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -15.76 | 246.25 | 27.66 | 237.13 | 0.5340 | 732.0 | 506.2 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -16.24 | 246.28 | 27.69 | 236.38 | 0.5379 | -336.0 | -415.0 | |
| 3.17 | 4.62 | 1.86 | 2.70 | -16.21 | 245.92 | 27.33 | 236.11 | 0.5332 | -758.2 | -564.8 | |
| 5.17 | 9.16 | 3.00 | 5.32 | -15.28 | 245.75 | 27.16 | 237.48 | 0.5243 | -655.3 | -300.2 | |
| 0.00 | 2.81 | 0.00 | 1.62 | -14.17 | 245.49 | 26.90 | 239.14 | 0.5131 | -650.0 | -589.8 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -13.44 | 245.23 | 26.64 | 240.19 | 0.5046 | -603.0 | -469.5 | |
| 0.00 | 2.45 | 0.00 | 1.40 | -13.85 | 245.14 | 26.55 | 239.38 | 0.5062 | -683.0 | -620.9 | |
| 7.53 | 14.78 | 4.36 | 8.55 | -15.43 | 245.24 | 26.65 | 236.76 | 0.5190 | -810.0 | -371.5 | |
| 2.90 | 5.62 | 1.66 | 3.22 | -13.63 | 244.86 | 26.28 | 239.53 | 0.5011 | -892.9 | -648.0 | |
| 0.00 | 5.08 | 0.00 | 2.95 | -16.23 | 245.18 | 26.59 | 235.38 | 0.5242 | -730.0 | -560.8 | |
| 0.73 | -35.00 | 0.42 | -35.00 | -15.49 | 244.86 | 26.27 | 236.30 | 0.5147 | -663.5 | 999999 | |
| 2.36 | 8.43 | 1.36 | 4.88 | -16.19 | 244.64 | 26.05 | 234.92 | 0.5174 | -751.8 | -508.0 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -16.99 | 244.58 | 25.99 | 233.56 | 0.5230 | -387.0 | -335.1 | |
| 10.43 | 65.74 | 5.98 | 37.75 | -15.52 | 244.02 | 25.43 | 235.44 | 0.5044 | -1121.7 | -564.8 | |
| 3.08 | -41.00 | 1.77 | -41.00 | -16.09 | 244.03 | 25.44 | 234.48 | 0.5090 | -957.0 | 999999 | |
| 1.27 | 2.36 | 0.72 | 1.35 | -15.17 | 243.76 | 25.17 | 235.79 | 0.4984 | -706.6 | -542.2 | |
| 0.00 | 2.09 | 0.00 | 1.19 | -14.91 | 243.73 | 25.14 | 236.20 | 0.4960 | -979.0 | -777.0 | |
| 0.00 | 2.36 | 0.00 | 1.34 | -14.63 | 243.70 | 25.11 | 236.66 | 0.4934 | -799.0 | -716.1 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -15.32 | 243.68 | 25.09 | 235.43 | 0.4986 | -974.0 | -744.1 | |
| 1.09 | 2.81 | 0.62 | 1.61 | -16.15 | 243.65 | 25.06 | 234.00 | 0.5049 | -881.1 | -728.2 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -15.70 | 243.52 | 24.93 | 234.62 | 0.4997 | -923.0 | -768.9 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -14.88 | 243.34 | 24.75 | 235.87 | 0.4909 | -847.0 | -628.4 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -16.02 | 243.32 | 24.73 | 233.87 | 0.4997 | -858.0 | -691.7 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -16.40 | 243.33 | 24.74 | 233.25 | 0.5031 | -669.0 | -468.7 | |
| 0.00 | 2.81 | 0.00 | 1.61 | -16.18 | 243.20 | 24.61 | 233.48 | 0.4996 | -1001.0 | -815.5 | |
| 0.63 | 5.26 | 0.36 | 3.00 | -16.11 | 242.94 | 24.36 | 233.32 | 0.4960 | -1012.6 | -807.1 | |
| 1.36 | -53.00 | 0.77 | -53.00 | -16.24 | 242.82 | 24.23 | 232.98 | 0.4955 | -744.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -15.95 | 242.75 | 24.16 | 233.39 | 0.4922 | -774.0 | -606.3 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -15.54 | 242.63 | 24.04 | 233.97 | 0.4873 | -814.0 | -642.6 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -15.70 | 242.54 | 23.95 | 233.60 | 0.4876 | -939.0 | -854.6 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -16.56 | 242.52 | 23.93 | 232.11 | 0.4946 | -801.0 | -626.1 | |
| 0.00 | 2.27 | 0.00 | 1.29 | -17.13 | 241.72 | 23.13 | 230.27 | 0.4902 | -900.0 | -716.6 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -18.57 | 241.16 | 22.57 | 227.27 | 0.4972 | -564.0 | -461.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
