SDO HMI 2011-06-16 12:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.94 | 475.94 | 74.68 | 281.93 | -15.04 | 247.45 | 29.42 | 239.66 | 0.5513 | 190.2 | 160.6 | |
|
previous
or next observation for the same group /

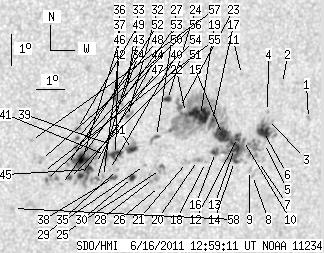

back to the solar disc SDO HMI 2011-06-16 12:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 1.18 | -14.37 | 252.06 | 34.02 | 244.00 | 0.6053 | 777.0 | 635.8 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -13.26 | 250.90 | 32.86 | 245.05 | 0.5847 | 716.0 | 451.5 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -14.39 | 250.56 | 32.52 | 243.04 | 0.5864 | 322.0 | 254.3 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -14.13 | 250.48 | 32.44 | 243.39 | 0.5840 | 571.0 | 529.6 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -15.15 | 250.54 | 32.50 | 241.84 | 0.5904 | 412.0 | 359.8 | |
| 12.06 | 26.84 | 7.37 | 16.40 | -14.76 | 250.43 | 32.40 | 242.37 | 0.5870 | 898.2 | 460.9 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -15.72 | 250.41 | 32.37 | 240.87 | 0.5922 | 95.0 | -92.6 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -16.16 | 250.27 | 32.23 | 240.09 | 0.5931 | -477.0 | -367.4 | |
| 0.00 | 2.09 | 0.00 | 1.28 | -16.00 | 250.13 | 32.09 | 240.24 | 0.5904 | 433.0 | 293.0 | |
| 1.54 | 260.49 | 0.94 | 155.72 | -15.04 | 249.74 | 31.70 | 241.46 | 0.5798 | 683.1 | 505.3 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -12.96 | 249.34 | 31.30 | 244.56 | 0.5629 | 712.0 | 510.8 | |
| 3.26 | -10.00 | 1.97 | -10.00 | -14.94 | 249.50 | 31.46 | 241.44 | 0.5762 | 849.7 | 999999 | |
| 11.33 | -10.00 | 6.87 | -10.00 | -15.29 | 249.44 | 31.41 | 240.86 | 0.5776 | 747.7 | 999999 | |
| 2.09 | -10.00 | 1.27 | -10.00 | -15.71 | 249.51 | 31.48 | 240.26 | 0.5811 | 548.6 | 999999 | |
| 16.50 | -10.00 | 9.92 | -10.00 | -14.84 | 248.93 | 30.89 | 241.20 | 0.5684 | 951.8 | 999999 | |
| 3.99 | -10.00 | 2.40 | -10.00 | -15.41 | 248.76 | 30.72 | 240.17 | 0.5699 | 797.0 | 999999 | |
| 2.18 | -10.00 | 1.30 | -10.00 | -14.40 | 248.49 | 30.45 | 241.61 | 0.5602 | 947.4 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -15.73 | 248.45 | 30.41 | 239.44 | 0.5679 | 691.0 | 556.5 | |
| 20.40 | -10.00 | 12.11 | -10.00 | -14.23 | 248.03 | 29.99 | 241.53 | 0.5533 | 1109.5 | 999999 | |
| 0.00 | 4.08 | 0.00 | 2.44 | -15.66 | 248.14 | 30.10 | 239.31 | 0.5637 | 928.0 | 588.9 | |
| 0.00 | 2.36 | 0.00 | 1.41 | -15.72 | 247.75 | 29.71 | 238.91 | 0.5592 | 780.0 | 590.0 | |
| 1.36 | -10.00 | 0.80 | -10.00 | -14.13 | 247.47 | 29.43 | 241.28 | 0.5455 | 1066.3 | 999999 | |
| 2.90 | -10.00 | 1.71 | -10.00 | -13.97 | 247.23 | 29.19 | 241.37 | 0.5414 | 976.3 | 999999 | |
| 3.72 | 4.53 | 2.17 | 2.65 | -13.71 | 246.77 | 28.73 | 241.44 | 0.5337 | 876.9 | 641.4 | |
| 0.00 | 8.16 | 0.00 | 4.83 | -15.93 | 246.84 | 28.80 | 237.83 | 0.5494 | -543.0 | -402.2 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -16.48 | 246.89 | 28.85 | 237.00 | 0.5538 | 725.0 | 589.8 | |
| 1.72 | 4.53 | 1.01 | 2.66 | -14.88 | 246.54 | 28.50 | 239.29 | 0.5384 | -442.2 | -320.1 | |
| 0.00 | 7.62 | 0.00 | 4.51 | -16.22 | 246.63 | 28.59 | 237.20 | 0.5488 | 38.0 | -0.8 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -15.80 | 246.24 | 28.20 | 237.54 | 0.5410 | 644.0 | 550.2 | |
| 2.81 | 4.26 | 1.65 | 2.50 | -16.18 | 245.87 | 27.83 | 236.60 | 0.5391 | -747.5 | -556.3 | |
| 5.17 | 12.33 | 3.02 | 7.19 | -15.29 | 245.73 | 27.70 | 237.95 | 0.5310 | -666.7 | -54.0 | |
| 1.18 | 3.08 | 0.68 | 1.79 | -14.24 | 245.41 | 27.37 | 239.44 | 0.5196 | -476.2 | -492.0 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -13.42 | 245.27 | 27.23 | 240.74 | 0.5122 | -566.0 | -382.8 | |
| 0.00 | 2.90 | 0.00 | 1.67 | -13.79 | 245.11 | 27.07 | 239.94 | 0.5126 | -601.0 | -581.1 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -15.92 | 245.29 | 27.25 | 236.51 | 0.5301 | -514.0 | -409.9 | |
| 6.71 | 13.42 | 3.90 | 7.80 | -15.44 | 245.15 | 27.11 | 237.17 | 0.5248 | -807.7 | -651.0 | |
| 1.00 | 5.71 | 0.57 | 3.28 | -13.66 | 244.92 | 26.88 | 240.00 | 0.5092 | -884.9 | -722.6 | |
| 3.17 | 3.63 | 1.85 | 2.12 | -16.17 | 245.19 | 27.15 | 236.00 | 0.5307 | -637.9 | -466.4 | |
| 0.00 | 1.81 | 0.00 | 1.05 | -15.15 | 245.04 | 27.00 | 237.55 | 0.5213 | -136.0 | -224.1 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -15.91 | 245.01 | 26.97 | 236.25 | 0.5265 | -397.0 | -405.1 | |
| 2.27 | -36.00 | 1.31 | -36.00 | -15.47 | 244.84 | 26.80 | 236.84 | 0.5211 | -767.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -16.14 | 244.83 | 26.79 | 235.72 | 0.5260 | -673.0 | -547.5 | |
| 0.00 | 5.62 | 0.00 | 3.26 | -16.26 | 244.59 | 26.56 | 235.30 | 0.5241 | -633.0 | -626.4 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -15.72 | 244.48 | 26.44 | 236.09 | 0.5186 | -603.0 | -461.4 | |
| 5.53 | 57.03 | 3.20 | 32.89 | -15.91 | 244.26 | 26.22 | 235.56 | 0.5173 | -827.0 | -596.6 | |
| 7.07 | -45.00 | 4.07 | -45.00 | -15.55 | 244.00 | 25.96 | 235.90 | 0.5113 | -1152.6 | 999999 | |
| 2.90 | -45.00 | 1.68 | -45.00 | -16.10 | 244.00 | 25.97 | 235.00 | 0.5156 | -940.7 | 999999 | |
| 0.54 | 1.90 | 0.31 | 1.09 | -14.92 | 243.74 | 25.70 | 236.74 | 0.5032 | -894.8 | -729.3 | |
| 0.00 | 2.54 | 0.00 | 1.45 | -14.60 | 243.70 | 25.66 | 237.25 | 0.5003 | -911.0 | -743.6 | |
| 1.27 | 2.09 | 0.73 | 1.20 | -15.20 | 243.71 | 25.67 | 236.22 | 0.5049 | -807.0 | -676.9 | |
| 2.09 | 2.36 | 1.20 | 1.36 | -16.16 | 243.63 | 25.59 | 234.52 | 0.5114 | -798.7 | -867.7 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -15.74 | 243.50 | 25.46 | 235.09 | 0.5065 | -920.0 | -783.4 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -16.38 | 243.38 | 25.34 | 233.90 | 0.5101 | -674.0 | -512.2 | |
| 1.18 | 8.16 | 0.67 | 4.67 | -16.21 | 242.83 | 24.79 | 233.61 | 0.5021 | -859.0 | -803.7 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -15.96 | 242.69 | 24.65 | 233.90 | 0.4983 | -754.0 | -569.9 | |
| 0.00 | 3.90 | 0.00 | 2.22 | -15.57 | 242.57 | 24.53 | 234.43 | 0.4936 | -750.0 | -668.3 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -14.97 | 242.15 | 24.11 | 235.04 | 0.4834 | -740.0 | -559.3 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -17.13 | 241.80 | 23.76 | 230.97 | 0.4976 | -811.0 | -705.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
