SDO HMI 2011-06-16 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132.18 | 718.00 | 107.14 | 581.37 | 16.63 | 166.40 | -50.54 | 69.58 | 0.7897 | -213.5 | 7.8 | |
|
previous
or next observation for the same group /

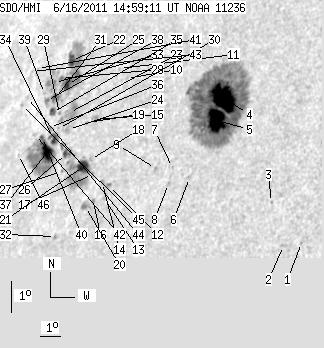

back to the solar disc SDO HMI 2011-06-16 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.11 | 12.86 | 174.93 | -42.01 | 72.33 | 0.6870 | -568.0 | -461.4 | |
| 0.00 | 1.90 | 0.00 | 1.31 | 12.76 | 174.19 | -42.75 | 72.69 | 0.6957 | -405.0 | -376.9 | |
| 0.00 | 1.09 | 0.00 | 0.76 | 14.09 | 173.37 | -43.57 | 71.07 | 0.7090 | -523.0 | -399.8 | |
| 41.25 | 372.68 | 30.91 | 280.00 | 17.33 | 170.29 | -46.65 | 67.71 | 0.7525 | -1022.0 | -195.2 | |
| 29.01 | -4.00 | 21.70 | -4.00 | 16.63 | 170.19 | -46.75 | 68.64 | 0.7516 | -1028.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.02 | 14.82 | 169.48 | -47.45 | 71.19 | 0.7547 | -268.0 | -418.1 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 15.12 | 168.59 | -48.35 | 71.03 | 0.7650 | -628.0 | -558.0 | |
| 0.00 | 1.81 | 0.00 | 1.39 | 14.62 | 168.55 | -48.39 | 71.69 | 0.7643 | -673.0 | -492.8 | |
| 0.00 | 1.72 | 0.00 | 1.34 | 15.08 | 167.78 | -49.15 | 71.29 | 0.7734 | -470.0 | -390.6 | |
| 0.00 | 1.27 | 0.00 | 1.05 | 17.90 | 165.32 | -51.62 | 68.40 | 0.8045 | 568.0 | 426.4 | |
| 0.00 | 1.09 | 0.00 | 0.91 | 18.21 | 164.82 | -52.11 | 68.15 | 0.8099 | 395.0 | 357.2 | |
| 0.00 | 2.54 | 0.00 | 2.06 | 14.51 | 165.64 | -51.30 | 72.49 | 0.7944 | -728.0 | -555.2 | |
| 0.00 | 1.45 | 0.00 | 1.18 | 14.10 | 165.57 | -51.37 | 73.01 | 0.7944 | -193.0 | -98.7 | |
| 0.00 | 2.45 | 0.00 | 2.00 | 14.60 | 165.30 | -51.63 | 72.45 | 0.7980 | -694.0 | -530.1 | |
| 0.00 | 4.17 | 0.00 | 3.53 | 16.57 | 164.17 | -52.76 | 70.28 | 0.8127 | 715.0 | 569.9 | |
| 0.00 | 1.72 | 0.00 | 1.41 | 14.00 | 165.04 | -51.90 | 73.25 | 0.7996 | 362.0 | 244.6 | |
| 0.00 | 1.54 | 0.00 | 1.28 | 14.85 | 164.71 | -52.23 | 72.27 | 0.8043 | -589.0 | -524.5 | |
| 0.00 | 1.63 | 0.00 | 1.36 | 15.31 | 164.44 | -52.50 | 71.76 | 0.8078 | -577.0 | -442.8 | |
| 0.00 | 1.09 | 0.00 | 0.93 | 16.47 | 163.79 | -53.15 | 70.49 | 0.8162 | 586.0 | 549.1 | |
| 0.00 | 7.89 | 0.00 | 6.52 | 13.84 | 164.68 | -52.25 | 73.52 | 0.8029 | -184.0 | -106.6 | |
| 11.33 | 72.34 | 9.53 | 61.30 | 15.09 | 164.15 | -52.78 | 72.09 | 0.8102 | -726.3 | -131.2 | |
| 6.80 | 111.69 | 6.09 | 99.94 | 18.42 | 162.12 | -54.81 | 68.53 | 0.8353 | 602.9 | 386.1 | |
| 0.00 | 22.75 | 0.00 | 19.91 | 16.77 | 162.75 | -54.19 | 70.35 | 0.8266 | 758.0 | 586.3 | |
| 0.00 | 4.80 | 0.00 | 4.18 | 16.24 | 162.92 | -54.02 | 70.96 | 0.8241 | 762.0 | 619.2 | |
| 5.26 | -22.00 | 4.68 | -22.00 | 17.66 | 162.25 | -54.68 | 69.41 | 0.8327 | 886.8 | 999999 | |
| 4.53 | -21.00 | 3.91 | -21.00 | 15.48 | 163.10 | -53.83 | 71.82 | 0.8210 | 658.6 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.78 | 14.91 | 163.05 | -53.89 | 72.52 | 0.8206 | 578.0 | 468.8 | |
| 1.99 | -22.00 | 1.80 | -22.00 | 17.84 | 161.78 | -55.16 | 69.29 | 0.8373 | 457.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.96 | 16.73 | 162.21 | -54.72 | 70.51 | 0.8314 | 613.0 | 586.8 | |
| 0.00 | 1.00 | 0.00 | 0.88 | 16.26 | 162.36 | -54.58 | 71.04 | 0.8293 | 557.0 | 551.7 | |
| 5.17 | -22.00 | 4.64 | -22.00 | 17.24 | 161.77 | -55.16 | 70.00 | 0.8363 | 656.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.31 | 12.88 | 163.42 | -53.52 | 74.92 | 0.8139 | 320.0 | 272.1 | |
| 1.18 | -22.00 | 1.07 | -22.00 | 17.71 | 161.50 | -55.44 | 69.50 | 0.8396 | 348.2 | 999999 | |
| 7.43 | 82.59 | 6.56 | 73.57 | 15.94 | 162.21 | -54.72 | 71.45 | 0.8301 | 699.5 | 202.2 | |
| 4.17 | -22.00 | 3.73 | -22.00 | 16.76 | 161.81 | -55.12 | 70.56 | 0.8351 | 508.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.05 | 16.29 | 161.85 | -55.08 | 71.11 | 0.8340 | 431.0 | 371.8 | |
| 10.52 | -34.00 | 9.32 | -34.00 | 15.53 | 162.05 | -54.89 | 71.97 | 0.8310 | 850.3 | 999999 | |
| 2.18 | -22.00 | 1.98 | -22.00 | 17.13 | 161.31 | -55.63 | 70.22 | 0.8403 | 290.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.99 | 17.35 | 161.09 | -55.84 | 70.00 | 0.8426 | -213.0 | -150.9 | |
| 1.36 | -34.00 | 1.22 | -34.00 | 15.96 | 161.59 | -55.34 | 71.54 | 0.8358 | 290.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.93 | 18.14 | 160.31 | -56.62 | 69.25 | 0.8507 | 437.0 | 366.9 | |
| 0.00 | 2.36 | 0.00 | 2.14 | 16.05 | 161.16 | -55.77 | 71.52 | 0.8399 | 135.0 | 61.1 | |
| 0.00 | 0.73 | 0.00 | 0.68 | 18.04 | 160.01 | -56.93 | 69.42 | 0.8531 | 325.0 | 262.4 | |
| 0.00 | 1.36 | 0.00 | 1.27 | 17.21 | 160.18 | -56.76 | 70.35 | 0.8504 | 418.0 | 336.7 | |
| 0.00 | 1.27 | 0.00 | 1.19 | 16.95 | 159.95 | -56.99 | 70.69 | 0.8520 | 306.0 | 230.7 | |
| 0.00 | 1.00 | 0.00 | 0.92 | 15.41 | 160.46 | -56.47 | 72.40 | 0.8452 | -413.0 | -349.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
