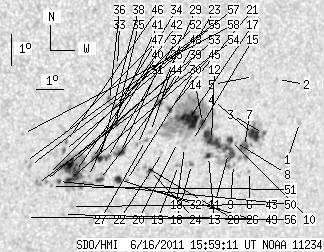

SDO HMI 2011-06-16 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 120.74 | 417.03 | 72.99 | 250.95 | -14.98 | 247.24 | 30.86 | 240.84 | 0.5691 | 178.3 | 98.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-16 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 1.38 | -14.39 | 252.22 | 35.84 | 245.01 | 0.6279 | 681.0 | 503.6 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -13.02 | 251.13 | 34.75 | 246.50 | 0.6078 | 649.0 | 482.8 | |
| 0.54 | 23.93 | 0.34 | 14.93 | -14.72 | 250.89 | 34.51 | 243.75 | 0.6131 | 404.2 | 417.2 | |
| 9.61 | -3.00 | 5.99 | -3.00 | -14.75 | 250.51 | 34.13 | 243.48 | 0.6086 | 924.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -12.92 | 250.21 | 33.82 | 246.15 | 0.5954 | 625.0 | 467.0 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -15.93 | 250.58 | 34.20 | 241.75 | 0.6158 | -492.0 | -338.7 | |
| 5.08 | 17.04 | 3.16 | 10.62 | -15.13 | 250.24 | 33.86 | 242.74 | 0.6072 | 861.6 | 533.0 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -15.00 | 249.87 | 33.49 | 242.71 | 0.6020 | 484.0 | 499.5 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -15.70 | 249.92 | 33.54 | 241.68 | 0.6065 | 555.0 | 483.9 | |
| 3.35 | 65.45 | 2.07 | 40.27 | -14.93 | 249.67 | 33.29 | 242.68 | 0.5991 | 835.2 | 545.3 | |
| 11.06 | -10.00 | 6.84 | -10.00 | -15.34 | 249.67 | 33.29 | 242.05 | 0.6014 | 766.6 | 999999 | |
| 16.14 | -10.00 | 9.88 | -10.00 | -14.89 | 248.95 | 32.57 | 242.28 | 0.5899 | 910.0 | 999999 | |
| 2.63 | -10.00 | 1.61 | -10.00 | -15.43 | 248.93 | 32.55 | 241.43 | 0.5927 | 797.6 | 999999 | |
| 2.90 | 133.07 | 1.76 | 80.34 | -14.35 | 248.52 | 32.14 | 242.85 | 0.5814 | 889.6 | 475.3 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -14.91 | 248.24 | 31.86 | 241.77 | 0.5812 | 220.0 | 297.0 | |
| 0.00 | 2.45 | 0.00 | 1.49 | -15.68 | 248.34 | 31.96 | 240.64 | 0.5869 | 885.0 | 663.3 | |
| 24.20 | -14.00 | 14.62 | -14.00 | -14.25 | 247.99 | 31.61 | 242.65 | 0.5740 | 1079.4 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.37 | -15.13 | 247.98 | 31.60 | 241.24 | 0.5792 | 701.0 | 603.4 | |
| 0.00 | 1.99 | 0.00 | 1.21 | -15.70 | 247.86 | 31.48 | 240.26 | 0.5811 | 867.0 | 677.7 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -14.97 | 247.70 | 31.32 | 241.30 | 0.5746 | 641.0 | 534.5 | |
| 2.27 | 2.99 | 1.36 | 1.79 | -13.92 | 247.24 | 30.86 | 242.66 | 0.5626 | 981.6 | 815.1 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -15.28 | 247.19 | 30.81 | 240.44 | 0.5702 | -356.0 | -195.9 | |
| 3.35 | 3.63 | 2.00 | 2.16 | -13.70 | 246.84 | 30.46 | 242.75 | 0.5561 | 882.9 | 790.7 | |
| 2.36 | 3.54 | 1.42 | 2.13 | -15.85 | 246.85 | 30.47 | 239.28 | 0.5695 | -546.5 | -438.2 | |
| 0.00 | 1.99 | 0.00 | 1.19 | -14.61 | 246.65 | 30.27 | 241.11 | 0.5592 | -275.0 | -124.0 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -16.46 | 246.95 | 30.57 | 238.41 | 0.5748 | 786.0 | 606.5 | |
| 0.00 | 2.18 | 0.00 | 1.30 | -14.89 | 246.51 | 30.13 | 240.55 | 0.5592 | -466.0 | -359.7 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -15.72 | 246.61 | 30.22 | 239.30 | 0.5657 | -646.0 | -553.2 | |
| 0.00 | 2.54 | 0.00 | 1.51 | -15.02 | 246.24 | 29.86 | 240.14 | 0.5565 | -440.0 | -176.2 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -16.16 | 246.02 | 29.64 | 238.14 | 0.5613 | -446.0 | -421.3 | |
| 4.53 | 9.34 | 2.69 | 5.53 | -15.27 | 245.66 | 29.28 | 239.29 | 0.5509 | -573.8 | -53.5 | |
| 4.26 | 5.08 | 2.54 | 3.02 | -16.13 | 245.72 | 29.34 | 237.96 | 0.5574 | -726.4 | -504.2 | |
| 0.00 | 1.90 | 0.00 | 1.11 | -12.52 | 245.17 | 28.79 | 243.54 | 0.5272 | -670.0 | -521.7 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -13.78 | 245.30 | 28.92 | 241.48 | 0.5366 | -703.0 | -533.2 | |
| 1.63 | 2.54 | 0.96 | 1.49 | -14.34 | 245.34 | 28.96 | 240.55 | 0.5408 | -661.0 | -500.8 | |
| 0.00 | 3.54 | 0.00 | 2.07 | -13.62 | 245.03 | 28.64 | 241.54 | 0.5320 | -1074.0 | -799.4 | |
| 2.54 | 13.87 | 1.50 | 8.17 | -15.42 | 245.21 | 28.83 | 238.68 | 0.5463 | -684.7 | -702.7 | |
| 3.44 | -37.00 | 2.03 | -37.00 | -15.45 | 244.93 | 28.55 | 238.39 | 0.5429 | -888.8 | 999999 | |
| 2.99 | 5.80 | 1.77 | 3.43 | -16.12 | 245.03 | 28.65 | 237.40 | 0.5489 | -631.5 | -480.3 | |
| 1.36 | -37.00 | 0.80 | -37.00 | -15.45 | 244.68 | 28.29 | 238.19 | 0.5397 | -789.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -16.02 | 244.62 | 28.24 | 237.21 | 0.5431 | -620.0 | -455.8 | |
| 5.08 | 72.07 | 2.97 | 42.20 | -15.85 | 244.13 | 27.75 | 237.04 | 0.5358 | -936.8 | -598.7 | |
| 0.00 | 1.99 | 0.00 | 1.18 | -16.97 | 244.16 | 27.78 | 235.27 | 0.5444 | -688.0 | -430.6 | |
| 5.17 | -42.00 | 3.02 | -42.00 | -15.63 | 243.88 | 27.50 | 237.19 | 0.5311 | -1224.7 | 999999 | |
| 3.26 | -42.00 | 1.91 | -42.00 | -16.14 | 243.92 | 27.54 | 236.40 | 0.5353 | -867.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -14.90 | 243.67 | 27.29 | 238.23 | 0.5232 | -775.0 | -727.5 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -14.61 | 243.59 | 27.21 | 238.65 | 0.5202 | -886.0 | -706.9 | |
| 1.54 | 1.99 | 0.90 | 1.16 | -15.18 | 243.64 | 27.26 | 237.72 | 0.5248 | -741.7 | -856.2 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -17.23 | 243.91 | 27.53 | 234.65 | 0.5434 | -642.0 | -504.0 | |
| 1.45 | 1.81 | 0.85 | 1.06 | -16.17 | 243.57 | 27.18 | 236.03 | 0.5312 | -862.2 | -765.8 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -16.32 | 243.34 | 26.96 | 235.56 | 0.5296 | -696.0 | -530.6 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -15.94 | 243.18 | 26.80 | 236.04 | 0.5247 | -853.0 | -700.6 | |
| 0.00 | 1.90 | 0.00 | 1.11 | -16.13 | 243.10 | 26.72 | 235.65 | 0.5251 | -959.0 | -820.8 | |
| 0.00 | 2.63 | 0.00 | 1.53 | -16.22 | 242.83 | 26.45 | 235.24 | 0.5225 | -775.0 | -754.1 | |
| 0.00 | 2.99 | 0.00 | 1.73 | -15.65 | 242.50 | 26.12 | 235.89 | 0.5140 | -925.0 | -675.9 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -17.31 | 242.60 | 26.22 | 233.27 | 0.5284 | -608.0 | -482.6 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -15.52 | 242.30 | 25.92 | 235.92 | 0.5106 | -704.0 | -566.2 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -14.63 | 242.12 | 25.74 | 237.26 | 0.5015 | -711.0 | -598.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
