SDO HMI 2011-06-16 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.84 | 389.43 | 72.83 | 235.50 | -15.14 | 247.31 | 31.48 | 241.01 | 0.5780 | 130.6 | 97.5 | |
|
previous
or next observation for the same group /

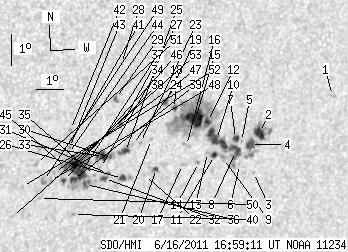

back to the solar disc SDO HMI 2011-06-16 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.08 | 0.00 | 1.35 | -13.59 | 253.19 | 37.37 | 246.99 | 0.6432 | 604.0 | 544.1 | |
| 8.07 | 21.48 | 5.06 | 13.49 | -14.72 | 250.56 | 34.73 | 243.88 | 0.6160 | 937.7 | 501.5 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -16.00 | 250.57 | 34.75 | 241.99 | 0.6228 | -465.0 | -383.3 | |
| 6.89 | 16.77 | 4.32 | 10.52 | -15.10 | 250.28 | 34.46 | 243.14 | 0.6145 | 831.4 | 494.5 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -15.00 | 249.92 | 34.10 | 243.08 | 0.6095 | 506.0 | 484.4 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -15.73 | 249.98 | 34.16 | 242.01 | 0.6142 | 588.0 | 497.3 | |
| 3.54 | 5.44 | 2.20 | 3.38 | -14.90 | 249.68 | 33.85 | 243.07 | 0.6059 | 780.2 | 448.5 | |
| 10.33 | 173.22 | 6.44 | 105.73 | -15.32 | 249.75 | 33.93 | 242.49 | 0.6091 | 777.9 | 504.9 | |
| 0.00 | 3.44 | 0.00 | 2.14 | -15.53 | 249.33 | 33.51 | 241.90 | 0.6052 | 403.0 | 353.7 | |
| 17.77 | -8.00 | 10.95 | -8.00 | -14.93 | 248.96 | 33.13 | 242.59 | 0.5972 | 880.7 | 999999 | |
| 2.54 | 3.63 | 1.57 | 2.24 | -15.43 | 248.98 | 33.15 | 241.82 | 0.6002 | 815.8 | 673.0 | |
| 3.63 | -8.00 | 2.22 | -8.00 | -14.35 | 248.52 | 32.70 | 243.20 | 0.5885 | 853.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -15.34 | 248.69 | 32.87 | 241.78 | 0.5962 | 407.0 | 356.2 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -15.65 | 248.41 | 32.59 | 241.11 | 0.5945 | 868.0 | 745.0 | |
| 19.76 | -8.00 | 12.02 | -8.00 | -14.25 | 248.06 | 32.23 | 243.06 | 0.5821 | 1082.4 | 999999 | |
| 0.00 | 2.90 | 0.00 | 1.77 | -15.10 | 247.87 | 32.04 | 241.59 | 0.5845 | 724.0 | 646.0 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -15.71 | 247.82 | 32.00 | 240.62 | 0.5875 | 822.0 | 664.2 | |
| 1.90 | 3.54 | 1.15 | 2.13 | -13.93 | 247.23 | 31.41 | 243.03 | 0.5697 | 938.1 | 764.8 | |
| 2.99 | 3.26 | 1.79 | 1.95 | -13.70 | 246.87 | 31.04 | 243.14 | 0.5637 | 875.5 | 766.3 | |
| 1.72 | 3.99 | 1.04 | 2.41 | -15.82 | 246.88 | 31.05 | 239.76 | 0.5766 | -477.4 | -506.6 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -14.90 | 246.54 | 30.71 | 240.97 | 0.5666 | -510.0 | -399.6 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -16.04 | 246.47 | 30.64 | 239.11 | 0.5730 | -518.0 | -373.5 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -14.99 | 246.15 | 30.32 | 240.54 | 0.5623 | -18.0 | -19.9 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -15.05 | 245.87 | 30.04 | 240.23 | 0.5591 | 799.0 | 479.6 | |
| 3.54 | 7.16 | 2.11 | 4.26 | -15.27 | 245.65 | 29.82 | 239.70 | 0.5577 | -548.9 | -291.0 | |
| 3.63 | 6.07 | 2.17 | 3.64 | -16.13 | 245.68 | 29.85 | 238.36 | 0.5638 | -705.3 | -385.9 | |
| 1.45 | 2.90 | 0.86 | 1.72 | -14.41 | 245.37 | 29.54 | 240.89 | 0.5487 | -625.8 | -615.8 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -12.49 | 245.11 | 29.28 | 243.95 | 0.5336 | -584.0 | -672.8 | |
| 0.73 | 2.27 | 0.43 | 1.33 | -13.59 | 245.04 | 29.21 | 242.01 | 0.5393 | -939.5 | -794.6 | |
| 1.27 | 14.32 | 0.75 | 8.48 | -15.46 | 245.13 | 29.30 | 239.00 | 0.5525 | -689.9 | -654.7 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -15.96 | 245.10 | 29.28 | 238.16 | 0.5555 | -689.0 | -532.6 | |
| 3.17 | 3.26 | 1.89 | 1.94 | -16.12 | 245.02 | 29.19 | 237.84 | 0.5556 | -662.0 | -610.0 | |
| 4.89 | -30.00 | 2.90 | -30.00 | -15.42 | 244.87 | 29.04 | 238.85 | 0.5490 | -862.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -15.77 | 244.82 | 28.99 | 238.24 | 0.5507 | -612.0 | -467.2 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -16.02 | 244.64 | 28.81 | 237.68 | 0.5502 | -655.0 | -488.4 | |
| 2.54 | 75.60 | 1.50 | 44.48 | -16.31 | 244.36 | 28.53 | 236.99 | 0.5488 | -564.0 | -566.4 | |
| 10.33 | -36.00 | 6.09 | -36.00 | -15.92 | 244.12 | 28.29 | 237.41 | 0.5431 | -874.9 | 999999 | |
| 4.35 | -36.00 | 2.55 | -36.00 | -15.66 | 243.86 | 28.04 | 237.60 | 0.5381 | -1237.2 | 999999 | |
| 2.72 | -36.00 | 1.60 | -36.00 | -16.14 | 243.90 | 28.07 | 236.86 | 0.5420 | -933.7 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.18 | -17.26 | 244.08 | 28.25 | 235.24 | 0.5524 | -617.0 | -516.4 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -14.90 | 243.64 | 27.82 | 238.68 | 0.5300 | -907.0 | -731.4 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -14.55 | 243.56 | 27.73 | 239.20 | 0.5265 | -772.0 | -643.6 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -15.12 | 243.60 | 27.78 | 238.28 | 0.5310 | -811.0 | -714.9 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -15.31 | 243.60 | 27.77 | 237.95 | 0.5322 | -751.0 | -709.8 | |
| 0.63 | -36.00 | 0.37 | -36.00 | -15.76 | 243.55 | 27.73 | 237.18 | 0.5349 | -1045.1 | 999999 | |
| 1.45 | 4.08 | 0.85 | 2.39 | -16.17 | 243.54 | 27.72 | 236.50 | 0.5378 | -815.9 | -521.3 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -15.91 | 243.18 | 27.36 | 236.60 | 0.5314 | -890.0 | -732.4 | |
| 0.00 | 2.72 | 0.00 | 1.59 | -16.17 | 243.08 | 27.25 | 236.09 | 0.5320 | -813.0 | -694.6 | |
| 0.00 | 4.17 | 0.00 | 2.43 | -16.16 | 242.83 | 27.00 | 235.86 | 0.5289 | -888.0 | -740.3 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -16.74 | 242.77 | 26.95 | 234.88 | 0.5326 | -694.0 | -578.1 | |
| 0.00 | 2.54 | 0.00 | 1.47 | -15.62 | 242.50 | 26.68 | 236.46 | 0.5208 | -867.0 | -686.1 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -16.35 | 242.11 | 26.28 | 234.88 | 0.5215 | -698.0 | -606.5 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -17.31 | 241.90 | 26.07 | 233.12 | 0.5266 | -653.0 | -457.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
