SDO HMI 2011-06-16 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.21 | 334.97 | 69.60 | 207.31 | -15.14 | 246.95 | 33.35 | 242.25 | 0.6013 | 69.3 | 88.9 | |
|
previous
or next observation for the same group /

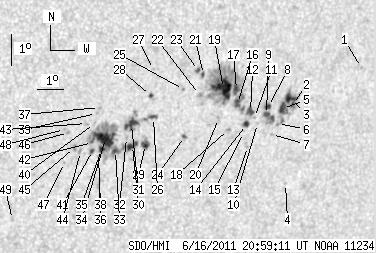

back to the solar disc SDO HMI 2011-06-16 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.79 | -13.70 | 253.37 | 39.76 | 247.92 | 0.6729 | 447.0 | 408.8 | |
| 1.81 | 37.98 | 1.18 | 24.56 | -14.83 | 250.82 | 37.22 | 245.07 | 0.6470 | 587.2 | 497.0 | |
| 7.16 | -2.00 | 4.63 | -2.00 | -14.64 | 250.70 | 37.10 | 245.29 | 0.6447 | 861.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -17.36 | 251.10 | 37.50 | 241.62 | 0.6626 | 527.0 | 384.8 | |
| 6.35 | -2.00 | 4.10 | -2.00 | -14.96 | 250.45 | 36.85 | 244.69 | 0.6431 | 825.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -15.43 | 250.35 | 36.75 | 243.95 | 0.6442 | 597.0 | 455.2 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -15.78 | 250.19 | 36.58 | 243.36 | 0.6439 | 428.0 | 360.8 | |
| 2.36 | 3.35 | 1.51 | 2.15 | -14.89 | 249.89 | 36.28 | 244.49 | 0.6359 | 860.5 | 792.7 | |
| 2.81 | 10.61 | 1.80 | 6.81 | -15.14 | 249.86 | 36.25 | 244.11 | 0.6368 | 856.8 | 680.8 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -15.42 | 249.56 | 35.96 | 243.53 | 0.6346 | 670.0 | 552.0 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -15.23 | 249.41 | 35.80 | 243.72 | 0.6317 | 768.0 | 697.7 | |
| 4.89 | 6.07 | 3.11 | 3.86 | -15.04 | 249.21 | 35.61 | 243.90 | 0.6284 | 739.4 | 503.7 | |
| 0.00 | 1.36 | 0.00 | 0.87 | -16.15 | 249.32 | 35.72 | 242.32 | 0.6354 | 628.0 | 513.5 | |
| 2.99 | 3.99 | 1.90 | 2.54 | -15.45 | 249.14 | 35.53 | 243.25 | 0.6296 | 799.9 | 695.3 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -15.70 | 249.07 | 35.47 | 242.83 | 0.6301 | 519.0 | 535.8 | |
| 5.35 | 108.50 | 3.37 | 67.72 | -14.78 | 248.66 | 35.06 | 243.97 | 0.6203 | 792.0 | 532.3 | |
| 5.26 | -16.00 | 3.30 | -16.00 | -14.33 | 248.54 | 34.94 | 244.57 | 0.6166 | 741.6 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -15.60 | 248.47 | 34.87 | 242.63 | 0.6222 | 682.0 | 552.0 | |
| 19.76 | -16.00 | 12.33 | -16.00 | -14.29 | 248.04 | 34.43 | 244.34 | 0.6101 | 1027.1 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.02 | -15.24 | 248.02 | 34.41 | 242.88 | 0.6148 | 738.0 | 615.6 | |
| 1.63 | 2.36 | 1.01 | 1.45 | -13.84 | 247.20 | 33.60 | 244.54 | 0.5972 | 839.0 | 736.9 | |
| 0.00 | 2.63 | 0.00 | 1.63 | -14.47 | 247.15 | 33.55 | 243.53 | 0.6000 | 408.0 | 414.3 | |
| 1.72 | 2.18 | 1.06 | 1.34 | -13.71 | 246.99 | 33.39 | 244.62 | 0.5939 | 811.1 | 757.2 | |
| 1.63 | 2.99 | 1.01 | 1.85 | -15.80 | 246.82 | 33.22 | 241.29 | 0.6033 | -585.7 | -426.1 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -14.31 | 246.52 | 32.92 | 243.39 | 0.5912 | 678.0 | 568.8 | |
| 2.90 | 22.84 | 1.77 | 13.83 | -15.18 | 245.55 | 31.95 | 241.38 | 0.5839 | -413.8 | -510.7 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -13.66 | 245.31 | 31.70 | 243.63 | 0.5721 | -677.0 | -570.8 | |
| 1.45 | 2.90 | 0.88 | 1.76 | -14.48 | 245.32 | 31.72 | 242.33 | 0.5770 | -414.9 | 21.3 | |
| 4.80 | 8.07 | 2.93 | 4.93 | -16.04 | 245.40 | 31.80 | 239.95 | 0.5872 | -643.0 | -446.8 | |
| 5.62 | 81.76 | 3.42 | 49.20 | -16.06 | 244.92 | 31.32 | 239.56 | 0.5815 | -611.1 | -534.5 | |
| 8.25 | -26.00 | 4.99 | -26.00 | -15.39 | 244.77 | 31.17 | 240.49 | 0.5755 | -825.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -15.81 | 244.65 | 31.05 | 239.76 | 0.5766 | -690.0 | -608.8 | |
| 2.90 | -30.00 | 1.75 | -30.00 | -16.22 | 244.32 | 30.71 | 238.87 | 0.5751 | -642.0 | 999999 | |
| 17.59 | -30.00 | 10.56 | -30.00 | -15.83 | 243.88 | 30.28 | 239.15 | 0.5672 | -992.2 | 999999 | |
| 2.90 | -30.00 | 1.74 | -30.00 | -16.18 | 243.80 | 30.19 | 238.53 | 0.5684 | -894.6 | 999999 | |
| 0.00 | 4.99 | 0.00 | 3.02 | -17.27 | 243.91 | 30.31 | 236.94 | 0.5772 | -648.0 | -542.3 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -14.84 | 243.51 | 29.90 | 240.44 | 0.5561 | -670.0 | -634.6 | |
| 0.00 | 1.63 | 0.00 | 0.98 | -16.37 | 243.72 | 30.11 | 238.17 | 0.5687 | -512.0 | -478.6 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -15.03 | 243.43 | 29.82 | 240.07 | 0.5563 | -495.0 | -521.6 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -15.35 | 243.40 | 29.80 | 239.54 | 0.5581 | -630.0 | -548.4 | |
| 1.54 | 2.90 | 0.92 | 1.74 | -16.21 | 243.47 | 29.87 | 238.23 | 0.5646 | -803.0 | -688.8 | |
| 0.54 | -30.00 | 0.33 | -30.00 | -15.95 | 243.43 | 29.82 | 238.60 | 0.5624 | -924.2 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.13 | -15.34 | 243.11 | 29.51 | 239.32 | 0.5544 | -697.0 | -661.4 | |
| 0.00 | 2.18 | 0.00 | 1.30 | -16.23 | 243.04 | 29.43 | 237.84 | 0.5595 | -740.0 | -637.1 | |
| 0.00 | 2.72 | 0.00 | 1.62 | -16.10 | 242.80 | 29.19 | 237.85 | 0.5556 | -884.0 | -760.1 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -15.62 | 242.50 | 28.90 | 238.38 | 0.5487 | -863.0 | -756.2 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -16.58 | 242.51 | 28.91 | 236.85 | 0.5554 | -627.0 | -553.8 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -15.53 | 242.34 | 28.74 | 238.40 | 0.5460 | -901.0 | -765.6 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -18.40 | 240.93 | 27.33 | 232.62 | 0.5503 | -669.0 | -535.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
