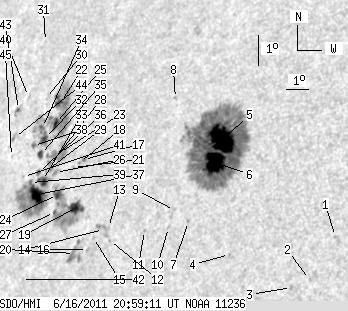

SDO HMI 2011-06-16 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 149.56 | 748.59 | 114.17 | 568.10 | 16.70 | 166.32 | -47.29 | 68.62 | 0.7563 | -195.9 | 0.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-16 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.70 | 14.40 | 175.72 | -37.88 | 68.62 | 0.6410 | -656.0 | -527.2 | |
| 0.00 | 0.73 | 0.00 | 0.47 | 13.04 | 174.94 | -38.66 | 70.96 | 0.6461 | -524.0 | -465.8 | |
| 0.00 | 1.54 | 0.00 | 1.01 | 12.78 | 174.26 | -39.34 | 71.59 | 0.6538 | -724.0 | -549.6 | |
| 0.00 | 1.00 | 0.00 | 0.68 | 13.78 | 171.49 | -42.11 | 71.07 | 0.6908 | -617.0 | -509.3 | |
| 43.15 | 379.45 | 30.55 | 269.13 | 17.39 | 170.25 | -43.35 | 66.52 | 0.7165 | -1151.1 | -260.3 | |
| 29.91 | -5.00 | 21.14 | -5.00 | 16.66 | 170.12 | -43.49 | 67.56 | 0.7156 | -1174.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.90 | 14.79 | 169.48 | -44.13 | 70.31 | 0.7173 | -577.0 | -551.6 | |
| 0.00 | 1.27 | 0.00 | 0.94 | 18.66 | 167.72 | -45.88 | 65.75 | 0.7483 | -441.0 | -302.2 | |
| 0.00 | 1.00 | 0.00 | 0.72 | 15.12 | 168.77 | -44.83 | 70.07 | 0.7263 | -583.0 | -497.5 | |
| 0.00 | 0.91 | 0.00 | 0.65 | 14.59 | 168.64 | -44.96 | 70.83 | 0.7263 | -351.0 | -411.7 | |
| 0.00 | 1.00 | 0.00 | 0.73 | 14.48 | 167.59 | -46.01 | 71.28 | 0.7379 | -641.0 | -513.7 | |
| 0.00 | 0.91 | 0.00 | 0.68 | 14.14 | 166.07 | -47.53 | 72.11 | 0.7539 | 298.0 | 262.2 | |
| 0.00 | 1.00 | 0.00 | 0.75 | 14.55 | 165.91 | -47.70 | 71.63 | 0.7566 | -664.0 | -356.7 | |
| 0.00 | 7.07 | 0.00 | 5.36 | 14.48 | 165.69 | -47.91 | 71.77 | 0.7588 | -343.0 | -470.6 | |
| 0.00 | 1.27 | 0.00 | 0.97 | 14.23 | 165.29 | -48.31 | 72.20 | 0.7625 | 288.0 | 192.6 | |
| 0.00 | 1.36 | 0.00 | 1.04 | 13.85 | 165.11 | -48.49 | 72.73 | 0.7637 | 525.0 | 355.3 | |
| 1.36 | 1.45 | 1.07 | 1.15 | 16.67 | 164.03 | -49.57 | 69.41 | 0.7813 | 763.1 | 791.0 | |
| 0.00 | 1.18 | 0.00 | 0.93 | 16.57 | 163.87 | -49.74 | 69.57 | 0.7827 | 717.0 | 635.2 | |
| 11.78 | 78.23 | 9.22 | 61.82 | 15.15 | 164.20 | -49.41 | 71.28 | 0.7762 | -775.6 | -97.2 | |
| 0.00 | 14.14 | 0.00 | 10.92 | 13.71 | 164.53 | -49.07 | 73.03 | 0.7697 | 192.0 | 184.4 | |
| 0.00 | 1.36 | 0.00 | 1.08 | 16.41 | 163.63 | -49.98 | 69.84 | 0.7848 | 629.0 | 500.5 | |
| 9.88 | 76.96 | 8.19 | 63.47 | 18.46 | 162.18 | -51.43 | 67.69 | 0.8038 | 661.9 | 515.6 | |
| 0.00 | 21.30 | 0.00 | 17.31 | 16.87 | 162.76 | -50.85 | 69.48 | 0.7946 | 670.0 | 624.9 | |
| 5.80 | -19.00 | 4.65 | -19.00 | 15.55 | 163.13 | -50.48 | 71.04 | 0.7880 | 760.7 | 999999 | |
| 4.89 | -22.00 | 4.04 | -22.00 | 17.78 | 162.20 | -51.41 | 68.50 | 0.8021 | 901.5 | 999999 | |
| 0.00 | 3.54 | 0.00 | 2.86 | 16.24 | 162.79 | -50.82 | 70.26 | 0.7929 | 808.0 | 688.9 | |
| 1.36 | -19.00 | 1.09 | -19.00 | 14.98 | 163.17 | -50.44 | 71.74 | 0.7865 | 370.1 | 999999 | |
| 0.00 | 4.53 | 0.00 | 3.70 | 16.45 | 162.40 | -51.20 | 70.08 | 0.7972 | 808.0 | 714.3 | |
| 0.00 | 1.18 | 0.00 | 0.96 | 16.29 | 162.31 | -51.29 | 70.30 | 0.7978 | 581.0 | 575.2 | |
| 0.00 | 0.73 | 0.00 | 0.61 | 18.57 | 161.34 | -52.26 | 67.76 | 0.8120 | 216.0 | 242.9 | |
| 0.00 | 0.63 | 0.00 | 0.55 | 20.40 | 160.49 | -53.11 | 65.80 | 0.8240 | 452.0 | 361.7 | |
| 6.98 | 28.92 | 5.80 | 24.18 | 17.30 | 161.82 | -51.78 | 69.18 | 0.8047 | 688.9 | 121.4 | |
| 6.44 | 91.46 | 5.26 | 75.13 | 15.97 | 162.22 | -51.38 | 70.72 | 0.7980 | 759.4 | 265.1 | |
| 2.18 | -32.00 | 1.82 | -32.00 | 17.65 | 161.58 | -52.03 | 68.82 | 0.8078 | 475.0 | 999999 | |
| 3.90 | 4.89 | 3.23 | 4.06 | 16.79 | 161.81 | -51.79 | 69.81 | 0.8037 | 541.8 | 376.0 | |
| 2.27 | 2.54 | 1.87 | 2.09 | 16.22 | 161.93 | -51.68 | 70.48 | 0.8015 | 360.0 | 260.7 | |
| 14.68 | -33.00 | 12.03 | -33.00 | 15.53 | 162.07 | -51.53 | 71.30 | 0.7986 | 907.7 | 999999 | |
| 1.90 | 3.90 | 1.60 | 3.27 | 17.07 | 161.34 | -52.26 | 69.58 | 0.8089 | 311.7 | 302.1 | |
| 1.63 | -33.00 | 1.35 | -33.00 | 15.90 | 161.63 | -51.97 | 70.94 | 0.8037 | 265.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.25 | 18.62 | 160.41 | -53.19 | 67.93 | 0.8208 | 437.0 | 282.8 | |
| 0.00 | 1.00 | 0.00 | 0.84 | 16.09 | 161.20 | -52.40 | 70.81 | 0.8083 | 291.0 | 193.5 | |
| 0.00 | 0.36 | 0.00 | 0.29 | 12.87 | 162.17 | -51.44 | 74.59 | 0.7930 | 310.0 | 324.5 | |
| 1.45 | 4.08 | 1.26 | 3.54 | 18.20 | 160.06 | -53.54 | 68.52 | 0.8232 | 523.6 | 445.7 | |
| 0.00 | 3.44 | 0.00 | 2.97 | 17.31 | 160.23 | -53.37 | 69.55 | 0.8199 | 416.0 | 360.5 | |
| 0.00 | 0.45 | 0.00 | 0.39 | 16.71 | 160.32 | -53.28 | 70.25 | 0.8179 | 247.0 | 213.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
