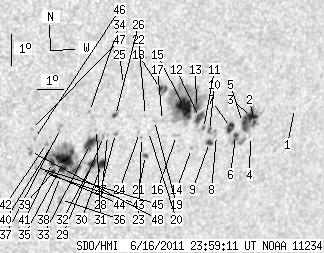

SDO HMI 2011-06-16 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.99 | 325.81 | 67.99 | 205.07 | -15.08 | 246.69 | 34.74 | 243.18 | 0.6183 | -17.0 | 80.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-16 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.74 | -14.39 | 252.48 | 40.54 | 247.26 | 0.6849 | 585.0 | 481.1 | |
| 1.09 | 25.48 | 0.72 | 16.87 | -14.81 | 250.93 | 38.99 | 245.96 | 0.6683 | 458.5 | 673.2 | |
| 4.90 | -2.00 | 3.24 | -2.00 | -14.62 | 250.77 | 38.82 | 246.16 | 0.6655 | 872.5 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -15.25 | 250.86 | 38.92 | 245.30 | 0.6694 | 184.0 | 161.3 | |
| 1.00 | -2.00 | 0.66 | -2.00 | -14.80 | 250.44 | 38.50 | 245.74 | 0.6624 | 831.1 | 999999 | |
| 2.18 | 10.97 | 1.43 | 7.25 | -15.21 | 250.25 | 38.30 | 245.05 | 0.6619 | 701.6 | 494.0 | |
| 5.71 | 7.43 | 3.75 | 4.88 | -14.96 | 249.99 | 38.05 | 245.29 | 0.6577 | 828.4 | 619.5 | |
| 0.00 | 0.73 | 0.00 | 0.47 | -15.20 | 249.48 | 37.54 | 244.68 | 0.6528 | 480.0 | 471.6 | |
| 2.90 | 3.63 | 1.89 | 2.36 | -15.42 | 249.25 | 37.31 | 244.24 | 0.6510 | 775.7 | 642.5 | |
| 0.91 | 4.35 | 0.59 | 2.83 | -15.04 | 249.17 | 37.23 | 244.75 | 0.6482 | 723.4 | 618.9 | |
| 0.00 | 1.63 | 0.00 | 1.06 | -14.97 | 248.92 | 36.98 | 244.72 | 0.6449 | 814.0 | 690.3 | |
| 6.53 | 8.34 | 4.20 | 5.37 | -14.62 | 248.69 | 36.75 | 245.11 | 0.6405 | 633.1 | 484.7 | |
| 4.26 | 98.65 | 2.73 | 62.79 | -14.30 | 248.51 | 36.57 | 245.48 | 0.6368 | 711.3 | 473.8 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -15.60 | 248.57 | 36.63 | 243.61 | 0.6438 | 641.0 | 548.2 | |
| 23.21 | -13.00 | 14.79 | -13.00 | -14.30 | 248.04 | 36.10 | 245.24 | 0.6310 | 984.6 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.22 | -15.18 | 247.90 | 35.96 | 243.85 | 0.6335 | 683.0 | 520.4 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -14.70 | 247.26 | 35.32 | 244.21 | 0.6233 | 743.0 | 642.0 | |
| 1.90 | 6.89 | 1.19 | 4.33 | -13.68 | 247.00 | 35.06 | 245.60 | 0.6151 | 819.8 | 760.7 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -14.69 | 246.95 | 35.01 | 244.04 | 0.6195 | 310.0 | 197.9 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -15.04 | 246.78 | 34.84 | 243.42 | 0.6192 | -167.0 | -83.4 | |
| 1.63 | 2.36 | 1.03 | 1.49 | -15.80 | 246.82 | 34.87 | 242.30 | 0.6236 | -389.1 | -297.4 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -14.53 | 246.58 | 34.63 | 244.07 | 0.6140 | 682.0 | 527.0 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -15.23 | 246.55 | 34.61 | 243.00 | 0.6173 | -428.0 | -331.1 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -15.07 | 246.44 | 34.50 | 243.18 | 0.6151 | -439.0 | -342.6 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -13.54 | 245.57 | 33.63 | 245.00 | 0.5963 | -456.0 | -438.6 | |
| 2.36 | 3.63 | 1.46 | 2.24 | -14.52 | 245.43 | 33.49 | 243.40 | 0.5996 | -532.4 | -428.6 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -15.09 | 245.53 | 33.59 | 242.58 | 0.6040 | -342.0 | -322.7 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -15.15 | 245.24 | 33.30 | 242.31 | 0.6007 | -369.0 | -231.6 | |
| 0.00 | 2.18 | 0.00 | 1.34 | -15.18 | 245.09 | 33.15 | 242.17 | 0.5990 | -497.0 | -338.0 | |
| 5.98 | 18.41 | 3.72 | 11.40 | -16.07 | 245.18 | 33.24 | 240.87 | 0.6052 | -497.8 | -355.5 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -14.95 | 244.79 | 32.85 | 242.32 | 0.5940 | 339.0 | 266.0 | |
| 5.08 | -30.00 | 3.14 | -30.00 | -16.03 | 244.83 | 32.89 | 240.69 | 0.6008 | -700.0 | 999999 | |
| 8.52 | 15.59 | 5.24 | 9.59 | -15.40 | 244.64 | 32.70 | 241.53 | 0.5947 | -818.7 | -584.3 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -14.38 | 244.43 | 32.49 | 242.98 | 0.5863 | -571.0 | -461.9 | |
| 24.21 | 77.97 | 14.79 | 47.63 | -15.93 | 243.76 | 31.82 | 240.11 | 0.5870 | -908.3 | -528.5 | |
| 0.00 | 3.26 | 0.00 | 2.01 | -17.17 | 243.84 | 31.90 | 238.27 | 0.5958 | -766.0 | -642.6 | |
| 0.00 | 3.35 | 0.00 | 2.03 | -14.91 | 243.44 | 31.50 | 241.48 | 0.5768 | -623.0 | -579.4 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -16.44 | 243.71 | 31.76 | 239.29 | 0.5895 | -601.0 | -446.1 | |
| 2.27 | -35.00 | 1.38 | -35.00 | -16.27 | 243.41 | 31.47 | 239.33 | 0.5849 | -637.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -15.35 | 243.25 | 31.31 | 240.65 | 0.5771 | -751.0 | -633.7 | |
| 3.35 | -35.00 | 2.04 | -35.00 | -15.98 | 243.33 | 31.38 | 239.71 | 0.5820 | -938.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -15.38 | 243.00 | 31.06 | 240.42 | 0.5742 | -852.0 | -704.8 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -16.33 | 243.09 | 31.15 | 238.99 | 0.5813 | -568.0 | -435.4 | |
| 0.00 | 2.18 | 0.00 | 1.32 | -16.20 | 242.92 | 30.98 | 239.07 | 0.5784 | -683.0 | -564.0 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -16.14 | 242.76 | 30.82 | 239.05 | 0.5760 | -785.0 | -654.6 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -15.21 | 242.53 | 30.59 | 240.33 | 0.5673 | -749.0 | -607.2 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -14.92 | 242.37 | 30.43 | 240.68 | 0.5635 | -801.0 | -669.5 | |
| 0.00 | 3.54 | 0.00 | 2.13 | -15.62 | 242.45 | 30.51 | 239.62 | 0.5689 | -764.0 | -764.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
