SDO HMI 2011-06-17 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.11 | 304.54 | 68.82 | 194.31 | -15.17 | 246.68 | 35.85 | 243.67 | 0.6323 | 120.4 | 46.7 | |
|
previous
or next observation for the same group /

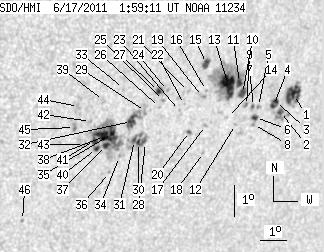

back to the solar disc SDO HMI 2011-06-17 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.14 | 25.57 | 10.86 | 17.21 | -14.68 | 250.78 | 39.95 | 246.57 | 0.6792 | 797.6 | 481.4 | |
| 2.99 | 19.41 | 2.01 | 12.99 | -15.22 | 250.37 | 39.53 | 245.63 | 0.6765 | 720.2 | 513.8 | |
| 2.72 | -2.00 | 1.82 | -2.00 | -14.90 | 250.09 | 39.26 | 245.95 | 0.6719 | 848.7 | 999999 | |
| 2.00 | -2.00 | 1.33 | -2.00 | -15.02 | 250.04 | 39.20 | 245.75 | 0.6718 | 893.7 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.38 | -15.05 | 249.43 | 38.60 | 245.42 | 0.6647 | 658.0 | 496.7 | |
| 2.81 | 3.17 | 1.86 | 2.10 | -15.39 | 249.39 | 38.55 | 244.91 | 0.6658 | 797.6 | 694.2 | |
| 0.91 | 1.27 | 0.60 | 0.84 | -15.04 | 249.23 | 38.39 | 245.33 | 0.6623 | 642.0 | 618.8 | |
| 0.00 | 2.00 | 0.00 | 1.32 | -15.62 | 249.36 | 38.52 | 244.58 | 0.6664 | 564.0 | 458.6 | |
| 0.00 | 1.72 | 0.00 | 1.13 | -15.01 | 248.94 | 38.10 | 245.23 | 0.6587 | 827.0 | 740.1 | |
| 5.99 | 89.96 | 3.91 | 58.14 | -14.62 | 248.70 | 37.86 | 245.66 | 0.6541 | 627.7 | 545.6 | |
| 4.44 | -10.00 | 2.89 | -10.00 | -14.27 | 248.51 | 37.67 | 246.08 | 0.6502 | 677.5 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -15.61 | 248.63 | 37.79 | 244.22 | 0.6577 | 571.0 | 497.2 | |
| 20.77 | -10.00 | 13.44 | -10.00 | -14.36 | 248.09 | 37.25 | 245.74 | 0.6455 | 951.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -15.38 | 248.26 | 37.42 | 244.35 | 0.6523 | 769.0 | 618.5 | |
| 5.26 | 5.80 | 3.35 | 3.69 | -13.65 | 247.10 | 36.26 | 246.27 | 0.6300 | 869.6 | 812.3 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -14.51 | 247.25 | 36.42 | 245.08 | 0.6360 | 809.0 | 629.2 | |
| 0.00 | 1.63 | 0.00 | 1.05 | -15.62 | 247.44 | 36.60 | 243.55 | 0.6436 | 697.0 | 526.4 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -16.48 | 247.54 | 36.71 | 242.37 | 0.6492 | 642.0 | 533.5 | |
| 0.00 | 2.81 | 0.00 | 1.80 | -14.70 | 247.13 | 36.30 | 244.74 | 0.6354 | 446.0 | 430.9 | |
| 1.54 | 2.36 | 0.99 | 1.51 | -15.80 | 246.85 | 36.01 | 242.95 | 0.6374 | -439.5 | -325.4 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -14.53 | 246.56 | 35.72 | 244.67 | 0.6275 | 563.0 | 437.2 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -14.94 | 246.48 | 35.64 | 244.01 | 0.6286 | -297.0 | -282.0 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -15.13 | 246.32 | 35.48 | 243.64 | 0.6276 | -644.0 | -512.5 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -14.49 | 245.74 | 34.90 | 244.27 | 0.6171 | -53.0 | -39.1 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -14.80 | 245.64 | 34.80 | 243.74 | 0.6176 | -454.0 | -287.3 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -15.02 | 245.53 | 34.69 | 243.34 | 0.6173 | -291.0 | -210.8 | |
| 2.45 | 3.26 | 1.53 | 2.04 | -14.52 | 245.40 | 34.56 | 244.03 | 0.6131 | -670.7 | -518.9 | |
| 0.63 | 25.85 | 0.40 | 16.21 | -16.13 | 245.20 | 34.37 | 241.48 | 0.6194 | -240.4 | -269.6 | |
| 0.00 | 2.45 | 0.00 | 1.53 | -15.15 | 245.01 | 34.18 | 242.84 | 0.6116 | -454.0 | -412.4 | |
| 1.54 | -28.00 | 0.97 | -28.00 | -16.13 | 244.93 | 34.10 | 241.32 | 0.6161 | -403.2 | 999999 | |
| 2.00 | -28.00 | 1.25 | -28.00 | -16.06 | 244.77 | 33.93 | 241.31 | 0.6137 | -722.3 | 999999 | |
| 9.25 | 16.14 | 5.76 | 10.05 | -15.46 | 244.54 | 33.70 | 242.07 | 0.6075 | -767.9 | -435.5 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -14.40 | 244.05 | 33.21 | 243.38 | 0.5956 | -468.0 | -404.3 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -16.57 | 244.29 | 33.46 | 240.24 | 0.6109 | -369.0 | -310.4 | |
| 5.08 | 72.64 | 3.14 | 44.90 | -15.83 | 243.89 | 33.05 | 241.08 | 0.6016 | -779.6 | -503.4 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -17.08 | 244.01 | 33.18 | 239.30 | 0.6106 | -702.0 | -537.7 | |
| 3.63 | -35.00 | 2.25 | -35.00 | -16.21 | 243.73 | 32.89 | 240.40 | 0.6019 | -791.7 | 999999 | |
| 11.52 | -35.00 | 7.11 | -35.00 | -15.92 | 243.60 | 32.76 | 240.75 | 0.5986 | -1035.6 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.66 | -14.78 | 243.36 | 32.52 | 242.36 | 0.5890 | -581.0 | -425.1 | |
| 2.18 | -35.00 | 1.34 | -35.00 | -16.30 | 243.37 | 32.53 | 240.02 | 0.5981 | -698.4 | 999999 | |
| 3.26 | -35.00 | 2.01 | -35.00 | -16.05 | 243.25 | 32.41 | 240.32 | 0.5950 | -929.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -15.44 | 242.99 | 32.15 | 241.08 | 0.5882 | -811.0 | -696.1 | |
| 0.00 | 1.90 | 0.00 | 1.17 | -16.17 | 242.89 | 32.06 | 239.88 | 0.5915 | -657.0 | -594.2 | |
| 0.00 | 2.63 | 0.00 | 1.59 | -14.96 | 242.46 | 31.62 | 241.46 | 0.5788 | -825.0 | -691.9 | |
| 0.00 | 3.54 | 0.00 | 2.15 | -15.62 | 242.42 | 31.59 | 240.39 | 0.5823 | -858.0 | -806.1 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -18.59 | 241.04 | 30.20 | 234.82 | 0.5855 | -584.0 | -418.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
