SDO HMI 2011-06-17 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 140.32 | 800.87 | 96.59 | 549.85 | 16.79 | 166.69 | -41.40 | 66.52 | 0.6910 | -226.0 | -45.9 | |
|
previous
or next observation for the same group /

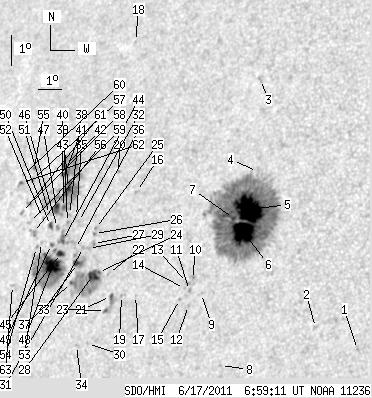

back to the solar disc SDO HMI 2011-06-17 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.71 | 13.08 | 175.20 | -32.90 | 68.49 | 0.5708 | -784.0 | -653.2 | |
| 0.00 | 1.63 | 0.00 | 1.01 | 13.75 | 173.51 | -34.59 | 68.23 | 0.5959 | -729.0 | -486.6 | |
| 0.00 | 2.00 | 0.00 | 1.35 | 21.60 | 169.43 | -38.66 | 58.77 | 0.6816 | -719.0 | -528.0 | |
| 0.00 | 3.08 | 0.00 | 2.03 | 18.64 | 170.17 | -37.92 | 62.49 | 0.6589 | 14.0 | 13.4 | |
| 45.36 | 441.04 | 29.62 | 288.28 | 17.43 | 170.15 | -37.94 | 64.25 | 0.6536 | -1210.3 | -299.9 | |
| 30.21 | -5.00 | 19.68 | -5.00 | 16.73 | 170.08 | -38.02 | 65.30 | 0.6515 | -1263.9 | 999999 | |
| 1.45 | -5.00 | 0.95 | -5.00 | 17.14 | 169.57 | -38.52 | 64.94 | 0.6592 | -366.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.76 | 12.52 | 170.02 | -38.07 | 71.62 | 0.6366 | -700.0 | -568.2 | |
| 0.00 | 0.91 | 0.00 | 0.60 | 14.76 | 168.82 | -39.28 | 68.73 | 0.6592 | -698.0 | -622.0 | |
| 0.00 | 2.99 | 0.00 | 1.98 | 15.19 | 168.35 | -39.74 | 68.28 | 0.6664 | -792.0 | -624.8 | |
| 0.00 | 1.90 | 0.00 | 1.26 | 14.85 | 168.31 | -39.79 | 68.80 | 0.6657 | -841.0 | -654.3 | |
| 0.00 | 0.63 | 0.00 | 0.42 | 14.38 | 168.37 | -39.72 | 69.46 | 0.6634 | -766.0 | -672.3 | |
| 0.00 | 1.63 | 0.00 | 1.08 | 15.10 | 168.17 | -39.92 | 68.49 | 0.6683 | -775.0 | -675.7 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 14.91 | 168.09 | -40.01 | 68.80 | 0.6686 | -609.0 | -555.8 | |
| 0.00 | 1.18 | 0.00 | 0.78 | 14.56 | 167.96 | -40.14 | 69.35 | 0.6690 | -753.0 | -576.8 | |
| 0.00 | 1.45 | 0.00 | 1.02 | 17.94 | 165.26 | -42.84 | 65.66 | 0.7123 | 729.0 | 639.2 | |
| 0.00 | 1.09 | 0.00 | 0.74 | 14.66 | 166.09 | -42.00 | 69.87 | 0.6918 | -659.0 | -481.6 | |
| 0.00 | 0.63 | 0.00 | 0.47 | 22.77 | 163.49 | -44.61 | 60.09 | 0.7493 | 341.0 | 296.3 | |
| 0.00 | 1.00 | 0.00 | 0.69 | 14.65 | 165.50 | -42.60 | 70.08 | 0.6988 | -638.0 | -525.7 | |
| 0.00 | 0.91 | 0.00 | 0.65 | 18.56 | 164.26 | -43.83 | 65.20 | 0.7255 | 590.0 | 492.0 | |
| 1.81 | 11.97 | 1.26 | 8.31 | 14.61 | 165.03 | -43.06 | 70.28 | 0.7041 | -571.8 | -187.5 | |
| 0.00 | 1.45 | 0.00 | 1.02 | 15.33 | 164.76 | -43.33 | 69.38 | 0.7094 | -578.0 | -501.1 | |
| 0.54 | -21.00 | 0.38 | -21.00 | 14.17 | 164.92 | -43.17 | 70.93 | 0.7042 | -456.2 | 999999 | |
| 1.09 | 57.87 | 0.77 | 41.12 | 15.36 | 164.32 | -43.77 | 69.49 | 0.7146 | -747.1 | -313.7 | |
| 0.00 | 1.00 | 0.00 | 0.71 | 16.74 | 163.80 | -44.29 | 67.79 | 0.7246 | 768.0 | 690.6 | |
| 0.00 | 1.18 | 0.00 | 0.84 | 16.58 | 163.80 | -44.29 | 68.01 | 0.7241 | 862.0 | 720.2 | |
| 0.00 | 2.27 | 0.00 | 1.62 | 16.27 | 163.85 | -44.25 | 68.41 | 0.7226 | -89.0 | 79.8 | |
| 7.80 | -24.00 | 5.52 | -24.00 | 15.26 | 164.08 | -44.01 | 69.70 | 0.7170 | -827.6 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.23 | 16.11 | 163.67 | -44.42 | 68.69 | 0.7241 | 747.0 | 480.1 | |
| 0.00 | 0.91 | 0.00 | 0.63 | 13.13 | 164.38 | -43.71 | 72.53 | 0.7078 | 554.0 | 459.3 | |
| 0.00 | 1.45 | 0.00 | 1.04 | 16.13 | 163.44 | -44.65 | 68.73 | 0.7268 | 689.0 | 596.6 | |
| 0.00 | 1.45 | 0.00 | 1.06 | 16.95 | 162.97 | -45.12 | 67.79 | 0.7344 | 410.0 | 389.6 | |
| 5.08 | 14.79 | 3.65 | 10.62 | 15.63 | 163.32 | -44.78 | 69.44 | 0.7267 | 681.4 | 516.8 | |
| 0.00 | 1.72 | 0.00 | 1.21 | 13.06 | 163.92 | -44.18 | 72.75 | 0.7131 | -578.0 | -440.7 | |
| 0.00 | 1.90 | 0.00 | 1.39 | 17.11 | 162.83 | -45.26 | 67.63 | 0.7364 | 611.0 | 580.4 | |
| 0.00 | 1.18 | 0.00 | 0.85 | 16.10 | 163.09 | -45.00 | 68.89 | 0.7306 | 746.0 | 624.9 | |
| 0.54 | -24.00 | 0.39 | -24.00 | 15.03 | 163.21 | -44.88 | 70.28 | 0.7263 | 379.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.80 | 17.17 | 162.49 | -45.60 | 67.66 | 0.7403 | 648.0 | 604.4 | |
| 7.08 | 100.87 | 5.25 | 74.95 | 17.99 | 162.18 | -45.91 | 66.69 | 0.7462 | 899.6 | 480.7 | |
| 0.00 | 1.63 | 0.00 | 1.20 | 16.91 | 162.48 | -45.61 | 68.00 | 0.7397 | 792.0 | 715.5 | |
| 2.54 | -39.00 | 1.90 | -39.00 | 18.43 | 161.84 | -46.25 | 66.24 | 0.7511 | 705.5 | 999999 | |
| 2.18 | -39.00 | 1.63 | -39.00 | 18.69 | 161.75 | -46.34 | 65.94 | 0.7528 | 554.5 | 999999 | |
| 1.63 | -39.00 | 1.21 | -39.00 | 17.38 | 162.15 | -45.94 | 67.49 | 0.7447 | 855.4 | 999999 | |
| 1.81 | 12.61 | 1.33 | 9.22 | 16.34 | 162.43 | -45.66 | 68.77 | 0.7386 | 799.2 | 679.4 | |
| 3.72 | 88.08 | 2.72 | 64.65 | 15.93 | 162.46 | -45.63 | 69.30 | 0.7371 | 924.9 | 366.5 | |
| 0.00 | 2.09 | 0.00 | 1.54 | 16.75 | 162.08 | -46.02 | 68.35 | 0.7436 | 733.0 | 662.7 | |
| 5.62 | -39.00 | 4.18 | -39.00 | 17.35 | 161.84 | -46.26 | 67.64 | 0.7479 | 758.1 | 999999 | |
| 16.42 | -45.00 | 12.03 | -45.00 | 15.55 | 162.21 | -45.89 | 69.89 | 0.7389 | 995.5 | 999999 | |
| 0.36 | 1.18 | 0.27 | 0.87 | 16.21 | 161.97 | -46.13 | 69.09 | 0.7433 | 535.5 | 369.8 | |
| 2.54 | 3.90 | 1.89 | 2.90 | 16.81 | 161.74 | -46.36 | 68.38 | 0.7475 | 595.6 | 463.8 | |
| 0.00 | 1.27 | 0.00 | 0.95 | 17.15 | 161.58 | -46.52 | 67.97 | 0.7502 | 401.0 | 382.1 | |
| 0.00 | 0.91 | 0.00 | 0.68 | 17.05 | 161.28 | -46.81 | 68.19 | 0.7530 | 408.0 | 351.4 | |
| 0.00 | 1.00 | 0.00 | 0.74 | 16.26 | 161.49 | -46.61 | 69.16 | 0.7487 | 479.0 | 374.6 | |
| 0.00 | 1.36 | 0.00 | 1.02 | 16.10 | 161.31 | -46.79 | 69.42 | 0.7502 | 377.0 | 295.3 | |
| 1.27 | 1.72 | 0.98 | 1.33 | 18.63 | 160.35 | -47.75 | 66.46 | 0.7673 | 656.8 | 559.0 | |
| 0.00 | 4.08 | 0.00 | 3.07 | 16.57 | 161.02 | -47.08 | 68.89 | 0.7546 | 588.0 | 483.5 | |
| 0.00 | 1.54 | 0.00 | 1.18 | 18.25 | 160.39 | -47.70 | 66.93 | 0.7657 | 602.0 | 473.7 | |
| 0.00 | 2.18 | 0.00 | 1.66 | 17.49 | 160.52 | -47.57 | 67.87 | 0.7623 | 573.0 | 437.0 | |
| 0.00 | 1.63 | 0.00 | 1.24 | 16.89 | 160.73 | -47.37 | 68.58 | 0.7585 | 511.0 | 395.3 | |
| 0.00 | 1.18 | 0.00 | 0.91 | 18.40 | 159.91 | -48.19 | 66.89 | 0.7712 | 402.0 | 306.8 | |
| 0.00 | 2.00 | 0.00 | 1.53 | 17.20 | 160.29 | -47.80 | 68.31 | 0.7639 | 563.0 | 429.1 | |
| 1.27 | 2.90 | 0.98 | 2.25 | 18.15 | 159.90 | -48.19 | 67.21 | 0.7705 | 488.1 | 375.3 | |
| 0.00 | 1.27 | 0.00 | 0.96 | 14.89 | 160.55 | -47.55 | 71.20 | 0.7555 | -531.0 | -380.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
