SDO HMI 2011-06-17 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.39 | 313.40 | 69.34 | 208.98 | -15.26 | 246.02 | 39.02 | 245.17 | 0.6709 | -25.8 | -33.4 | |
|
previous
or next observation for the same group /

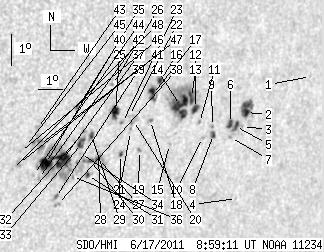

back to the solar disc SDO HMI 2011-06-17 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.61 | -13.56 | 253.56 | 46.56 | 250.56 | 0.7508 | 422.0 | 322.7 | |
| 2.99 | 17.05 | 2.15 | 12.23 | -14.65 | 250.97 | 43.97 | 248.23 | 0.7256 | 817.0 | 631.0 | |
| 0.00 | 1.09 | 0.00 | 0.78 | -15.10 | 250.91 | 43.91 | 247.62 | 0.7264 | 346.0 | 324.2 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -17.40 | 251.30 | 44.30 | 244.77 | 0.7390 | 398.0 | 334.2 | |
| 4.08 | 10.25 | 2.92 | 7.31 | -15.09 | 250.60 | 43.60 | 247.51 | 0.7230 | 621.0 | 616.5 | |
| 3.45 | -5.00 | 2.45 | -5.00 | -14.99 | 250.36 | 43.36 | 247.55 | 0.7199 | 857.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.91 | -15.44 | 250.47 | 43.48 | 247.00 | 0.7228 | 587.0 | 502.8 | |
| 3.08 | 3.72 | 2.17 | 2.62 | -15.33 | 249.71 | 42.71 | 246.83 | 0.7138 | 736.1 | 663.4 | |
| 0.00 | 1.27 | 0.00 | 0.89 | -15.07 | 249.60 | 42.60 | 247.13 | 0.7116 | 658.0 | 582.3 | |
| 0.00 | 1.27 | 0.00 | 0.89 | -15.42 | 249.26 | 42.26 | 246.53 | 0.7091 | 693.0 | 552.8 | |
| 0.00 | 1.63 | 0.00 | 1.14 | -14.94 | 249.01 | 42.01 | 247.07 | 0.7044 | 689.0 | 536.1 | |
| 4.26 | 73.02 | 2.95 | 49.94 | -14.49 | 248.74 | 41.74 | 247.57 | 0.6996 | 558.3 | 512.7 | |
| 4.63 | -12.00 | 3.18 | -12.00 | -14.14 | 248.49 | 41.49 | 247.95 | 0.6954 | 672.4 | 999999 | |
| 20.77 | -12.00 | 14.21 | -12.00 | -14.39 | 248.08 | 41.08 | 247.44 | 0.6916 | 908.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.00 | -15.62 | 247.91 | 40.91 | 245.67 | 0.6945 | 712.0 | 594.6 | |
| 2.81 | 3.63 | 1.89 | 2.43 | -13.58 | 247.08 | 40.08 | 248.13 | 0.6766 | 876.3 | 685.2 | |
| 6.17 | 10.61 | 4.13 | 7.11 | -14.02 | 246.84 | 39.84 | 247.41 | 0.6755 | 872.1 | 695.9 | |
| 0.00 | 2.45 | 0.00 | 1.65 | -14.84 | 246.94 | 39.94 | 246.30 | 0.6800 | 843.0 | 603.9 | |
| 0.00 | 2.00 | 0.00 | 1.35 | -15.79 | 246.70 | 39.70 | 244.87 | 0.6813 | -524.0 | -345.6 | |
| 0.00 | 6.89 | 0.00 | 4.60 | -14.83 | 246.24 | 39.24 | 245.99 | 0.6717 | 132.0 | -99.2 | |
| 0.00 | 1.72 | 0.00 | 1.15 | -15.18 | 246.19 | 39.19 | 245.47 | 0.6726 | -322.0 | -330.9 | |
| 0.00 | 0.54 | 0.00 | 0.36 | -14.67 | 246.04 | 39.04 | 246.12 | 0.6686 | -332.0 | -259.8 | |
| 0.00 | 1.36 | 0.00 | 0.90 | -14.89 | 245.80 | 38.80 | 245.70 | 0.6668 | -545.0 | -372.4 | |
| 1.36 | 2.27 | 0.91 | 1.52 | -15.91 | 245.95 | 38.95 | 244.33 | 0.6730 | 449.7 | 280.8 | |
| 6.80 | 8.98 | 4.48 | 5.91 | -14.57 | 245.45 | 38.45 | 245.99 | 0.6612 | -744.1 | -528.5 | |
| 0.00 | 1.36 | 0.00 | 0.89 | -13.68 | 245.15 | 38.15 | 247.12 | 0.6537 | -673.0 | -588.9 | |
| 2.36 | 22.86 | 1.56 | 15.04 | -16.02 | 245.08 | 38.08 | 243.73 | 0.6634 | -395.3 | -175.9 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -15.80 | 245.03 | 38.03 | 244.02 | 0.6617 | -541.0 | -425.5 | |
| 2.54 | 4.81 | 1.66 | 3.14 | -15.29 | 244.64 | 37.64 | 244.55 | 0.6547 | -507.5 | -373.7 | |
| 2.27 | -27.00 | 1.49 | -27.00 | -16.08 | 244.77 | 37.77 | 243.48 | 0.6600 | -642.9 | 999999 | |
| 1.63 | 2.09 | 1.08 | 1.38 | -16.56 | 244.76 | 37.76 | 242.80 | 0.6622 | -369.2 | -200.6 | |
| 0.00 | 1.54 | 0.00 | 1.00 | -15.19 | 244.30 | 37.30 | 244.51 | 0.6501 | -704.0 | -539.4 | |
| 5.62 | 7.53 | 3.66 | 4.90 | -15.54 | 244.29 | 37.29 | 244.01 | 0.6517 | -786.0 | -621.0 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -15.85 | 244.32 | 37.32 | 243.57 | 0.6536 | -608.0 | -533.0 | |
| 1.00 | 2.81 | 0.64 | 1.81 | -14.39 | 243.90 | 36.90 | 245.47 | 0.6416 | -676.7 | -450.1 | |
| 0.00 | 1.45 | 0.00 | 0.95 | -16.59 | 244.16 | 37.16 | 242.44 | 0.6554 | -266.0 | -258.4 | |
| 16.78 | 80.19 | 10.87 | 51.81 | -16.04 | 243.64 | 36.64 | 242.93 | 0.6465 | -842.5 | -359.8 | |
| 0.00 | 2.54 | 0.00 | 1.66 | -17.48 | 243.77 | 36.77 | 240.96 | 0.6554 | -509.0 | -455.5 | |
| 0.00 | 3.54 | 0.00 | 2.31 | -17.25 | 243.64 | 36.64 | 241.20 | 0.6527 | -811.0 | -621.5 | |
| 10.79 | -37.00 | 6.94 | -37.00 | -16.15 | 243.00 | 36.00 | 242.39 | 0.6394 | -1033.9 | 999999 | |
| 0.00 | 13.61 | 0.00 | 8.67 | -15.54 | 242.64 | 35.64 | 243.07 | 0.6319 | -785.0 | -740.9 | |
| 0.00 | 1.81 | 0.00 | 1.17 | -16.63 | 242.83 | 35.83 | 241.60 | 0.6398 | -607.0 | -501.8 | |
| 0.00 | 3.27 | 0.00 | 2.07 | -15.03 | 242.46 | 35.46 | 243.72 | 0.6271 | -643.0 | -601.1 | |
| 0.00 | 1.36 | 0.00 | 0.87 | -16.50 | 242.60 | 35.60 | 241.66 | 0.6365 | -800.0 | -692.5 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -15.60 | 242.11 | 35.11 | 242.67 | 0.6257 | -817.0 | -747.2 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -15.76 | 241.94 | 34.94 | 242.34 | 0.6246 | -751.0 | -599.9 | |
| 0.00 | 4.35 | 0.00 | 2.76 | -16.14 | 241.94 | 34.94 | 241.78 | 0.6266 | -830.0 | -651.6 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -16.33 | 241.75 | 34.75 | 241.38 | 0.6253 | -788.0 | -614.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
