SDO HMI 2011-06-17 12:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.41 | 322.40 | 65.75 | 222.34 | -15.29 | 246.07 | 41.27 | 246.17 | 0.6972 | 18.9 | -7.6 | |
|
previous
or next observation for the same group /

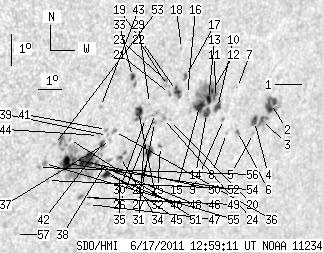

back to the solar disc SDO HMI 2011-06-17 12:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 1.04 | -13.86 | 252.59 | 47.79 | 250.55 | 0.7649 | 570.0 | 441.5 | |
| 10.88 | 17.96 | 8.13 | 13.44 | -14.43 | 251.08 | 46.28 | 249.34 | 0.7503 | 717.9 | 128.8 | |
| 2.72 | 15.14 | 2.03 | 11.27 | -14.96 | 250.82 | 46.02 | 248.56 | 0.7491 | 611.9 | 362.8 | |
| 3.72 | -3.00 | 2.75 | -3.00 | -14.99 | 250.51 | 45.71 | 248.41 | 0.7458 | 750.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.88 | -15.37 | 250.57 | 45.77 | 247.94 | 0.7477 | 562.0 | 467.5 | |
| 1.18 | 2.27 | 0.86 | 1.66 | -15.30 | 249.83 | 45.02 | 247.77 | 0.7394 | 715.6 | 577.0 | |
| 0.00 | 0.82 | 0.00 | 0.59 | -13.90 | 249.46 | 44.66 | 249.48 | 0.7308 | 596.0 | 483.1 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -15.35 | 249.35 | 44.55 | 247.52 | 0.7344 | 615.0 | 517.2 | |
| 0.00 | 1.36 | 0.00 | 0.98 | -14.90 | 249.10 | 44.29 | 248.01 | 0.7301 | 569.0 | 485.3 | |
| 4.72 | 6.71 | 3.38 | 4.81 | -14.52 | 248.73 | 43.93 | 248.39 | 0.7247 | 477.2 | 106.5 | |
| 1.09 | 62.84 | 0.78 | 44.50 | -14.20 | 248.57 | 43.77 | 248.75 | 0.7218 | 529.2 | 536.0 | |
| 1.81 | -11.00 | 1.29 | -11.00 | -13.97 | 248.38 | 43.58 | 248.98 | 0.7189 | 727.7 | 999999 | |
| 3.45 | -11.00 | 2.45 | -11.00 | -14.26 | 248.28 | 43.47 | 248.56 | 0.7187 | 898.5 | 999999 | |
| 4.62 | -11.00 | 3.29 | -11.00 | -14.70 | 248.30 | 43.50 | 247.98 | 0.7205 | 694.8 | 999999 | |
| 7.07 | -11.00 | 5.00 | -11.00 | -14.47 | 247.94 | 43.14 | 248.15 | 0.7156 | 945.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -14.08 | 247.33 | 42.53 | 248.43 | 0.7073 | 633.0 | 453.1 | |
| 0.91 | 2.63 | 0.63 | 1.83 | -13.51 | 247.12 | 42.31 | 249.13 | 0.7028 | 748.5 | 637.1 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -12.63 | 246.76 | 41.96 | 250.22 | 0.6956 | 552.0 | 407.9 | |
| 3.72 | 6.26 | 2.58 | 4.34 | -13.95 | 246.83 | 42.03 | 248.42 | 0.7010 | 875.0 | 744.4 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -14.90 | 246.80 | 42.00 | 247.11 | 0.7041 | 671.0 | 546.6 | |
| 0.00 | 2.00 | 0.00 | 1.38 | -14.04 | 246.56 | 41.75 | 248.18 | 0.6982 | 884.0 | 717.0 | |
| 0.00 | 2.81 | 0.00 | 1.93 | -13.79 | 246.41 | 41.61 | 248.48 | 0.6956 | 722.0 | 679.9 | |
| 0.00 | 2.09 | 0.00 | 1.43 | -13.63 | 246.30 | 41.49 | 248.65 | 0.6936 | 941.0 | 762.7 | |
| 0.00 | 3.99 | 0.00 | 2.76 | -14.83 | 246.48 | 41.68 | 247.07 | 0.7003 | 598.0 | 410.5 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -15.72 | 246.57 | 41.77 | 245.90 | 0.7048 | -420.0 | -252.0 | |
| 0.00 | 4.44 | 0.00 | 3.05 | -14.67 | 246.11 | 41.31 | 247.14 | 0.6953 | 318.0 | 138.4 | |
| 0.00 | 1.36 | 0.00 | 0.94 | -14.95 | 246.13 | 41.33 | 246.76 | 0.6967 | -184.0 | -76.9 | |
| 3.99 | 8.71 | 2.76 | 6.02 | -15.90 | 246.15 | 41.35 | 245.47 | 0.7007 | 702.1 | 408.3 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -14.34 | 245.78 | 40.98 | 247.44 | 0.6903 | 263.0 | 296.6 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -14.82 | 245.72 | 40.92 | 246.76 | 0.6914 | -239.0 | -196.0 | |
| 0.00 | 1.45 | 0.00 | 1.00 | -15.52 | 245.85 | 41.05 | 245.86 | 0.6957 | -466.0 | -343.1 | |
| 5.80 | 9.34 | 3.94 | 6.35 | -14.59 | 245.38 | 40.58 | 246.93 | 0.6865 | -681.8 | -545.1 | |
| 2.36 | 5.80 | 1.58 | 3.90 | -13.48 | 244.89 | 40.09 | 248.28 | 0.6765 | -673.8 | -442.2 | |
| 1.18 | 17.86 | 0.80 | 12.20 | -16.05 | 244.97 | 40.17 | 244.73 | 0.6878 | -517.3 | 51.5 | |
| 0.82 | -34.00 | 0.56 | -34.00 | -16.56 | 245.06 | 40.26 | 244.07 | 0.6910 | -353.0 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.40 | -15.21 | 244.53 | 39.73 | 245.67 | 0.6791 | -460.0 | -410.8 | |
| 0.00 | 1.36 | 0.00 | 0.92 | -15.50 | 244.43 | 39.63 | 245.23 | 0.6791 | -489.0 | -369.7 | |
| 0.00 | 3.26 | 0.00 | 2.21 | -16.13 | 244.45 | 39.65 | 244.36 | 0.6822 | -628.0 | -470.9 | |
| 0.00 | 1.09 | 0.00 | 0.73 | -15.33 | 244.27 | 39.47 | 245.38 | 0.6766 | -475.0 | -424.7 | |
| 3.99 | 6.17 | 2.71 | 4.18 | -16.58 | 244.52 | 39.72 | 243.78 | 0.6850 | -421.3 | -160.0 | |
| 0.00 | 1.63 | 0.00 | 1.09 | -15.14 | 244.18 | 39.38 | 245.61 | 0.6748 | -720.0 | -499.1 | |
| 2.99 | 5.08 | 2.01 | 3.41 | -15.62 | 244.09 | 39.28 | 244.90 | 0.6757 | -791.2 | -592.9 | |
| 0.00 | 1.72 | 0.00 | 1.14 | -14.41 | 243.78 | 38.98 | 246.45 | 0.6668 | -677.0 | -503.3 | |
| 0.00 | 1.36 | 0.00 | 0.91 | -15.33 | 243.90 | 39.10 | 245.21 | 0.6722 | -539.0 | -496.1 | |
| 2.27 | 96.58 | 1.52 | 64.12 | -16.26 | 244.03 | 39.23 | 243.98 | 0.6779 | -473.4 | -436.0 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -17.31 | 244.00 | 39.20 | 242.52 | 0.6825 | -478.0 | -404.8 | |
| 0.00 | 1.45 | 0.00 | 0.98 | -17.54 | 244.02 | 39.22 | 242.22 | 0.6837 | -338.0 | -239.9 | |
| 15.33 | -45.00 | 10.23 | -45.00 | -16.12 | 243.59 | 38.79 | 243.95 | 0.6722 | -804.0 | 999999 | |
| 0.00 | 4.35 | 0.00 | 2.93 | -17.31 | 243.71 | 38.91 | 242.37 | 0.6792 | -601.0 | -572.3 | |
| 1.45 | -45.00 | 0.96 | -45.00 | -16.08 | 243.05 | 38.25 | 243.73 | 0.6657 | -875.4 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.07 | -15.44 | 242.75 | 37.95 | 244.48 | 0.6591 | -422.0 | -392.6 | |
| 8.34 | -45.00 | 5.51 | -45.00 | -16.20 | 242.80 | 38.00 | 243.42 | 0.6633 | -998.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -15.59 | 242.18 | 37.38 | 243.96 | 0.6531 | -833.0 | -719.9 | |
| 0.00 | 1.54 | 0.00 | 1.01 | -16.74 | 242.16 | 37.35 | 242.32 | 0.6584 | -596.0 | -455.1 | |
| 0.00 | 3.54 | 0.00 | 2.31 | -16.19 | 241.91 | 37.11 | 242.96 | 0.6528 | -907.0 | -693.3 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -16.32 | 241.70 | 36.90 | 242.66 | 0.6509 | -782.0 | -629.9 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -18.46 | 241.29 | 36.49 | 239.40 | 0.6575 | -575.0 | -515.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
