SDO HMI 2011-06-17 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.59 | 299.31 | 63.20 | 214.21 | -15.16 | 246.16 | 43.57 | 247.30 | 0.7228 | -47.1 | 9.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-17 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

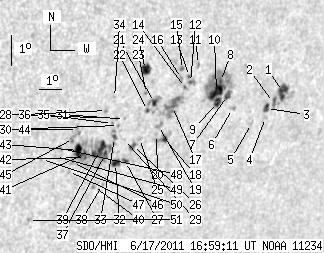

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.61 | 25.20 | 7.51 | 19.72 | -14.40 | 251.24 | 48.65 | 250.12 | 0.7754 | 685.8 | 225.6 | |
| 2.90 | -1.00 | 2.26 | -1.00 | -14.75 | 250.91 | 48.32 | 249.59 | 0.7730 | 662.7 | 999999 | |
| 3.63 | 4.62 | 2.81 | 3.58 | -14.93 | 250.63 | 48.05 | 249.27 | 0.7706 | 695.0 | 582.9 | |
| 0.00 | 1.81 | 0.00 | 1.41 | -15.22 | 250.67 | 48.08 | 248.92 | 0.7718 | 556.0 | 373.7 | |
| 0.00 | 2.27 | 0.00 | 1.74 | -15.40 | 250.07 | 47.48 | 248.49 | 0.7660 | 544.0 | 393.6 | |
| 0.00 | 2.45 | 0.00 | 1.84 | -14.90 | 249.04 | 46.45 | 248.78 | 0.7536 | 359.0 | 360.8 | |
| 4.71 | 5.80 | 3.51 | 4.32 | -14.49 | 248.70 | 46.11 | 249.20 | 0.7487 | 376.5 | 302.8 | |
| 0.82 | 61.65 | 0.60 | 45.41 | -14.04 | 248.26 | 45.67 | 249.64 | 0.7425 | 802.3 | 463.6 | |
| 5.17 | -8.00 | 3.82 | -8.00 | -14.70 | 248.30 | 45.71 | 248.78 | 0.7450 | 671.0 | 999999 | |
| 10.88 | -8.00 | 8.02 | -8.00 | -14.35 | 248.16 | 45.57 | 249.19 | 0.7424 | 943.5 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.37 | -13.48 | 247.14 | 44.55 | 249.98 | 0.7284 | 575.0 | 501.6 | |
| 1.09 | 3.45 | 0.78 | 2.48 | -14.05 | 246.93 | 44.34 | 249.16 | 0.7277 | 798.6 | 716.4 | |
| 0.45 | 1.45 | 0.33 | 1.04 | -13.85 | 246.84 | 44.25 | 249.38 | 0.7261 | 783.2 | 712.1 | |
| 0.91 | 1.72 | 0.65 | 1.24 | -14.20 | 246.74 | 44.15 | 248.89 | 0.7262 | 772.4 | 620.0 | |
| 0.82 | 1.99 | 0.58 | 1.42 | -13.63 | 246.47 | 43.89 | 249.55 | 0.7213 | 740.1 | 775.1 | |
| 0.00 | 2.18 | 0.00 | 1.55 | -13.91 | 246.50 | 43.91 | 249.18 | 0.7225 | 839.0 | 725.4 | |
| 0.00 | 27.02 | 0.00 | 19.32 | -14.79 | 246.32 | 43.73 | 247.94 | 0.7235 | 572.0 | 380.5 | |
| 2.81 | 8.98 | 2.02 | 6.44 | -15.84 | 246.29 | 43.70 | 246.54 | 0.7269 | 793.7 | 341.2 | |
| 0.00 | 3.72 | 0.00 | 2.65 | -15.39 | 245.86 | 43.28 | 246.97 | 0.7205 | -510.0 | -406.9 | |
| 0.00 | 1.45 | 0.00 | 1.03 | -15.68 | 245.85 | 43.26 | 246.58 | 0.7214 | 139.0 | 75.6 | |
| 2.63 | 8.98 | 1.85 | 6.33 | -14.65 | 245.51 | 42.92 | 247.81 | 0.7138 | -491.1 | -105.4 | |
| 1.36 | 4.53 | 0.96 | 3.20 | -14.90 | 245.27 | 42.68 | 247.38 | 0.7120 | -626.1 | -442.5 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -14.36 | 245.09 | 42.50 | 248.04 | 0.7080 | -594.0 | -427.9 | |
| 7.43 | 9.25 | 5.16 | 6.42 | -13.60 | 244.88 | 42.29 | 248.99 | 0.7028 | -634.7 | -374.5 | |
| 0.00 | 2.18 | 0.00 | 1.53 | -15.79 | 245.15 | 42.56 | 246.14 | 0.7139 | -390.0 | -310.0 | |
| 2.72 | 3.63 | 1.91 | 2.55 | -16.01 | 244.90 | 42.31 | 245.74 | 0.7120 | -442.4 | -107.3 | |
| 1.72 | 2.81 | 1.21 | 1.98 | -16.52 | 244.74 | 42.15 | 244.99 | 0.7122 | -285.2 | 25.9 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -15.14 | 244.34 | 41.75 | 246.67 | 0.7023 | -374.0 | -327.6 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -15.81 | 244.51 | 41.92 | 245.84 | 0.7068 | -313.0 | -301.7 | |
| 0.00 | 1.00 | 0.00 | 0.69 | -15.36 | 244.14 | 41.55 | 246.29 | 0.7009 | -580.0 | -460.5 | |
| 0.00 | 1.45 | 0.00 | 1.00 | -15.14 | 244.00 | 41.41 | 246.53 | 0.6984 | -467.0 | -427.8 | |
| 5.35 | 6.44 | 3.74 | 4.50 | -16.58 | 244.32 | 41.73 | 244.73 | 0.7078 | -534.3 | -308.1 | |
| 1.63 | 75.52 | 1.13 | 51.86 | -15.74 | 244.07 | 41.48 | 245.74 | 0.7015 | -513.9 | -462.7 | |
| 0.00 | 0.82 | 0.00 | 0.56 | -14.47 | 243.76 | 41.17 | 247.35 | 0.6930 | -541.0 | -444.7 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -15.29 | 243.87 | 41.28 | 246.26 | 0.6975 | -676.0 | -565.8 | |
| 0.00 | 1.81 | 0.00 | 1.24 | -14.88 | 243.52 | 40.93 | 246.68 | 0.6918 | -735.0 | -545.2 | |
| 1.36 | -33.00 | 0.94 | -33.00 | -16.25 | 243.81 | 41.22 | 244.94 | 0.7007 | -633.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -17.24 | 243.95 | 41.36 | 243.67 | 0.7065 | -530.0 | -441.2 | |
| 10.34 | -33.00 | 7.12 | -33.00 | -16.15 | 243.53 | 40.95 | 244.95 | 0.6972 | -779.9 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -17.30 | 243.58 | 40.99 | 243.42 | 0.7026 | -636.0 | -529.3 | |
| 1.45 | -33.00 | 0.99 | -33.00 | -16.24 | 242.97 | 40.38 | 244.56 | 0.6911 | -771.2 | 999999 | |
| 0.82 | -33.00 | 0.56 | -33.00 | -16.36 | 243.00 | 40.41 | 244.40 | 0.6920 | -578.4 | 999999 | |
| 6.98 | -33.00 | 4.74 | -33.00 | -16.13 | 242.65 | 40.06 | 244.55 | 0.6870 | -1002.8 | 999999 | |
| 0.00 | 3.45 | 0.00 | 2.33 | -15.46 | 242.45 | 39.86 | 245.38 | 0.6818 | -761.0 | -690.8 | |
| 0.00 | 4.26 | 0.00 | 2.88 | -15.75 | 242.35 | 39.76 | 244.94 | 0.6819 | -736.0 | -805.4 | |
| 0.00 | 2.27 | 0.00 | 1.54 | -16.52 | 242.50 | 39.91 | 243.95 | 0.6869 | -714.0 | -649.6 | |
| 0.00 | 1.54 | 0.00 | 1.05 | -16.80 | 242.40 | 39.81 | 243.52 | 0.6871 | -507.0 | -511.1 | |
| 0.00 | 2.45 | 0.00 | 1.64 | -16.06 | 241.89 | 39.30 | 244.28 | 0.6779 | -880.0 | -727.4 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -16.31 | 241.75 | 39.16 | 243.86 | 0.6774 | -722.0 | -624.9 | |
| 0.00 | 1.27 | 0.00 | 0.85 | -16.40 | 241.19 | 38.60 | 243.46 | 0.6714 | -745.0 | -575.9 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -18.36 | 241.15 | 38.56 | 240.74 | 0.6805 | -660.0 | -618.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
