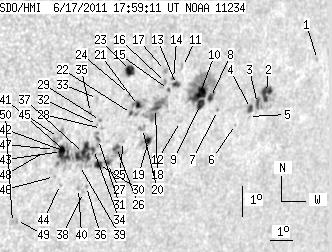

SDO HMI 2011-06-17 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.68 | 297.14 | 67.40 | 214.79 | -15.16 | 246.23 | 44.19 | 247.55 | 0.7297 | -30.6 | 61.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-17 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.60 | -13.38 | 253.53 | 51.49 | 252.17 | 0.8019 | 534.0 | 437.2 | |
| 9.43 | 22.94 | 7.46 | 18.14 | -14.38 | 251.30 | 49.27 | 250.33 | 0.7818 | 656.1 | 307.3 | |
| 3.99 | -2.00 | 3.14 | -2.00 | -14.72 | 250.97 | 48.94 | 249.80 | 0.7793 | 626.3 | 999999 | |
| 3.17 | 3.99 | 2.48 | 3.12 | -14.87 | 250.68 | 48.65 | 249.52 | 0.7767 | 726.3 | 620.7 | |
| 0.00 | 0.73 | 0.00 | 0.57 | -15.13 | 250.66 | 48.63 | 249.20 | 0.7772 | 370.0 | 424.1 | |
| 0.00 | 1.00 | 0.00 | 0.77 | -15.37 | 250.12 | 48.09 | 248.72 | 0.7723 | 578.0 | 465.6 | |
| 0.00 | 1.00 | 0.00 | 0.76 | -14.91 | 249.14 | 47.10 | 248.99 | 0.7606 | 589.0 | 494.7 | |
| 2.99 | 72.07 | 2.25 | 53.67 | -14.49 | 248.69 | 46.66 | 249.38 | 0.7546 | 377.3 | 454.8 | |
| 5.35 | -8.00 | 4.00 | -8.00 | -14.70 | 248.29 | 46.26 | 248.97 | 0.7510 | 637.4 | 999999 | |
| 10.70 | -8.00 | 7.96 | -8.00 | -14.39 | 248.16 | 46.13 | 249.33 | 0.7486 | 926.6 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.65 | -13.49 | 247.17 | 45.13 | 250.17 | 0.7349 | 633.0 | 424.9 | |
| 0.00 | 1.09 | 0.00 | 0.80 | -15.23 | 247.53 | 45.50 | 248.02 | 0.7444 | 566.0 | 470.9 | |
| 3.54 | 3.99 | 2.57 | 2.90 | -14.05 | 247.04 | 45.00 | 249.38 | 0.7352 | 712.0 | 611.4 | |
| 0.73 | 1.36 | 0.53 | 0.99 | -13.86 | 246.86 | 44.82 | 249.57 | 0.7326 | 794.1 | 680.4 | |
| 0.73 | 1.45 | 0.53 | 1.05 | -14.20 | 246.72 | 44.69 | 249.07 | 0.7322 | 737.5 | 685.2 | |
| 0.00 | 1.90 | 0.00 | 1.37 | -13.98 | 246.53 | 44.50 | 249.30 | 0.7294 | 800.0 | 653.9 | |
| 0.00 | 2.36 | 0.00 | 1.70 | -13.60 | 246.44 | 44.41 | 249.77 | 0.7271 | 849.0 | 710.7 | |
| 2.54 | 29.92 | 1.83 | 21.60 | -14.80 | 246.30 | 44.26 | 248.13 | 0.7294 | 492.5 | 400.6 | |
| 3.54 | 7.62 | 2.56 | 5.51 | -15.81 | 246.26 | 44.23 | 246.78 | 0.7325 | 717.6 | 466.1 | |
| 0.00 | 3.81 | 0.00 | 2.74 | -15.43 | 245.89 | 43.86 | 247.15 | 0.7271 | -401.0 | -360.4 | |
| 2.81 | 15.96 | 2.00 | 11.36 | -14.69 | 245.52 | 43.49 | 247.98 | 0.7204 | -504.1 | -127.7 | |
| 1.27 | -21.00 | 0.90 | -21.00 | -14.94 | 245.28 | 43.25 | 247.55 | 0.7186 | -615.3 | 999999 | |
| 6.80 | 9.43 | 4.76 | 6.61 | -13.58 | 244.91 | 42.88 | 249.25 | 0.7096 | -647.6 | -483.4 | |
| 0.00 | 1.18 | 0.00 | 0.83 | -14.33 | 245.05 | 43.01 | 248.27 | 0.7138 | -395.0 | -346.3 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -15.83 | 245.17 | 43.13 | 246.33 | 0.7205 | -289.0 | -279.2 | |
| 2.63 | 8.79 | 1.87 | 6.26 | -16.01 | 244.91 | 42.88 | 245.97 | 0.7184 | -431.9 | 234.8 | |
| 1.63 | 10.61 | 1.16 | 7.49 | -16.52 | 244.66 | 42.62 | 245.19 | 0.7175 | -302.5 | -42.2 | |
| 0.00 | 1.27 | 0.00 | 0.89 | -15.40 | 244.11 | 42.07 | 246.46 | 0.7070 | -563.0 | -405.8 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -15.14 | 244.00 | 41.97 | 246.76 | 0.7048 | -659.0 | -480.3 | |
| 4.35 | -27.00 | 3.07 | -27.00 | -16.55 | 244.28 | 42.24 | 244.99 | 0.7134 | -569.5 | 999999 | |
| 1.18 | 66.09 | 0.82 | 45.79 | -15.75 | 244.07 | 42.03 | 245.97 | 0.7079 | -580.2 | -518.3 | |
| 0.00 | 0.54 | 0.00 | 0.38 | -15.27 | 243.90 | 41.87 | 246.55 | 0.7041 | -687.0 | -593.3 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -14.44 | 243.71 | 41.67 | 247.59 | 0.6987 | -561.0 | -421.1 | |
| 1.81 | -31.00 | 1.27 | -31.00 | -16.06 | 243.93 | 41.90 | 245.49 | 0.7076 | -567.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -14.88 | 243.51 | 41.48 | 246.91 | 0.6982 | -662.0 | -586.5 | |
| 0.00 | 1.18 | 0.00 | 0.83 | -17.25 | 243.95 | 41.92 | 243.92 | 0.7127 | -536.0 | -422.4 | |
| 14.87 | -31.00 | 10.34 | -31.00 | -16.18 | 243.54 | 41.50 | 245.15 | 0.7037 | -733.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.83 | -17.44 | 243.88 | 41.84 | 243.63 | 0.7127 | -385.0 | -319.4 | |
| 0.00 | 2.81 | 0.00 | 1.96 | -16.57 | 243.47 | 41.43 | 244.60 | 0.7044 | -263.0 | -141.3 | |
| 0.00 | 1.54 | 0.00 | 1.08 | -17.31 | 243.63 | 41.59 | 243.69 | 0.7093 | -614.0 | -478.2 | |
| 0.91 | -31.00 | 0.62 | -31.00 | -16.24 | 242.96 | 40.93 | 244.81 | 0.6973 | -730.9 | 999999 | |
| 1.27 | -31.00 | 0.87 | -31.00 | -16.14 | 242.85 | 40.82 | 244.89 | 0.6957 | -640.9 | 999999 | |
| 6.44 | -31.00 | 4.41 | -31.00 | -16.11 | 242.59 | 40.56 | 244.82 | 0.6926 | -990.3 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -17.16 | 242.82 | 40.79 | 243.50 | 0.6998 | -522.0 | -460.0 | |
| 0.00 | 6.89 | 0.00 | 4.69 | -15.66 | 242.36 | 40.32 | 245.33 | 0.6880 | -844.0 | -733.7 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -16.90 | 242.50 | 40.47 | 243.70 | 0.6950 | -574.0 | -509.5 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -16.04 | 242.28 | 40.25 | 244.77 | 0.6887 | -782.0 | -710.2 | |
| 0.00 | 1.36 | 0.00 | 0.92 | -16.09 | 241.92 | 39.89 | 244.52 | 0.6848 | -903.0 | -772.8 | |
| 0.00 | 1.63 | 0.00 | 1.11 | -18.30 | 241.29 | 39.25 | 241.19 | 0.6879 | -593.0 | -429.8 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -18.36 | 241.14 | 39.10 | 241.03 | 0.6865 | -679.0 | -637.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
