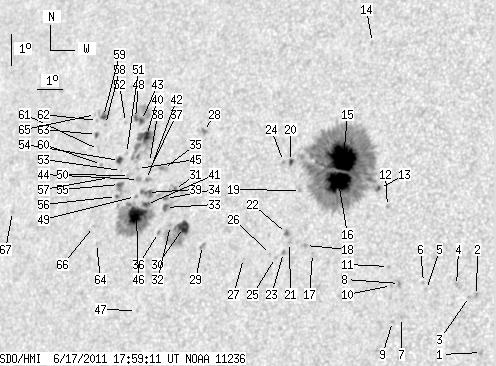

SDO HMI 2011-06-17 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 150.39 | 808.42 | 94.91 | 508.03 | 16.81 | 167.09 | -34.95 | 63.44 | 0.6136 | -294.0 | -81.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-17 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.27 | 0.00 | 1.27 | 11.47 | 175.89 | -26.15 | 67.48 | 0.4694 | -736.0 | -619.5 | |
| 0.00 | 2.45 | 0.00 | 1.38 | 13.23 | 175.52 | -26.51 | 64.28 | 0.4843 | -881.0 | -698.8 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 13.20 | 175.28 | -26.76 | 64.52 | 0.4875 | -719.0 | -584.3 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 13.54 | 174.78 | -27.25 | 64.26 | 0.4962 | -759.0 | -661.3 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 13.40 | 173.73 | -28.30 | 65.25 | 0.5098 | -515.0 | -413.3 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 13.62 | 173.60 | -28.44 | 64.95 | 0.5128 | -750.0 | -588.4 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 12.52 | 172.95 | -29.08 | 67.38 | 0.5160 | -661.0 | -481.5 | |
| 0.00 | 2.90 | 0.00 | 1.69 | 13.58 | 172.74 | -29.29 | 65.59 | 0.5243 | -914.0 | -728.6 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 12.40 | 172.65 | -29.39 | 67.80 | 0.5197 | -895.0 | -682.2 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 13.51 | 172.47 | -29.57 | 65.89 | 0.5277 | -691.0 | -528.8 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 14.11 | 172.27 | -29.76 | 64.97 | 0.5334 | -655.0 | -541.9 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 15.99 | 171.94 | -30.09 | 61.96 | 0.5482 | 707.0 | 529.6 | |
| 1.72 | 471.24 | 1.03 | 286.25 | 16.55 | 171.55 | -30.48 | 61.29 | 0.5565 | 408.5 | -346.3 | |
| 0.00 | 1.54 | 0.00 | 0.95 | 21.21 | 170.32 | -31.71 | 54.93 | 0.6009 | -570.0 | -566.6 | |
| 50.95 | -13.00 | 30.97 | -13.00 | 17.52 | 170.03 | -32.00 | 60.77 | 0.5813 | -1268.8 | 999999 | |
| 33.36 | -13.00 | 20.21 | -13.00 | 16.75 | 169.99 | -32.04 | 62.01 | 0.5775 | -1343.7 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.49 | 14.48 | 169.42 | -32.62 | 66.05 | 0.5732 | -833.0 | -671.2 | |
| 0.00 | 1.81 | 0.00 | 1.10 | 14.73 | 169.11 | -32.92 | 65.82 | 0.5783 | -904.0 | -727.8 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 16.45 | 168.61 | -33.42 | 63.34 | 0.5933 | -440.0 | -312.2 | |
| 2.18 | 3.08 | 1.35 | 1.91 | 17.37 | 168.04 | -33.99 | 62.25 | 0.6052 | 620.0 | 265.9 | |
| 0.00 | 1.54 | 0.00 | 0.94 | 14.82 | 168.50 | -33.54 | 66.02 | 0.5868 | -847.0 | -655.2 | |
| 0.73 | 2.18 | 0.44 | 1.33 | 15.10 | 168.33 | -33.70 | 65.65 | 0.5902 | -914.0 | -769.9 | |
| 0.00 | 2.09 | 0.00 | 1.27 | 14.50 | 168.32 | -33.71 | 66.62 | 0.5876 | -872.0 | -677.7 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 17.36 | 167.77 | -34.26 | 62.42 | 0.6085 | 771.0 | 663.9 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 14.34 | 168.05 | -33.99 | 67.02 | 0.5904 | -787.0 | -665.3 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 14.43 | 167.84 | -34.19 | 66.98 | 0.5935 | -670.0 | -570.2 | |
| 0.00 | 0.73 | 0.00 | 0.45 | 14.29 | 166.83 | -35.20 | 67.70 | 0.6060 | -584.0 | -453.6 | |
| 0.00 | 2.63 | 0.00 | 1.72 | 18.28 | 164.39 | -37.65 | 62.91 | 0.6537 | 798.0 | 718.7 | |
| 0.00 | 3.08 | 0.00 | 1.96 | 14.68 | 165.16 | -36.87 | 67.87 | 0.6289 | -840.0 | -601.3 | |
| 9.61 | 45.06 | 6.19 | 29.10 | 15.23 | 164.29 | -37.74 | 67.42 | 0.6419 | -892.9 | -392.8 | |
| 0.00 | 7.43 | 0.00 | 4.86 | 16.42 | 163.66 | -38.37 | 65.94 | 0.6543 | 783.0 | 595.7 | |
| 0.00 | 1.72 | 0.00 | 1.12 | 15.29 | 163.76 | -38.28 | 67.57 | 0.6487 | 87.0 | 79.5 | |
| 3.26 | 7.52 | 2.13 | 4.91 | 15.85 | 163.43 | -38.60 | 66.88 | 0.6549 | 850.0 | 552.6 | |
| 0.54 | 2.54 | 0.36 | 1.66 | 16.14 | 163.36 | -38.67 | 66.49 | 0.6568 | 963.8 | 817.2 | |
| 0.00 | 4.26 | 0.00 | 2.82 | 17.08 | 163.05 | -38.98 | 65.26 | 0.6643 | 130.0 | 340.1 | |
| 0.00 | 1.54 | 0.00 | 1.01 | 15.07 | 163.32 | -38.71 | 68.08 | 0.6532 | 467.0 | 286.9 | |
| 0.00 | 0.82 | 0.00 | 0.54 | 17.11 | 162.51 | -39.52 | 65.47 | 0.6708 | 701.0 | 603.4 | |
| 0.00 | 1.27 | 0.00 | 0.85 | 17.26 | 162.43 | -39.60 | 65.28 | 0.6724 | 495.0 | 453.6 | |
| 6.07 | 8.70 | 4.03 | 5.77 | 16.32 | 162.58 | -39.45 | 66.57 | 0.6669 | 798.3 | 655.3 | |
| 3.90 | 37.17 | 2.63 | 25.03 | 18.12 | 162.08 | -39.96 | 64.23 | 0.6800 | 1006.5 | 717.8 | |
| 3.17 | 102.44 | 2.10 | 68.00 | 15.94 | 162.63 | -39.40 | 67.09 | 0.6649 | 971.3 | 450.0 | |
| 1.00 | 3.35 | 0.66 | 2.23 | 16.73 | 162.44 | -39.59 | 66.04 | 0.6702 | 818.4 | 734.7 | |
| 2.36 | 21.85 | 1.60 | 14.85 | 18.59 | 161.73 | -40.30 | 63.73 | 0.6859 | 764.8 | 286.5 | |
| 0.00 | 2.99 | 0.00 | 2.00 | 16.72 | 162.11 | -39.92 | 66.19 | 0.6741 | 815.0 | 682.7 | |
| 0.00 | 1.27 | 0.00 | 0.85 | 17.07 | 161.98 | -40.05 | 65.75 | 0.6769 | 807.0 | 639.7 | |
| 18.40 | -41.00 | 12.22 | -41.00 | 15.62 | 162.30 | -39.74 | 67.69 | 0.6677 | 1059.1 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 12.62 | 162.92 | -39.11 | 71.88 | 0.6500 | 691.0 | 408.2 | |
| 2.36 | -43.00 | 1.61 | -43.00 | 18.65 | 161.46 | -40.57 | 63.77 | 0.6893 | 565.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.97 | 16.18 | 162.12 | -39.91 | 66.95 | 0.6719 | 499.0 | 392.6 | |
| 0.00 | 3.35 | 0.00 | 2.26 | 16.84 | 161.71 | -40.33 | 66.19 | 0.6793 | 702.0 | 574.7 | |
| 0.00 | 1.72 | 0.00 | 1.17 | 17.54 | 161.39 | -40.64 | 65.35 | 0.6856 | 626.0 | 412.4 | |
| 0.00 | 0.82 | 0.00 | 0.56 | 18.52 | 161.07 | -40.96 | 64.12 | 0.6931 | 504.0 | 397.1 | |
| 0.00 | 0.45 | 0.00 | 0.31 | 17.00 | 161.33 | -40.70 | 66.13 | 0.6843 | 503.0 | 431.8 | |
| 3.26 | 4.08 | 2.22 | 2.77 | 17.31 | 161.16 | -40.87 | 65.76 | 0.6875 | 651.2 | 525.0 | |
| 2.99 | 9.70 | 2.02 | 6.54 | 16.55 | 161.36 | -40.67 | 66.74 | 0.6823 | 642.4 | 574.4 | |
| 1.27 | -55.00 | 0.86 | -55.00 | 16.17 | 161.33 | -40.70 | 67.29 | 0.6813 | 497.9 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.11 | 16.77 | 160.88 | -41.15 | 66.63 | 0.6887 | 391.0 | 316.0 | |
| 0.00 | 1.00 | 0.00 | 0.69 | 18.44 | 160.24 | -41.80 | 64.58 | 0.7023 | 732.0 | 607.5 | |
| 1.90 | 8.61 | 1.33 | 6.00 | 18.70 | 160.07 | -41.96 | 64.30 | 0.7051 | 806.0 | 522.5 | |
| 0.00 | 1.27 | 0.00 | 0.87 | 17.17 | 160.43 | -41.60 | 66.24 | 0.6954 | 589.0 | 461.9 | |
| 0.00 | 1.54 | 0.00 | 1.07 | 17.65 | 160.17 | -41.86 | 65.70 | 0.7001 | 613.0 | 510.6 | |
| 0.00 | 1.18 | 0.00 | 0.82 | 18.57 | 159.85 | -42.18 | 64.57 | 0.7071 | 327.0 | 235.5 | |
| 1.36 | 2.18 | 0.95 | 1.51 | 18.12 | 159.95 | -42.09 | 65.14 | 0.7044 | 384.7 | 432.3 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 14.69 | 160.85 | -41.18 | 69.58 | 0.6820 | -299.0 | -203.0 | |
| 0.00 | 1.36 | 0.00 | 0.95 | 18.76 | 159.71 | -42.33 | 64.37 | 0.7094 | 397.0 | 379.9 | |
| 0.00 | 1.09 | 0.00 | 0.74 | 15.22 | 160.60 | -41.44 | 68.91 | 0.6867 | 595.0 | 507.4 | |
| 0.00 | 1.81 | 0.00 | 1.31 | 15.64 | 156.96 | -45.07 | 69.55 | 0.7299 | 569.0 | 369.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
