SDO HMI 2011-06-17 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 153.78 | 777.34 | 95.44 | 479.37 | 16.83 | 166.98 | -33.38 | 62.51 | 0.5943 | -203.9 | -88.3 | |
|
previous
or next observation for the same group /

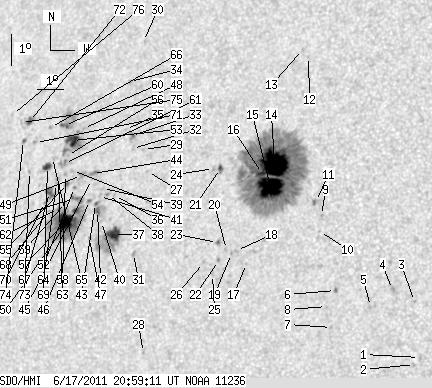

back to the solar disc SDO HMI 2011-06-17 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.99 | 0.00 | 1.10 | 11.49 | 175.94 | -24.43 | 66.17 | 0.4449 | -764.0 | -652.1 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 11.28 | 175.79 | -24.58 | 66.74 | 0.4458 | -781.0 | -619.7 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 13.23 | 175.59 | -24.78 | 62.89 | 0.4602 | -937.0 | -680.0 | |
| 0.00 | 2.45 | 0.00 | 1.38 | 13.60 | 174.79 | -25.58 | 62.85 | 0.4735 | -811.0 | -759.7 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 13.06 | 174.08 | -26.28 | 64.46 | 0.4800 | -755.0 | -643.2 | |
| 0.00 | 1.99 | 0.00 | 1.14 | 13.55 | 172.79 | -27.57 | 64.50 | 0.5006 | -925.0 | -778.0 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 12.40 | 172.79 | -27.57 | 66.67 | 0.4943 | -745.0 | -634.7 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 13.05 | 172.54 | -27.83 | 65.61 | 0.5013 | -738.0 | -689.7 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 15.89 | 171.97 | -28.40 | 60.91 | 0.5256 | 592.0 | 394.2 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 15.39 | 171.97 | -28.40 | 61.78 | 0.5224 | -562.0 | -419.8 | |
| 0.00 | 3.35 | 0.00 | 1.96 | 16.33 | 171.68 | -28.69 | 60.37 | 0.5320 | 654.0 | 366.2 | |
| 0.00 | 0.82 | 0.00 | 0.49 | 20.95 | 170.54 | -29.82 | 53.86 | 0.5773 | -737.0 | -689.1 | |
| 0.00 | 1.54 | 0.00 | 0.94 | 21.17 | 170.27 | -30.10 | 53.75 | 0.5820 | -684.0 | -608.5 | |
| 45.24 | 441.98 | 27.03 | 263.85 | 17.51 | 169.97 | -30.39 | 59.67 | 0.5611 | -1301.2 | -396.3 | |
| 36.72 | -14.00 | 21.87 | -14.00 | 16.78 | 169.96 | -30.41 | 60.88 | 0.5569 | -1329.9 | 999999 | |
| 1.54 | -14.00 | 0.92 | -14.00 | 17.19 | 169.59 | -30.78 | 60.47 | 0.5640 | -689.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 14.36 | 169.48 | -30.89 | 65.27 | 0.5497 | -679.0 | -565.0 | |
| 0.00 | 1.63 | 0.00 | 0.97 | 14.76 | 169.05 | -31.32 | 64.85 | 0.5574 | -697.0 | -658.9 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 14.66 | 168.88 | -31.49 | 65.12 | 0.5592 | -770.0 | -705.8 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 14.79 | 168.67 | -31.70 | 65.04 | 0.5625 | -403.0 | -492.5 | |
| 1.81 | 3.54 | 1.11 | 2.16 | 17.33 | 167.98 | -32.38 | 61.33 | 0.5849 | 712.1 | 301.1 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 14.44 | 168.43 | -31.94 | 65.76 | 0.5639 | -827.0 | -707.1 | |
| 1.27 | 1.90 | 0.76 | 1.14 | 15.00 | 168.30 | -32.07 | 64.90 | 0.5684 | -821.9 | -736.1 | |
| 0.00 | 1.63 | 0.00 | 1.00 | 17.33 | 167.72 | -32.65 | 61.50 | 0.5882 | 745.0 | 530.5 | |
| 0.00 | 1.72 | 0.00 | 1.03 | 14.00 | 168.28 | -32.09 | 66.58 | 0.5639 | -579.0 | -454.6 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 14.37 | 167.88 | -32.48 | 66.19 | 0.5708 | -626.0 | -577.7 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 17.20 | 165.20 | -35.16 | 63.19 | 0.6186 | 550.0 | 497.2 | |
| 0.00 | 0.73 | 0.00 | 0.44 | 11.54 | 166.06 | -34.30 | 71.78 | 0.5835 | -561.0 | -470.6 | |
| 0.00 | 0.82 | 0.00 | 0.52 | 17.90 | 164.89 | -35.48 | 62.32 | 0.6259 | 711.0 | 575.6 | |
| 0.00 | 0.45 | 0.00 | 0.30 | 21.36 | 163.99 | -36.38 | 57.84 | 0.6547 | 557.0 | 548.8 | |
| 0.00 | 2.63 | 0.00 | 1.64 | 14.62 | 165.18 | -35.18 | 67.20 | 0.6070 | -804.0 | -570.6 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 17.93 | 164.45 | -35.92 | 62.52 | 0.6313 | 697.0 | 621.3 | |
| 0.00 | 4.08 | 0.00 | 2.61 | 18.34 | 164.31 | -36.05 | 61.99 | 0.6351 | 715.0 | 676.1 | |
| 0.00 | 1.63 | 0.00 | 1.06 | 20.07 | 163.79 | -36.58 | 59.79 | 0.6500 | 752.0 | 618.9 | |
| 0.00 | 0.82 | 0.00 | 0.52 | 18.53 | 164.03 | -36.34 | 61.87 | 0.6394 | 579.0 | 509.3 | |
| 0.00 | 1.27 | 0.00 | 0.81 | 16.43 | 164.08 | -36.29 | 64.95 | 0.6289 | 717.0 | 609.2 | |
| 12.69 | 42.70 | 8.00 | 26.97 | 15.20 | 164.29 | -36.07 | 66.71 | 0.6208 | -930.9 | -411.3 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 16.46 | 163.79 | -36.57 | 65.05 | 0.6325 | 866.0 | 727.1 | |
| 0.00 | 1.45 | 0.00 | 0.93 | 16.65 | 163.55 | -36.81 | 64.89 | 0.6362 | 651.0 | 529.9 | |
| 0.00 | 1.45 | 0.00 | 0.92 | 15.61 | 163.74 | -36.63 | 66.36 | 0.6295 | 556.0 | 477.1 | |
| 0.00 | 1.54 | 0.00 | 0.99 | 16.39 | 163.49 | -36.88 | 65.30 | 0.6359 | 753.0 | 649.2 | |
| 2.99 | 12.51 | 1.91 | 7.99 | 15.95 | 163.51 | -36.86 | 65.96 | 0.6338 | 947.7 | 642.6 | |
| 0.91 | -42.00 | 0.58 | -42.00 | 16.17 | 163.38 | -36.99 | 65.69 | 0.6363 | 907.7 | 999999 | |
| 0.00 | 5.08 | 0.00 | 3.28 | 17.11 | 163.05 | -37.32 | 64.45 | 0.6445 | 492.0 | 324.3 | |
| 0.00 | 0.82 | 0.00 | 0.53 | 16.92 | 163.05 | -37.32 | 64.73 | 0.6436 | 684.0 | 582.1 | |
| 1.18 | 1.99 | 0.76 | 1.28 | 16.26 | 163.12 | -37.24 | 65.68 | 0.6399 | 675.2 | 447.7 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 15.07 | 163.38 | -36.99 | 67.35 | 0.6318 | 585.0 | 490.2 | |
| 0.00 | 1.09 | 0.00 | 0.71 | 18.54 | 162.33 | -38.04 | 62.75 | 0.6595 | 555.0 | 496.8 | |
| 0.00 | 5.17 | 0.00 | 3.36 | 17.05 | 162.62 | -37.75 | 64.76 | 0.6493 | 736.0 | 564.2 | |
| 2.72 | 107.34 | 1.76 | 69.57 | 15.94 | 162.63 | -37.73 | 66.38 | 0.6445 | 1013.0 | 497.6 | |
| 0.82 | -50.00 | 0.53 | -50.00 | 16.32 | 162.51 | -37.86 | 65.88 | 0.6476 | 788.1 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 16.66 | 162.43 | -37.94 | 65.41 | 0.6500 | 901.0 | 852.1 | |
| 8.98 | 31.19 | 5.92 | 20.53 | 18.15 | 161.98 | -38.39 | 63.47 | 0.6618 | 902.8 | 681.4 | |
| 0.00 | 1.81 | 0.00 | 1.19 | 17.20 | 162.22 | -38.15 | 64.73 | 0.6548 | 623.0 | 574.2 | |
| 0.45 | 1.45 | 0.30 | 0.95 | 16.78 | 162.11 | -38.25 | 65.38 | 0.6543 | 850.6 | 743.7 | |
| 0.00 | 1.45 | 0.00 | 0.95 | 17.67 | 161.90 | -38.47 | 64.20 | 0.6607 | 797.0 | 619.1 | |
| 16.50 | -50.00 | 10.70 | -50.00 | 15.59 | 162.31 | -38.06 | 67.05 | 0.6471 | 1141.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.83 | 17.07 | 161.96 | -38.40 | 65.03 | 0.6573 | 792.0 | 639.0 | |
| 0.00 | 0.54 | 0.00 | 0.35 | 16.18 | 162.17 | -38.19 | 66.23 | 0.6511 | 601.0 | 482.5 | |
| 3.45 | 20.67 | 2.29 | 13.73 | 18.62 | 161.52 | -38.85 | 63.02 | 0.6692 | 723.7 | 262.7 | |
| 0.00 | 6.17 | 0.00 | 4.06 | 17.42 | 161.84 | -38.53 | 64.59 | 0.6603 | 917.0 | 704.5 | |
| 0.91 | -50.00 | 0.59 | -50.00 | 15.99 | 161.93 | -38.43 | 66.61 | 0.6533 | 474.6 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.37 | 16.94 | 161.71 | -38.66 | 65.34 | 0.6598 | 701.0 | 561.7 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 16.78 | 161.67 | -38.70 | 65.59 | 0.6597 | 719.0 | 566.4 | |
| 0.00 | 0.63 | 0.00 | 0.42 | 17.60 | 161.30 | -39.07 | 64.58 | 0.6674 | 402.0 | 384.6 | |
| 0.00 | 1.27 | 0.00 | 0.85 | 18.55 | 160.96 | -39.41 | 63.39 | 0.6754 | 673.0 | 546.4 | |
| 5.08 | 8.61 | 3.34 | 5.67 | 16.49 | 161.45 | -38.92 | 66.10 | 0.6611 | 663.7 | 556.4 | |
| 0.00 | 0.63 | 0.00 | 0.42 | 15.92 | 161.58 | -38.78 | 66.87 | 0.6573 | 364.0 | 296.3 | |
| 4.99 | 5.89 | 3.31 | 3.91 | 17.31 | 161.17 | -39.20 | 65.05 | 0.6678 | 618.9 | 418.7 | |
| 0.00 | 0.91 | 0.00 | 0.60 | 16.17 | 161.32 | -39.04 | 66.62 | 0.6614 | 612.0 | 519.6 | |
| 0.00 | 1.27 | 0.00 | 0.85 | 18.07 | 160.47 | -39.90 | 64.30 | 0.6791 | 569.0 | 503.9 | |
| 3.99 | 7.43 | 2.71 | 5.05 | 18.73 | 160.03 | -40.34 | 63.57 | 0.6869 | 730.3 | 525.2 | |
| 0.00 | 1.18 | 0.00 | 0.79 | 17.14 | 160.46 | -39.90 | 65.60 | 0.6754 | 576.0 | 430.7 | |
| 1.54 | 1.99 | 1.05 | 1.35 | 18.12 | 159.95 | -40.42 | 64.45 | 0.6853 | 478.0 | 454.8 | |
| 0.00 | 1.90 | 0.00 | 1.30 | 18.69 | 159.70 | -40.67 | 63.77 | 0.6905 | 380.0 | 312.0 | |
| 0.00 | 1.18 | 0.00 | 0.81 | 18.94 | 159.24 | -41.13 | 63.63 | 0.6967 | 298.0 | 319.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
