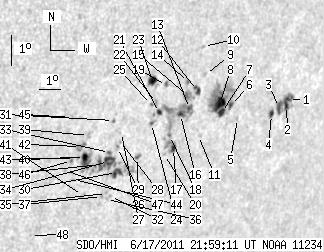

SDO HMI 2011-06-17 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.16 | 288.33 | 57.70 | 217.04 | -15.09 | 246.31 | 46.50 | 248.46 | 0.7545 | -14.4 | 101.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-17 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.00 | 24.75 | 0.83 | 20.60 | -14.35 | 251.52 | 51.71 | 251.03 | 0.8062 | 622.5 | 310.3 | |
| 2.27 | -1.00 | 1.89 | -1.00 | -14.54 | 251.48 | 51.67 | 250.79 | 0.8063 | 538.8 | 999999 | |
| 5.98 | -1.00 | 4.95 | -1.00 | -14.59 | 251.14 | 51.33 | 250.63 | 0.8031 | 628.8 | 999999 | |
| 2.99 | 4.44 | 2.46 | 3.65 | -14.81 | 250.81 | 51.00 | 250.28 | 0.8003 | 654.5 | 414.4 | |
| 0.00 | 1.18 | 0.00 | 0.94 | -14.91 | 249.16 | 49.34 | 249.68 | 0.7840 | 575.0 | 425.8 | |
| 2.54 | 64.37 | 1.99 | 50.02 | -14.49 | 248.69 | 48.88 | 250.06 | 0.7781 | 290.5 | 452.4 | |
| 4.08 | -6.00 | 3.18 | -6.00 | -14.70 | 248.32 | 48.51 | 249.68 | 0.7749 | 629.4 | 999999 | |
| 9.79 | -6.00 | 7.61 | -6.00 | -14.44 | 248.15 | 48.34 | 249.95 | 0.7724 | 887.7 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.31 | -13.48 | 247.23 | 47.42 | 250.89 | 0.7600 | 594.0 | 440.4 | |
| 0.00 | 1.00 | 0.00 | 0.75 | -12.60 | 246.91 | 47.10 | 251.94 | 0.7542 | 615.0 | 574.8 | |
| 0.00 | 0.63 | 0.00 | 0.49 | -15.41 | 247.45 | 47.64 | 248.51 | 0.7678 | 394.0 | 428.6 | |
| 4.26 | 6.26 | 3.23 | 4.74 | -13.98 | 246.99 | 47.18 | 250.18 | 0.7588 | 647.7 | 617.2 | |
| 3.17 | 46.78 | 2.40 | 35.04 | -14.55 | 246.77 | 46.96 | 249.39 | 0.7581 | 863.2 | 375.5 | |
| 0.00 | 1.36 | 0.00 | 1.02 | -13.72 | 246.50 | 46.69 | 250.36 | 0.7529 | 796.0 | 718.9 | |
| 0.00 | 8.43 | 0.00 | 6.35 | -14.16 | 246.62 | 46.81 | 249.83 | 0.7554 | 918.0 | 738.9 | |
| 2.18 | -13.00 | 1.64 | -13.00 | -14.73 | 246.41 | 46.60 | 249.03 | 0.7548 | 598.4 | 999999 | |
| 3.08 | 11.97 | 2.33 | 9.02 | -15.81 | 246.40 | 46.59 | 247.65 | 0.7580 | 656.1 | 279.1 | |
| 0.36 | -13.00 | 0.27 | -13.00 | -15.39 | 246.09 | 46.28 | 248.08 | 0.7534 | -315.0 | 999999 | |
| 0.36 | 2.45 | 0.27 | 1.80 | -13.80 | 245.52 | 45.71 | 249.94 | 0.7424 | -203.5 | -250.6 | |
| 0.00 | 0.91 | 0.00 | 0.68 | -15.99 | 246.04 | 46.23 | 247.29 | 0.7548 | 473.0 | 392.9 | |
| 2.18 | -13.00 | 1.61 | -13.00 | -14.65 | 245.43 | 45.62 | 248.80 | 0.7439 | -363.5 | 999999 | |
| 0.00 | 2.72 | 0.00 | 2.00 | -14.33 | 245.21 | 45.40 | 249.14 | 0.7405 | 471.0 | 233.5 | |
| 5.62 | 9.16 | 4.09 | 6.67 | -13.63 | 244.85 | 45.04 | 249.94 | 0.7344 | -643.6 | -372.6 | |
| 0.54 | 2.54 | 0.40 | 1.87 | -14.99 | 245.16 | 45.35 | 248.26 | 0.7421 | -644.7 | -508.9 | |
| 0.00 | 1.09 | 0.00 | 0.80 | -14.39 | 245.00 | 45.19 | 248.99 | 0.7384 | -366.0 | -304.6 | |
| 0.73 | 3.08 | 0.53 | 2.27 | -16.07 | 244.83 | 45.02 | 246.74 | 0.7422 | -439.5 | -341.5 | |
| 0.00 | 0.63 | 0.00 | 0.46 | -15.26 | 243.90 | 44.08 | 247.44 | 0.7291 | -518.0 | -522.7 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -15.54 | 243.93 | 44.12 | 247.08 | 0.7305 | -620.0 | -502.5 | |
| 0.00 | 1.54 | 0.00 | 1.11 | -15.73 | 243.85 | 44.04 | 246.80 | 0.7302 | -584.0 | -519.6 | |
| 6.35 | 66.10 | 4.62 | 47.58 | -16.53 | 244.03 | 44.22 | 245.82 | 0.7351 | -505.6 | -430.5 | |
| 0.00 | 1.27 | 0.00 | 0.91 | -14.87 | 243.44 | 43.63 | 247.78 | 0.7227 | -603.0 | -503.1 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -17.30 | 243.99 | 44.18 | 244.81 | 0.7376 | -405.0 | -385.7 | |
| 0.54 | -30.00 | 0.39 | -30.00 | -15.89 | 243.54 | 43.73 | 246.47 | 0.7274 | -682.7 | 999999 | |
| 9.34 | -30.00 | 6.74 | -30.00 | -16.17 | 243.57 | 43.76 | 246.11 | 0.7288 | -694.9 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -17.20 | 243.78 | 43.97 | 244.86 | 0.7349 | -651.0 | -573.6 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -17.40 | 243.84 | 44.03 | 244.63 | 0.7363 | -438.0 | -394.2 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -17.30 | 243.59 | 43.78 | 244.65 | 0.7332 | -576.0 | -505.8 | |
| 4.90 | -30.00 | 3.51 | -30.00 | -16.26 | 243.25 | 43.43 | 245.85 | 0.7256 | -691.1 | 999999 | |
| 0.00 | 2.99 | 0.00 | 2.11 | -15.33 | 242.48 | 42.66 | 246.78 | 0.7135 | -757.0 | -615.1 | |
| 3.90 | -30.00 | 2.76 | -30.00 | -16.03 | 242.49 | 42.67 | 245.85 | 0.7163 | -924.2 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.62 | -17.25 | 242.74 | 42.93 | 244.35 | 0.7238 | -202.0 | -241.3 | |
| 0.00 | 5.53 | 0.00 | 3.89 | -15.67 | 242.22 | 42.41 | 246.21 | 0.7119 | -798.0 | -777.8 | |
| 0.00 | 1.27 | 0.00 | 0.89 | -16.02 | 242.18 | 42.37 | 245.73 | 0.7128 | -608.0 | -645.1 | |
| 0.00 | 1.36 | 0.00 | 0.96 | -16.73 | 242.20 | 42.39 | 244.80 | 0.7158 | -639.0 | -532.7 | |
| 0.00 | 1.63 | 0.00 | 1.13 | -14.74 | 241.65 | 41.84 | 247.22 | 0.7019 | -676.0 | -634.7 | |
| 0.00 | 1.99 | 0.00 | 1.40 | -16.12 | 241.95 | 42.14 | 245.50 | 0.7106 | -776.0 | -690.2 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -16.43 | 241.77 | 41.96 | 245.00 | 0.7099 | -679.0 | -473.9 | |
| 0.00 | 0.73 | 0.00 | 0.51 | -18.51 | 240.86 | 41.05 | 241.82 | 0.7087 | -517.0 | -463.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
