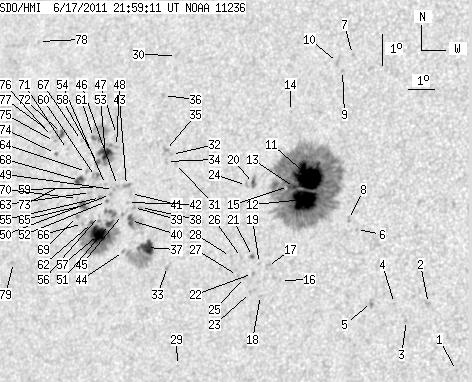

SDO HMI 2011-06-17 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 158.86 | 788.38 | 97.96 | 482.56 | 16.90 | 167.08 | -32.73 | 62.01 | 0.5866 | -206.6 | -105.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-17 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.35 | 11.51 | 176.00 | -23.82 | 65.65 | 0.4361 | -814.0 | -619.6 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 13.58 | 174.83 | -24.99 | 62.40 | 0.4652 | -938.0 | -781.1 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 13.04 | 174.12 | -25.69 | 64.03 | 0.4716 | -698.0 | -651.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 13.57 | 173.65 | -26.17 | 63.40 | 0.4814 | -707.0 | -538.5 | |
| 0.00 | 2.90 | 0.00 | 1.65 | 13.59 | 172.84 | -26.98 | 63.98 | 0.4926 | -854.0 | -716.8 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 15.87 | 171.99 | -27.82 | 60.49 | 0.5178 | 658.0 | 444.9 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 21.45 | 170.82 | -28.99 | 52.42 | 0.5714 | -756.0 | -564.0 | |
| 0.00 | 2.09 | 0.00 | 1.21 | 16.18 | 171.66 | -28.16 | 60.22 | 0.5242 | 696.0 | 482.8 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 20.93 | 170.56 | -29.25 | 53.43 | 0.5705 | -862.0 | -594.3 | |
| 0.00 | 2.45 | 0.00 | 1.48 | 21.19 | 170.31 | -29.50 | 53.24 | 0.5752 | -700.0 | -554.3 | |
| 47.78 | 460.86 | 28.39 | 273.57 | 17.53 | 169.97 | -29.84 | 59.25 | 0.5542 | -1292.2 | -393.8 | |
| 35.09 | -11.00 | 20.78 | -11.00 | 16.80 | 169.95 | -29.86 | 60.47 | 0.5499 | -1356.0 | 999999 | |
| 1.18 | -11.00 | 0.70 | -11.00 | 17.17 | 169.52 | -30.29 | 60.16 | 0.5577 | -567.3 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 19.59 | 168.89 | -30.92 | 56.79 | 0.5807 | -571.0 | -418.2 | |
| 1.09 | -11.00 | 0.65 | -11.00 | 17.20 | 169.29 | -30.52 | 60.28 | 0.5607 | -380.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 14.24 | 169.49 | -30.32 | 65.12 | 0.5415 | -691.0 | -568.4 | |
| 0.00 | 2.90 | 0.00 | 1.72 | 14.68 | 168.95 | -30.86 | 64.72 | 0.5510 | -524.0 | -704.3 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 13.77 | 168.83 | -30.98 | 66.35 | 0.5479 | -812.0 | -652.6 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 14.77 | 168.64 | -31.17 | 64.76 | 0.5555 | -754.0 | -588.2 | |
| 2.18 | 5.44 | 1.32 | 3.30 | 17.28 | 167.97 | -31.84 | 61.06 | 0.5778 | 621.0 | 190.1 | |
| 1.27 | 1.72 | 0.76 | 1.03 | 14.98 | 168.34 | -31.47 | 64.57 | 0.5605 | -712.5 | -781.4 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 14.45 | 168.43 | -31.38 | 65.42 | 0.5566 | -890.0 | -699.1 | |
| 0.00 | 1.54 | 0.00 | 0.92 | 13.86 | 168.45 | -31.36 | 66.42 | 0.5535 | -782.0 | -666.3 | |
| 0.00 | 1.99 | 0.00 | 1.21 | 17.22 | 167.72 | -32.09 | 61.33 | 0.5806 | 354.0 | 372.1 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 14.32 | 168.16 | -31.66 | 65.80 | 0.5596 | -832.0 | -644.2 | |
| 0.00 | 1.81 | 0.00 | 1.09 | 14.95 | 167.94 | -31.87 | 64.88 | 0.5656 | -765.0 | -526.7 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 14.38 | 167.89 | -31.93 | 65.85 | 0.5635 | -688.0 | -598.2 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 14.97 | 167.53 | -32.28 | 65.08 | 0.5711 | -464.0 | -383.6 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 11.56 | 166.07 | -33.74 | 71.53 | 0.5759 | -635.0 | -478.0 | |
| 0.00 | 1.54 | 0.00 | 1.00 | 21.34 | 164.01 | -35.80 | 57.53 | 0.6481 | 396.0 | 409.3 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 17.88 | 164.85 | -34.96 | 62.06 | 0.6195 | 718.0 | 580.0 | |
| 0.00 | 0.82 | 0.00 | 0.52 | 18.17 | 164.63 | -35.18 | 61.76 | 0.6236 | 761.0 | 694.0 | |
| 0.00 | 2.27 | 0.00 | 1.40 | 14.63 | 165.20 | -34.61 | 66.90 | 0.5996 | -645.0 | -534.4 | |
| 0.00 | 2.27 | 0.00 | 1.43 | 17.94 | 164.49 | -35.33 | 62.18 | 0.6242 | 720.0 | 618.7 | |
| 0.00 | 4.08 | 0.00 | 2.59 | 18.29 | 164.37 | -35.45 | 61.73 | 0.6275 | 779.0 | 652.0 | |
| 0.00 | 1.54 | 0.00 | 0.99 | 20.05 | 163.84 | -35.97 | 59.47 | 0.6428 | 728.0 | 587.7 | |
| 14.05 | 45.70 | 8.80 | 28.65 | 15.22 | 164.28 | -35.53 | 66.44 | 0.6140 | -889.5 | -382.0 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 16.47 | 163.79 | -36.02 | 64.76 | 0.6257 | 940.0 | 728.4 | |
| 0.00 | 1.81 | 0.00 | 1.15 | 16.47 | 163.52 | -36.30 | 64.91 | 0.6291 | 914.0 | 766.6 | |
| 5.17 | 16.23 | 3.28 | 10.28 | 16.06 | 163.49 | -36.33 | 65.54 | 0.6276 | 919.8 | 557.1 | |
| 0.00 | 1.45 | 0.00 | 0.93 | 16.91 | 163.30 | -36.51 | 64.36 | 0.6337 | 684.0 | 561.3 | |
| 0.00 | 1.27 | 0.00 | 0.81 | 16.62 | 163.24 | -36.57 | 64.81 | 0.6331 | 691.0 | 517.1 | |
| 0.00 | 3.99 | 0.00 | 2.56 | 17.16 | 163.08 | -36.73 | 64.09 | 0.6375 | 472.0 | 306.0 | |
| 0.00 | 1.72 | 0.00 | 1.09 | 15.08 | 163.41 | -36.40 | 67.07 | 0.6244 | 336.0 | 347.6 | |
| 0.00 | 1.54 | 0.00 | 0.98 | 16.24 | 163.13 | -36.68 | 65.44 | 0.6328 | 840.0 | 648.6 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 17.16 | 162.72 | -37.09 | 64.28 | 0.6418 | 379.0 | 293.2 | |
| 0.00 | 1.27 | 0.00 | 0.83 | 18.77 | 162.28 | -37.53 | 62.15 | 0.6546 | 475.0 | 401.9 | |
| 0.00 | 1.63 | 0.00 | 1.06 | 18.39 | 162.38 | -37.43 | 62.65 | 0.6516 | 552.0 | 438.3 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 17.03 | 162.59 | -37.22 | 64.53 | 0.6428 | 696.0 | 666.0 | |
| 0.00 | 1.27 | 0.00 | 0.82 | 16.87 | 162.51 | -37.30 | 64.81 | 0.6431 | 779.0 | 688.9 | |
| 3.63 | 98.46 | 2.33 | 63.32 | 15.92 | 162.68 | -37.13 | 66.13 | 0.6370 | 966.5 | 553.5 | |
| 1.00 | 1.36 | 0.64 | 0.88 | 16.64 | 162.40 | -37.41 | 65.19 | 0.6435 | 769.5 | 769.2 | |
| 9.70 | 26.38 | 6.35 | 17.25 | 18.16 | 161.99 | -37.82 | 63.18 | 0.6551 | 926.5 | 722.7 | |
| 0.00 | 0.82 | 0.00 | 0.53 | 17.18 | 162.24 | -37.58 | 64.48 | 0.6478 | 561.0 | 479.4 | |
| 0.00 | 2.54 | 0.00 | 1.65 | 16.77 | 162.13 | -37.68 | 65.14 | 0.6473 | 917.0 | 726.6 | |
| 0.00 | 0.54 | 0.00 | 0.35 | 16.20 | 162.22 | -37.59 | 65.93 | 0.6438 | 512.0 | 449.0 | |
| 16.41 | -51.00 | 10.56 | -51.00 | 15.60 | 162.31 | -37.50 | 66.78 | 0.6402 | 1104.5 | 999999 | |
| 2.72 | -53.00 | 1.78 | -53.00 | 17.87 | 161.74 | -38.07 | 63.72 | 0.6568 | 751.1 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.59 | 17.08 | 161.94 | -37.88 | 64.77 | 0.6510 | 780.0 | 692.1 | |
| 0.00 | 5.89 | 0.00 | 3.85 | 17.43 | 161.77 | -38.04 | 64.35 | 0.6545 | 760.0 | 732.5 | |
| 1.99 | 20.94 | 1.32 | 13.82 | 18.67 | 161.37 | -38.44 | 62.77 | 0.6647 | 624.3 | 321.0 | |
| 1.00 | -51.00 | 0.65 | -51.00 | 15.98 | 161.99 | -37.82 | 66.37 | 0.6457 | 448.0 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.24 | 16.92 | 161.69 | -38.12 | 65.12 | 0.6533 | 813.0 | 589.3 | |
| 0.00 | 1.90 | 0.00 | 1.25 | 17.58 | 161.37 | -38.45 | 64.32 | 0.6600 | 557.0 | 448.2 | |
| 4.99 | 5.62 | 3.26 | 3.67 | 16.51 | 161.47 | -38.35 | 65.83 | 0.6543 | 687.3 | 731.4 | |
| 0.00 | 1.27 | 0.00 | 0.83 | 15.94 | 161.60 | -38.22 | 66.60 | 0.6504 | 450.0 | 288.0 | |
| 0.00 | 1.27 | 0.00 | 0.84 | 18.56 | 160.90 | -38.91 | 63.14 | 0.6697 | 726.0 | 529.1 | |
| 5.26 | 6.62 | 3.46 | 4.36 | 17.29 | 161.15 | -38.66 | 64.83 | 0.6613 | 597.0 | 618.7 | |
| 0.00 | 1.27 | 0.00 | 0.83 | 16.16 | 161.34 | -38.47 | 66.40 | 0.6543 | 633.0 | 558.9 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 16.72 | 161.21 | -38.60 | 65.63 | 0.6582 | 361.0 | 286.8 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 18.27 | 160.40 | -39.41 | 63.79 | 0.6742 | 565.0 | 445.9 | |
| 3.17 | 5.98 | 2.14 | 4.04 | 18.78 | 160.01 | -39.80 | 63.27 | 0.6809 | 769.7 | 526.5 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 17.13 | 160.45 | -39.36 | 65.39 | 0.6689 | 542.0 | 448.6 | |
| 1.18 | 1.36 | 0.79 | 0.91 | 18.14 | 159.94 | -39.88 | 64.19 | 0.6790 | 518.7 | 535.5 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 18.52 | 159.79 | -40.02 | 63.73 | 0.6823 | 460.0 | 400.1 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 18.68 | 159.66 | -40.15 | 63.57 | 0.6845 | 376.0 | 306.5 | |
| 0.00 | 0.82 | 0.00 | 0.55 | 18.83 | 159.49 | -40.33 | 63.43 | 0.6871 | 375.0 | 278.1 | |
| 0.00 | 1.09 | 0.00 | 0.77 | 21.72 | 158.08 | -41.73 | 60.19 | 0.7150 | 496.0 | 311.3 | |
| 0.00 | 1.18 | 0.00 | 0.79 | 14.68 | 159.05 | -40.76 | 69.46 | 0.6768 | 231.0 | 323.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
