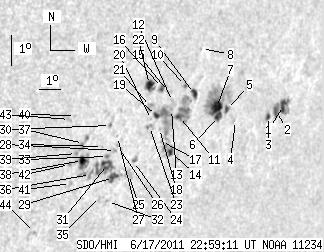

SDO HMI 2011-06-17 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.28 | 272.39 | 53.34 | 206.80 | -15.02 | 246.20 | 46.94 | 248.70 | 0.7590 | -3.2 | 101.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-17 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.71 | 20.67 | 4.82 | 17.43 | -14.42 | 251.50 | 52.25 | 251.08 | 0.8117 | 571.7 | 294.6 | |
| 5.08 | -1.00 | 4.26 | -1.00 | -14.60 | 251.20 | 51.95 | 250.78 | 0.8092 | 629.3 | 999999 | |
| 2.09 | 3.17 | 1.74 | 2.64 | -14.75 | 250.85 | 51.59 | 250.50 | 0.8060 | 637.8 | 431.2 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -14.85 | 249.22 | 49.97 | 249.93 | 0.7902 | 357.0 | 373.0 | |
| 2.63 | 3.90 | 2.09 | 3.10 | -14.49 | 248.67 | 49.41 | 250.21 | 0.7837 | 333.9 | 204.9 | |
| 4.35 | 56.76 | 3.44 | 44.52 | -14.71 | 248.35 | 49.09 | 249.85 | 0.7809 | 579.8 | 473.2 | |
| 8.89 | -6.00 | 6.98 | -6.00 | -14.42 | 248.17 | 48.91 | 250.15 | 0.7783 | 880.4 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.48 | -12.54 | 246.95 | 47.69 | 252.18 | 0.7605 | 646.0 | 592.4 | |
| 3.99 | 5.35 | 3.06 | 4.10 | -13.95 | 246.99 | 47.73 | 250.38 | 0.7647 | 672.7 | 533.3 | |
| 0.54 | 1.36 | 0.41 | 1.03 | -13.69 | 246.50 | 47.24 | 250.56 | 0.7587 | 736.5 | 640.6 | |
| 3.35 | 54.95 | 2.55 | 41.61 | -14.67 | 246.49 | 47.23 | 249.31 | 0.7614 | 621.0 | 494.4 | |
| 0.00 | 1.63 | 0.00 | 1.23 | -14.19 | 246.03 | 46.77 | 249.78 | 0.7551 | 345.0 | 303.3 | |
| 0.00 | 1.36 | 0.00 | 1.03 | -14.44 | 246.05 | 46.80 | 249.46 | 0.7561 | 684.0 | 636.1 | |
| 3.26 | 11.88 | 2.50 | 9.05 | -15.81 | 246.41 | 47.15 | 247.83 | 0.7640 | 607.8 | 307.0 | |
| 0.00 | 1.81 | 0.00 | 1.36 | -13.87 | 245.76 | 46.50 | 250.10 | 0.7513 | 321.0 | 293.8 | |
| 2.09 | 4.26 | 1.55 | 3.17 | -13.74 | 245.45 | 46.20 | 250.17 | 0.7475 | -328.2 | -97.7 | |
| 0.00 | 1.09 | 0.00 | 0.82 | -15.45 | 245.88 | 46.62 | 248.11 | 0.7573 | -467.0 | -346.0 | |
| 0.00 | 0.73 | 0.00 | 0.54 | -15.04 | 245.67 | 46.41 | 248.57 | 0.7538 | -279.0 | -204.6 | |
| 2.18 | -11.00 | 1.62 | -11.00 | -14.62 | 245.42 | 46.16 | 249.01 | 0.7497 | -394.5 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.27 | -14.74 | 245.22 | 45.96 | 248.79 | 0.7480 | -712.0 | -678.5 | |
| 0.00 | 3.90 | 0.00 | 2.89 | -14.33 | 245.06 | 45.81 | 249.27 | 0.7450 | 488.0 | 102.0 | |
| 6.08 | 9.16 | 4.46 | 6.73 | -13.63 | 244.84 | 45.58 | 250.11 | 0.7405 | -648.2 | -443.3 | |
| 0.00 | 3.54 | 0.00 | 2.63 | -14.97 | 245.19 | 45.93 | 248.49 | 0.7484 | -597.0 | -473.1 | |
| 1.09 | 3.08 | 0.81 | 2.29 | -16.07 | 244.78 | 45.52 | 246.92 | 0.7476 | -429.1 | -454.5 | |
| 0.00 | 6.71 | 0.00 | 4.99 | -16.49 | 244.68 | 45.42 | 246.35 | 0.7479 | 234.0 | 171.1 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -15.55 | 243.91 | 44.65 | 247.27 | 0.7364 | -536.0 | -470.4 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -15.26 | 243.83 | 44.57 | 247.62 | 0.7345 | -562.0 | -482.6 | |
| 0.00 | 1.99 | 0.00 | 1.46 | -15.71 | 243.87 | 44.61 | 247.05 | 0.7364 | -607.0 | -503.4 | |
| 5.44 | 28.47 | 4.00 | 20.78 | -16.57 | 244.02 | 44.77 | 245.99 | 0.7412 | -489.9 | -575.6 | |
| 0.00 | 1.09 | 0.00 | 0.78 | -14.90 | 243.43 | 44.17 | 247.93 | 0.7289 | -594.0 | -528.2 | |
| 8.07 | -29.00 | 5.88 | -29.00 | -16.15 | 243.63 | 44.38 | 246.38 | 0.7355 | -673.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.87 | -17.34 | 243.99 | 44.73 | 244.99 | 0.7436 | -423.0 | -388.2 | |
| 0.00 | 1.54 | 0.00 | 1.12 | -15.89 | 243.56 | 44.30 | 246.69 | 0.7338 | -624.0 | -554.6 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -15.57 | 243.25 | 43.99 | 246.99 | 0.7292 | -464.0 | -408.3 | |
| 0.00 | 0.54 | 0.00 | 0.40 | -17.17 | 243.58 | 44.32 | 245.04 | 0.7386 | -587.0 | -523.8 | |
| 0.00 | 4.26 | 0.00 | 3.08 | -16.46 | 242.97 | 43.71 | 245.71 | 0.7293 | -545.0 | -543.3 | |
| 0.00 | 6.62 | 0.00 | 4.71 | -15.46 | 242.39 | 43.13 | 246.79 | 0.7193 | -689.0 | -662.8 | |
| 4.44 | 18.32 | 3.17 | 13.10 | -16.00 | 242.49 | 43.23 | 246.11 | 0.7224 | -804.2 | -632.6 | |
| 0.00 | 1.18 | 0.00 | 0.84 | -15.77 | 242.17 | 42.91 | 246.28 | 0.7180 | -866.0 | -793.9 | |
| 0.00 | 0.82 | 0.00 | 0.57 | -14.56 | 241.82 | 42.56 | 247.76 | 0.7096 | -669.0 | -595.1 | |
| 0.00 | 2.45 | 0.00 | 1.75 | -16.73 | 242.17 | 42.91 | 245.02 | 0.7216 | -553.0 | -420.6 | |
| 0.00 | 1.54 | 0.00 | 1.09 | -16.12 | 241.96 | 42.70 | 245.73 | 0.7169 | -806.0 | -750.6 | |
| 0.00 | 2.27 | 0.00 | 1.58 | -14.68 | 241.59 | 42.33 | 247.51 | 0.7074 | -719.0 | -557.6 | |
| 0.00 | 1.18 | 0.00 | 0.83 | -18.29 | 241.06 | 41.80 | 242.47 | 0.7160 | -761.0 | -642.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
