SDO HMI 2011-06-18 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 150.21 | 803.61 | 90.49 | 480.90 | 16.86 | 167.02 | -30.58 | 60.66 | 0.5591 | -205.5 | -113.8 | |
|
previous
or next observation for the same group /

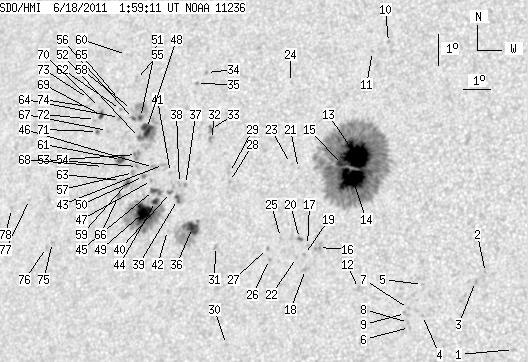

back to the solar disc SDO HMI 2011-06-18 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 1.03 | 11.50 | 176.14 | -21.46 | 63.59 | 0.4020 | -885.0 | -597.7 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 13.88 | 174.98 | -22.62 | 59.61 | 0.4347 | -674.0 | -556.1 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 13.60 | 174.67 | -22.94 | 60.50 | 0.4370 | -855.0 | -705.5 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 12.53 | 172.96 | -24.64 | 64.26 | 0.4536 | -784.0 | -605.3 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 13.49 | 172.86 | -24.74 | 62.41 | 0.4611 | -850.0 | -676.4 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 12.15 | 172.55 | -25.05 | 65.36 | 0.4572 | -754.0 | -602.2 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 12.74 | 172.46 | -25.14 | 64.25 | 0.4620 | -762.0 | -596.8 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 12.31 | 172.50 | -25.10 | 65.09 | 0.4588 | -764.0 | -656.2 | |
| 0.00 | 2.36 | 0.00 | 1.32 | 12.58 | 172.37 | -25.23 | 64.63 | 0.4623 | -595.0 | -624.3 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 21.15 | 170.48 | -27.12 | 51.23 | 0.5473 | -431.0 | -475.1 | |
| 0.00 | 0.54 | 0.00 | 0.32 | 20.85 | 169.95 | -27.65 | 52.18 | 0.5511 | -544.0 | -422.7 | |
| 0.00 | 2.72 | 0.00 | 1.55 | 13.34 | 170.65 | -26.95 | 64.48 | 0.4907 | -893.0 | -457.0 | |
| 43.72 | 468.01 | 25.43 | 272.16 | 17.52 | 169.98 | -27.62 | 57.53 | 0.5261 | -1341.0 | -404.4 | |
| 34.38 | -13.00 | 19.93 | -13.00 | 16.79 | 169.95 | -27.65 | 58.80 | 0.5214 | -1379.7 | 999999 | |
| 2.54 | -13.00 | 1.48 | -13.00 | 17.23 | 169.52 | -28.08 | 58.41 | 0.5299 | -694.2 | 999999 | |
| 0.00 | 4.81 | 0.00 | 2.78 | 14.61 | 169.06 | -28.54 | 63.31 | 0.5195 | -903.0 | -713.7 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 14.67 | 168.66 | -28.94 | 63.50 | 0.5252 | -838.0 | -670.1 | |
| 0.00 | 3.54 | 0.00 | 2.05 | 13.92 | 168.69 | -28.91 | 64.81 | 0.5206 | -853.0 | -584.1 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 14.39 | 168.59 | -29.01 | 64.05 | 0.5245 | -997.0 | -793.2 | |
| 1.36 | 2.18 | 0.79 | 1.27 | 14.88 | 168.34 | -29.26 | 63.34 | 0.5307 | -823.7 | -670.0 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 17.09 | 167.94 | -29.66 | 59.88 | 0.5489 | 472.0 | 420.5 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 14.29 | 168.32 | -29.29 | 64.41 | 0.5277 | -761.0 | -511.4 | |
| 0.00 | 0.54 | 0.00 | 0.32 | 17.24 | 167.62 | -29.98 | 59.86 | 0.5540 | 635.0 | 590.5 | |
| 0.00 | 0.73 | 0.00 | 0.44 | 19.82 | 167.11 | -30.49 | 56.15 | 0.5769 | -643.0 | -570.0 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 14.91 | 167.64 | -29.96 | 63.78 | 0.5400 | -577.0 | -515.3 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 14.22 | 167.35 | -30.25 | 65.17 | 0.5402 | -708.0 | -594.6 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 14.56 | 167.22 | -30.38 | 64.65 | 0.5437 | -690.0 | -520.2 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 16.65 | 165.46 | -32.14 | 62.31 | 0.5778 | 837.0 | 612.0 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 16.93 | 165.40 | -32.20 | 61.89 | 0.5801 | 513.0 | 540.3 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 11.56 | 166.14 | -31.46 | 70.52 | 0.5444 | -691.0 | -458.6 | |
| 0.00 | 2.09 | 0.00 | 1.25 | 14.60 | 165.30 | -32.30 | 65.75 | 0.5693 | -671.0 | -449.1 | |
| 0.00 | 3.54 | 0.00 | 2.18 | 17.97 | 164.51 | -33.09 | 60.83 | 0.5970 | 682.0 | 744.2 | |
| 0.00 | 4.08 | 0.00 | 2.52 | 18.29 | 164.40 | -33.20 | 60.41 | 0.6000 | 752.0 | 710.6 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 20.11 | 163.83 | -33.77 | 58.05 | 0.6174 | 776.0 | 634.9 | |
| 0.00 | 1.72 | 0.00 | 1.08 | 19.75 | 163.52 | -34.08 | 58.78 | 0.6189 | 748.0 | 615.9 | |
| 10.52 | 42.63 | 6.41 | 26.01 | 15.18 | 164.33 | -33.27 | 65.34 | 0.5847 | -995.1 | -412.1 | |
| 0.00 | 1.90 | 0.00 | 1.18 | 16.53 | 163.81 | -33.79 | 63.49 | 0.5980 | 852.0 | 701.0 | |
| 0.00 | 1.90 | 0.00 | 1.18 | 16.56 | 163.57 | -34.03 | 63.58 | 0.6011 | 717.0 | 706.5 | |
| 3.36 | 6.26 | 2.07 | 3.86 | 16.06 | 163.60 | -34.00 | 64.36 | 0.5983 | 930.5 | 787.3 | |
| 0.63 | 3.81 | 0.39 | 2.36 | 16.27 | 163.29 | -34.31 | 64.19 | 0.6033 | 792.9 | 640.9 | |
| 0.00 | 1.63 | 0.00 | 1.02 | 16.90 | 163.16 | -34.44 | 63.29 | 0.6080 | 676.0 | 633.3 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 15.08 | 163.40 | -34.20 | 66.01 | 0.5962 | 537.0 | 349.3 | |
| 0.00 | 2.63 | 0.00 | 1.65 | 17.15 | 162.83 | -34.77 | 63.09 | 0.6133 | 203.0 | 305.7 | |
| 2.99 | 98.14 | 1.86 | 61.31 | 15.98 | 162.76 | -34.84 | 64.93 | 0.6085 | 1037.0 | 500.7 | |
| 3.27 | 6.80 | 2.04 | 4.25 | 16.33 | 162.62 | -34.98 | 64.47 | 0.6120 | 798.7 | 819.0 | |
| 0.00 | 3.63 | 0.00 | 2.28 | 17.05 | 162.46 | -35.14 | 63.44 | 0.6173 | 697.0 | 638.4 | |
| 0.00 | 1.36 | 0.00 | 0.85 | 16.64 | 162.47 | -35.13 | 64.07 | 0.6152 | 936.0 | 768.9 | |
| 9.25 | 35.46 | 5.89 | 22.53 | 18.29 | 161.91 | -35.69 | 61.90 | 0.6302 | 933.3 | 714.9 | |
| 17.60 | -44.00 | 11.00 | -44.00 | 15.63 | 162.37 | -35.23 | 65.68 | 0.6118 | 1142.8 | 999999 | |
| 0.54 | 2.00 | 0.34 | 1.26 | 16.77 | 162.14 | -35.47 | 64.06 | 0.6200 | 864.0 | 710.6 | |
| 2.00 | 19.95 | 1.28 | 12.80 | 18.64 | 161.59 | -36.02 | 61.57 | 0.6358 | 783.7 | 261.6 | |
| 2.00 | -48.00 | 1.27 | -48.00 | 18.00 | 161.70 | -35.90 | 62.45 | 0.6313 | 738.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.92 | 17.08 | 161.83 | -35.77 | 63.75 | 0.6252 | 859.0 | 788.6 | |
| 0.00 | 5.17 | 0.00 | 3.29 | 17.46 | 161.71 | -35.89 | 63.25 | 0.6286 | 861.0 | 817.9 | |
| 0.00 | 2.63 | 0.00 | 1.71 | 19.85 | 161.11 | -36.49 | 60.08 | 0.6476 | 575.0 | 473.0 | |
| 1.54 | -51.00 | 0.99 | -51.00 | 18.60 | 161.31 | -36.29 | 61.77 | 0.6389 | 766.3 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.55 | 16.89 | 161.72 | -35.88 | 64.10 | 0.6257 | 785.0 | 663.9 | |
| 0.00 | 1.45 | 0.00 | 0.94 | 18.89 | 161.16 | -36.44 | 61.44 | 0.6421 | 12.0 | 37.1 | |
| 4.17 | 7.62 | 2.65 | 4.83 | 16.54 | 161.52 | -36.08 | 64.73 | 0.6266 | 687.3 | 632.3 | |
| 0.00 | 0.73 | 0.00 | 0.48 | 20.65 | 160.48 | -37.12 | 59.31 | 0.6589 | 540.0 | 455.5 | |
| 5.08 | 7.98 | 3.25 | 5.11 | 17.29 | 161.15 | -36.45 | 63.79 | 0.6345 | 640.6 | 226.7 | |
| 0.00 | 1.36 | 0.00 | 0.88 | 18.88 | 160.72 | -36.88 | 61.69 | 0.6472 | 669.0 | 552.9 | |
| 0.00 | 0.45 | 0.00 | 0.29 | 16.63 | 161.26 | -36.34 | 64.72 | 0.6302 | 343.0 | 352.4 | |
| 0.00 | 1.81 | 0.00 | 1.17 | 18.62 | 160.75 | -36.85 | 62.05 | 0.6457 | 743.0 | 565.2 | |
| 0.00 | 1.09 | 0.00 | 0.71 | 19.20 | 160.60 | -37.00 | 61.30 | 0.6503 | 411.0 | 307.1 | |
| 1.00 | 2.54 | 0.63 | 1.61 | 16.15 | 161.28 | -36.32 | 65.43 | 0.6277 | 521.0 | 523.0 | |
| 0.00 | 1.27 | 0.00 | 0.82 | 18.20 | 160.37 | -37.23 | 62.85 | 0.6482 | 646.0 | 467.0 | |
| 0.00 | 0.82 | 0.00 | 0.53 | 17.06 | 160.49 | -37.12 | 64.47 | 0.6416 | 420.0 | 334.8 | |
| 2.90 | 3.90 | 1.90 | 2.55 | 18.68 | 160.00 | -37.60 | 62.36 | 0.6547 | 732.9 | 588.6 | |
| 0.00 | 0.82 | 0.00 | 0.54 | 18.93 | 159.86 | -37.75 | 62.07 | 0.6576 | 520.0 | 460.0 | |
| 1.36 | 1.72 | 0.89 | 1.12 | 18.17 | 159.97 | -37.63 | 63.11 | 0.6527 | 481.7 | 511.2 | |
| 0.00 | 1.45 | 0.00 | 0.95 | 18.55 | 159.79 | -37.81 | 62.65 | 0.6566 | 518.0 | 437.6 | |
| 0.00 | 0.91 | 0.00 | 0.60 | 19.21 | 159.33 | -38.27 | 61.94 | 0.6651 | 361.0 | 426.2 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 18.96 | 159.32 | -38.28 | 62.31 | 0.6640 | 413.0 | 340.8 | |
| 0.00 | 1.45 | 0.00 | 0.94 | 14.64 | 158.97 | -38.63 | 68.73 | 0.6504 | 757.0 | 601.5 | |
| 0.00 | 1.27 | 0.00 | 0.83 | 14.48 | 158.76 | -38.84 | 69.05 | 0.6525 | 675.0 | 510.6 | |
| 0.00 | 1.18 | 0.00 | 0.78 | 15.98 | 157.73 | -39.87 | 67.28 | 0.6704 | 656.0 | 468.1 | |
| 0.00 | 1.72 | 0.00 | 1.16 | 15.69 | 157.05 | -40.55 | 67.97 | 0.6775 | 490.0 | 266.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
