SDO HMI 2011-06-18 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 157.54 | 814.87 | 94.24 | 484.90 | 16.90 | 167.00 | -30.05 | 60.21 | 0.5526 | -220.4 | -101.6 | |
|
previous
or next observation for the same group /

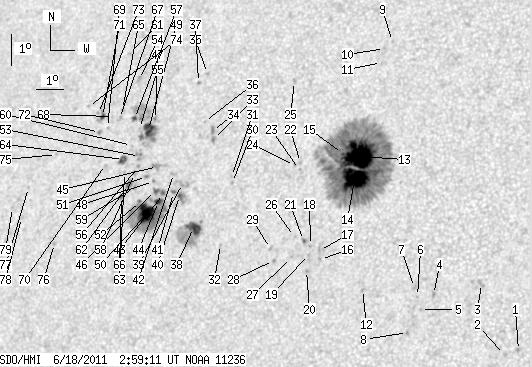

back to the solar disc SDO HMI 2011-06-18 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.68 | 11.48 | 176.16 | -20.90 | 63.07 | 0.3937 | -896.0 | -718.9 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 11.35 | 175.70 | -21.35 | 63.83 | 0.3994 | -747.0 | -621.5 | |
| 0.00 | 3.81 | 0.00 | 2.09 | 13.55 | 174.73 | -22.32 | 60.00 | 0.4281 | -766.0 | -693.1 | |
| 0.00 | 2.27 | 0.00 | 1.26 | 13.19 | 173.13 | -23.92 | 62.29 | 0.4477 | -909.0 | -736.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 12.72 | 172.73 | -24.32 | 63.60 | 0.4503 | -803.0 | -553.0 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 13.13 | 172.59 | -24.46 | 62.91 | 0.4548 | -711.0 | -574.0 | |
| 0.00 | 2.09 | 0.00 | 1.16 | 13.41 | 172.46 | -24.60 | 62.47 | 0.4584 | -596.0 | -379.3 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 12.01 | 172.36 | -24.69 | 65.39 | 0.4512 | -781.0 | -603.9 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 21.20 | 170.51 | -26.54 | 50.63 | 0.5411 | -779.0 | -616.6 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 20.97 | 170.26 | -26.79 | 51.22 | 0.5420 | -786.0 | -664.5 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 20.51 | 170.24 | -26.81 | 51.94 | 0.5386 | -844.0 | -614.0 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 13.33 | 170.66 | -26.39 | 64.10 | 0.4828 | -913.0 | -707.3 | |
| 47.44 | 475.76 | 27.47 | 275.33 | 17.50 | 169.93 | -27.12 | 57.14 | 0.5195 | -1317.2 | -385.8 | |
| 38.91 | -13.00 | 22.46 | -13.00 | 16.80 | 169.90 | -27.15 | 58.37 | 0.5151 | -1363.1 | 999999 | |
| 0.82 | -13.00 | 0.48 | -13.00 | 17.59 | 169.34 | -27.71 | 57.50 | 0.5276 | -587.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 14.25 | 169.06 | -27.99 | 63.58 | 0.5099 | -734.0 | -628.5 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 14.53 | 168.99 | -28.07 | 63.13 | 0.5126 | -851.0 | -752.3 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 14.68 | 168.64 | -28.41 | 63.11 | 0.5181 | -845.0 | -725.4 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 14.40 | 168.61 | -28.44 | 63.63 | 0.5169 | -940.0 | -788.2 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 13.90 | 168.61 | -28.44 | 64.54 | 0.5141 | -894.0 | -774.6 | |
| 0.36 | 1.90 | 0.21 | 1.11 | 14.83 | 168.37 | -28.68 | 63.03 | 0.5226 | -917.0 | -728.1 | |
| 0.00 | 1.81 | 0.00 | 1.07 | 17.29 | 167.87 | -29.18 | 59.20 | 0.5441 | 526.0 | 250.6 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 17.07 | 167.87 | -29.18 | 59.56 | 0.5427 | 585.0 | 424.6 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 17.19 | 167.66 | -29.39 | 59.51 | 0.5461 | 684.0 | 487.9 | |
| 0.00 | 2.09 | 0.00 | 1.26 | 19.87 | 167.15 | -29.90 | 55.63 | 0.5701 | -771.0 | -578.3 | |
| 0.00 | 0.82 | 0.00 | 0.48 | 14.96 | 168.03 | -29.02 | 63.06 | 0.5279 | -652.0 | -481.8 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 14.30 | 168.01 | -29.04 | 64.23 | 0.5243 | -687.0 | -567.6 | |
| 0.00 | 1.63 | 0.00 | 0.95 | 14.20 | 167.38 | -29.67 | 64.84 | 0.5323 | -807.0 | -657.3 | |
| 0.00 | 1.81 | 0.00 | 1.06 | 14.57 | 167.21 | -29.84 | 64.29 | 0.5365 | -652.0 | -485.1 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 16.63 | 165.47 | -31.58 | 61.98 | 0.5705 | 778.0 | 584.6 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 16.82 | 165.40 | -31.65 | 61.73 | 0.5725 | 689.0 | 536.4 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 14.68 | 165.36 | -31.69 | 65.27 | 0.5616 | -595.0 | -415.3 | |
| 0.00 | 2.54 | 0.00 | 1.56 | 17.98 | 164.49 | -32.56 | 60.48 | 0.5905 | 909.0 | 782.6 | |
| 0.00 | 3.45 | 0.00 | 2.12 | 18.27 | 164.39 | -32.66 | 60.10 | 0.5933 | 806.0 | 730.5 | |
| 0.00 | 1.45 | 0.00 | 0.91 | 20.09 | 163.79 | -33.27 | 57.75 | 0.6113 | 787.0 | 674.4 | |
| 0.00 | 0.63 | 0.00 | 0.39 | 18.55 | 164.02 | -33.03 | 59.91 | 0.5994 | 660.0 | 528.7 | |
| 0.00 | 1.81 | 0.00 | 1.13 | 19.80 | 163.51 | -33.54 | 58.37 | 0.6128 | 761.0 | 613.4 | |
| 11.70 | 44.90 | 7.09 | 27.23 | 15.20 | 164.27 | -32.78 | 65.06 | 0.5785 | -932.4 | -383.0 | |
| 0.00 | 6.98 | 0.00 | 4.29 | 16.57 | 163.59 | -33.46 | 63.24 | 0.5940 | 651.0 | 620.7 | |
| 1.54 | 8.07 | 0.95 | 4.95 | 16.20 | 163.55 | -33.50 | 63.86 | 0.5926 | 941.2 | 790.1 | |
| 1.63 | 2.00 | 1.01 | 1.23 | 16.29 | 163.31 | -33.74 | 63.86 | 0.5961 | 737.4 | 728.0 | |
| 0.00 | 2.09 | 0.00 | 1.29 | 16.89 | 163.19 | -33.86 | 62.99 | 0.6007 | 690.0 | 604.3 | |
| 1.72 | 6.08 | 1.07 | 3.77 | 16.25 | 162.93 | -34.12 | 64.13 | 0.6007 | 893.7 | 758.0 | |
| 3.45 | 96.51 | 2.13 | 59.87 | 16.00 | 162.79 | -34.26 | 64.61 | 0.6013 | 987.1 | 504.0 | |
| 0.00 | 8.25 | 0.00 | 5.15 | 17.10 | 162.52 | -34.53 | 63.04 | 0.6100 | 627.0 | 538.8 | |
| 2.18 | -43.00 | 1.35 | -43.00 | 16.34 | 162.60 | -34.45 | 64.17 | 0.6052 | 780.7 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.72 | 18.59 | 162.11 | -34.94 | 61.03 | 0.6227 | 680.0 | 609.2 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 16.62 | 162.47 | -34.58 | 63.81 | 0.6083 | 854.0 | 784.0 | |
| 10.79 | 27.76 | 6.82 | 17.52 | 18.27 | 161.91 | -35.14 | 61.63 | 0.6234 | 983.0 | 725.9 | |
| 20.23 | -44.00 | 12.55 | -44.00 | 15.61 | 162.40 | -34.65 | 65.42 | 0.6044 | 1148.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 16.78 | 162.16 | -34.89 | 63.74 | 0.6128 | 907.0 | 813.8 | |
| 1.45 | -44.00 | 0.91 | -44.00 | 15.99 | 162.09 | -34.96 | 64.99 | 0.6100 | 510.1 | 999999 | |
| 0.00 | 5.81 | 0.00 | 3.66 | 17.41 | 161.75 | -35.30 | 63.01 | 0.6210 | 797.0 | 632.2 | |
| 0.00 | 2.63 | 0.00 | 1.69 | 19.86 | 161.16 | -35.89 | 59.73 | 0.6407 | 558.0 | 473.1 | |
| 0.00 | 0.63 | 0.00 | 0.40 | 18.30 | 161.55 | -35.50 | 61.79 | 0.6279 | 528.0 | 436.7 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 17.09 | 161.79 | -35.26 | 63.47 | 0.6190 | 928.0 | 764.1 | |
| 1.90 | 25.49 | 1.22 | 16.24 | 18.61 | 161.28 | -35.77 | 61.48 | 0.6328 | 679.3 | 290.3 | |
| 0.00 | 3.08 | 0.00 | 1.94 | 16.87 | 161.68 | -35.37 | 63.87 | 0.6193 | 817.0 | 616.1 | |
| 0.00 | 2.18 | 0.00 | 1.37 | 16.43 | 161.77 | -35.28 | 64.49 | 0.6160 | 834.0 | 693.1 | |
| 0.00 | 0.73 | 0.00 | 0.46 | 17.75 | 161.36 | -35.69 | 62.71 | 0.6275 | 486.0 | 419.1 | |
| 0.00 | 1.09 | 0.00 | 0.71 | 20.69 | 160.53 | -36.52 | 58.91 | 0.6524 | 612.0 | 499.8 | |
| 4.26 | 4.35 | 2.68 | 2.74 | 16.52 | 161.52 | -35.53 | 64.48 | 0.6196 | 646.4 | 420.0 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 16.89 | 161.28 | -35.77 | 64.04 | 0.6243 | 585.0 | 484.4 | |
| 5.53 | 5.90 | 3.51 | 3.75 | 17.30 | 161.15 | -35.90 | 63.49 | 0.6279 | 645.3 | 464.0 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 18.89 | 160.73 | -36.32 | 61.37 | 0.6407 | 715.0 | 615.5 | |
| 1.27 | 2.18 | 0.80 | 1.37 | 16.14 | 161.32 | -35.73 | 65.17 | 0.6203 | 556.5 | 491.0 | |
| 0.00 | 2.63 | 0.00 | 1.69 | 18.61 | 160.68 | -36.37 | 61.82 | 0.6398 | 734.0 | 511.2 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 18.67 | 160.38 | -36.67 | 61.89 | 0.6436 | 627.0 | 547.8 | |
| 0.00 | 0.91 | 0.00 | 0.59 | 18.31 | 160.27 | -36.78 | 62.47 | 0.6433 | 664.0 | 506.7 | |
| 0.00 | 0.45 | 0.00 | 0.29 | 17.14 | 160.47 | -36.58 | 64.09 | 0.6353 | 48.0 | 124.6 | |
| 2.36 | 7.17 | 1.53 | 4.66 | 18.66 | 159.98 | -37.07 | 62.12 | 0.6483 | 699.3 | 491.2 | |
| 0.00 | 2.00 | 0.00 | 1.29 | 18.15 | 159.99 | -37.06 | 62.85 | 0.6458 | 696.0 | 517.9 | |
| 0.00 | 1.09 | 0.00 | 0.71 | 18.75 | 159.80 | -37.25 | 62.08 | 0.6510 | 488.0 | 490.8 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 18.97 | 159.33 | -37.72 | 62.01 | 0.6574 | 460.0 | 361.5 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 17.43 | 158.42 | -38.63 | 64.67 | 0.6612 | 458.0 | 345.0 | |
| 0.00 | 1.63 | 0.00 | 1.05 | 14.63 | 158.98 | -38.07 | 68.53 | 0.6433 | 757.0 | 600.6 | |
| 0.00 | 0.91 | 0.00 | 0.60 | 16.37 | 157.54 | -39.51 | 66.58 | 0.6676 | 580.0 | 429.8 | |
| 0.00 | 2.09 | 0.00 | 1.38 | 15.42 | 157.47 | -39.58 | 67.98 | 0.6648 | 565.0 | 457.3 | |
| 0.00 | 1.00 | 0.00 | 0.67 | 15.73 | 157.03 | -40.02 | 67.71 | 0.6713 | 483.0 | 347.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
