SDO HMI 2011-06-18 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 138.71 | 829.53 | 81.23 | 484.92 | 16.89 | 167.17 | -28.24 | 58.86 | 0.5295 | -315.1 | -106.5 | |
|
previous
or next observation for the same group /

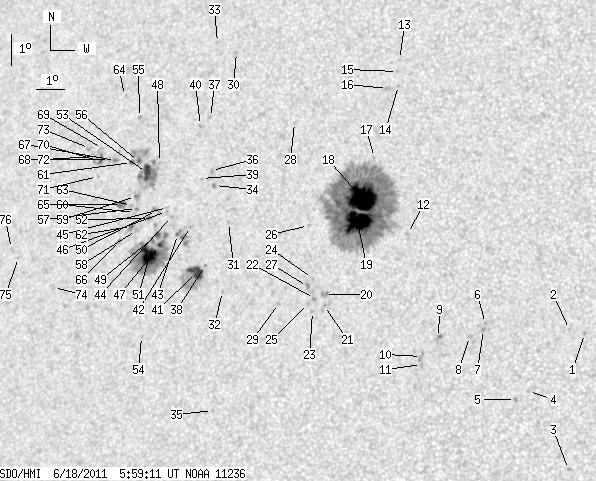

back to the solar disc SDO HMI 2011-06-18 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.58 | 13.36 | 177.96 | -17.45 | 54.39 | 0.3603 | -845.0 | -689.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 13.48 | 177.46 | -17.95 | 54.84 | 0.3681 | -606.0 | -487.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 9.15 | 177.70 | -17.70 | 65.53 | 0.3312 | -841.0 | -708.7 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 11.55 | 176.25 | -19.15 | 61.01 | 0.3691 | -781.0 | -551.0 | |
| 0.00 | 2.09 | 0.00 | 1.11 | 11.30 | 175.84 | -19.56 | 62.10 | 0.3731 | -928.0 | -691.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 13.65 | 174.65 | -20.75 | 58.11 | 0.4073 | -721.0 | -553.8 | |
| 0.00 | 2.27 | 0.00 | 1.23 | 13.46 | 174.60 | -20.80 | 58.57 | 0.4065 | -972.0 | -771.2 | |
| 0.00 | 2.81 | 0.00 | 1.53 | 13.24 | 174.15 | -21.25 | 59.56 | 0.4110 | -729.0 | -576.7 | |
| 0.00 | 3.27 | 0.00 | 1.79 | 13.20 | 173.11 | -22.29 | 60.75 | 0.4251 | -853.0 | -747.2 | |
| 0.00 | 4.08 | 0.00 | 2.24 | 12.60 | 172.59 | -22.81 | 62.53 | 0.4282 | -761.0 | -702.0 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 12.36 | 172.61 | -22.79 | 63.04 | 0.4263 | -951.0 | -730.8 | |
| 0.00 | 1.72 | 0.00 | 0.97 | 16.45 | 171.68 | -23.72 | 55.81 | 0.4684 | 661.0 | 500.0 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 22.02 | 170.52 | -24.89 | 47.72 | 0.5294 | -477.0 | -375.3 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 21.17 | 170.63 | -24.77 | 48.89 | 0.5206 | -821.0 | -640.1 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 21.62 | 170.52 | -24.89 | 48.32 | 0.5259 | -713.0 | -483.1 | |
| 0.00 | 2.36 | 0.00 | 1.37 | 21.07 | 170.26 | -25.15 | 49.45 | 0.5239 | -690.0 | -666.0 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 18.85 | 170.17 | -25.23 | 53.13 | 0.5063 | -9.0 | -53.6 | |
| 48.17 | 480.21 | 27.50 | 273.86 | 17.54 | 169.95 | -25.46 | 55.58 | 0.4988 | -1350.4 | -405.2 | |
| 35.56 | -18.00 | 20.24 | -18.00 | 16.81 | 169.88 | -25.52 | 56.93 | 0.4942 | -1387.6 | 999999 | |
| 0.00 | 4.54 | 0.00 | 2.57 | 14.50 | 169.03 | -26.37 | 61.89 | 0.4895 | -837.0 | -708.6 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 14.16 | 169.08 | -26.33 | 62.50 | 0.4868 | -794.0 | -690.2 | |
| 0.00 | 1.72 | 0.00 | 0.98 | 14.38 | 168.70 | -26.71 | 62.40 | 0.4932 | -1004.0 | -774.2 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 13.97 | 168.68 | -26.72 | 63.17 | 0.4910 | -817.0 | -691.7 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 15.00 | 168.54 | -26.86 | 61.37 | 0.4992 | -631.0 | -495.9 | |
| 0.00 | 1.54 | 0.00 | 0.88 | 14.22 | 168.51 | -26.90 | 62.84 | 0.4948 | -643.0 | -517.9 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 16.67 | 168.16 | -27.24 | 58.72 | 0.5152 | -623.0 | -407.3 | |
| 0.00 | 2.45 | 0.00 | 1.40 | 14.75 | 168.40 | -27.00 | 61.95 | 0.4995 | -1021.0 | -775.9 | |
| 0.00 | 0.73 | 0.00 | 0.43 | 19.94 | 167.08 | -28.33 | 54.24 | 0.5518 | -596.0 | -491.6 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 14.21 | 167.45 | -27.96 | 63.67 | 0.5091 | -774.0 | -600.0 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 22.18 | 164.40 | -31.00 | 53.07 | 0.5989 | 615.0 | 489.0 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 16.73 | 165.24 | -30.16 | 60.88 | 0.5529 | 729.0 | 603.5 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 14.56 | 165.38 | -30.03 | 64.47 | 0.5388 | -619.0 | -474.2 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 22.50 | 163.59 | -31.82 | 53.24 | 0.6102 | 598.0 | 479.0 | |
| 0.00 | 2.18 | 0.00 | 1.31 | 17.90 | 164.51 | -30.89 | 59.51 | 0.5692 | 860.0 | 767.0 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 10.86 | 165.50 | -29.90 | 71.05 | 0.5197 | -670.0 | -565.6 | |
| 0.00 | 2.09 | 0.00 | 1.26 | 18.37 | 164.30 | -31.10 | 58.90 | 0.5747 | 764.0 | 669.6 | |
| 0.00 | 1.81 | 0.00 | 1.11 | 20.07 | 163.90 | -31.50 | 56.57 | 0.5902 | 573.0 | 492.9 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 15.37 | 164.63 | -30.78 | 63.57 | 0.5531 | -660.0 | -548.1 | |
| 0.00 | 1.45 | 0.00 | 0.88 | 18.11 | 163.98 | -31.43 | 59.54 | 0.5771 | 626.0 | 487.1 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 19.81 | 163.58 | -31.82 | 57.20 | 0.5924 | 879.0 | 695.5 | |
| 12.52 | 42.55 | 7.45 | 25.33 | 15.14 | 164.33 | -31.07 | 64.14 | 0.5557 | -975.3 | -394.9 | |
| 0.00 | 1.63 | 0.00 | 0.98 | 16.59 | 163.86 | -31.54 | 62.06 | 0.5697 | 767.0 | 581.1 | |
| 1.00 | 13.43 | 0.60 | 8.08 | 16.33 | 163.42 | -31.98 | 62.76 | 0.5739 | 843.6 | 772.4 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 16.89 | 163.09 | -32.32 | 62.06 | 0.5812 | 802.0 | 679.2 | |
| 0.00 | 1.63 | 0.00 | 1.00 | 17.18 | 162.88 | -32.52 | 61.74 | 0.5853 | 218.0 | 171.5 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 17.05 | 162.87 | -32.54 | 61.95 | 0.5848 | 656.0 | 500.7 | |
| 1.63 | 114.13 | 0.99 | 69.43 | 15.97 | 162.81 | -32.59 | 63.71 | 0.5798 | 1083.2 | 510.6 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 18.60 | 162.28 | -33.13 | 59.92 | 0.6008 | 737.0 | 550.2 | |
| 2.45 | -47.00 | 1.49 | -47.00 | 16.32 | 162.67 | -32.73 | 63.24 | 0.5834 | 811.2 | 999999 | |
| 0.00 | 4.26 | 0.00 | 2.61 | 17.08 | 162.48 | -32.92 | 62.15 | 0.5897 | 663.0 | 611.9 | |
| 20.78 | -47.00 | 12.64 | -47.00 | 15.66 | 162.49 | -32.91 | 64.41 | 0.5823 | 1189.0 | 999999 | |
| 1.72 | 1.81 | 1.06 | 1.11 | 16.82 | 162.27 | -33.14 | 62.69 | 0.5911 | 783.5 | 780.0 | |
| 8.62 | 40.55 | 5.35 | 25.12 | 18.28 | 161.85 | -33.56 | 60.69 | 0.6041 | 989.7 | 651.3 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 13.12 | 162.61 | -32.79 | 68.53 | 0.5689 | 606.0 | 488.5 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 20.03 | 161.17 | -34.24 | 58.50 | 0.6222 | 723.0 | 598.0 | |
| 1.63 | 20.69 | 1.02 | 12.93 | 18.62 | 161.46 | -33.94 | 60.40 | 0.6107 | 759.3 | 216.9 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 17.13 | 161.71 | -33.70 | 62.54 | 0.5997 | 947.0 | 801.8 | |
| 0.00 | 2.45 | 0.00 | 1.51 | 16.44 | 161.85 | -33.56 | 63.54 | 0.5944 | 855.0 | 615.1 | |
| 1.00 | 6.53 | 0.62 | 4.05 | 17.51 | 161.59 | -33.81 | 62.02 | 0.6031 | 790.1 | 684.4 | |
| 0.00 | 1.81 | 0.00 | 1.12 | 17.00 | 161.66 | -33.75 | 62.76 | 0.5997 | 454.0 | 576.5 | |
| 1.45 | -56.00 | 0.91 | -56.00 | 18.59 | 161.20 | -34.21 | 60.62 | 0.6137 | 703.1 | 999999 | |
| 1.36 | 3.36 | 0.84 | 2.07 | 16.56 | 161.63 | -33.77 | 63.47 | 0.5977 | 690.6 | 571.4 | |
| 0.00 | 0.82 | 0.00 | 0.51 | 17.22 | 161.50 | -33.91 | 62.52 | 0.6028 | 770.0 | 632.4 | |
| 0.00 | 0.45 | 0.00 | 0.29 | 20.73 | 160.39 | -35.01 | 57.97 | 0.6352 | 397.0 | 446.0 | |
| 0.00 | 5.90 | 0.00 | 3.67 | 17.25 | 161.11 | -34.30 | 62.71 | 0.6078 | 646.0 | 625.8 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 16.11 | 161.26 | -34.14 | 64.38 | 0.6002 | 632.0 | 505.9 | |
| 0.00 | 2.09 | 0.00 | 1.32 | 18.65 | 160.56 | -34.85 | 60.92 | 0.6217 | 909.0 | 736.4 | |
| 0.00 | 1.91 | 0.00 | 1.21 | 18.67 | 160.32 | -35.09 | 61.02 | 0.6248 | 650.0 | 608.9 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 19.02 | 159.96 | -35.45 | 60.72 | 0.6309 | 613.0 | 514.3 | |
| 0.82 | 5.62 | 0.52 | 3.58 | 18.61 | 159.98 | -35.43 | 61.31 | 0.6285 | 739.7 | 629.6 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 18.13 | 159.97 | -35.43 | 62.03 | 0.6261 | 567.0 | 411.1 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 18.76 | 159.74 | -35.66 | 61.22 | 0.6321 | 552.0 | 502.3 | |
| 0.00 | 2.27 | 0.00 | 1.45 | 19.02 | 159.44 | -35.96 | 61.02 | 0.6370 | 501.0 | 465.2 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 14.61 | 159.00 | -36.41 | 67.87 | 0.6223 | 806.0 | 617.3 | |
| 0.00 | 0.64 | 0.00 | 0.41 | 15.53 | 157.42 | -37.99 | 67.18 | 0.6456 | 577.0 | 482.0 | |
| 0.00 | 0.45 | 0.00 | 0.30 | 15.81 | 157.07 | -38.33 | 66.92 | 0.6510 | 584.0 | 449.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
