SDO HMI 2011-06-18 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.16 | 201.34 | 50.82 | 169.46 | -14.90 | 246.30 | 51.99 | 250.33 | 0.8101 | -25.0 | 242.3 | |
|
previous
or next observation for the same group /

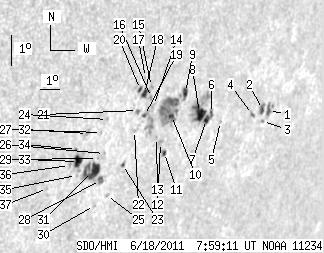

back to the solar disc SDO HMI 2011-06-18 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.18 | 6.44 | 2.11 | 6.24 | -14.52 | 251.95 | 57.64 | 252.16 | 0.8610 | 477.4 | 255.4 | |
| 3.45 | 4.81 | 3.30 | 4.60 | -14.48 | 251.58 | 57.27 | 252.13 | 0.8578 | 560.4 | 503.8 | |
| 0.00 | 1.09 | 0.00 | 1.05 | -14.86 | 251.74 | 57.43 | 251.73 | 0.8598 | 399.0 | 306.6 | |
| 1.36 | 2.81 | 1.29 | 2.66 | -14.63 | 251.06 | 56.75 | 251.85 | 0.8535 | 599.3 | 439.2 | |
| 0.00 | 1.00 | 0.00 | 0.90 | -14.81 | 249.32 | 55.01 | 251.25 | 0.8385 | 281.0 | 240.5 | |
| 1.63 | 41.82 | 1.45 | 36.67 | -14.55 | 248.73 | 54.42 | 251.42 | 0.8326 | 223.3 | 414.6 | |
| 3.18 | -6.00 | 2.81 | -6.00 | -14.73 | 248.52 | 54.21 | 251.15 | 0.8311 | 411.3 | 999999 | |
| 12.07 | -6.00 | 10.55 | -6.00 | -14.50 | 248.06 | 53.75 | 251.31 | 0.8264 | 789.8 | 999999 | |
| 3.99 | 7.26 | 3.40 | 6.18 | -13.85 | 247.10 | 52.79 | 251.85 | 0.8159 | 583.5 | 475.8 | |
| 2.00 | 42.73 | 1.69 | 35.97 | -14.57 | 246.61 | 52.30 | 250.87 | 0.8127 | 903.5 | 710.3 | |
| 1.72 | 2.45 | 1.47 | 2.09 | -15.74 | 246.66 | 52.35 | 249.47 | 0.8159 | 593.3 | 512.9 | |
| 0.00 | 2.72 | 0.00 | 2.30 | -15.42 | 246.34 | 52.03 | 249.77 | 0.8121 | 364.0 | 332.9 | |
| 0.00 | 1.18 | 0.00 | 0.99 | -15.26 | 246.07 | 51.76 | 249.90 | 0.8091 | 673.0 | 601.2 | |
| 0.00 | 2.45 | 0.00 | 2.02 | -14.23 | 245.58 | 51.27 | 251.00 | 0.8019 | 436.0 | 347.2 | |
| 0.00 | 1.36 | 0.00 | 1.11 | -13.63 | 245.29 | 50.98 | 251.67 | 0.7976 | -196.0 | -80.9 | |
| 0.00 | 2.00 | 0.00 | 1.64 | -13.98 | 245.40 | 51.09 | 251.27 | 0.7995 | -118.0 | -58.8 | |
| 0.00 | 1.18 | 0.00 | 0.95 | -13.34 | 244.91 | 50.60 | 251.92 | 0.7931 | -359.0 | -314.1 | |
| 3.54 | 8.26 | 2.88 | 6.71 | -13.84 | 245.01 | 50.70 | 251.33 | 0.7953 | -511.2 | -328.4 | |
| 0.91 | 14.70 | 0.74 | 12.14 | -14.54 | 245.22 | 50.91 | 250.53 | 0.7991 | -193.8 | 288.9 | |
| 1.72 | -18.00 | 1.39 | -18.00 | -13.71 | 244.77 | 50.46 | 251.42 | 0.7926 | -514.6 | 999999 | |
| 0.36 | 2.18 | 0.30 | 1.77 | -14.37 | 244.82 | 50.51 | 250.62 | 0.7947 | -467.0 | -320.9 | |
| 0.00 | 1.45 | 0.00 | 1.19 | -15.01 | 244.88 | 50.57 | 249.86 | 0.7968 | -488.0 | -427.3 | |
| 1.09 | 2.18 | 0.89 | 1.78 | -16.09 | 244.64 | 50.33 | 248.47 | 0.7973 | -184.7 | -164.6 | |
| 0.00 | 1.18 | 0.00 | 0.93 | -14.63 | 243.43 | 49.12 | 249.90 | 0.7813 | -412.0 | -333.8 | |
| 0.00 | 1.09 | 0.00 | 0.89 | -17.07 | 244.20 | 49.89 | 247.14 | 0.7956 | -338.0 | -239.3 | |
| 0.00 | 0.91 | 0.00 | 0.72 | -15.72 | 243.63 | 49.32 | 248.62 | 0.7862 | -454.0 | -383.7 | |
| 0.00 | 0.82 | 0.00 | 0.64 | -15.04 | 243.27 | 48.96 | 249.34 | 0.7807 | -544.0 | -447.6 | |
| 0.00 | 3.90 | 0.00 | 3.14 | -16.58 | 243.73 | 49.42 | 247.58 | 0.7896 | -495.0 | -393.8 | |
| 0.00 | 0.73 | 0.00 | 0.58 | -15.87 | 243.34 | 49.03 | 248.33 | 0.7837 | -394.0 | -295.9 | |
| 0.00 | 1.00 | 0.00 | 0.81 | -17.38 | 243.72 | 49.41 | 246.60 | 0.7918 | -380.0 | -297.5 | |
| 14.70 | 24.50 | 11.67 | 19.43 | -16.28 | 243.23 | 48.92 | 247.79 | 0.7838 | -631.4 | -585.6 | |
| 0.00 | 2.36 | 0.00 | 1.84 | -15.06 | 242.60 | 48.29 | 249.11 | 0.7739 | -751.0 | -598.2 | |
| 6.26 | 10.25 | 4.88 | 8.00 | -15.95 | 242.45 | 48.14 | 247.95 | 0.7749 | -791.0 | -571.0 | |
| 0.00 | 1.18 | 0.00 | 0.91 | -15.56 | 242.23 | 47.92 | 248.36 | 0.7715 | -721.0 | -587.3 | |
| 0.00 | 1.18 | 0.00 | 0.92 | -16.40 | 242.50 | 48.19 | 247.41 | 0.7767 | -397.0 | -385.5 | |
| 0.00 | 1.63 | 0.00 | 1.27 | -16.07 | 242.06 | 47.75 | 247.67 | 0.7712 | -705.0 | -623.9 | |
| 0.00 | 0.54 | 0.00 | 0.42 | -16.79 | 241.26 | 46.95 | 246.48 | 0.7652 | -714.0 | -631.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
