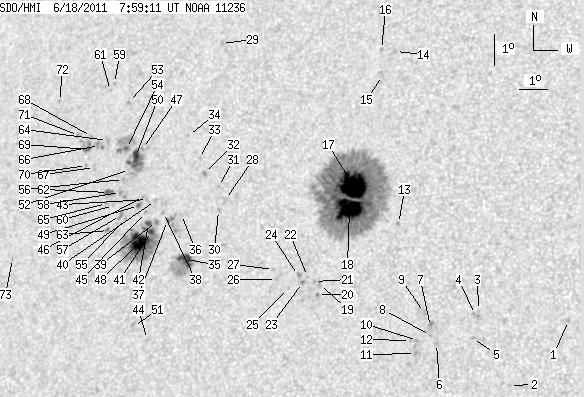

SDO HMI 2011-06-18 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 138.72 | 808.82 | 80.42 | 467.94 | 16.95 | 167.27 | -27.04 | 57.75 | 0.5145 | -269.5 | -117.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-18 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.82 | 13.38 | 177.65 | -16.66 | 53.17 | 0.3500 | -922.0 | -660.6 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 11.35 | 175.86 | -18.45 | 60.67 | 0.3575 | -911.0 | -696.3 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 13.67 | 174.65 | -19.65 | 56.75 | 0.3925 | -710.0 | -474.3 | |
| 0.00 | 3.45 | 0.00 | 1.86 | 13.54 | 174.57 | -19.74 | 57.14 | 0.3926 | -641.0 | -677.2 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 12.80 | 174.53 | -19.78 | 58.86 | 0.3872 | -888.0 | -726.5 | |
| 0.00 | 1.81 | 0.00 | 0.98 | 12.63 | 173.34 | -20.97 | 60.60 | 0.4025 | -887.0 | -655.2 | |
| 0.00 | 5.72 | 0.00 | 3.10 | 13.16 | 173.10 | -21.21 | 59.72 | 0.4098 | -817.0 | -713.7 | |
| 0.00 | 0.45 | 0.00 | 0.25 | 12.88 | 173.12 | -21.19 | 60.30 | 0.4074 | -851.0 | -743.4 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 13.59 | 172.85 | -21.46 | 59.05 | 0.4163 | -804.0 | -645.3 | |
| 0.00 | 1.72 | 0.00 | 0.94 | 12.72 | 172.70 | -21.61 | 61.10 | 0.4121 | -804.0 | -645.1 | |
| 0.00 | 1.72 | 0.00 | 0.94 | 12.31 | 172.67 | -21.64 | 62.02 | 0.4097 | -882.0 | -774.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 12.72 | 172.46 | -21.85 | 61.35 | 0.4154 | -715.0 | -513.1 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 16.37 | 171.66 | -22.65 | 54.80 | 0.4539 | 736.0 | 565.6 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 21.87 | 170.74 | -23.57 | 46.50 | 0.5135 | -702.0 | -580.8 | |
| 0.00 | 2.09 | 0.00 | 1.20 | 21.09 | 170.41 | -23.90 | 48.09 | 0.5099 | -720.0 | -617.7 | |
| 0.00 | 1.63 | 0.00 | 0.95 | 21.94 | 170.23 | -24.08 | 46.99 | 0.5197 | -616.0 | -493.0 | |
| 48.08 | 486.20 | 27.21 | 274.91 | 17.56 | 169.94 | -24.37 | 54.48 | 0.4852 | -1339.2 | -397.9 | |
| 34.93 | -17.00 | 19.70 | -17.00 | 16.83 | 169.90 | -24.41 | 55.82 | 0.4800 | -1393.8 | 999999 | |
| 0.00 | 2.81 | 0.00 | 1.58 | 14.43 | 169.17 | -25.14 | 60.99 | 0.4724 | -713.0 | -514.9 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 14.12 | 169.14 | -25.17 | 61.62 | 0.4707 | -886.0 | -804.0 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 14.52 | 168.98 | -25.33 | 60.98 | 0.4755 | -803.0 | -633.5 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 14.68 | 168.72 | -25.59 | 60.92 | 0.4800 | -798.0 | -547.1 | |
| 0.00 | 1.63 | 0.00 | 0.92 | 14.49 | 168.57 | -25.74 | 61.41 | 0.4808 | -945.0 | -789.9 | |
| 0.00 | 1.91 | 0.00 | 1.08 | 14.71 | 168.40 | -25.91 | 61.14 | 0.4845 | -1009.0 | -852.5 | |
| 0.00 | 0.64 | 0.00 | 0.36 | 14.30 | 168.10 | -26.21 | 62.16 | 0.4859 | -749.0 | -584.6 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 14.57 | 167.65 | -26.66 | 62.01 | 0.4938 | -665.0 | -517.0 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 14.89 | 167.50 | -26.81 | 61.56 | 0.4977 | -532.0 | -430.5 | |
| 0.00 | 3.72 | 0.00 | 2.18 | 17.07 | 165.44 | -28.87 | 59.36 | 0.5385 | 624.0 | 558.7 | |
| 0.00 | 1.81 | 0.00 | 1.11 | 22.07 | 164.29 | -30.02 | 52.45 | 0.5870 | 701.0 | 555.7 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 16.72 | 165.25 | -29.06 | 60.10 | 0.5387 | 776.0 | 670.8 | |
| 0.00 | 0.82 | 0.00 | 0.48 | 17.48 | 165.12 | -29.19 | 58.93 | 0.5452 | 743.0 | 632.7 | |
| 0.00 | 1.81 | 0.00 | 1.08 | 17.89 | 164.53 | -29.78 | 58.72 | 0.5552 | 815.0 | 704.0 | |
| 0.00 | 0.73 | 0.00 | 0.43 | 18.36 | 164.25 | -30.06 | 58.16 | 0.5617 | 737.0 | 645.6 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 19.09 | 163.70 | -30.61 | 57.43 | 0.5732 | 645.0 | 476.5 | |
| 11.52 | 37.02 | 6.78 | 21.79 | 15.17 | 164.30 | -30.01 | 63.43 | 0.5419 | -962.8 | -401.2 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 16.58 | 163.92 | -30.39 | 61.31 | 0.5549 | 613.0 | 537.2 | |
| 1.18 | 9.16 | 0.70 | 5.46 | 16.38 | 163.43 | -30.88 | 61.96 | 0.5600 | 770.5 | 790.9 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 16.63 | 163.24 | -31.07 | 61.68 | 0.5639 | 722.0 | 623.6 | |
| 0.00 | 2.18 | 0.00 | 1.31 | 16.35 | 163.03 | -31.28 | 62.29 | 0.5649 | 853.0 | 794.2 | |
| 0.00 | 1.91 | 0.00 | 1.15 | 17.01 | 162.87 | -31.44 | 61.32 | 0.5707 | 658.0 | 513.9 | |
| 2.54 | 101.16 | 1.52 | 60.76 | 16.03 | 162.90 | -31.41 | 62.89 | 0.5648 | 1092.0 | 479.5 | |
| 2.63 | -41.00 | 1.58 | -41.00 | 16.28 | 162.74 | -31.57 | 62.58 | 0.5682 | 857.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 17.04 | 162.57 | -31.74 | 61.47 | 0.5747 | 574.0 | 523.9 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 12.65 | 163.28 | -31.03 | 68.42 | 0.5430 | 579.0 | 467.6 | |
| 0.00 | 1.45 | 0.00 | 0.88 | 16.63 | 162.57 | -31.74 | 62.14 | 0.5724 | 788.0 | 692.9 | |
| 0.00 | 1.63 | 0.00 | 0.99 | 17.13 | 162.40 | -31.91 | 61.44 | 0.5773 | 677.0 | 599.7 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 18.66 | 162.05 | -32.26 | 59.28 | 0.5905 | 767.0 | 585.8 | |
| 23.41 | -41.00 | 14.06 | -41.00 | 15.68 | 162.51 | -31.79 | 63.72 | 0.5679 | 1181.1 | 999999 | |
| 1.81 | 2.54 | 1.10 | 1.54 | 16.84 | 162.26 | -32.05 | 61.98 | 0.5774 | 831.7 | 753.0 | |
| 5.81 | 28.22 | 3.56 | 17.27 | 18.40 | 161.84 | -32.47 | 59.82 | 0.5915 | 915.2 | 770.1 | |
| 0.00 | 3.54 | 0.00 | 2.10 | 13.05 | 162.71 | -31.60 | 68.04 | 0.5525 | 617.0 | 502.0 | |
| 0.00 | 1.54 | 0.00 | 0.95 | 17.98 | 161.70 | -32.61 | 60.56 | 0.5909 | 530.0 | 674.9 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 20.12 | 161.18 | -33.13 | 57.65 | 0.6097 | 711.0 | 572.6 | |
| 1.54 | 22.23 | 0.95 | 13.73 | 18.65 | 161.44 | -32.87 | 59.70 | 0.5978 | 776.1 | 280.7 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 16.43 | 161.85 | -32.46 | 62.91 | 0.5803 | 782.0 | 635.4 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 17.66 | 161.53 | -32.77 | 61.16 | 0.5911 | 730.0 | 697.6 | |
| 0.00 | 3.81 | 0.00 | 2.32 | 16.52 | 161.65 | -32.66 | 62.89 | 0.5835 | 699.0 | 578.1 | |
| 0.00 | 2.63 | 0.00 | 1.61 | 17.25 | 161.50 | -32.80 | 61.83 | 0.5891 | 752.0 | 611.9 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 20.73 | 160.48 | -33.83 | 57.23 | 0.6214 | 624.0 | 534.3 | |
| 0.00 | 0.45 | 0.00 | 0.28 | 16.83 | 161.32 | -32.99 | 62.59 | 0.5892 | 668.0 | 507.0 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 20.50 | 160.38 | -33.93 | 57.63 | 0.6212 | 568.0 | 418.7 | |
| 2.63 | 5.53 | 1.62 | 3.40 | 17.24 | 161.05 | -33.26 | 62.12 | 0.5948 | 678.4 | 571.3 | |
| 0.64 | 2.18 | 0.39 | 1.33 | 16.04 | 161.28 | -33.03 | 63.87 | 0.5856 | 418.7 | 455.9 | |
| 0.00 | 3.54 | 0.00 | 2.20 | 18.89 | 160.65 | -33.66 | 59.83 | 0.6087 | 652.0 | 474.6 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 16.89 | 161.04 | -33.27 | 62.67 | 0.5930 | 483.0 | 409.4 | |
| 0.00 | 5.53 | 0.00 | 3.46 | 18.73 | 160.38 | -33.93 | 60.25 | 0.6111 | 623.0 | 676.9 | |
| 0.00 | 2.36 | 0.00 | 1.47 | 18.03 | 160.34 | -33.97 | 61.33 | 0.6077 | 505.0 | 547.3 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 19.01 | 160.00 | -34.31 | 60.06 | 0.6172 | 695.0 | 583.6 | |
| 2.00 | 10.25 | 1.25 | 6.44 | 18.60 | 159.98 | -34.33 | 60.69 | 0.6152 | 739.0 | 595.9 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 18.09 | 160.02 | -34.29 | 61.44 | 0.6120 | 385.0 | 384.6 | |
| 0.00 | 2.54 | 0.00 | 1.61 | 19.04 | 159.49 | -34.82 | 60.33 | 0.6235 | 514.0 | 425.6 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 20.12 | 158.46 | -35.85 | 59.37 | 0.6414 | 553.0 | 454.1 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 15.11 | 157.76 | -36.55 | 67.17 | 0.6261 | 513.0 | 417.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
