SDO HMI 2011-06-18 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.04 | 190.32 | 52.99 | 162.18 | -14.90 | 246.30 | 52.54 | 250.47 | 0.8153 | -12.7 | 222.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-18 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

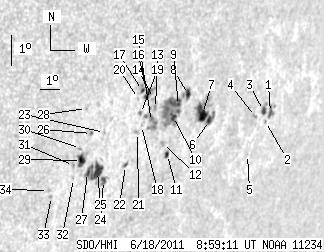

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.63 | 6.80 | 3.57 | 6.71 | -14.56 | 252.02 | 58.25 | 252.24 | 0.8663 | 298.4 | 229.3 | |
| 0.00 | 1.27 | 0.00 | 1.25 | -14.85 | 251.84 | 58.07 | 251.88 | 0.8652 | 383.0 | 304.4 | |
| 3.45 | 5.62 | 3.35 | 5.47 | -14.49 | 251.57 | 57.80 | 252.23 | 0.8624 | 554.2 | 437.4 | |
| 0.00 | 2.00 | 0.00 | 1.92 | -14.67 | 251.17 | 57.41 | 251.94 | 0.8593 | 688.0 | 578.5 | |
| 0.00 | 0.91 | 0.00 | 0.88 | -15.88 | 251.22 | 57.45 | 250.57 | 0.8618 | -243.0 | -274.3 | |
| 2.99 | 34.38 | 2.69 | 30.59 | -14.75 | 248.58 | 54.82 | 251.28 | 0.8367 | 377.8 | 372.5 | |
| 11.07 | -6.00 | 9.82 | -6.00 | -14.51 | 248.11 | 54.35 | 251.44 | 0.8319 | 776.1 | 999999 | |
| 3.81 | 7.44 | 3.29 | 6.42 | -13.89 | 247.14 | 53.38 | 251.94 | 0.8216 | 573.1 | 533.2 | |
| 1.36 | 43.00 | 1.17 | 36.64 | -14.23 | 246.73 | 52.97 | 251.44 | 0.8184 | 804.1 | 675.6 | |
| 3.90 | -9.00 | 3.34 | -9.00 | -14.58 | 246.59 | 52.82 | 250.99 | 0.8178 | 898.7 | 999999 | |
| 1.81 | 3.27 | 1.57 | 2.82 | -15.79 | 246.71 | 52.94 | 249.58 | 0.8216 | 523.4 | 442.1 | |
| 0.00 | 2.36 | 0.00 | 2.02 | -15.43 | 246.31 | 52.55 | 249.90 | 0.8171 | 374.0 | 350.6 | |
| 0.00 | 2.00 | 0.00 | 1.67 | -14.30 | 245.56 | 51.80 | 251.05 | 0.8073 | 360.0 | 348.1 | |
| 0.00 | 0.82 | 0.00 | 0.68 | -13.98 | 245.36 | 51.60 | 251.39 | 0.8046 | -136.0 | -73.4 | |
| 0.00 | 13.06 | 0.00 | 10.92 | -14.71 | 245.49 | 51.73 | 250.54 | 0.8076 | 398.0 | 280.0 | |
| 3.90 | 7.98 | 3.21 | 6.58 | -13.85 | 245.01 | 51.25 | 251.46 | 0.8009 | -475.8 | -191.5 | |
| 1.63 | 4.08 | 1.34 | 3.34 | -13.72 | 244.72 | 50.96 | 251.54 | 0.7976 | -539.1 | -525.8 | |
| 0.00 | 0.91 | 0.00 | 0.75 | -14.83 | 245.02 | 51.26 | 250.27 | 0.8033 | -386.0 | -305.1 | |
| 0.00 | 1.72 | 0.00 | 1.42 | -14.45 | 244.85 | 51.09 | 250.69 | 0.8006 | -428.0 | -367.9 | |
| 0.00 | 1.00 | 0.00 | 0.81 | -13.97 | 244.60 | 50.83 | 251.20 | 0.7970 | -551.0 | -486.9 | |
| 0.00 | 1.54 | 0.00 | 1.27 | -15.05 | 244.89 | 51.13 | 249.96 | 0.8025 | -381.0 | -357.9 | |
| 1.18 | 2.63 | 0.98 | 2.17 | -16.10 | 244.65 | 50.89 | 248.63 | 0.8028 | -258.1 | -198.9 | |
| 0.00 | 1.00 | 0.00 | 0.80 | -15.02 | 243.24 | 49.48 | 249.52 | 0.7860 | -538.0 | -443.8 | |
| 2.81 | 4.17 | 2.29 | 3.39 | -16.56 | 243.71 | 49.95 | 247.78 | 0.7948 | -398.1 | -341.7 | |
| 11.70 | 23.13 | 9.41 | 18.56 | -16.26 | 243.31 | 49.55 | 248.01 | 0.7900 | -620.3 | -591.6 | |
| 0.00 | 1.36 | 0.00 | 1.07 | -15.04 | 242.62 | 48.86 | 249.31 | 0.7797 | -679.0 | -625.7 | |
| 2.18 | -25.00 | 1.74 | -25.00 | -16.28 | 242.83 | 49.07 | 247.83 | 0.7853 | -660.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.85 | -14.24 | 242.14 | 48.38 | 250.17 | 0.7726 | -396.0 | -336.4 | |
| 6.62 | 10.07 | 5.22 | 7.94 | -15.89 | 242.41 | 48.65 | 248.18 | 0.7799 | -795.2 | -420.2 | |
| 0.00 | 1.27 | 0.00 | 1.00 | -15.51 | 242.24 | 48.48 | 248.60 | 0.7771 | -664.0 | -574.1 | |
| 0.00 | 1.72 | 0.00 | 1.35 | -16.05 | 242.08 | 48.31 | 247.88 | 0.7770 | -682.0 | -566.7 | |
| 0.00 | 0.91 | 0.00 | 0.71 | -16.46 | 242.21 | 48.45 | 247.41 | 0.7796 | -586.0 | -491.1 | |
| 0.00 | 1.18 | 0.00 | 0.92 | -17.02 | 241.35 | 47.59 | 246.41 | 0.7726 | -619.0 | -538.6 | |
| 0.00 | 1.63 | 0.00 | 1.26 | -16.83 | 241.14 | 47.38 | 246.59 | 0.7698 | -485.0 | -471.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
