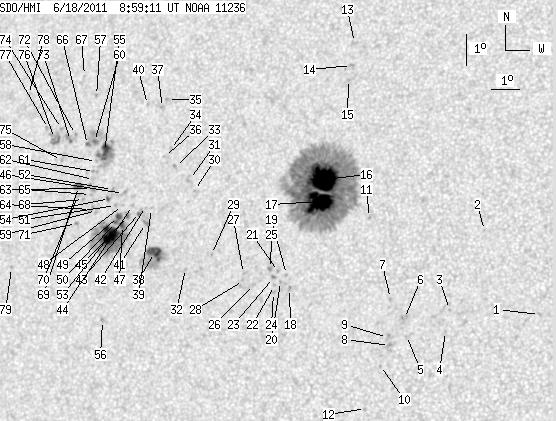

SDO HMI 2011-06-18 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 138.27 | 824.23 | 79.85 | 474.79 | 16.97 | 167.21 | -26.56 | 57.30 | 0.5085 | -251.8 | -115.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-18 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.91 | 13.35 | 177.62 | -16.14 | 52.39 | 0.3429 | -755.0 | -590.5 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 15.97 | 175.60 | -18.16 | 49.83 | 0.3939 | -698.0 | -543.7 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 13.49 | 174.65 | -19.11 | 56.46 | 0.3835 | -895.0 | -753.6 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 12.80 | 174.58 | -19.18 | 58.11 | 0.3790 | -898.0 | -721.6 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 12.67 | 173.29 | -20.47 | 59.97 | 0.3957 | -583.0 | -520.6 | |
| 0.00 | 3.90 | 0.00 | 2.11 | 13.20 | 173.18 | -20.58 | 58.92 | 0.4013 | -755.0 | -739.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 13.81 | 172.65 | -21.11 | 58.19 | 0.4132 | -653.0 | -537.2 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 12.35 | 172.75 | -21.01 | 61.28 | 0.4010 | -918.0 | -828.5 | |
| 0.00 | 2.27 | 0.00 | 1.23 | 12.60 | 172.66 | -21.10 | 60.82 | 0.4040 | -713.0 | -691.7 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 11.73 | 172.50 | -21.26 | 62.95 | 0.4003 | -869.0 | -685.0 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 16.35 | 171.67 | -22.09 | 54.23 | 0.4466 | 754.0 | 555.7 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 10.40 | 172.11 | -21.66 | 66.42 | 0.3977 | -800.0 | -593.8 | |
| 0.00 | 3.18 | 0.00 | 1.83 | 21.94 | 170.33 | -23.44 | 46.26 | 0.5127 | -573.0 | -455.3 | |
| 0.00 | 2.63 | 0.00 | 1.51 | 21.20 | 170.35 | -23.42 | 47.39 | 0.5054 | -704.0 | -611.9 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 20.74 | 170.32 | -23.45 | 48.14 | 0.5016 | -822.0 | -680.8 | |
| 44.27 | 493.90 | 24.95 | 278.10 | 17.54 | 169.92 | -23.84 | 53.98 | 0.4784 | -1357.6 | -396.8 | |
| 37.20 | -16.00 | 20.90 | -16.00 | 16.84 | 169.88 | -23.88 | 55.28 | 0.4733 | -1379.1 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.16 | 14.10 | 169.18 | -24.58 | 61.15 | 0.4625 | -845.0 | -710.9 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 14.53 | 169.03 | -24.74 | 60.44 | 0.4675 | -699.0 | -612.1 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 14.31 | 168.85 | -24.92 | 61.03 | 0.4685 | -958.0 | -794.6 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 14.62 | 168.74 | -25.02 | 60.53 | 0.4720 | -636.0 | -572.1 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 14.18 | 168.65 | -25.11 | 61.45 | 0.4703 | -842.0 | -657.7 | |
| 0.00 | 1.72 | 0.00 | 0.97 | 14.43 | 168.59 | -25.17 | 61.03 | 0.4728 | -901.0 | -755.3 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 13.97 | 168.64 | -25.12 | 61.88 | 0.4690 | -857.0 | -657.5 | |
| 0.00 | 2.45 | 0.00 | 1.38 | 14.71 | 168.45 | -25.31 | 60.61 | 0.4765 | -1086.0 | -808.0 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 14.21 | 167.95 | -25.81 | 62.00 | 0.4799 | -603.0 | -440.9 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 14.55 | 167.52 | -26.24 | 61.72 | 0.4879 | -645.0 | -470.6 | |
| 0.00 | 0.64 | 0.00 | 0.36 | 14.33 | 167.55 | -26.21 | 62.11 | 0.4861 | -660.0 | -656.6 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 15.13 | 166.31 | -27.45 | 61.62 | 0.5077 | -781.0 | -585.9 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 17.14 | 165.39 | -28.37 | 58.85 | 0.5326 | 766.0 | 623.0 | |
| 0.00 | 3.90 | 0.00 | 2.29 | 17.49 | 165.15 | -28.61 | 58.46 | 0.5379 | 472.0 | 514.6 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 14.68 | 165.45 | -28.31 | 63.09 | 0.5166 | -680.0 | -443.0 | |
| 0.00 | 1.72 | 0.00 | 1.02 | 17.89 | 164.57 | -29.19 | 58.25 | 0.5479 | 854.0 | 728.3 | |
| 0.00 | 2.09 | 0.00 | 1.24 | 18.43 | 164.29 | -29.48 | 57.60 | 0.5550 | 576.0 | 563.9 | |
| 0.00 | 1.72 | 0.00 | 1.04 | 20.03 | 163.85 | -29.91 | 55.43 | 0.5711 | 600.0 | 531.4 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 18.21 | 164.11 | -29.66 | 58.10 | 0.5557 | 586.0 | 493.8 | |
| 0.00 | 2.45 | 0.00 | 1.48 | 19.77 | 163.72 | -30.04 | 55.93 | 0.5709 | 639.0 | 617.7 | |
| 12.25 | 42.19 | 7.17 | 24.69 | 15.17 | 164.26 | -29.50 | 63.07 | 0.5352 | -906.0 | -397.1 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 16.56 | 163.92 | -29.84 | 60.96 | 0.5476 | 498.0 | 505.2 | |
| 0.00 | 1.45 | 0.00 | 0.88 | 19.86 | 163.14 | -30.62 | 56.24 | 0.5784 | 539.0 | 425.2 | |
| 0.00 | 3.81 | 0.00 | 2.25 | 16.08 | 163.78 | -29.98 | 61.85 | 0.5466 | 958.0 | 815.8 | |
| 0.00 | 0.73 | 0.00 | 0.43 | 16.62 | 163.69 | -30.07 | 61.02 | 0.5509 | 610.0 | 609.8 | |
| 0.00 | 2.90 | 0.00 | 1.72 | 16.42 | 163.51 | -30.26 | 61.47 | 0.5522 | 775.0 | 784.1 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 16.64 | 163.21 | -30.55 | 61.32 | 0.5573 | 819.0 | 645.8 | |
| 1.45 | 3.08 | 0.86 | 1.84 | 16.29 | 163.09 | -30.68 | 61.98 | 0.5568 | 801.8 | 675.4 | |
| 0.00 | 2.72 | 0.00 | 1.63 | 17.02 | 162.81 | -30.95 | 60.98 | 0.5646 | 547.0 | 498.2 | |
| 2.45 | 102.43 | 1.46 | 61.17 | 16.01 | 162.95 | -30.81 | 62.55 | 0.5570 | 1071.1 | 518.2 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 16.64 | 162.84 | -30.92 | 61.58 | 0.5620 | 648.0 | 484.8 | |
| 3.81 | -47.00 | 2.28 | -47.00 | 16.29 | 162.75 | -31.01 | 62.21 | 0.5611 | 811.3 | 999999 | |
| 1.45 | -47.00 | 0.87 | -47.00 | 16.10 | 162.68 | -31.09 | 62.58 | 0.5610 | 773.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 16.63 | 162.58 | -31.18 | 61.76 | 0.5653 | 868.0 | 690.5 | |
| 0.00 | 2.09 | 0.00 | 1.26 | 17.14 | 162.37 | -31.39 | 61.08 | 0.5707 | 692.0 | 572.5 | |
| 19.51 | -47.00 | 11.65 | -47.00 | 15.72 | 162.56 | -31.21 | 63.28 | 0.5605 | 1171.3 | 999999 | |
| 0.00 | 3.18 | 0.00 | 1.91 | 16.85 | 162.32 | -31.45 | 61.58 | 0.5698 | 897.0 | 692.1 | |
| 8.89 | 30.57 | 5.42 | 18.60 | 18.34 | 161.83 | -31.93 | 59.54 | 0.5845 | 966.4 | 693.0 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 13.03 | 162.68 | -31.08 | 67.80 | 0.5453 | 637.0 | 551.8 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 20.13 | 161.13 | -32.63 | 57.30 | 0.6038 | 754.0 | 604.9 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 18.02 | 161.60 | -32.16 | 60.20 | 0.5855 | 724.0 | 618.1 | |
| 0.00 | 2.72 | 0.00 | 1.64 | 16.47 | 161.90 | -31.86 | 62.47 | 0.5730 | 685.0 | 592.8 | |
| 1.63 | 21.41 | 1.00 | 13.14 | 18.66 | 161.39 | -32.37 | 59.36 | 0.5918 | 741.6 | 288.0 | |
| 0.00 | 2.00 | 0.00 | 1.22 | 17.70 | 161.59 | -32.17 | 60.71 | 0.5838 | 718.0 | 689.5 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 17.45 | 161.60 | -32.16 | 61.10 | 0.5822 | 683.0 | 570.7 | |
| 0.00 | 3.81 | 0.00 | 2.31 | 17.16 | 161.58 | -32.18 | 61.57 | 0.5808 | 666.0 | 720.6 | |
| 0.00 | 2.99 | 0.00 | 1.81 | 16.50 | 161.67 | -32.09 | 62.58 | 0.5761 | 687.0 | 608.1 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 16.97 | 161.58 | -32.18 | 61.87 | 0.5798 | 894.0 | 666.3 | |
| 1.36 | -60.00 | 0.84 | -60.00 | 18.56 | 161.14 | -32.62 | 59.67 | 0.5942 | 727.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 20.77 | 160.51 | -33.25 | 56.79 | 0.6150 | 607.0 | 450.7 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 16.81 | 161.35 | -32.41 | 62.28 | 0.5818 | 537.0 | 463.7 | |
| 3.18 | 5.35 | 1.94 | 3.27 | 17.22 | 161.08 | -32.68 | 61.80 | 0.5875 | 685.2 | 516.1 | |
| 0.00 | 1.81 | 0.00 | 1.11 | 16.90 | 161.10 | -32.66 | 62.28 | 0.5854 | 533.0 | 459.0 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 16.05 | 161.23 | -32.54 | 63.57 | 0.5793 | 729.0 | 600.1 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 18.87 | 160.61 | -33.15 | 59.54 | 0.6025 | 682.0 | 573.4 | |
| 0.82 | 5.26 | 0.51 | 3.26 | 18.68 | 160.46 | -33.30 | 59.94 | 0.6031 | 835.8 | 694.4 | |
| 0.00 | 1.54 | 0.00 | 0.96 | 19.05 | 160.03 | -33.73 | 59.64 | 0.6105 | 673.0 | 527.1 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 18.03 | 160.26 | -33.50 | 61.04 | 0.6021 | 740.0 | 552.1 | |
| 0.00 | 11.52 | 0.00 | 7.20 | 18.73 | 159.83 | -33.93 | 60.25 | 0.6111 | 619.0 | 597.6 | |
| 0.00 | 2.63 | 0.00 | 1.65 | 19.05 | 159.52 | -34.24 | 59.97 | 0.6165 | 469.0 | 376.6 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 20.13 | 158.47 | -35.29 | 59.03 | 0.6349 | 615.0 | 455.1 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 14.64 | 159.01 | -34.75 | 67.05 | 0.6011 | 782.0 | 636.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
