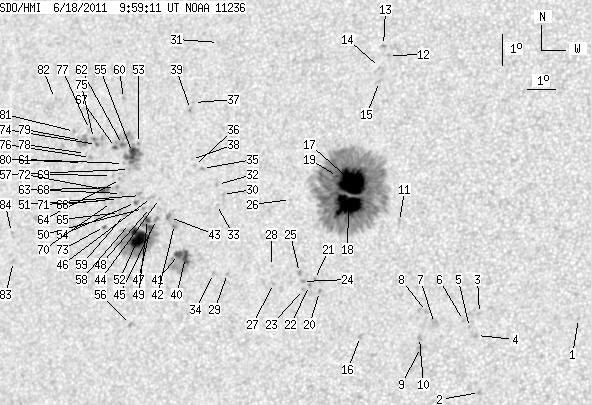

SDO HMI 2011-06-18 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 144.70 | 808.59 | 83.17 | 463.25 | 16.94 | 167.26 | -25.95 | 56.79 | 0.5007 | -242.3 | -126.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-18 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.71 | 13.33 | 177.92 | -15.29 | 51.00 | 0.3316 | -900.0 | -665.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 11.01 | 174.85 | -18.36 | 61.42 | 0.3537 | -819.0 | -660.0 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 13.46 | 174.67 | -18.54 | 55.76 | 0.3757 | -858.0 | -684.4 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 12.78 | 174.63 | -18.59 | 57.40 | 0.3706 | -869.0 | -705.6 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 13.02 | 174.38 | -18.84 | 57.16 | 0.3760 | -811.0 | -705.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 13.24 | 174.16 | -19.05 | 56.95 | 0.3807 | -846.0 | -661.0 | |
| 0.00 | 5.81 | 0.00 | 3.13 | 13.14 | 173.21 | -20.01 | 58.38 | 0.3930 | -797.0 | -713.9 | |
| 0.00 | 2.36 | 0.00 | 1.27 | 13.51 | 172.91 | -20.31 | 57.91 | 0.4000 | -731.0 | -626.5 | |
| 0.00 | 2.27 | 0.00 | 1.22 | 12.39 | 172.80 | -20.41 | 60.54 | 0.3929 | -949.0 | -779.4 | |
| 0.00 | 2.90 | 0.00 | 1.56 | 12.70 | 172.74 | -20.47 | 59.90 | 0.3960 | -797.0 | -687.8 | |
| 0.00 | 2.00 | 0.00 | 1.10 | 16.32 | 171.71 | -21.51 | 53.60 | 0.4390 | 662.0 | 500.5 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 21.63 | 170.58 | -22.63 | 45.81 | 0.5009 | -749.0 | -656.0 | |
| 0.00 | 1.54 | 0.00 | 0.88 | 21.95 | 170.35 | -22.87 | 45.59 | 0.5065 | -660.0 | -551.6 | |
| 0.00 | 0.73 | 0.00 | 0.41 | 21.23 | 170.33 | -22.89 | 46.72 | 0.4999 | -664.0 | -624.8 | |
| 0.00 | 2.09 | 0.00 | 1.19 | 20.78 | 170.40 | -22.81 | 47.35 | 0.4948 | -747.0 | -569.6 | |
| 0.00 | 2.45 | 0.00 | 1.34 | 12.71 | 170.76 | -22.45 | 61.98 | 0.4238 | -703.0 | -628.1 | |
| 50.08 | 483.08 | 28.11 | 270.88 | 17.54 | 169.93 | -23.28 | 53.37 | 0.4715 | -1322.2 | -396.5 | |
| 36.56 | -17.00 | 20.45 | -17.00 | 16.84 | 169.89 | -23.33 | 54.68 | 0.4663 | -1376.9 | 999999 | |
| 0.82 | -17.00 | 0.46 | -17.00 | 17.73 | 169.38 | -23.83 | 53.63 | 0.4798 | -642.8 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.01 | 14.10 | 169.22 | -23.99 | 60.60 | 0.4545 | -896.0 | -735.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 14.48 | 169.00 | -24.21 | 60.07 | 0.4600 | -841.0 | -648.4 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 14.29 | 168.85 | -24.36 | 60.58 | 0.4608 | -945.0 | -822.9 | |
| 0.00 | 1.72 | 0.00 | 0.96 | 14.16 | 168.66 | -24.55 | 61.00 | 0.4625 | -785.0 | -646.5 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 14.41 | 168.60 | -24.62 | 60.58 | 0.4651 | -1001.0 | -819.4 | |
| 0.00 | 2.54 | 0.00 | 1.42 | 14.69 | 168.46 | -24.75 | 60.16 | 0.4688 | -1125.0 | -788.4 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 16.98 | 167.84 | -25.37 | 56.51 | 0.4934 | -568.0 | -338.4 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 14.34 | 167.60 | -25.62 | 61.60 | 0.4781 | -801.0 | -680.5 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 14.87 | 167.46 | -25.75 | 60.71 | 0.4834 | -648.0 | -467.0 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 14.63 | 165.94 | -27.27 | 62.40 | 0.5023 | -658.0 | -507.1 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 17.12 | 165.39 | -27.82 | 58.45 | 0.5254 | 787.0 | 624.4 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 21.99 | 164.31 | -28.91 | 51.64 | 0.5738 | 366.0 | 467.8 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 17.43 | 165.16 | -28.05 | 58.11 | 0.5305 | 717.0 | 605.8 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 16.80 | 165.23 | -27.99 | 59.13 | 0.5254 | 670.0 | 594.6 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 14.63 | 165.44 | -27.77 | 62.79 | 0.5089 | -687.0 | -506.4 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 17.93 | 164.53 | -28.69 | 57.79 | 0.5418 | 831.0 | 709.8 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 18.03 | 164.22 | -29.00 | 57.89 | 0.5463 | 696.0 | 519.3 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 20.04 | 163.79 | -29.42 | 55.03 | 0.5653 | 669.0 | 578.5 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 18.22 | 164.07 | -29.14 | 57.69 | 0.5494 | 651.0 | 485.7 | |
| 0.00 | 1.81 | 0.00 | 1.09 | 19.81 | 163.73 | -29.49 | 55.43 | 0.5645 | 765.0 | 683.5 | |
| 6.17 | 37.38 | 3.59 | 21.77 | 15.12 | 164.37 | -28.84 | 62.70 | 0.5261 | -1015.1 | -432.3 | |
| 4.45 | -40.00 | 2.59 | -40.00 | 15.21 | 164.10 | -29.11 | 62.73 | 0.5302 | -800.3 | 999999 | |
| 0.00 | 3.63 | 0.00 | 2.13 | 16.15 | 163.81 | -29.40 | 61.33 | 0.5396 | 846.0 | 841.5 | |
| 0.00 | 4.45 | 0.00 | 2.62 | 16.37 | 163.59 | -29.62 | 61.12 | 0.5437 | 900.0 | 824.2 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 16.97 | 163.12 | -30.09 | 60.46 | 0.5533 | 715.0 | 562.2 | |
| 0.00 | 2.36 | 0.00 | 1.40 | 16.30 | 163.13 | -30.09 | 61.56 | 0.5493 | 903.0 | 738.4 | |
| 0.00 | 2.72 | 0.00 | 1.62 | 16.99 | 162.82 | -30.39 | 60.63 | 0.5573 | 535.0 | 507.6 | |
| 3.54 | 99.61 | 2.10 | 59.14 | 16.05 | 162.95 | -30.27 | 62.11 | 0.5501 | 1026.5 | 502.9 | |
| 0.00 | 1.72 | 0.00 | 1.02 | 16.68 | 162.84 | -30.37 | 61.14 | 0.5552 | 737.0 | 440.7 | |
| 2.99 | -47.00 | 1.78 | -47.00 | 16.30 | 162.80 | -30.42 | 61.80 | 0.5535 | 838.4 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.97 | 16.64 | 162.59 | -30.63 | 61.37 | 0.5582 | 953.0 | 700.1 | |
| 0.00 | 3.36 | 0.00 | 2.01 | 17.05 | 162.40 | -30.81 | 60.83 | 0.5630 | 545.0 | 599.0 | |
| 20.41 | -47.00 | 12.12 | -47.00 | 15.73 | 162.56 | -30.65 | 62.91 | 0.5533 | 1161.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 18.70 | 162.01 | -31.21 | 58.48 | 0.5779 | 724.0 | 600.5 | |
| 1.27 | 1.54 | 0.76 | 0.92 | 16.83 | 162.26 | -30.96 | 61.29 | 0.5635 | 787.4 | 654.3 | |
| 7.26 | 26.76 | 4.40 | 16.19 | 18.41 | 161.84 | -31.37 | 59.05 | 0.5782 | 929.8 | 697.6 | |
| 0.00 | 2.45 | 0.00 | 1.44 | 13.01 | 162.68 | -30.53 | 67.53 | 0.5377 | 625.0 | 570.2 | |
| 0.00 | 0.54 | 0.00 | 0.33 | 17.87 | 161.84 | -31.38 | 59.91 | 0.5749 | 912.0 | 822.7 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 16.16 | 162.15 | -31.06 | 62.46 | 0.5610 | 443.0 | 384.7 | |
| 0.00 | 2.09 | 0.00 | 1.25 | 16.45 | 161.92 | -31.30 | 62.15 | 0.5656 | 789.0 | 669.4 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 20.14 | 161.12 | -32.09 | 56.92 | 0.5975 | 714.0 | 566.5 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 18.06 | 161.57 | -31.64 | 59.79 | 0.5793 | 714.0 | 595.6 | |
| 1.45 | 19.87 | 0.88 | 12.12 | 18.66 | 161.41 | -31.80 | 58.96 | 0.5849 | 743.1 | 258.7 | |
| 0.00 | 1.72 | 0.00 | 1.04 | 17.11 | 161.68 | -31.53 | 61.23 | 0.5723 | 890.0 | 700.2 | |
| 0.00 | 2.18 | 0.00 | 1.32 | 17.55 | 161.56 | -31.65 | 60.61 | 0.5764 | 831.0 | 637.8 | |
| 0.00 | 2.99 | 0.00 | 1.80 | 16.51 | 161.72 | -31.49 | 62.18 | 0.5685 | 689.0 | 541.1 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 16.95 | 161.60 | -31.61 | 61.54 | 0.5725 | 744.0 | 640.0 | |
| 1.27 | -62.00 | 0.78 | -62.00 | 18.56 | 161.16 | -32.05 | 59.28 | 0.5873 | 762.5 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.37 | 17.29 | 161.42 | -31.79 | 61.11 | 0.5767 | 670.0 | 594.8 | |
| 0.00 | 0.73 | 0.00 | 0.44 | 17.67 | 161.20 | -32.02 | 60.66 | 0.5817 | 454.0 | 475.5 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 16.82 | 161.36 | -31.85 | 61.91 | 0.5748 | 704.0 | 522.2 | |
| 0.00 | 2.90 | 0.00 | 1.76 | 16.88 | 161.13 | -32.09 | 61.96 | 0.5781 | 353.0 | 352.0 | |
| 5.44 | 5.99 | 3.31 | 3.64 | 17.23 | 161.02 | -32.19 | 61.48 | 0.5813 | 609.3 | 434.7 | |
| 1.27 | 1.63 | 0.77 | 0.98 | 16.06 | 161.24 | -31.97 | 63.22 | 0.5722 | 501.9 | 554.0 | |
| 1.18 | 8.71 | 0.73 | 5.37 | 18.65 | 160.42 | -32.79 | 59.65 | 0.5969 | 800.5 | 566.9 | |
| 0.54 | -74.00 | 0.34 | -74.00 | 18.84 | 160.26 | -32.95 | 59.46 | 0.5999 | 759.5 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.40 | 18.23 | 160.28 | -32.93 | 60.38 | 0.5962 | 725.0 | 625.7 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 19.13 | 160.05 | -33.17 | 59.17 | 0.6042 | 524.0 | 460.4 | |
| 0.00 | 0.45 | 0.00 | 0.28 | 18.36 | 160.06 | -33.15 | 60.33 | 0.5995 | 453.0 | 312.6 | |
| 0.00 | 10.70 | 0.00 | 6.64 | 18.77 | 159.86 | -33.36 | 59.83 | 0.6044 | 664.0 | 613.7 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 18.07 | 160.01 | -33.20 | 60.80 | 0.5986 | 426.0 | 363.5 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 19.06 | 159.48 | -33.73 | 59.64 | 0.6105 | 499.0 | 414.6 | |
| 0.00 | 0.45 | 0.00 | 0.29 | 20.10 | 158.44 | -34.77 | 58.75 | 0.6287 | 580.0 | 579.2 | |
| 0.00 | 1.36 | 0.00 | 0.85 | 14.92 | 157.99 | -35.22 | 66.85 | 0.6083 | 289.0 | 378.7 | |
| 0.00 | 1.36 | 0.00 | 0.85 | 15.82 | 157.74 | -35.48 | 65.57 | 0.6156 | 682.0 | 584.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
