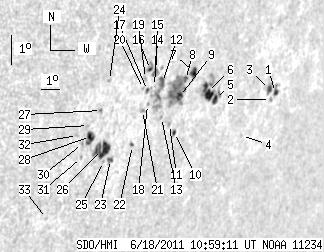

SDO HMI 2011-06-18 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.24 | 184.96 | 52.75 | 161.09 | -14.82 | 246.18 | 53.51 | 250.83 | 0.8243 | 14.7 | 198.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-18 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.45 | 4.90 | 2.50 | 4.99 | -14.62 | 252.11 | 59.44 | 252.41 | 0.8761 | 263.9 | 296.7 | |
| 0.00 | 1.45 | 0.00 | 1.47 | -14.84 | 251.89 | 59.23 | 252.12 | 0.8747 | 385.0 | 308.6 | |
| 3.36 | 6.26 | 3.38 | 6.30 | -14.52 | 251.69 | 59.02 | 252.44 | 0.8725 | 553.1 | 426.9 | |
| 0.00 | 0.91 | 0.00 | 0.89 | -15.95 | 250.63 | 57.96 | 250.60 | 0.8661 | 158.0 | 178.2 | |
| 3.27 | 29.30 | 3.02 | 26.82 | -14.77 | 248.60 | 55.94 | 251.51 | 0.8468 | 391.7 | 412.7 | |
| 10.61 | -5.00 | 9.68 | -5.00 | -14.50 | 248.05 | 55.39 | 251.69 | 0.8414 | 742.8 | 999999 | |
| 4.99 | 6.71 | 4.42 | 5.95 | -13.88 | 247.11 | 54.45 | 252.21 | 0.8316 | 622.4 | 393.6 | |
| 1.18 | 44.18 | 1.04 | 38.57 | -14.09 | 246.70 | 54.03 | 251.86 | 0.8282 | 858.6 | 645.9 | |
| 3.54 | -8.00 | 3.11 | -8.00 | -14.63 | 246.57 | 53.90 | 251.19 | 0.8280 | 872.7 | 999999 | |
| 1.90 | 2.18 | 1.69 | 1.93 | -15.77 | 246.73 | 54.06 | 249.88 | 0.8319 | 503.1 | 363.8 | |
| 0.00 | 1.54 | 0.00 | 1.35 | -15.51 | 246.36 | 53.69 | 250.10 | 0.8280 | 437.0 | 398.6 | |
| 3.72 | 21.86 | 3.18 | 18.69 | -14.16 | 245.50 | 52.84 | 251.48 | 0.8170 | 349.4 | 248.5 | |
| 0.00 | 1.63 | 0.00 | 1.41 | -15.28 | 245.84 | 53.18 | 250.24 | 0.8227 | 599.0 | 493.4 | |
| 0.00 | 4.54 | 0.00 | 3.83 | -13.84 | 245.03 | 52.37 | 251.76 | 0.8118 | -605.0 | -437.2 | |
| 0.00 | 1.09 | 0.00 | 0.92 | -14.28 | 245.13 | 52.46 | 251.25 | 0.8137 | -160.0 | -93.0 | |
| 1.63 | 4.35 | 1.37 | 3.65 | -13.74 | 244.74 | 52.08 | 251.81 | 0.8088 | -600.6 | -470.1 | |
| 1.18 | 2.54 | 0.99 | 2.14 | -14.40 | 244.80 | 52.14 | 251.02 | 0.8108 | -360.5 | -263.1 | |
| 0.00 | 1.27 | 0.00 | 1.08 | -14.85 | 244.96 | 52.29 | 250.52 | 0.8133 | -271.0 | -265.0 | |
| 0.00 | 2.09 | 0.00 | 1.74 | -14.02 | 244.58 | 51.91 | 251.42 | 0.8078 | -484.0 | -426.9 | |
| 0.00 | 1.27 | 0.00 | 1.06 | -14.33 | 244.58 | 51.91 | 251.04 | 0.8085 | -600.0 | -462.9 | |
| 0.00 | 2.27 | 0.00 | 1.91 | -15.03 | 244.76 | 52.10 | 250.24 | 0.8119 | -484.0 | -364.6 | |
| 1.00 | 1.54 | 0.84 | 1.31 | -16.15 | 244.64 | 51.98 | 248.88 | 0.8134 | -227.5 | -396.2 | |
| 2.36 | 3.99 | 1.96 | 3.32 | -16.57 | 243.68 | 51.01 | 248.08 | 0.8052 | -424.6 | -300.6 | |
| 0.00 | 1.54 | 0.00 | 1.24 | -14.05 | 242.78 | 50.11 | 250.91 | 0.7899 | -612.0 | -539.9 | |
| 0.00 | 0.91 | 0.00 | 0.75 | -16.63 | 243.34 | 50.68 | 247.91 | 0.8021 | -461.0 | -399.9 | |
| 14.97 | 20.32 | 12.28 | 16.66 | -16.24 | 243.15 | 50.49 | 248.32 | 0.7993 | -624.9 | -535.3 | |
| 0.00 | 1.54 | 0.00 | 1.24 | -14.99 | 242.68 | 50.01 | 249.71 | 0.7913 | -685.0 | -555.5 | |
| 4.08 | 8.80 | 3.29 | 7.09 | -15.81 | 242.41 | 49.74 | 248.62 | 0.7907 | -764.6 | -647.1 | |
| 0.00 | 0.63 | 0.00 | 0.51 | -15.46 | 242.19 | 49.53 | 248.99 | 0.7876 | -620.0 | -581.0 | |
| 0.00 | 1.63 | 0.00 | 1.31 | -16.03 | 242.09 | 49.42 | 248.25 | 0.7881 | -742.0 | -593.4 | |
| 0.00 | 1.00 | 0.00 | 0.80 | -16.48 | 242.19 | 49.53 | 247.73 | 0.7905 | -641.0 | -509.5 | |
| 0.00 | 1.81 | 0.00 | 1.44 | -15.77 | 241.76 | 49.09 | 248.47 | 0.7841 | -704.0 | -563.2 | |
| 0.00 | 0.91 | 0.00 | 0.72 | -18.42 | 241.19 | 48.52 | 245.02 | 0.7864 | -296.0 | -272.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
