SDO HMI 2011-06-18 12:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.50 | 164.88 | 49.74 | 147.59 | -14.91 | 246.19 | 54.62 | 251.00 | 0.8348 | 50.6 | 256.4 | |
|
previous
or next observation for the same group /

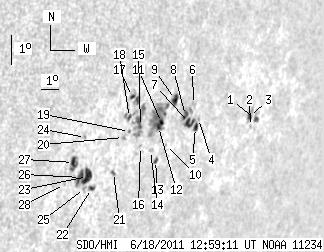

back to the solar disc SDO HMI 2011-06-18 12:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.27 | 3.81 | 2.40 | 4.03 | -14.61 | 252.20 | 60.64 | 252.64 | 0.8855 | 273.3 | 280.1 | |
| 0.00 | 1.36 | 0.00 | 1.43 | -14.83 | 251.98 | 60.42 | 252.35 | 0.8841 | 317.0 | 238.4 | |
| 2.45 | 6.08 | 2.55 | 6.34 | -14.51 | 251.77 | 60.20 | 252.67 | 0.8820 | 549.1 | 467.6 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -14.50 | 248.66 | 57.09 | 252.06 | 0.8563 | 299.0 | 268.3 | |
| 2.90 | 22.49 | 2.77 | 21.14 | -14.79 | 248.60 | 57.03 | 251.72 | 0.8563 | 390.4 | 515.1 | |
| 0.00 | 2.45 | 0.00 | 2.30 | -14.05 | 248.19 | 56.62 | 252.49 | 0.8515 | 217.0 | 181.6 | |
| 6.08 | -5.00 | 5.72 | -5.00 | -14.62 | 248.18 | 56.62 | 251.83 | 0.8524 | 605.8 | 999999 | |
| 3.81 | -5.00 | 3.55 | -5.00 | -14.39 | 247.86 | 56.30 | 252.02 | 0.8493 | 732.2 | 999999 | |
| 4.99 | 6.71 | 4.55 | 6.12 | -13.87 | 247.10 | 55.54 | 252.46 | 0.8416 | 594.8 | 423.6 | |
| 0.00 | 0.54 | 0.00 | 0.50 | -15.29 | 247.14 | 55.58 | 250.81 | 0.8446 | 648.0 | 588.7 | |
| 1.63 | 40.72 | 1.48 | 36.53 | -14.59 | 246.59 | 55.02 | 251.51 | 0.8383 | 805.2 | 639.8 | |
| 2.00 | -11.00 | 1.80 | -11.00 | -14.71 | 246.47 | 54.90 | 251.34 | 0.8374 | 830.6 | 999999 | |
| 1.81 | 2.63 | 1.66 | 2.40 | -15.79 | 246.73 | 55.16 | 250.13 | 0.8419 | 459.8 | 417.6 | |
| 0.00 | 1.18 | 0.00 | 1.06 | -15.47 | 246.32 | 54.76 | 250.41 | 0.8376 | 408.0 | 367.3 | |
| 1.54 | 20.04 | 1.36 | 17.56 | -14.69 | 245.48 | 53.92 | 251.12 | 0.8283 | 380.7 | 261.9 | |
| 0.00 | 1.18 | 0.00 | 1.05 | -15.33 | 245.72 | 54.15 | 250.43 | 0.8318 | 634.0 | 499.8 | |
| 1.72 | 7.80 | 1.48 | 6.74 | -13.73 | 244.72 | 53.16 | 252.09 | 0.8192 | -521.5 | -381.3 | |
| 1.54 | 7.07 | 1.33 | 6.11 | -14.39 | 244.79 | 53.22 | 251.31 | 0.8212 | -325.5 | -303.9 | |
| 0.00 | 1.09 | 0.00 | 0.95 | -14.84 | 244.95 | 53.38 | 250.81 | 0.8236 | -355.0 | -260.6 | |
| 0.00 | 1.09 | 0.00 | 0.94 | -15.02 | 244.69 | 53.13 | 250.53 | 0.8217 | -562.0 | -420.1 | |
| 0.45 | 2.09 | 0.39 | 1.81 | -16.13 | 244.58 | 53.02 | 249.18 | 0.8231 | -258.0 | -96.2 | |
| 2.54 | 3.17 | 2.16 | 2.70 | -16.62 | 243.62 | 52.05 | 248.33 | 0.8152 | -393.2 | -310.4 | |
| 9.52 | 20.14 | 8.02 | 16.89 | -16.23 | 243.26 | 51.70 | 248.69 | 0.8109 | -562.4 | -485.8 | |
| 0.00 | 1.27 | 0.00 | 1.05 | -14.98 | 242.72 | 51.15 | 250.05 | 0.8026 | -706.0 | -551.2 | |
| 0.00 | 1.54 | 0.00 | 1.30 | -16.62 | 243.25 | 51.69 | 248.23 | 0.8118 | -449.0 | -433.9 | |
| 6.08 | -23.00 | 5.08 | -23.00 | -16.26 | 242.91 | 51.35 | 248.56 | 0.8076 | -639.1 | 999999 | |
| 4.17 | 9.25 | 3.44 | 7.63 | -15.77 | 242.38 | 50.82 | 248.99 | 0.8012 | -765.9 | -631.9 | |
| 0.00 | 0.91 | 0.00 | 0.75 | -16.47 | 242.18 | 50.61 | 248.09 | 0.8011 | -402.0 | -421.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
