SDO HMI 2011-06-18 12:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 142.66 | 777.43 | 80.73 | 439.43 | 16.95 | 167.27 | -24.29 | 55.13 | 0.4799 | -306.6 | -134.7 | |
|
previous
or next observation for the same group /

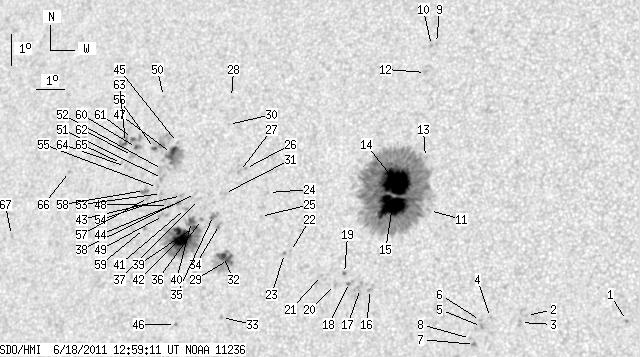

back to the solar disc SDO HMI 2011-06-18 12:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.76 | 13.28 | 177.93 | -13.64 | 47.98 | 0.3102 | -1049.0 | -810.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 13.42 | 174.67 | -16.89 | 53.47 | 0.3532 | -873.0 | -680.0 | |
| 0.00 | 2.99 | 0.00 | 1.58 | 13.20 | 174.49 | -17.07 | 54.26 | 0.3536 | -829.0 | -685.5 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 13.35 | 173.50 | -18.07 | 55.38 | 0.3683 | -761.0 | -505.5 | |
| 0.00 | 2.09 | 0.00 | 1.11 | 13.06 | 173.22 | -18.34 | 56.42 | 0.3695 | -1030.0 | -872.6 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 13.25 | 173.18 | -18.39 | 56.05 | 0.3718 | -876.0 | -703.2 | |
| 0.00 | 1.90 | 0.00 | 1.01 | 12.50 | 173.03 | -18.53 | 57.99 | 0.3675 | -1002.0 | -879.1 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 12.69 | 172.89 | -18.68 | 57.74 | 0.3710 | -925.0 | -750.9 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 22.03 | 170.67 | -20.89 | 43.03 | 0.4863 | -627.0 | -513.5 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 21.97 | 170.51 | -21.06 | 43.35 | 0.4874 | -765.0 | -648.8 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 16.68 | 171.14 | -20.42 | 51.57 | 0.4285 | -236.0 | -268.9 | |
| 0.00 | 2.54 | 0.00 | 1.43 | 21.09 | 170.43 | -21.13 | 44.81 | 0.4792 | -754.0 | -678.2 | |
| 0.00 | 1.72 | 0.00 | 0.95 | 18.36 | 170.81 | -20.76 | 48.90 | 0.4482 | -151.0 | -164.7 | |
| 48.16 | 476.08 | 26.72 | 263.84 | 17.56 | 169.91 | -21.65 | 51.47 | 0.4515 | -1329.3 | -397.1 | |
| 43.99 | -14.00 | 24.32 | -14.00 | 16.83 | 169.86 | -21.70 | 52.88 | 0.4457 | -1364.4 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.94 | 14.19 | 169.41 | -22.15 | 58.59 | 0.4301 | -875.0 | -751.2 | |
| 0.00 | 4.81 | 0.00 | 2.64 | 14.21 | 169.07 | -22.50 | 58.90 | 0.4350 | -491.0 | -687.8 | |
| 0.00 | 2.18 | 0.00 | 1.20 | 14.40 | 168.67 | -22.89 | 58.94 | 0.4417 | -827.0 | -737.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 14.68 | 168.47 | -23.09 | 58.58 | 0.4464 | -1005.0 | -839.7 | |
| 0.00 | 2.72 | 0.00 | 1.51 | 14.33 | 168.20 | -23.36 | 59.55 | 0.4475 | -850.0 | -659.9 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 14.61 | 167.69 | -23.88 | 59.50 | 0.4564 | -783.0 | -638.9 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 15.35 | 166.52 | -25.04 | 59.18 | 0.4772 | -707.0 | -487.7 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 15.29 | 166.32 | -25.24 | 59.49 | 0.4794 | -739.0 | -618.9 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 17.20 | 165.49 | -26.08 | 56.79 | 0.5038 | 561.0 | 455.5 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 16.44 | 165.32 | -26.25 | 58.29 | 0.5006 | 621.0 | 467.4 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 17.95 | 164.55 | -27.02 | 56.35 | 0.5211 | 790.0 | 702.9 | |
| 0.00 | 2.09 | 0.00 | 1.21 | 17.86 | 164.35 | -27.22 | 56.69 | 0.5229 | 815.0 | 694.7 | |
| 0.00 | 0.82 | 0.00 | 0.48 | 20.22 | 163.63 | -27.94 | 53.49 | 0.5490 | 642.0 | 524.9 | |
| 2.54 | 33.20 | 1.45 | 19.04 | 15.08 | 164.38 | -27.19 | 61.53 | 0.5038 | -1041.4 | -520.9 | |
| 0.00 | 0.63 | 0.00 | 0.37 | 19.35 | 163.68 | -27.88 | 54.82 | 0.5419 | 714.0 | 571.1 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 17.15 | 163.92 | -27.64 | 58.25 | 0.5234 | 381.0 | 286.2 | |
| 3.27 | -29.00 | 1.87 | -29.00 | 15.17 | 164.19 | -27.38 | 61.51 | 0.5069 | -911.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 13.26 | 164.37 | -27.20 | 64.90 | 0.4932 | -723.0 | -566.5 | |
| 0.00 | 2.72 | 0.00 | 1.57 | 16.17 | 163.90 | -27.67 | 59.96 | 0.5172 | 793.0 | 731.1 | |
| 0.00 | 4.90 | 0.00 | 2.84 | 16.46 | 163.64 | -27.93 | 59.68 | 0.5223 | 871.0 | 776.2 | |
| 0.00 | 1.63 | 0.00 | 0.95 | 16.32 | 163.23 | -28.34 | 60.24 | 0.5268 | 927.0 | 696.1 | |
| 0.00 | 2.45 | 0.00 | 1.43 | 16.95 | 163.02 | -28.55 | 59.33 | 0.5336 | 314.0 | 435.2 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 17.14 | 162.87 | -28.69 | 59.12 | 0.5366 | 485.0 | 345.8 | |
| 2.45 | 101.67 | 1.43 | 59.36 | 16.07 | 162.98 | -28.59 | 60.87 | 0.5284 | 1029.4 | 511.4 | |
| 4.35 | -39.00 | 2.54 | -39.00 | 16.26 | 162.88 | -28.69 | 60.62 | 0.5309 | 869.8 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.38 | 16.66 | 162.59 | -28.97 | 60.14 | 0.5371 | 976.0 | 683.3 | |
| 22.67 | -39.00 | 13.24 | -39.00 | 15.75 | 162.59 | -28.97 | 61.71 | 0.5315 | 1155.4 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.23 | 17.07 | 162.38 | -29.19 | 59.62 | 0.5425 | 729.0 | 658.7 | |
| 0.36 | 1.54 | 0.21 | 0.91 | 16.85 | 162.27 | -29.30 | 60.08 | 0.5424 | 875.8 | 753.2 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 18.76 | 161.92 | -29.64 | 57.23 | 0.5591 | 632.0 | 464.8 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 13.03 | 162.77 | -28.80 | 66.44 | 0.5141 | 713.0 | 595.6 | |
| 7.26 | 27.12 | 4.33 | 16.14 | 18.40 | 161.77 | -29.80 | 57.91 | 0.5587 | 941.6 | 670.7 | |
| 0.00 | 2.09 | 0.00 | 1.23 | 16.75 | 161.96 | -29.61 | 60.47 | 0.5458 | 598.0 | 448.7 | |
| 0.00 | 4.99 | 0.00 | 2.94 | 16.44 | 161.83 | -29.74 | 61.10 | 0.5455 | 434.0 | 554.6 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 20.22 | 161.10 | -30.47 | 55.59 | 0.5789 | 711.0 | 530.5 | |
| 0.00 | 3.36 | 0.00 | 2.00 | 17.60 | 161.58 | -29.98 | 59.34 | 0.5558 | 540.0 | 591.5 | |
| 0.00 | 5.90 | 0.00 | 3.51 | 17.89 | 161.53 | -30.03 | 58.92 | 0.5583 | 306.0 | 621.6 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 17.13 | 161.63 | -29.93 | 60.09 | 0.5522 | 812.0 | 668.6 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 16.94 | 161.63 | -29.94 | 60.40 | 0.5511 | 629.0 | 575.9 | |
| 0.00 | 2.09 | 0.00 | 1.24 | 17.32 | 161.45 | -30.11 | 59.91 | 0.5557 | 795.0 | 677.3 | |
| 1.54 | 16.42 | 0.93 | 9.85 | 18.55 | 161.10 | -30.46 | 58.17 | 0.5678 | 739.8 | 306.8 | |
| 0.00 | 2.27 | 0.00 | 1.35 | 17.00 | 161.18 | -30.39 | 60.63 | 0.5572 | 648.0 | 517.8 | |
| 0.00 | 4.17 | 0.00 | 2.49 | 17.22 | 160.99 | -30.58 | 60.41 | 0.5609 | 675.0 | 582.8 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 16.02 | 161.20 | -30.37 | 62.24 | 0.5512 | 766.0 | 643.3 | |
| 1.54 | 2.99 | 0.93 | 1.81 | 18.58 | 160.43 | -31.14 | 58.63 | 0.5762 | 847.5 | 762.5 | |
| 1.63 | 6.17 | 0.99 | 3.74 | 18.86 | 160.22 | -31.35 | 58.34 | 0.5806 | 683.9 | 533.6 | |
| 0.00 | 3.36 | 0.00 | 2.03 | 18.32 | 160.33 | -31.24 | 59.10 | 0.5759 | 759.0 | 600.5 | |
| 2.90 | 8.16 | 1.77 | 4.97 | 18.73 | 159.98 | -31.59 | 58.71 | 0.5826 | 697.5 | 535.2 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 17.97 | 160.13 | -31.43 | 59.80 | 0.5761 | 536.0 | 401.9 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 18.06 | 159.97 | -31.60 | 59.77 | 0.5787 | 421.0 | 288.1 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 17.78 | 158.04 | -33.52 | 61.45 | 0.6008 | -545.0 | -379.4 | |
| 0.00 | 1.63 | 0.00 | 1.02 | 15.74 | 156.23 | -35.34 | 65.64 | 0.6133 | 623.0 | 466.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
