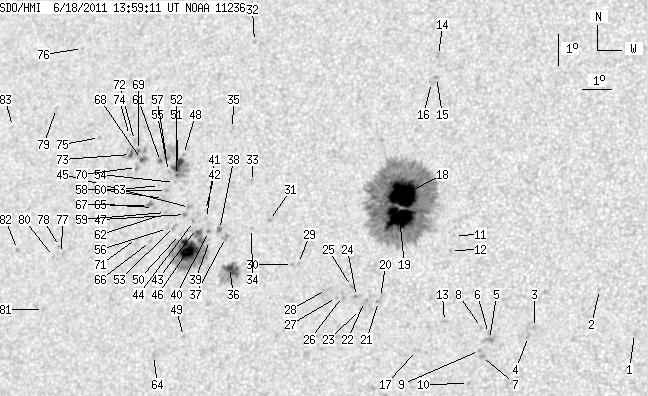

SDO HMI 2011-06-18 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 137.67 | 810.79 | 77.54 | 456.39 | 16.90 | 167.25 | -23.76 | 54.65 | 0.4728 | -249.6 | -134.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-18 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.80 | 13.25 | 177.93 | -13.09 | 46.91 | 0.3031 | -1009.0 | -819.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 14.62 | 176.71 | -14.30 | 46.15 | 0.3328 | -757.0 | -556.2 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 13.42 | 174.68 | -16.33 | 52.57 | 0.3460 | -798.0 | -672.1 | |
| 0.00 | 2.18 | 0.00 | 1.15 | 13.14 | 174.50 | -16.51 | 53.52 | 0.3456 | -917.0 | -750.8 | |
| 0.00 | 6.26 | 0.00 | 3.32 | 13.04 | 173.23 | -17.78 | 55.69 | 0.3617 | -1055.0 | -757.4 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 13.22 | 173.19 | -17.83 | 55.32 | 0.3639 | -847.0 | -667.4 | |
| 0.00 | 2.27 | 0.00 | 1.20 | 12.51 | 173.01 | -18.00 | 57.26 | 0.3602 | -993.0 | -873.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 13.41 | 172.94 | -18.07 | 55.24 | 0.3688 | -735.0 | -614.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 12.69 | 172.93 | -18.08 | 56.93 | 0.3629 | -887.0 | -692.2 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 11.67 | 172.64 | -18.37 | 59.80 | 0.3586 | -861.0 | -566.2 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 16.28 | 171.79 | -19.23 | 50.75 | 0.4099 | 395.0 | 397.7 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 15.81 | 171.70 | -19.31 | 51.81 | 0.4066 | 672.0 | 451.3 | |
| 0.00 | 1.72 | 0.00 | 0.93 | 13.59 | 171.70 | -19.31 | 56.52 | 0.3870 | -859.0 | -676.3 | |
| 0.00 | 1.90 | 0.00 | 1.08 | 22.04 | 170.51 | -20.50 | 42.52 | 0.4823 | -669.0 | -558.9 | |
| 0.00 | 1.90 | 0.00 | 1.07 | 21.32 | 170.55 | -20.47 | 43.58 | 0.4745 | -811.0 | -659.2 | |
| 0.00 | 2.27 | 0.00 | 1.27 | 21.16 | 170.40 | -20.62 | 44.03 | 0.4744 | -662.0 | -598.0 | |
| 0.00 | 2.36 | 0.00 | 1.27 | 12.68 | 170.85 | -20.16 | 59.62 | 0.3915 | -604.0 | -559.1 | |
| 49.79 | 486.56 | 27.52 | 268.65 | 17.57 | 169.91 | -21.10 | 50.78 | 0.4449 | -1348.7 | -392.4 | |
| 41.72 | -18.00 | 22.98 | -18.00 | 16.84 | 169.86 | -21.15 | 52.20 | 0.4389 | -1391.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 14.32 | 169.49 | -21.52 | 57.63 | 0.4226 | -676.0 | -443.7 | |
| 0.00 | 1.72 | 0.00 | 0.94 | 14.19 | 169.44 | -21.58 | 57.95 | 0.4224 | -764.0 | -671.5 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 14.19 | 168.96 | -22.05 | 58.48 | 0.4287 | -750.0 | -841.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 13.94 | 168.85 | -22.16 | 59.11 | 0.4284 | -860.0 | -664.4 | |
| 0.00 | 2.36 | 0.00 | 1.30 | 14.34 | 168.68 | -22.34 | 58.47 | 0.4338 | -1060.0 | -720.5 | |
| 0.00 | 1.81 | 0.00 | 1.00 | 14.65 | 168.47 | -22.54 | 58.06 | 0.4389 | -981.0 | -795.0 | |
| 0.00 | 2.54 | 0.00 | 1.40 | 14.34 | 168.20 | -22.81 | 58.98 | 0.4402 | -837.0 | -667.3 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 14.31 | 168.00 | -23.02 | 59.25 | 0.4426 | -788.0 | -519.5 | |
| 0.00 | 3.72 | 0.00 | 2.06 | 14.55 | 167.63 | -23.39 | 59.13 | 0.4494 | -720.0 | -551.1 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 15.36 | 166.57 | -24.45 | 58.62 | 0.4694 | -809.0 | -546.1 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 15.32 | 166.36 | -24.65 | 58.87 | 0.4718 | -822.0 | -717.7 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 16.70 | 165.37 | -25.64 | 57.28 | 0.4947 | 862.0 | 746.0 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 22.43 | 163.81 | -27.21 | 49.45 | 0.5583 | 712.0 | 532.1 | |
| 0.00 | 1.90 | 0.00 | 1.10 | 17.93 | 164.58 | -26.44 | 55.87 | 0.5137 | 449.0 | 624.6 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 16.44 | 164.77 | -26.24 | 58.29 | 0.5005 | 733.0 | 520.2 | |
| 0.00 | 2.00 | 0.00 | 1.17 | 19.61 | 163.56 | -27.45 | 54.02 | 0.5387 | 687.0 | 544.7 | |
| 3.26 | 33.74 | 1.87 | 19.26 | 15.21 | 164.17 | -26.85 | 61.02 | 0.5002 | -903.9 | -578.8 | |
| 0.00 | 4.35 | 0.00 | 2.50 | 16.15 | 163.89 | -27.12 | 59.56 | 0.5099 | 886.0 | 702.6 | |
| 1.90 | 3.26 | 1.10 | 1.88 | 16.40 | 163.64 | -27.38 | 59.34 | 0.5149 | 858.8 | 766.7 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 16.05 | 163.33 | -27.68 | 60.20 | 0.5165 | 284.0 | 327.3 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 16.33 | 163.25 | -27.76 | 59.77 | 0.5194 | 820.0 | 675.9 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 16.74 | 163.12 | -27.90 | 59.17 | 0.5238 | 679.0 | 604.7 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 16.99 | 163.04 | -27.97 | 58.80 | 0.5265 | 666.0 | 478.2 | |
| 0.00 | 1.63 | 0.00 | 0.95 | 16.42 | 162.81 | -28.21 | 59.97 | 0.5257 | 505.0 | 483.5 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 16.64 | 162.66 | -28.35 | 59.70 | 0.5290 | 912.0 | 781.5 | |
| 0.00 | 2.72 | 0.00 | 1.59 | 17.08 | 162.44 | -28.57 | 59.13 | 0.5346 | 739.0 | 623.6 | |
| 23.94 | 102.75 | 13.91 | 59.65 | 15.76 | 162.62 | -28.39 | 61.26 | 0.5240 | 1152.0 | 540.5 | |
| 0.00 | 1.72 | 0.00 | 1.01 | 16.86 | 162.34 | -28.68 | 59.59 | 0.5346 | 910.0 | 742.5 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 18.76 | 161.92 | -29.09 | 56.78 | 0.5524 | 649.0 | 496.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 13.04 | 162.82 | -28.19 | 66.03 | 0.5057 | 753.0 | 608.1 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 16.23 | 162.22 | -28.79 | 60.76 | 0.5320 | 529.0 | 399.5 | |
| 8.53 | 24.49 | 5.06 | 14.50 | 18.41 | 161.77 | -29.24 | 57.47 | 0.5519 | 940.1 | 657.8 | |
| 1.09 | -51.00 | 0.64 | -51.00 | 18.09 | 161.79 | -29.22 | 57.97 | 0.5495 | 1050.0 | 999999 | |
| 0.00 | 2.81 | 0.00 | 1.65 | 16.48 | 162.00 | -29.01 | 60.50 | 0.5365 | 663.0 | 588.1 | |
| 0.00 | 0.82 | 0.00 | 0.48 | 17.87 | 161.76 | -29.25 | 58.36 | 0.5484 | 711.0 | 641.4 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 18.21 | 161.47 | -29.54 | 58.02 | 0.5542 | 675.0 | 580.3 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 16.41 | 161.76 | -29.26 | 60.79 | 0.5392 | 625.0 | 506.6 | |
| 1.09 | 18.50 | 0.65 | 11.04 | 18.63 | 161.32 | -29.69 | 57.47 | 0.5588 | 775.5 | 260.3 | |
| 0.00 | 1.63 | 0.00 | 0.97 | 17.61 | 161.51 | -29.50 | 58.97 | 0.5498 | 897.0 | 684.6 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 16.91 | 161.60 | -29.41 | 60.06 | 0.5443 | 773.0 | 603.9 | |
| 0.00 | 5.08 | 0.00 | 3.01 | 17.36 | 161.45 | -29.57 | 59.44 | 0.5490 | 707.0 | 550.0 | |
| 1.18 | -57.00 | 0.70 | -57.00 | 18.53 | 161.12 | -29.89 | 57.79 | 0.5607 | 742.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 16.82 | 161.39 | -29.62 | 60.37 | 0.5463 | 648.0 | 456.4 | |
| 0.00 | 0.63 | 0.00 | 0.38 | 17.77 | 161.23 | -29.79 | 58.94 | 0.5544 | 595.0 | 480.3 | |
| 0.00 | 3.08 | 0.00 | 1.78 | 12.43 | 161.83 | -29.19 | 67.78 | 0.5165 | 720.0 | 491.6 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 17.07 | 161.13 | -29.88 | 60.15 | 0.5512 | 668.0 | 598.8 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 15.99 | 161.20 | -29.81 | 61.90 | 0.5438 | 807.0 | 590.8 | |
| 1.18 | 3.81 | 0.70 | 2.26 | 17.13 | 160.94 | -30.08 | 60.19 | 0.5541 | 559.8 | 584.6 | |
| 1.45 | 21.04 | 0.87 | 12.70 | 18.59 | 160.40 | -30.61 | 58.24 | 0.5698 | 875.8 | 610.2 | |
| 0.54 | -68.00 | 0.33 | -68.00 | 18.87 | 160.23 | -30.78 | 57.92 | 0.5737 | 716.5 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.58 | 18.33 | 160.26 | -30.75 | 58.75 | 0.5699 | 703.0 | 577.1 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 16.08 | 160.68 | -30.34 | 62.11 | 0.5512 | 501.0 | 474.4 | |
| 0.00 | 1.54 | 0.00 | 0.93 | 19.19 | 160.01 | -31.00 | 57.58 | 0.5784 | 642.0 | 532.2 | |
| 2.00 | -68.00 | 1.21 | -68.00 | 18.74 | 159.96 | -31.06 | 58.32 | 0.5762 | 762.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 19.35 | 159.79 | -31.22 | 57.50 | 0.5821 | 321.0 | 310.9 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 19.27 | 158.67 | -32.35 | 58.41 | 0.5951 | 564.0 | 441.7 | |
| 0.00 | 0.82 | 0.00 | 0.52 | 22.13 | 157.30 | -33.71 | 55.16 | 0.6287 | 412.0 | 377.1 | |
| 0.00 | 0.63 | 0.00 | 0.39 | 15.58 | 157.97 | -33.04 | 64.65 | 0.5834 | 676.0 | 660.9 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 15.80 | 157.85 | -33.16 | 64.36 | 0.5860 | 571.0 | 508.9 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 20.18 | 156.78 | -34.23 | 58.31 | 0.6228 | 500.0 | 404.4 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 15.48 | 157.68 | -33.33 | 64.97 | 0.5866 | 620.0 | 521.2 | |
| 0.00 | 1.63 | 0.00 | 0.99 | 13.82 | 157.59 | -33.42 | 67.73 | 0.5801 | 668.0 | 512.9 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 15.68 | 156.27 | -34.74 | 65.42 | 0.6056 | 659.0 | 508.2 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 19.58 | 155.19 | -35.82 | 60.15 | 0.6380 | 623.0 | 392.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
