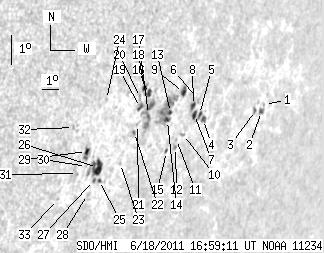

SDO HMI 2011-06-18 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.97 | 128.66 | 41.63 | 121.04 | -14.96 | 245.89 | 56.54 | 251.37 | 0.8519 | -34.5 | 224.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-18 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.73 | -14.41 | 252.51 | 63.16 | 253.29 | 0.9041 | 126.0 | 75.4 | |
| 1.90 | 3.26 | 2.18 | 3.74 | -14.63 | 252.41 | 63.06 | 253.03 | 0.9036 | 307.6 | 105.3 | |
| 1.27 | 2.18 | 1.43 | 2.45 | -14.59 | 251.98 | 62.62 | 253.01 | 0.9004 | 530.0 | 406.4 | |
| 2.63 | 6.26 | 2.68 | 6.34 | -14.80 | 248.67 | 59.32 | 252.18 | 0.8754 | 387.1 | 379.0 | |
| 1.99 | -4.00 | 2.01 | -4.00 | -14.63 | 248.35 | 59.00 | 252.30 | 0.8725 | 383.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.99 | -14.15 | 248.08 | 58.73 | 252.79 | 0.8696 | 467.0 | 458.9 | |
| 2.90 | 4.26 | 2.90 | 4.25 | -14.63 | 248.04 | 58.69 | 252.25 | 0.8700 | 559.5 | 470.8 | |
| 2.63 | 4.26 | 2.60 | 4.22 | -14.34 | 247.86 | 58.50 | 252.54 | 0.8680 | 652.3 | 568.4 | |
| 2.72 | 4.26 | 2.63 | 4.12 | -13.91 | 247.08 | 57.73 | 252.87 | 0.8609 | 512.1 | 512.7 | |
| 0.00 | 1.63 | 0.00 | 1.62 | -15.25 | 247.65 | 58.29 | 251.46 | 0.8677 | 470.0 | 425.8 | |
| 0.00 | 0.73 | 0.00 | 0.71 | -15.40 | 247.29 | 57.94 | 251.21 | 0.8650 | 578.0 | 522.0 | |
| 0.00 | 1.45 | 0.00 | 1.43 | -15.66 | 247.35 | 57.99 | 250.93 | 0.8659 | 580.0 | 488.8 | |
| 1.09 | 32.37 | 1.04 | 30.76 | -14.53 | 246.57 | 57.21 | 252.05 | 0.8575 | 766.8 | 642.3 | |
| 2.09 | -13.00 | 1.99 | -13.00 | -14.78 | 246.49 | 57.14 | 251.75 | 0.8573 | 676.4 | 999999 | |
| 1.36 | 1.81 | 1.32 | 1.76 | -15.77 | 246.86 | 57.51 | 250.69 | 0.8621 | 396.1 | 360.4 | |
| 3.26 | 3.72 | 2.99 | 3.41 | -13.90 | 245.06 | 55.71 | 252.46 | 0.8432 | -330.1 | -127.8 | |
| 0.00 | 15.41 | 0.00 | 14.25 | -14.57 | 245.31 | 55.96 | 251.74 | 0.8466 | 491.0 | 322.8 | |
| 1.99 | 3.35 | 1.81 | 3.05 | -13.73 | 244.78 | 55.43 | 252.59 | 0.8403 | -480.0 | -314.7 | |
| 2.09 | 3.63 | 1.90 | 3.30 | -14.33 | 244.78 | 55.42 | 251.89 | 0.8414 | -358.2 | -469.6 | |
| 0.00 | 1.99 | 0.00 | 1.81 | -14.02 | 244.66 | 55.31 | 252.24 | 0.8398 | -496.0 | -447.9 | |
| 0.00 | 0.73 | 0.00 | 0.66 | -14.87 | 244.81 | 55.46 | 251.27 | 0.8428 | -350.0 | -269.4 | |
| 0.00 | 1.63 | 0.00 | 1.49 | -15.12 | 244.74 | 55.39 | 250.96 | 0.8426 | -304.0 | -250.6 | |
| 0.00 | 1.27 | 0.00 | 1.16 | -16.10 | 244.36 | 55.01 | 249.73 | 0.8412 | -332.0 | -263.1 | |
| 0.00 | 0.73 | 0.00 | 0.63 | -14.04 | 242.82 | 53.47 | 251.78 | 0.8228 | -487.0 | -447.1 | |
| 1.18 | 1.90 | 1.05 | 1.70 | -16.63 | 243.42 | 54.07 | 248.88 | 0.8339 | -415.2 | -331.5 | |
| 11.24 | 17.77 | 9.94 | 15.68 | -16.20 | 243.14 | 53.79 | 249.30 | 0.8304 | -577.8 | -563.6 | |
| 1.27 | 1.63 | 1.12 | 1.45 | -16.62 | 243.09 | 53.74 | 248.80 | 0.8309 | -424.3 | -480.2 | |
| 0.00 | 1.45 | 0.00 | 1.28 | -17.06 | 242.95 | 53.60 | 248.24 | 0.8306 | -473.0 | -388.6 | |
| 2.36 | 5.35 | 2.04 | 4.63 | -15.68 | 242.35 | 53.00 | 249.71 | 0.8219 | -694.1 | -653.7 | |
| 0.00 | 1.00 | 0.00 | 0.87 | -16.16 | 242.53 | 53.18 | 249.19 | 0.8247 | -579.0 | -444.2 | |
| 0.00 | 0.73 | 0.00 | 0.63 | -16.38 | 242.14 | 52.79 | 248.82 | 0.8216 | -472.0 | -480.0 | |
| 0.00 | 1.36 | 0.00 | 1.15 | -14.90 | 241.39 | 52.04 | 250.39 | 0.8110 | -607.0 | -557.3 | |
| 0.00 | 0.91 | 0.00 | 0.77 | -17.19 | 241.41 | 52.06 | 247.65 | 0.8168 | -560.0 | -504.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
