SDO HMI 2011-06-18 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 144.07 | 777.00 | 80.14 | 431.86 | 17.03 | 167.38 | -21.97 | 52.41 | 0.4516 | -298.4 | -137.4 | |
|
previous
or next observation for the same group /

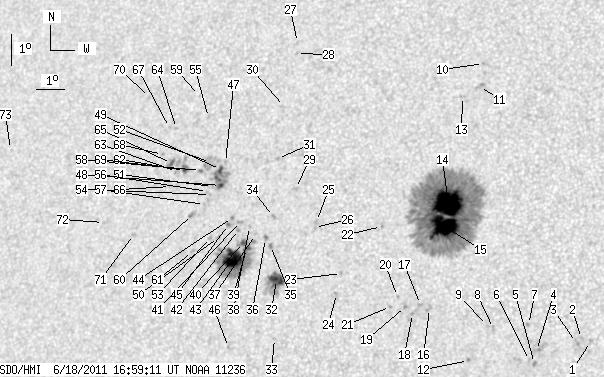

back to the solar disc SDO HMI 2011-06-18 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.27 | 0.00 | 1.18 | 13.28 | 174.95 | -14.41 | 49.51 | 0.3197 | -840.0 | -582.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 13.37 | 174.65 | -14.70 | 49.85 | 0.3244 | -789.0 | -691.7 | |
| 0.00 | 2.63 | 0.00 | 1.38 | 13.25 | 174.50 | -14.86 | 50.44 | 0.3251 | -760.0 | -797.8 | |
| 0.00 | 2.54 | 0.00 | 1.34 | 12.99 | 173.21 | -16.14 | 53.29 | 0.3393 | -876.0 | -824.6 | |
| 0.00 | 2.27 | 0.00 | 1.19 | 12.59 | 173.18 | -16.18 | 54.35 | 0.3360 | -1106.0 | -909.0 | |
| 0.00 | 1.72 | 0.00 | 0.91 | 12.68 | 173.01 | -16.34 | 54.39 | 0.3391 | -758.0 | -601.3 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 13.80 | 172.90 | -16.45 | 51.89 | 0.3511 | -844.0 | -630.7 | |
| 0.00 | 1.72 | 0.00 | 0.92 | 13.67 | 171.76 | -17.59 | 53.97 | 0.3647 | -799.0 | -648.9 | |
| 0.00 | 0.36 | 0.00 | 0.19 | 13.76 | 171.55 | -17.80 | 54.06 | 0.3682 | -620.0 | -638.5 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 22.09 | 170.52 | -18.83 | 40.15 | 0.4657 | -719.0 | -624.5 | |
| 0.00 | 3.81 | 0.00 | 2.12 | 21.34 | 170.49 | -18.87 | 41.35 | 0.4578 | -654.0 | -510.1 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 12.67 | 171.01 | -18.34 | 57.36 | 0.3661 | -831.0 | -721.1 | |
| 0.00 | 1.90 | 0.00 | 1.06 | 21.01 | 169.94 | -19.41 | 42.63 | 0.4599 | -683.0 | -635.6 | |
| 51.05 | 485.20 | 27.92 | 265.12 | 17.58 | 169.89 | -19.46 | 48.60 | 0.4253 | -1407.0 | -416.8 | |
| 38.90 | -14.00 | 21.21 | -14.00 | 16.85 | 169.83 | -19.52 | 50.05 | 0.4189 | -1446.5 | 999999 | |
| 0.00 | 2.90 | 0.00 | 1.57 | 14.27 | 169.59 | -19.77 | 55.62 | 0.3988 | -857.0 | -676.9 | |
| 0.00 | 1.72 | 0.00 | 0.93 | 14.40 | 169.27 | -20.08 | 55.75 | 0.4040 | -779.0 | -654.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 14.11 | 169.03 | -20.32 | 56.65 | 0.4048 | -849.0 | -743.5 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 14.33 | 168.78 | -20.57 | 56.50 | 0.4100 | -1023.0 | -846.6 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 14.64 | 168.48 | -20.87 | 56.22 | 0.4165 | -935.0 | -700.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 14.33 | 168.27 | -21.08 | 57.11 | 0.4167 | -906.0 | -740.6 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 16.84 | 167.69 | -21.66 | 52.83 | 0.4452 | 846.0 | 562.9 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 15.35 | 166.50 | -22.85 | 57.04 | 0.4482 | -744.0 | -596.5 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 14.72 | 166.40 | -22.95 | 58.38 | 0.4448 | -763.0 | -578.4 | |
| 0.00 | 2.54 | 0.00 | 1.43 | 16.97 | 165.43 | -23.92 | 55.10 | 0.4748 | 710.0 | 564.0 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 16.78 | 165.38 | -23.97 | 55.49 | 0.4739 | 722.0 | 685.1 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 22.72 | 163.79 | -25.56 | 47.42 | 0.5426 | 692.0 | 499.4 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 22.36 | 163.82 | -25.53 | 47.92 | 0.5391 | 699.0 | 552.8 | |
| 0.00 | 1.99 | 0.00 | 1.14 | 18.01 | 164.54 | -24.81 | 54.17 | 0.4941 | 790.0 | 656.6 | |
| 0.00 | 0.73 | 0.00 | 0.42 | 20.63 | 163.71 | -25.64 | 50.67 | 0.5255 | 218.0 | 202.1 | |
| 0.00 | 1.81 | 0.00 | 1.04 | 18.96 | 163.75 | -25.60 | 53.35 | 0.5113 | 744.0 | 574.0 | |
| 13.33 | 32.28 | 7.50 | 18.16 | 15.14 | 164.28 | -25.08 | 59.63 | 0.4761 | -982.7 | -435.4 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 13.29 | 164.43 | -24.93 | 63.07 | 0.4619 | -782.0 | -624.0 | |
| 0.00 | 2.09 | 0.00 | 1.19 | 17.12 | 163.90 | -25.45 | 56.37 | 0.4953 | 853.0 | 707.3 | |
| 0.00 | 2.63 | 0.00 | 1.49 | 16.20 | 163.92 | -25.43 | 57.98 | 0.4882 | 972.0 | 801.9 | |
| 0.00 | 2.18 | 0.00 | 1.24 | 16.42 | 163.72 | -25.63 | 57.78 | 0.4925 | 996.0 | 854.0 | |
| 0.00 | 0.36 | 0.00 | 0.21 | 16.54 | 163.35 | -26.00 | 57.90 | 0.4981 | 626.0 | 524.5 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 16.79 | 163.10 | -26.25 | 57.68 | 0.5031 | 791.0 | 648.1 | |
| 3.17 | 103.64 | 1.81 | 59.24 | 16.10 | 163.09 | -26.26 | 58.92 | 0.4983 | 1042.7 | 539.7 | |
| 3.17 | -39.00 | 1.81 | -39.00 | 16.29 | 162.96 | -26.39 | 58.70 | 0.5013 | 929.2 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.15 | 16.95 | 162.75 | -26.60 | 57.72 | 0.5086 | 712.0 | 661.2 | |
| 0.00 | 1.81 | 0.00 | 1.04 | 16.70 | 162.72 | -26.63 | 58.19 | 0.5072 | 897.0 | 774.0 | |
| 23.85 | -39.00 | 13.64 | -39.00 | 15.78 | 162.64 | -26.71 | 59.88 | 0.5020 | 1184.8 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.20 | 17.07 | 162.45 | -26.90 | 57.77 | 0.5133 | 779.0 | 663.0 | |
| 0.36 | 2.18 | 0.21 | 1.25 | 16.85 | 162.34 | -27.01 | 58.25 | 0.5132 | 994.8 | 717.8 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 13.00 | 162.86 | -26.49 | 64.90 | 0.4819 | 790.0 | 649.2 | |
| 0.00 | 1.72 | 0.00 | 1.01 | 18.82 | 161.91 | -27.45 | 55.31 | 0.5327 | 660.0 | 458.6 | |
| 1.81 | 25.39 | 1.06 | 14.81 | 18.08 | 161.85 | -27.50 | 56.57 | 0.5280 | 1089.9 | 760.8 | |
| 2.72 | -48.00 | 1.59 | -48.00 | 18.59 | 161.76 | -27.59 | 55.81 | 0.5327 | 849.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 16.44 | 162.05 | -27.31 | 59.22 | 0.5141 | 779.0 | 646.4 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 18.05 | 161.57 | -27.78 | 56.88 | 0.5313 | 817.0 | 642.6 | |
| 0.00 | 15.23 | 0.00 | 8.95 | 18.81 | 161.36 | -27.99 | 55.80 | 0.5393 | 427.0 | 315.4 | |
| 0.00 | 1.90 | 0.00 | 1.10 | 16.43 | 161.76 | -27.59 | 59.46 | 0.5178 | 731.0 | 534.9 | |
| 0.00 | 0.73 | 0.00 | 0.42 | 17.79 | 161.54 | -27.81 | 57.32 | 0.5298 | 819.0 | 657.0 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 20.25 | 161.01 | -28.34 | 53.80 | 0.5540 | 655.0 | 534.8 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 17.89 | 161.41 | -27.94 | 57.27 | 0.5321 | 757.0 | 528.5 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 17.47 | 161.38 | -27.98 | 58.00 | 0.5297 | 789.0 | 646.3 | |
| 1.54 | 1.54 | 0.91 | 0.91 | 18.55 | 161.04 | -28.31 | 56.49 | 0.5413 | 759.1 | 0.0 | |
| 0.00 | 0.73 | 0.00 | 0.43 | 20.96 | 160.53 | -28.82 | 53.13 | 0.5648 | 560.0 | 443.2 | |
| 0.00 | 3.72 | 0.00 | 2.17 | 17.15 | 161.00 | -28.36 | 58.85 | 0.5324 | 802.0 | 641.3 | |
| 0.00 | 2.09 | 0.00 | 1.21 | 15.98 | 161.18 | -28.17 | 60.70 | 0.5224 | 786.0 | 609.1 | |
| 1.45 | 7.44 | 0.86 | 4.40 | 18.54 | 160.46 | -28.89 | 56.98 | 0.5484 | 969.0 | 705.1 | |
| 0.00 | 2.72 | 0.00 | 1.61 | 18.51 | 160.17 | -29.18 | 57.27 | 0.5517 | 642.0 | 589.4 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 19.88 | 159.90 | -29.45 | 55.31 | 0.5645 | 677.0 | 491.6 | |
| 2.72 | 9.16 | 1.62 | 5.45 | 18.76 | 159.94 | -29.41 | 57.05 | 0.5563 | 749.0 | 636.0 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 18.03 | 160.04 | -29.31 | 58.15 | 0.5502 | 176.0 | 252.4 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 19.91 | 159.63 | -29.72 | 55.48 | 0.5679 | 550.0 | 386.9 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 19.05 | 159.55 | -29.80 | 56.90 | 0.5629 | 511.0 | 394.8 | |
| 0.00 | 0.54 | 0.00 | 0.33 | 18.66 | 159.44 | -29.91 | 57.60 | 0.5617 | 502.0 | 422.3 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 20.87 | 158.67 | -30.68 | 54.78 | 0.5858 | 564.0 | 466.1 | |
| 0.00 | 1.54 | 0.00 | 0.92 | 16.50 | 158.95 | -30.40 | 61.48 | 0.5544 | 655.0 | 555.7 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 16.86 | 157.77 | -31.58 | 61.68 | 0.5715 | 563.0 | 452.6 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 19.13 | 153.69 | -35.66 | 60.71 | 0.6338 | 405.0 | 407.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
