SDO HMI 2011-06-18 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.21 | 113.25 | 22.45 | 113.14 | -14.83 | 245.76 | 58.63 | 251.96 | 0.8693 | 4.6 | 160.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-18 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

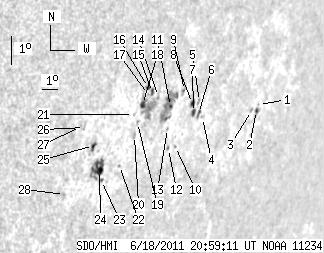

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 1.25 | -14.46 | 252.52 | 65.39 | 253.57 | 0.9195 | 246.0 | 180.7 | |
| 1.45 | 2.90 | 1.81 | 3.63 | -14.65 | 252.48 | 65.35 | 253.36 | 0.9194 | 310.1 | 155.1 | |
| 0.00 | 1.45 | 0.00 | 1.78 | -14.64 | 252.09 | 64.96 | 253.32 | 0.9168 | 390.0 | 354.6 | |
| 0.00 | 1.36 | 0.00 | 1.48 | -14.78 | 248.70 | 61.57 | 252.60 | 0.8929 | 393.0 | 308.3 | |
| 0.00 | 1.90 | 0.00 | 2.04 | -14.26 | 248.26 | 61.13 | 253.10 | 0.8889 | 315.0 | 337.3 | |
| 2.27 | 3.26 | 2.45 | 3.53 | -14.65 | 248.37 | 61.24 | 252.69 | 0.8902 | 323.3 | 295.1 | |
| 2.90 | 3.17 | 3.10 | 3.39 | -14.61 | 248.02 | 60.89 | 252.68 | 0.8875 | 525.3 | 460.7 | |
| 2.54 | 2.90 | 2.69 | 3.07 | -14.32 | 247.82 | 60.69 | 252.96 | 0.8856 | 562.0 | 523.8 | |
| 0.00 | 2.63 | 0.00 | 2.72 | -13.89 | 247.12 | 59.99 | 253.31 | 0.8795 | 503.0 | 447.8 | |
| 0.00 | 1.27 | 0.00 | 1.33 | -15.67 | 247.37 | 60.24 | 251.37 | 0.8840 | 527.0 | 419.6 | |
| 0.63 | 28.38 | 0.64 | 28.73 | -14.38 | 246.46 | 59.33 | 252.64 | 0.8749 | 842.4 | 602.4 | |
| 0.00 | 1.45 | 0.00 | 1.51 | -15.72 | 246.95 | 59.82 | 251.22 | 0.8808 | 462.0 | 360.8 | |
| 0.00 | 1.00 | 0.00 | 1.02 | -15.08 | 246.58 | 59.45 | 251.87 | 0.8769 | 442.0 | 472.5 | |
| 0.00 | 1.81 | 0.00 | 1.79 | -14.05 | 245.58 | 58.45 | 252.85 | 0.8672 | 286.0 | 202.1 | |
| 1.54 | 4.72 | 1.50 | 4.58 | -13.91 | 245.16 | 58.03 | 252.92 | 0.8635 | -207.0 | -223.2 | |
| 1.27 | -15.00 | 1.23 | -15.00 | -13.75 | 244.86 | 57.73 | 253.05 | 0.8607 | -420.2 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.88 | -13.97 | 244.95 | 57.82 | 252.81 | 0.8618 | -422.0 | -333.1 | |
| 2.90 | 20.95 | 2.80 | 20.42 | -14.28 | 244.72 | 57.59 | 252.41 | 0.8603 | -324.7 | 187.6 | |
| 0.00 | 0.54 | 0.00 | 0.53 | -14.85 | 244.66 | 57.53 | 251.74 | 0.8607 | -228.0 | -190.0 | |
| 0.00 | 2.72 | 0.00 | 2.64 | -15.26 | 244.66 | 57.53 | 251.27 | 0.8614 | -282.0 | -167.9 | |
| 0.00 | 0.45 | 0.00 | 0.43 | -14.59 | 244.31 | 57.18 | 251.97 | 0.8574 | -311.0 | -293.6 | |
| 0.00 | 1.00 | 0.00 | 0.96 | -16.20 | 244.19 | 57.06 | 250.09 | 0.8591 | -317.0 | -284.4 | |
| 0.45 | 1.81 | 0.43 | 1.71 | -16.67 | 243.35 | 56.22 | 249.36 | 0.8529 | -313.8 | -262.8 | |
| 3.99 | 18.77 | 3.73 | 17.48 | -16.34 | 243.09 | 55.96 | 249.68 | 0.8500 | -519.6 | -554.1 | |
| 2.27 | 3.45 | 2.07 | 3.15 | -15.53 | 242.41 | 55.28 | 250.45 | 0.8425 | -536.1 | -596.5 | |
| 0.00 | 1.27 | 0.00 | 1.14 | -14.94 | 241.68 | 54.55 | 250.96 | 0.8348 | -609.0 | -535.6 | |
| 0.00 | 1.18 | 0.00 | 1.05 | -14.91 | 241.45 | 54.32 | 250.95 | 0.8326 | -387.0 | -392.5 | |
| 0.00 | 1.00 | 0.00 | 0.90 | -17.07 | 241.45 | 54.32 | 248.41 | 0.8372 | -623.0 | -538.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
