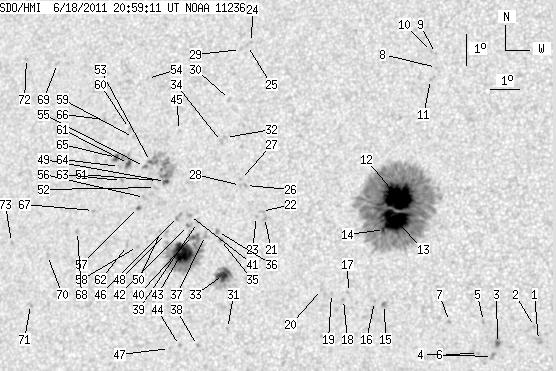

SDO HMI 2011-06-18 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 136.09 | 800.42 | 74.59 | 438.55 | 17.04 | 167.33 | -19.80 | 49.60 | 0.4251 | -237.0 | -127.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-18 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.17 | 0.00 | 2.16 | 13.15 | 174.76 | -12.37 | 45.64 | 0.2930 | -711.0 | -813.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 13.59 | 174.61 | -12.52 | 44.91 | 0.2998 | -788.0 | -641.7 | |
| 1.99 | 5.08 | 1.04 | 2.64 | 13.05 | 173.45 | -13.68 | 48.70 | 0.3080 | -1008.0 | -788.1 | |
| 0.00 | 3.45 | 0.00 | 1.79 | 12.65 | 173.31 | -13.82 | 50.01 | 0.3055 | -975.0 | -779.1 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 13.73 | 172.96 | -14.17 | 48.01 | 0.3214 | -753.0 | -550.5 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 12.74 | 172.86 | -14.27 | 50.67 | 0.3123 | -873.0 | -633.3 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 13.73 | 171.86 | -15.27 | 50.09 | 0.3351 | -914.0 | -696.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 21.79 | 170.68 | -16.45 | 36.98 | 0.4388 | -834.0 | -646.5 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 22.25 | 170.60 | -16.53 | 36.45 | 0.4451 | -689.0 | -514.4 | |
| 0.00 | 0.54 | 0.00 | 0.30 | 22.31 | 170.45 | -16.68 | 36.59 | 0.4473 | -666.0 | -559.2 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 21.40 | 170.53 | -16.60 | 37.82 | 0.4357 | -578.0 | -443.3 | |
| 46.70 | 504.44 | 25.22 | 272.17 | 17.61 | 169.85 | -17.28 | 45.31 | 0.3998 | -1452.0 | -423.8 | |
| 36.91 | -12.00 | 19.87 | -12.00 | 16.92 | 169.82 | -17.31 | 46.69 | 0.3928 | -1496.7 | 999999 | |
| 0.63 | -12.00 | 0.34 | -12.00 | 16.60 | 169.49 | -17.64 | 47.84 | 0.3935 | -1146.3 | 999999 | |
| 0.00 | 2.99 | 0.00 | 1.59 | 14.24 | 169.69 | -17.44 | 52.47 | 0.3678 | -960.0 | -794.7 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 14.33 | 169.35 | -17.78 | 52.77 | 0.3731 | -753.0 | -615.2 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 14.61 | 168.47 | -18.66 | 53.45 | 0.3870 | -741.0 | -582.1 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 14.39 | 168.32 | -18.81 | 54.13 | 0.3870 | -903.0 | -750.4 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 14.57 | 167.91 | -19.22 | 54.30 | 0.3941 | -842.0 | -674.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 14.70 | 167.56 | -19.57 | 54.50 | 0.3996 | -364.0 | -320.4 | |
| 0.00 | 2.45 | 0.00 | 1.35 | 16.94 | 165.39 | -21.74 | 52.75 | 0.4469 | 664.0 | 683.4 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 17.13 | 165.26 | -21.86 | 52.55 | 0.4501 | 723.0 | 671.6 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 16.97 | 165.11 | -22.02 | 53.02 | 0.4507 | 833.0 | 663.2 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 22.56 | 164.10 | -23.03 | 44.90 | 0.5138 | 671.0 | 572.3 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 22.46 | 163.98 | -23.15 | 45.20 | 0.5142 | 654.0 | 637.8 | |
| 0.00 | 1.72 | 0.00 | 0.96 | 17.95 | 164.61 | -22.52 | 51.83 | 0.4654 | 881.0 | 713.2 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 18.14 | 164.41 | -22.72 | 51.73 | 0.4695 | 817.0 | 651.1 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 17.95 | 164.43 | -22.70 | 52.03 | 0.4675 | 920.0 | 696.6 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 22.32 | 163.75 | -23.38 | 45.66 | 0.5153 | 760.0 | 633.8 | |
| 0.00 | 2.18 | 0.00 | 1.24 | 20.70 | 163.63 | -23.50 | 48.31 | 0.5014 | 688.0 | 498.3 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 13.45 | 164.52 | -22.61 | 60.64 | 0.4309 | -724.0 | -578.1 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 19.48 | 163.69 | -23.44 | 50.25 | 0.4898 | 624.0 | 496.7 | |
| 11.24 | 29.02 | 6.22 | 16.06 | 15.14 | 164.20 | -22.93 | 57.55 | 0.4475 | -963.7 | -531.0 | |
| 0.00 | 2.27 | 0.00 | 1.29 | 19.35 | 163.57 | -23.56 | 50.60 | 0.4901 | 772.0 | 645.2 | |
| 0.00 | 1.81 | 0.00 | 1.01 | 16.24 | 163.96 | -23.17 | 55.69 | 0.4591 | 1022.0 | 890.0 | |
| 0.00 | 2.27 | 0.00 | 1.27 | 16.49 | 163.83 | -23.30 | 55.37 | 0.4629 | 988.0 | 768.7 | |
| 0.00 | 3.81 | 0.00 | 2.13 | 16.36 | 163.43 | -23.70 | 56.03 | 0.4669 | 881.0 | 680.9 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 12.91 | 163.55 | -23.58 | 62.69 | 0.4406 | 835.0 | 645.7 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 16.77 | 163.10 | -24.03 | 55.62 | 0.4744 | 834.0 | 569.6 | |
| 0.63 | 105.19 | 0.36 | 59.01 | 16.35 | 162.98 | -24.15 | 56.50 | 0.4727 | 831.7 | 557.9 | |
| 0.00 | 1.99 | 0.00 | 1.13 | 16.98 | 162.79 | -24.34 | 55.54 | 0.4800 | 869.0 | 711.8 | |
| 0.00 | 2.18 | 0.00 | 1.23 | 16.67 | 162.80 | -24.33 | 56.11 | 0.4774 | 929.0 | 767.2 | |
| 25.84 | -40.00 | 14.51 | -40.00 | 15.85 | 162.70 | -24.43 | 57.72 | 0.4726 | 1191.9 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 12.91 | 162.94 | -24.19 | 63.25 | 0.4492 | 826.0 | 620.5 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 19.69 | 162.02 | -25.11 | 51.69 | 0.5112 | 638.0 | 502.4 | |
| 0.00 | 3.54 | 0.00 | 2.00 | 16.95 | 162.41 | -24.72 | 55.99 | 0.4846 | 895.0 | 786.9 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 12.81 | 162.60 | -24.53 | 63.73 | 0.4533 | 739.0 | 504.0 | |
| 0.00 | 3.26 | 0.00 | 1.85 | 16.41 | 162.06 | -25.07 | 57.30 | 0.4849 | 561.0 | 439.8 | |
| 2.18 | 40.62 | 1.24 | 23.31 | 18.05 | 161.79 | -25.34 | 54.66 | 0.5009 | 1023.9 | 588.3 | |
| 0.00 | 0.45 | 0.00 | 0.26 | 16.44 | 161.85 | -25.28 | 57.45 | 0.4879 | 462.0 | 425.6 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 18.08 | 161.50 | -25.63 | 54.89 | 0.5047 | 821.0 | 672.8 | |
| 0.00 | 1.63 | 0.00 | 0.93 | 17.86 | 161.46 | -25.67 | 55.31 | 0.5034 | 786.0 | 635.8 | |
| 1.45 | -49.00 | 0.84 | -49.00 | 18.68 | 161.15 | -25.98 | 54.20 | 0.5136 | 701.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 21.35 | 160.56 | -26.57 | 50.50 | 0.5420 | 548.0 | 450.2 | |
| 1.00 | 2.18 | 0.58 | 1.26 | 18.52 | 160.96 | -26.17 | 54.65 | 0.5147 | 799.8 | 698.5 | |
| 0.00 | 1.81 | 0.00 | 1.04 | 17.54 | 161.12 | -26.01 | 56.18 | 0.5053 | 606.0 | 529.8 | |
| 1.18 | 1.54 | 0.68 | 0.88 | 17.22 | 160.96 | -26.17 | 56.89 | 0.5050 | 745.5 | 734.0 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 15.99 | 161.10 | -26.03 | 58.95 | 0.4944 | 751.0 | 575.7 | |
| 0.00 | 1.63 | 0.00 | 0.95 | 19.44 | 160.41 | -26.72 | 53.65 | 0.5285 | 255.0 | 265.4 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 19.73 | 160.21 | -26.92 | 53.37 | 0.5331 | 710.0 | 643.0 | |
| 3.08 | 10.43 | 1.79 | 6.06 | 18.61 | 160.37 | -26.76 | 55.05 | 0.5226 | 915.0 | 655.6 | |
| 0.00 | 1.72 | 0.00 | 0.98 | 16.02 | 160.74 | -26.39 | 59.21 | 0.4993 | 519.0 | 417.7 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 18.07 | 160.21 | -26.92 | 56.11 | 0.5205 | 740.0 | 662.7 | |
| 0.00 | 1.72 | 0.00 | 1.00 | 18.51 | 160.06 | -27.07 | 55.50 | 0.5256 | 743.0 | 571.9 | |
| 3.26 | 4.44 | 1.90 | 2.59 | 18.80 | 159.91 | -27.22 | 55.17 | 0.5297 | 680.1 | 558.8 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 20.01 | 159.24 | -27.88 | 53.80 | 0.5467 | 581.0 | 499.1 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 17.11 | 159.36 | -27.77 | 58.47 | 0.5244 | 717.0 | 559.9 | |
| 0.00 | 1.99 | 0.00 | 1.16 | 16.44 | 158.89 | -28.24 | 60.00 | 0.5261 | 791.0 | 582.8 | |
| 0.00 | 1.90 | 0.00 | 1.16 | 21.80 | 157.11 | -30.02 | 52.89 | 0.5846 | 495.0 | 415.3 | |
| 0.00 | 1.63 | 0.00 | 0.95 | 15.67 | 157.93 | -29.20 | 62.05 | 0.5339 | 688.0 | 568.3 | |
| 0.00 | 1.99 | 0.00 | 1.16 | 14.13 | 157.54 | -29.59 | 65.00 | 0.5303 | 752.0 | 581.5 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 21.95 | 155.89 | -31.24 | 53.64 | 0.5995 | 770.0 | 609.2 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 16.06 | 156.55 | -30.58 | 62.35 | 0.5541 | 685.0 | 541.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
