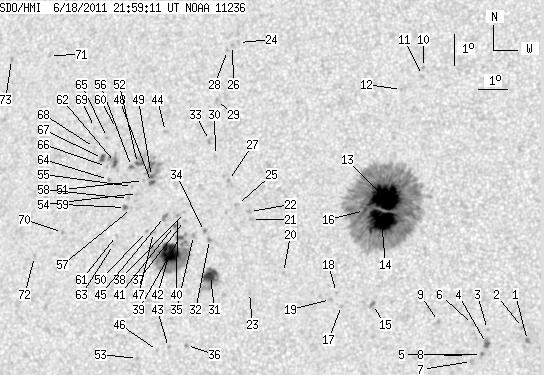

SDO HMI 2011-06-18 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 150.16 | 804.20 | 82.04 | 438.96 | 17.02 | 167.37 | -19.20 | 48.82 | 0.4176 | -264.4 | -132.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-18 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.54 | 0.00 | 1.31 | 13.16 | 174.78 | -11.79 | 44.29 | 0.2862 | -1100.0 | -925.8 | |
| 0.00 | 1.90 | 0.00 | 0.99 | 13.57 | 174.60 | -11.97 | 43.72 | 0.2931 | -872.0 | -701.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 13.50 | 173.48 | -13.09 | 46.39 | 0.3055 | -805.0 | -667.2 | |
| 0.00 | 4.99 | 0.00 | 2.59 | 13.06 | 173.47 | -13.10 | 47.49 | 0.3008 | -1176.0 | -926.8 | |
| 0.00 | 1.81 | 0.00 | 0.94 | 12.72 | 173.33 | -13.24 | 48.66 | 0.2989 | -1073.0 | -870.9 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 13.65 | 172.99 | -13.58 | 47.04 | 0.3132 | -901.0 | -651.9 | |
| 0.00 | 2.36 | 0.00 | 1.22 | 12.50 | 173.02 | -13.55 | 49.87 | 0.3005 | -944.0 | -684.4 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 12.69 | 172.85 | -13.72 | 49.73 | 0.3046 | -662.0 | -640.6 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 13.74 | 171.89 | -14.69 | 49.00 | 0.3278 | -855.0 | -608.1 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 21.80 | 170.68 | -15.90 | 36.07 | 0.4338 | -795.0 | -585.9 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 21.54 | 170.67 | -15.90 | 36.46 | 0.4306 | -652.0 | -474.1 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 21.09 | 170.01 | -16.57 | 38.25 | 0.4315 | -872.0 | -703.4 | |
| 49.69 | 509.63 | 26.76 | 274.16 | 17.59 | 169.84 | -16.74 | 44.48 | 0.3934 | -1420.0 | -407.0 | |
| 43.80 | -13.00 | 23.51 | -13.00 | 16.89 | 169.77 | -16.80 | 45.93 | 0.3867 | -1444.2 | 999999 | |
| 0.00 | 2.81 | 0.00 | 1.49 | 14.25 | 169.70 | -16.88 | 51.59 | 0.3607 | -956.0 | -792.8 | |
| 1.36 | -13.00 | 0.73 | -13.00 | 17.21 | 169.17 | -17.40 | 46.29 | 0.3969 | -760.1 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 14.22 | 168.68 | -17.90 | 53.23 | 0.3735 | -664.0 | -617.8 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 14.62 | 168.48 | -18.10 | 52.63 | 0.3798 | -693.0 | -489.2 | |
| 0.00 | 1.81 | 0.00 | 0.97 | 14.40 | 168.30 | -18.27 | 53.37 | 0.3801 | -964.0 | -681.7 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 15.23 | 166.66 | -19.92 | 53.85 | 0.4088 | -823.0 | -648.0 | |
| 0.00 | 2.09 | 0.00 | 1.15 | 16.89 | 165.39 | -21.18 | 52.18 | 0.4395 | 744.0 | 641.7 | |
| 0.00 | 2.09 | 0.00 | 1.15 | 17.15 | 165.29 | -21.28 | 51.83 | 0.4430 | 917.0 | 684.7 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 14.60 | 165.57 | -21.00 | 56.50 | 0.4176 | -670.0 | -451.7 | |
| 0.00 | 1.81 | 0.00 | 1.04 | 22.57 | 164.12 | -22.46 | 44.22 | 0.5078 | 597.0 | 373.8 | |
| 0.00 | 1.90 | 0.00 | 1.06 | 17.36 | 164.85 | -21.72 | 51.96 | 0.4503 | 659.0 | 580.0 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 22.47 | 163.92 | -22.65 | 44.60 | 0.5089 | 868.0 | 724.2 | |
| 0.00 | 1.90 | 0.00 | 1.06 | 18.12 | 164.45 | -22.13 | 51.08 | 0.4620 | 797.0 | 678.9 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 22.30 | 163.77 | -22.80 | 45.03 | 0.5089 | 831.0 | 613.8 | |
| 0.00 | 2.18 | 0.00 | 1.24 | 20.68 | 163.65 | -22.92 | 47.69 | 0.4947 | 695.0 | 412.8 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 18.91 | 163.88 | -22.69 | 50.35 | 0.4759 | 788.0 | 648.1 | |
| 11.61 | 30.29 | 6.40 | 16.69 | 15.12 | 164.20 | -22.38 | 57.01 | 0.4400 | -967.2 | -520.8 | |
| 0.00 | 2.36 | 0.00 | 1.31 | 16.25 | 164.03 | -22.54 | 55.00 | 0.4512 | 1039.0 | 815.5 | |
| 0.00 | 3.17 | 0.00 | 1.79 | 19.39 | 163.60 | -22.97 | 49.86 | 0.4835 | 751.0 | 632.2 | |
| 0.00 | 2.09 | 0.00 | 1.16 | 16.50 | 163.83 | -22.75 | 54.75 | 0.4558 | 1034.0 | 810.3 | |
| 0.00 | 2.63 | 0.00 | 1.47 | 16.37 | 163.46 | -23.11 | 55.39 | 0.4594 | 923.0 | 743.2 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 12.93 | 163.61 | -22.97 | 62.10 | 0.4321 | 806.0 | 619.9 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 16.84 | 163.09 | -23.48 | 54.92 | 0.4679 | 784.0 | 679.2 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 17.09 | 163.06 | -23.52 | 54.49 | 0.4704 | 441.0 | 430.9 | |
| 3.17 | 105.92 | 1.77 | 59.16 | 16.30 | 162.99 | -23.59 | 56.02 | 0.4650 | 878.5 | 537.0 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 17.00 | 162.83 | -23.75 | 54.92 | 0.4725 | 891.0 | 711.9 | |
| 1.00 | 4.08 | 0.56 | 2.29 | 16.68 | 162.77 | -23.81 | 55.56 | 0.4708 | 771.8 | 696.0 | |
| 25.48 | -39.00 | 14.24 | -39.00 | 15.83 | 162.70 | -23.87 | 57.21 | 0.4651 | 1222.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 12.86 | 163.00 | -23.57 | 62.80 | 0.4401 | 808.0 | 595.1 | |
| 0.00 | 1.63 | 0.00 | 0.94 | 19.67 | 162.01 | -24.57 | 51.17 | 0.5046 | 683.0 | 542.7 | |
| 0.00 | 3.08 | 0.00 | 1.74 | 16.96 | 162.38 | -24.20 | 55.45 | 0.4779 | 875.0 | 775.9 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 12.76 | 162.64 | -23.94 | 63.33 | 0.4446 | 563.0 | 447.2 | |
| 0.00 | 2.09 | 0.00 | 1.18 | 16.45 | 162.06 | -24.51 | 56.69 | 0.4780 | 751.0 | 560.2 | |
| 2.27 | 29.11 | 1.29 | 16.60 | 18.03 | 161.77 | -24.81 | 54.17 | 0.4941 | 1022.8 | 595.3 | |
| 1.18 | -48.00 | 0.67 | -48.00 | 18.22 | 161.74 | -24.84 | 53.87 | 0.4959 | 975.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 16.48 | 161.81 | -24.76 | 56.88 | 0.4815 | 775.0 | 581.8 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 18.09 | 161.47 | -25.10 | 54.36 | 0.4982 | 870.0 | 666.4 | |
| 1.36 | 12.33 | 0.78 | 7.07 | 18.63 | 161.18 | -25.40 | 53.73 | 0.5061 | 801.7 | 339.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 12.51 | 161.98 | -24.60 | 64.42 | 0.4524 | 787.0 | 519.8 | |
| 0.00 | 1.54 | 0.00 | 0.88 | 17.68 | 161.33 | -25.25 | 55.22 | 0.4968 | 811.0 | 663.5 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 17.90 | 161.11 | -25.46 | 55.05 | 0.5011 | 668.0 | 562.7 | |
| 1.45 | 2.09 | 0.83 | 1.20 | 18.54 | 160.98 | -25.60 | 54.09 | 0.5077 | 737.1 | 625.1 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 17.20 | 161.18 | -25.39 | 56.20 | 0.4949 | 598.0 | 476.0 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 17.52 | 161.03 | -25.54 | 55.79 | 0.4992 | 600.0 | 495.6 | |
| 1.90 | 2.36 | 1.09 | 1.35 | 17.23 | 160.97 | -25.61 | 56.35 | 0.4979 | 707.3 | 647.0 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 19.74 | 160.24 | -26.34 | 52.82 | 0.5262 | 760.0 | 643.6 | |
| 0.00 | 1.54 | 0.00 | 0.88 | 16.34 | 160.78 | -25.80 | 58.10 | 0.4938 | 598.0 | 452.3 | |
| 3.08 | 9.07 | 1.78 | 5.24 | 18.66 | 160.39 | -26.19 | 54.46 | 0.5159 | 903.5 | 711.0 | |
| 0.00 | 1.63 | 0.00 | 0.93 | 16.06 | 160.71 | -25.86 | 58.67 | 0.4927 | 681.0 | 429.7 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 18.11 | 160.23 | -26.35 | 55.52 | 0.5137 | 756.0 | 661.8 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 19.45 | 159.96 | -26.61 | 53.55 | 0.5272 | 804.0 | 665.3 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 18.53 | 160.09 | -26.49 | 54.96 | 0.5186 | 794.0 | 599.1 | |
| 2.81 | 4.08 | 1.63 | 2.37 | 18.78 | 159.90 | -26.68 | 54.71 | 0.5228 | 738.8 | 575.9 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 19.13 | 159.55 | -27.03 | 54.46 | 0.5297 | 638.0 | 456.1 | |
| 0.00 | 0.73 | 0.00 | 0.43 | 19.77 | 159.43 | -27.14 | 53.53 | 0.5359 | 536.0 | 409.4 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 16.42 | 158.85 | -27.73 | 59.63 | 0.5193 | 782.0 | 551.7 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 22.08 | 157.29 | -29.29 | 51.88 | 0.5783 | 589.0 | 411.6 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 15.65 | 157.96 | -28.62 | 61.66 | 0.5261 | 696.0 | 541.1 | |
| 0.00 | 1.81 | 0.00 | 1.11 | 21.93 | 155.88 | -30.69 | 53.25 | 0.5932 | 707.0 | 559.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
