SDO HMI 2011-06-19 00:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 144.48 | 788.51 | 78.00 | 425.85 | 17.11 | 167.56 | -17.35 | 45.86 | 0.3966 | -327.4 | -126.7 | |
|
previous
or next observation for the same group /

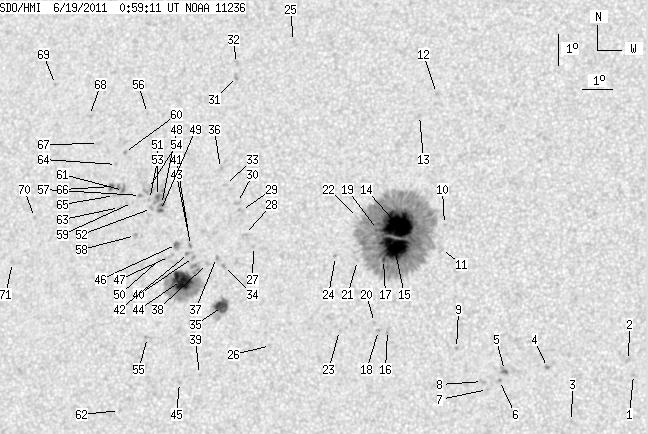

back to the solar disc SDO HMI 2011-06-19 00:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.99 | 177.66 | -7.25 | 31.54 | 0.2361 | -853.0 | -598.9 | |
| 0.00 | 2.63 | 0.00 | 1.34 | 13.42 | 177.49 | -7.42 | 31.16 | 0.2439 | -602.0 | -515.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 11.53 | 175.76 | -9.16 | 41.64 | 0.2357 | -774.0 | -607.6 | |
| 0.00 | 1.90 | 0.00 | 0.98 | 13.20 | 174.94 | -9.98 | 39.58 | 0.2659 | -1134.0 | -926.9 | |
| 0.00 | 3.63 | 0.00 | 1.87 | 13.10 | 173.57 | -11.34 | 43.41 | 0.2800 | -1168.0 | -964.6 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 12.79 | 173.43 | -11.49 | 44.57 | 0.2780 | -1015.0 | -909.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 12.51 | 173.06 | -11.86 | 46.20 | 0.2792 | -903.0 | -614.7 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 12.75 | 172.89 | -12.03 | 45.95 | 0.2840 | -851.0 | -734.0 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 13.78 | 172.00 | -12.91 | 45.38 | 0.3063 | -835.0 | -652.1 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 17.67 | 171.35 | -13.56 | 38.58 | 0.3599 | 668.0 | 491.2 | |
| 0.00 | 3.81 | 0.00 | 2.01 | 16.88 | 171.31 | -13.60 | 40.15 | 0.3506 | 341.0 | 115.7 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 21.87 | 170.71 | -14.21 | 33.07 | 0.4191 | -734.0 | -583.6 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 21.16 | 170.21 | -14.71 | 35.01 | 0.4145 | -827.0 | -610.5 | |
| 55.42 | 517.02 | 29.61 | 275.90 | 17.66 | 169.80 | -15.11 | 41.57 | 0.3760 | -1393.5 | -409.4 | |
| 39.18 | -14.00 | 20.87 | -14.00 | 16.93 | 169.76 | -15.15 | 43.03 | 0.3680 | -1472.8 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.19 | 14.32 | 169.73 | -15.18 | 48.59 | 0.3398 | -805.0 | -704.9 | |
| 1.18 | -14.00 | 0.63 | -14.00 | 16.55 | 169.43 | -15.48 | 44.38 | 0.3674 | -988.2 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.91 | 14.32 | 169.44 | -15.48 | 49.12 | 0.3434 | -923.0 | -708.9 | |
| 1.72 | -14.00 | 0.92 | -14.00 | 17.50 | 169.15 | -15.76 | 43.04 | 0.3812 | -765.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 14.57 | 169.29 | -15.62 | 48.82 | 0.3478 | -732.0 | -505.4 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 16.51 | 168.58 | -16.34 | 45.94 | 0.3769 | -12.0 | -70.9 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 17.88 | 168.45 | -16.46 | 43.54 | 0.3932 | 55.0 | 37.8 | |
| 0.00 | 0.63 | 0.00 | 0.34 | 14.31 | 168.16 | -16.75 | 51.30 | 0.3594 | -829.0 | -683.9 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 16.64 | 167.83 | -17.08 | 46.93 | 0.3869 | 501.0 | 475.3 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 23.54 | 165.56 | -19.35 | 38.83 | 0.4865 | 713.0 | 547.9 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 13.83 | 165.92 | -18.99 | 55.67 | 0.3843 | -699.0 | -496.1 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 16.93 | 165.05 | -19.86 | 50.45 | 0.4233 | 679.0 | 419.0 | |
| 0.00 | 1.81 | 0.00 | 1.00 | 17.31 | 164.70 | -20.21 | 50.20 | 0.4311 | 704.0 | 658.3 | |
| 0.00 | 3.08 | 0.00 | 1.70 | 18.07 | 164.51 | -20.40 | 49.05 | 0.4406 | 644.0 | 561.1 | |
| 0.00 | 2.45 | 0.00 | 1.35 | 18.32 | 164.34 | -20.57 | 48.81 | 0.4450 | 752.0 | 654.9 | |
| 0.00 | 2.81 | 0.00 | 1.60 | 22.38 | 163.73 | -21.18 | 42.95 | 0.4923 | 644.0 | 673.8 | |
| 0.00 | 2.45 | 0.00 | 1.40 | 22.80 | 163.66 | -21.25 | 42.41 | 0.4974 | 742.0 | 624.4 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 18.89 | 163.86 | -21.06 | 48.44 | 0.4562 | 755.0 | 601.4 | |
| 0.00 | 2.00 | 0.00 | 1.09 | 16.29 | 164.11 | -20.81 | 52.91 | 0.4293 | 1001.0 | 775.9 | |
| 13.06 | 22.95 | 7.11 | 12.50 | 15.03 | 164.21 | -20.71 | 55.29 | 0.4172 | -1027.7 | -476.3 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 19.40 | 163.62 | -21.30 | 47.87 | 0.4639 | 687.0 | 675.7 | |
| 0.00 | 1.81 | 0.00 | 1.00 | 16.57 | 163.84 | -21.08 | 52.70 | 0.4351 | 946.0 | 771.4 | |
| 0.00 | 1.90 | 0.00 | 1.05 | 16.38 | 163.55 | -21.36 | 53.41 | 0.4371 | 848.0 | 673.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 12.91 | 163.64 | -21.28 | 60.47 | 0.4083 | 866.0 | 622.3 | |
| 0.00 | 2.18 | 0.00 | 1.20 | 16.57 | 163.05 | -21.86 | 53.66 | 0.4450 | 947.0 | 715.6 | |
| 0.00 | 2.00 | 0.00 | 1.11 | 16.94 | 162.90 | -22.01 | 53.12 | 0.4501 | 925.0 | 724.6 | |
| 0.00 | 2.54 | 0.00 | 1.41 | 16.69 | 162.86 | -22.05 | 53.64 | 0.4484 | 871.0 | 711.9 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 17.32 | 162.79 | -22.13 | 52.56 | 0.4548 | 611.0 | 485.9 | |
| 24.49 | 98.42 | 13.52 | 54.28 | 15.84 | 162.73 | -22.19 | 55.43 | 0.4431 | 1237.1 | 589.1 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 12.65 | 162.99 | -21.93 | 61.71 | 0.4155 | 751.0 | 548.6 | |
| 1.36 | 4.17 | 0.76 | 2.32 | 16.97 | 162.42 | -22.50 | 53.63 | 0.4564 | 860.3 | 704.5 | |
| 0.00 | 3.08 | 0.00 | 1.71 | 16.59 | 162.22 | -22.69 | 54.56 | 0.4557 | 583.0 | 557.7 | |
| 1.45 | 21.23 | 0.82 | 11.95 | 18.24 | 161.73 | -23.19 | 52.13 | 0.4757 | 972.9 | 643.6 | |
| 1.54 | -48.00 | 0.87 | -48.00 | 18.04 | 161.72 | -23.20 | 52.48 | 0.4741 | 910.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 16.49 | 161.89 | -23.02 | 55.11 | 0.4591 | 668.0 | 544.3 | |
| 1.00 | -48.00 | 0.56 | -48.00 | 18.49 | 161.55 | -23.36 | 51.89 | 0.4800 | 897.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 18.10 | 161.40 | -23.52 | 52.73 | 0.4786 | 854.0 | 685.1 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 18.39 | 161.28 | -23.63 | 52.35 | 0.4824 | 661.0 | 602.6 | |
| 0.00 | 11.43 | 0.00 | 6.47 | 18.74 | 161.20 | -23.72 | 51.84 | 0.4864 | 473.0 | 435.4 | |
| 0.00 | 2.36 | 0.00 | 1.30 | 14.04 | 161.76 | -23.15 | 60.01 | 0.4422 | -758.0 | -554.3 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 21.15 | 160.77 | -24.14 | 48.35 | 0.5125 | 610.0 | 462.3 | |
| 0.00 | 1.72 | 0.00 | 0.98 | 18.51 | 160.95 | -23.97 | 52.49 | 0.4875 | 907.0 | 716.3 | |
| 0.00 | 2.54 | 0.00 | 1.43 | 17.24 | 160.96 | -23.96 | 54.72 | 0.4770 | 820.0 | 637.0 | |
| 0.00 | 0.73 | 0.00 | 0.41 | 18.29 | 160.70 | -24.21 | 53.15 | 0.4886 | 770.0 | 567.6 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 19.88 | 160.17 | -24.75 | 51.03 | 0.5084 | 782.0 | 707.9 | |
| 1.18 | 7.80 | 0.67 | 4.45 | 18.67 | 160.33 | -24.59 | 52.89 | 0.4963 | 1003.2 | 797.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 11.77 | 161.04 | -23.88 | 65.42 | 0.4376 | 726.0 | 542.1 | |
| 0.00 | 2.36 | 0.00 | 1.34 | 18.13 | 160.27 | -24.65 | 53.88 | 0.4926 | 804.0 | 592.2 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 19.50 | 159.94 | -24.97 | 51.89 | 0.5077 | 621.0 | 557.9 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 18.51 | 160.03 | -24.88 | 53.47 | 0.4986 | 762.0 | 618.9 | |
| 2.90 | 3.90 | 1.66 | 2.23 | 18.79 | 159.88 | -25.03 | 53.13 | 0.5027 | 711.4 | 673.7 | |
| 0.00 | 2.63 | 0.00 | 1.53 | 20.16 | 159.18 | -25.73 | 51.58 | 0.5222 | 591.0 | 451.8 | |
| 0.00 | 2.00 | 0.00 | 1.17 | 21.06 | 158.69 | -26.22 | 50.64 | 0.5353 | 664.0 | 568.0 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 22.06 | 157.24 | -27.67 | 50.51 | 0.5599 | 588.0 | 457.5 | |
| 0.00 | 1.63 | 0.00 | 0.95 | 17.78 | 157.29 | -27.63 | 57.26 | 0.5270 | 634.0 | 513.4 | |
| 0.00 | 2.09 | 0.00 | 1.21 | 16.34 | 156.73 | -28.19 | 60.16 | 0.5246 | 741.0 | 470.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
