SDO HMI 2011-06-19 01:59:11 UT

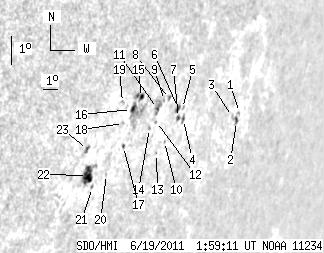

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.23 | 80.11 | 20.08 | 87.00 | -14.85 | 245.62 | 61.25 | 252.42 | 0.8900 | -74.5 | 148.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-19 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.77 | -14.54 | 252.77 | 68.40 | 253.88 | 0.9383 | 123.0 | -9.0 | |
| 0.00 | 2.63 | 0.00 | 3.72 | -14.83 | 252.70 | 68.33 | 253.57 | 0.9381 | 238.0 | 212.7 | |
| 0.00 | 1.36 | 0.00 | 1.88 | -14.66 | 252.24 | 67.88 | 253.69 | 0.9353 | 460.0 | 398.5 | |
| 0.00 | 2.81 | 0.00 | 3.34 | -14.66 | 248.41 | 64.05 | 253.13 | 0.9107 | 377.0 | 256.8 | |
| 0.00 | 1.45 | 0.00 | 1.71 | -14.31 | 248.15 | 63.79 | 253.48 | 0.9085 | 342.0 | 262.6 | |
| 2.09 | 2.99 | 2.42 | 3.48 | -14.30 | 247.86 | 63.50 | 253.44 | 0.9065 | 496.5 | 397.3 | |
| 1.54 | 2.54 | 1.81 | 2.98 | -14.59 | 248.01 | 63.65 | 253.15 | 0.9078 | 480.8 | 406.8 | |
| 0.00 | 1.91 | 0.00 | 2.15 | -13.96 | 247.06 | 62.70 | 253.68 | 0.9003 | 444.0 | 347.4 | |
| 0.00 | 0.82 | 0.00 | 0.91 | -14.02 | 246.74 | 62.38 | 253.57 | 0.8981 | 586.0 | 499.6 | |
| 0.00 | 1.09 | 0.00 | 1.25 | -15.33 | 247.42 | 63.05 | 252.24 | 0.9045 | 486.0 | 428.9 | |
| 0.54 | 7.26 | 0.60 | 8.02 | -14.26 | 246.39 | 62.02 | 253.24 | 0.8957 | 765.3 | 611.8 | |
| 0.00 | 0.64 | 0.00 | 0.71 | -14.68 | 246.52 | 62.16 | 252.80 | 0.8972 | 589.0 | 542.6 | |
| 0.00 | 0.82 | 0.00 | 0.93 | -15.71 | 247.06 | 62.70 | 251.77 | 0.9024 | 302.0 | 287.0 | |
| 0.00 | 1.00 | 0.00 | 1.10 | -14.89 | 246.15 | 61.79 | 252.50 | 0.8948 | 586.0 | 583.8 | |
| 1.18 | 5.17 | 1.25 | 5.46 | -13.89 | 245.15 | 60.79 | 253.44 | 0.8859 | -219.5 | -231.3 | |
| 1.63 | 21.59 | 1.71 | 22.86 | -14.26 | 244.67 | 60.31 | 252.94 | 0.8826 | -231.3 | 184.9 | |
| 0.00 | 1.45 | 0.00 | 1.53 | -15.43 | 244.71 | 60.35 | 251.64 | 0.8845 | -141.0 | -110.2 | |
| 0.00 | 1.00 | 0.00 | 1.04 | -14.69 | 244.36 | 60.00 | 252.40 | 0.8807 | -449.0 | -324.8 | |
| 0.00 | 1.27 | 0.00 | 1.30 | -14.02 | 244.00 | 59.63 | 253.08 | 0.8769 | -455.0 | -409.5 | |
| 0.00 | 1.09 | 0.00 | 1.13 | -16.31 | 244.06 | 59.69 | 250.53 | 0.8808 | -206.0 | -140.0 | |
| 0.00 | 1.27 | 0.00 | 1.29 | -16.71 | 243.38 | 59.02 | 249.94 | 0.8761 | -212.0 | -184.6 | |
| 12.25 | 16.51 | 12.29 | 16.58 | -16.31 | 242.88 | 58.51 | 250.27 | 0.8714 | -573.7 | -342.6 | |
| 0.00 | 2.90 | 0.00 | 2.86 | -15.47 | 242.49 | 58.12 | 251.14 | 0.8668 | -645.0 | -497.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
