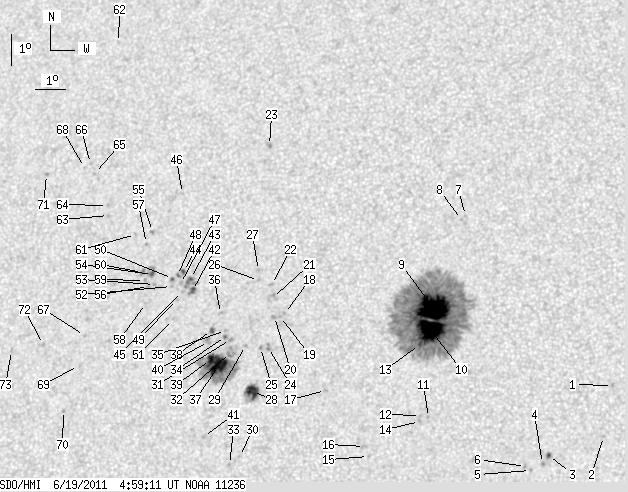

SDO HMI 2011-06-19 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 143.18 | 764.55 | 76.51 | 408.40 | 17.17 | 167.62 | -15.09 | 41.89 | 0.3717 | -211.0 | -167.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-19 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.75 | 15.24 | 175.70 | -7.01 | 26.32 | 0.2669 | -892.0 | -634.5 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 13.65 | 175.47 | -7.25 | 30.15 | 0.2451 | -737.0 | -633.5 | |
| 1.54 | 2.09 | 0.79 | 1.07 | 13.05 | 173.75 | -8.97 | 37.07 | 0.2530 | -1063.1 | -914.7 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 12.80 | 173.57 | -9.15 | 38.24 | 0.2515 | -1042.0 | -867.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 12.58 | 173.20 | -9.52 | 39.90 | 0.2527 | -852.0 | -675.4 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 12.71 | 173.03 | -9.68 | 40.06 | 0.2560 | -921.0 | -807.8 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 20.63 | 170.63 | -12.09 | 30.81 | 0.3842 | -806.0 | -571.6 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 20.50 | 170.51 | -12.21 | 31.25 | 0.3835 | -759.0 | -562.2 | |
| 51.27 | 528.35 | 27.13 | 279.36 | 17.68 | 169.80 | -12.92 | 37.29 | 0.3530 | -1444.4 | -426.8 | |
| 37.11 | -9.00 | 19.57 | -9.00 | 16.98 | 169.75 | -12.96 | 38.68 | 0.3448 | -1535.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 14.22 | 169.86 | -12.85 | 44.27 | 0.3102 | -947.0 | -824.1 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 14.28 | 169.60 | -13.11 | 44.69 | 0.3140 | -963.0 | -759.2 | |
| 1.27 | -9.00 | 0.67 | -9.00 | 16.51 | 169.43 | -13.29 | 40.29 | 0.3423 | -975.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 14.09 | 169.58 | -13.13 | 45.18 | 0.3121 | -978.0 | -806.7 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 12.99 | 168.00 | -14.71 | 51.00 | 0.3199 | -860.0 | -647.6 | |
| 0.00 | 3.45 | 0.00 | 1.81 | 13.30 | 167.85 | -14.86 | 50.50 | 0.3249 | -829.0 | -544.8 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 15.04 | 166.46 | -16.26 | 48.94 | 0.3601 | -806.0 | -627.4 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 17.46 | 164.88 | -17.84 | 46.58 | 0.4040 | 663.0 | 553.0 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 17.36 | 164.75 | -17.96 | 46.96 | 0.4044 | 842.0 | 712.5 | |
| 0.00 | 2.36 | 0.00 | 1.28 | 17.36 | 164.55 | -18.16 | 47.26 | 0.4068 | 840.0 | 730.3 | |
| 0.00 | 5.99 | 0.00 | 3.26 | 17.96 | 164.42 | -18.29 | 46.33 | 0.4145 | 346.0 | 615.6 | |
| 0.00 | 2.45 | 0.00 | 1.34 | 18.37 | 164.34 | -18.37 | 45.70 | 0.4197 | 786.0 | 636.9 | |
| 0.00 | 2.54 | 0.00 | 1.43 | 22.86 | 163.70 | -19.01 | 39.37 | 0.4752 | 905.0 | 741.5 | |
| 0.00 | 2.99 | 0.00 | 1.62 | 16.38 | 164.45 | -18.27 | 49.33 | 0.3982 | 905.0 | 703.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 16.38 | 164.18 | -18.53 | 49.72 | 0.4014 | 991.0 | 829.2 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 18.50 | 163.89 | -18.83 | 46.14 | 0.4262 | 816.0 | 605.8 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 18.82 | 163.85 | -18.86 | 45.63 | 0.4299 | 811.0 | 696.6 | |
| 11.61 | 20.32 | 6.24 | 10.93 | 14.99 | 164.05 | -18.67 | 52.76 | 0.3900 | -1025.1 | -576.6 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 16.43 | 163.67 | -19.04 | 50.34 | 0.4082 | 916.0 | 683.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 12.96 | 163.79 | -18.93 | 57.62 | 0.3759 | 509.0 | 429.1 | |
| 0.00 | 2.27 | 0.00 | 1.23 | 16.62 | 163.15 | -19.57 | 50.70 | 0.4165 | 907.0 | 787.7 | |
| 0.00 | 7.89 | 0.00 | 4.29 | 16.21 | 163.19 | -19.52 | 51.45 | 0.4121 | 825.0 | 794.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 12.71 | 163.48 | -19.24 | 58.60 | 0.3782 | 798.0 | 656.0 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 16.71 | 162.97 | -19.75 | 50.76 | 0.4195 | 1036.0 | 913.4 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 16.90 | 162.95 | -19.77 | 50.42 | 0.4216 | 849.0 | 650.8 | |
| 0.00 | 2.09 | 0.00 | 1.14 | 17.44 | 162.72 | -20.00 | 49.72 | 0.4294 | 566.0 | 494.3 | |
| 21.41 | 84.38 | 11.64 | 45.85 | 15.80 | 162.83 | -19.89 | 52.75 | 0.4129 | 1321.9 | 525.9 | |
| 2.27 | 3.36 | 1.24 | 1.84 | 16.90 | 162.47 | -20.24 | 51.06 | 0.4274 | 739.4 | 743.7 | |
| 5.99 | -37.00 | 3.26 | -37.00 | 15.98 | 162.54 | -20.18 | 52.76 | 0.4182 | 979.8 | 999999 | |
| 0.00 | 4.45 | 0.00 | 2.43 | 16.55 | 162.41 | -20.30 | 51.81 | 0.4249 | 675.0 | 656.3 | |
| 0.00 | 2.09 | 0.00 | 1.13 | 13.57 | 162.54 | -20.18 | 57.80 | 0.3979 | 594.0 | 397.3 | |
| 3.09 | 13.61 | 1.71 | 7.55 | 18.16 | 161.67 | -21.04 | 49.76 | 0.4488 | 1065.4 | 749.2 | |
| 1.36 | -42.00 | 0.76 | -42.00 | 18.54 | 161.56 | -21.16 | 49.23 | 0.4538 | 796.2 | 999999 | |
| 1.63 | 4.17 | 0.91 | 2.33 | 18.76 | 161.29 | -21.43 | 49.18 | 0.4590 | 718.4 | 757.7 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 18.13 | 161.33 | -21.38 | 50.24 | 0.4525 | 958.0 | 682.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 21.27 | 160.89 | -21.83 | 45.51 | 0.4877 | 573.0 | 384.5 | |
| 0.00 | 2.27 | 0.00 | 1.26 | 18.38 | 161.23 | -21.48 | 49.92 | 0.4561 | 850.0 | 677.2 | |
| 1.27 | -44.00 | 0.71 | -44.00 | 18.63 | 161.10 | -21.62 | 49.64 | 0.4601 | 747.0 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 17.87 | 161.16 | -21.55 | 50.92 | 0.4523 | 862.0 | 685.5 | |
| 1.27 | 2.54 | 0.71 | 1.42 | 18.54 | 160.94 | -21.78 | 50.01 | 0.4611 | 738.7 | 528.2 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 17.24 | 161.10 | -21.61 | 52.15 | 0.4473 | 698.0 | 604.2 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 18.28 | 160.93 | -21.78 | 50.46 | 0.4588 | 728.0 | 597.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 18.34 | 160.34 | -22.38 | 51.07 | 0.4665 | 891.0 | 762.0 | |
| 2.09 | 6.44 | 1.17 | 3.62 | 18.66 | 160.22 | -22.49 | 50.64 | 0.4707 | 954.6 | 739.5 | |
| 0.00 | 2.09 | 0.00 | 1.18 | 20.03 | 160.02 | -22.69 | 48.55 | 0.4855 | 886.0 | 697.0 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 18.27 | 160.14 | -22.58 | 51.41 | 0.4683 | 890.0 | 705.9 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 19.65 | 159.87 | -22.85 | 49.37 | 0.4838 | 845.0 | 630.1 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 17.73 | 160.11 | -22.61 | 52.41 | 0.4640 | 616.0 | 568.3 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 18.46 | 159.97 | -22.74 | 51.27 | 0.4720 | 771.0 | 641.5 | |
| 0.00 | 2.90 | 0.00 | 1.63 | 18.72 | 159.87 | -22.85 | 50.95 | 0.4755 | 843.0 | 660.5 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 19.93 | 159.44 | -23.28 | 49.39 | 0.4913 | 822.0 | 564.7 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 26.22 | 157.61 | -25.11 | 42.13 | 0.5695 | 722.0 | 526.5 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 20.53 | 158.38 | -24.33 | 49.58 | 0.5089 | 730.0 | 625.9 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 20.86 | 158.29 | -24.43 | 49.16 | 0.5128 | 711.0 | 571.0 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 21.89 | 157.63 | -25.08 | 48.25 | 0.5293 | 745.0 | 580.6 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 22.21 | 157.43 | -25.29 | 47.98 | 0.5344 | 577.0 | 433.2 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 16.70 | 158.12 | -24.59 | 56.40 | 0.4805 | 770.0 | 568.9 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 22.08 | 157.23 | -25.48 | 48.38 | 0.5354 | 555.0 | 484.1 | |
| 0.00 | 0.64 | 0.00 | 0.36 | 15.75 | 158.04 | -24.68 | 58.22 | 0.4745 | 563.0 | 628.6 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 14.34 | 157.70 | -25.02 | 61.23 | 0.4694 | 859.0 | 696.0 | |
| 0.00 | 1.72 | 0.00 | 1.02 | 21.84 | 155.89 | -26.83 | 50.08 | 0.5483 | 809.0 | 653.6 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 16.40 | 156.72 | -25.99 | 58.26 | 0.4963 | 729.0 | 557.4 | |
| 0.00 | 1.63 | 0.00 | 0.94 | 16.20 | 155.62 | -27.10 | 59.58 | 0.5093 | 605.0 | 518.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
